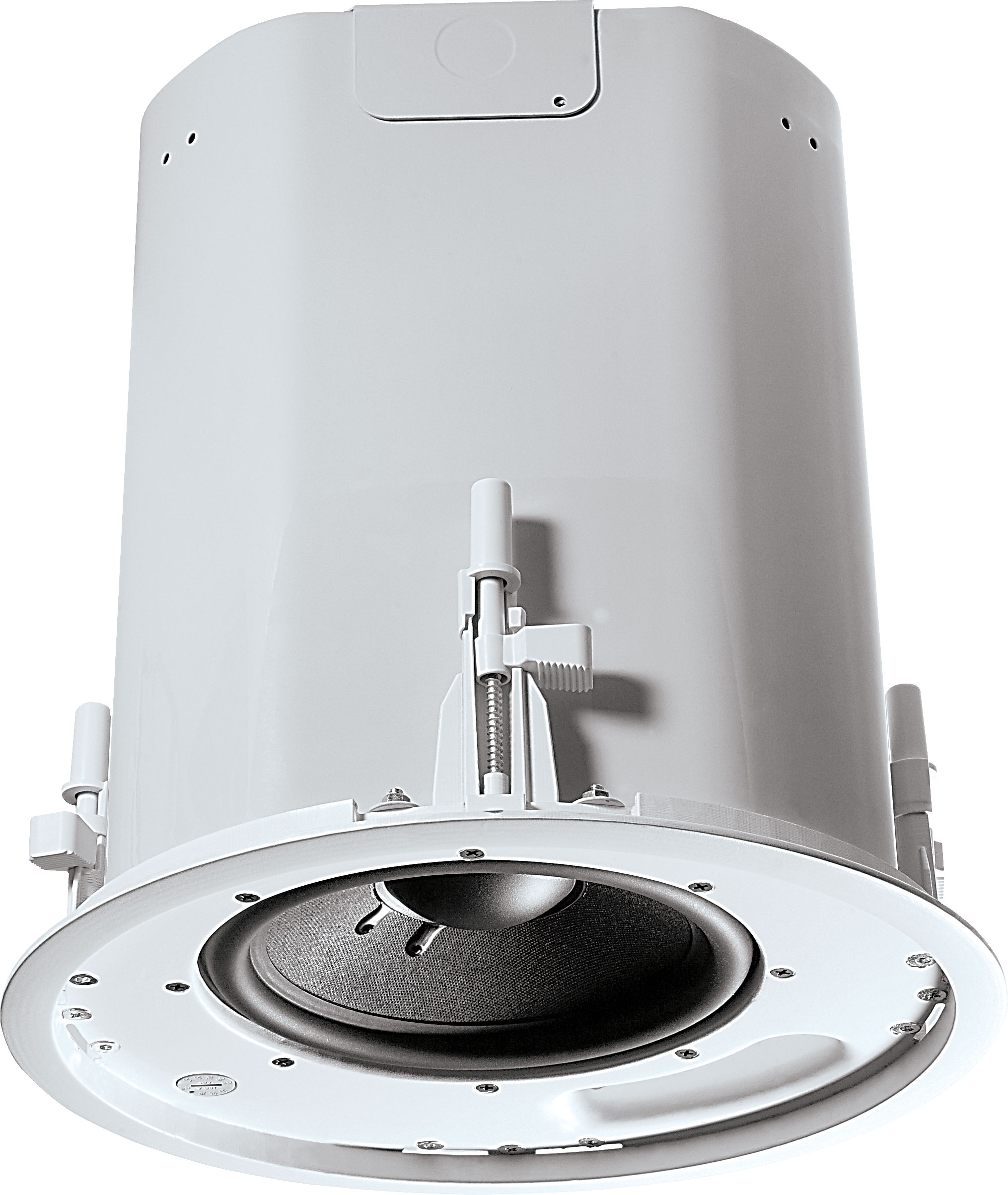

JBL Professional Control 40CS/T

Større billeder

Højtydende indbygget subwoofer

Control 40CS/T er en direkte udstrålende, højtydende 8" subwoofer med et indbygget passivt crossover-netværk, der gør det muligt at bruge Control 40CS/T som en del af et subwoofer-satellit-system. Når Control 40CS/T kombineres med Control 42, udgør de et ekstremt naturligt klingende og kraftigt subwoofer-satellit-system, som er ideelt til applikationer, der kræver bredt frekvensbandbredde og superior lydydelse med minimal visuel påvirkning. Systemet kan også bruges via et aktivt crossover-design sammen med resten af Control Contractor-linjen med indbyggede højttalere for overlegne basresponser og kan køres på en 70V/100V distribueret linje eller i direkttilstand.

Funktioner

Extended Bass Response with Maximum Impact
Passive Crossover Network for Easy to Install Subwoofer-Satellite Systems
Switchable 70V/100V or Low-Z
Elegant design fits any décor

Downloads

Data Sheets

	Version	Størrelse	Uploadet
Control 40CST Spec Sheet version C, opdateret: apr 2020	C	509 kB	apr 2020

Manuals

	Version	Størrelse	Uploadet
Ceiling Speaker Accessory Guide version A, opdateret: maj 2026	A	127 kB	maj 2026

Brochures

	Version	Sprog	Størrelse	Uploadet
Control Contractor Brochure (2025) version A, opdateret: mar 2026	A		23 MB	mar 2026
Control Contractor Brochure (2024) version D, opdateret: feb 2024	D		14 MB	feb 2024
Control 40 Brochure opdateret: sep 2019			716 kB	sep 2019
Control Contractor Brochure (2026) opdateret: mar 2026			21 MB	mar 2026

CAD Drawings

	Version	Størrelse	Uploadet
Control 47HC & 40CST 3D Drawing version B, opdateret: nov 2020	B	1,59 MB	nov 2020
Control 47HC & 40CST 2D Drawing version B, opdateret: nov 2020	B	185 kB	nov 2020

Compliances

	Størrelse	Uploadet
JBL Control Series Passive Speakers DoC opdateret: dec 2019	179 kB	dec 2019
Control 40 Series Declaration of Conformity opdateret: okt 2019	154 kB	okt 2019

User Guides

	Størrelse	Uploadet
Control 40 Users Guide opdateret: okt 2020	934 kB	okt 2020

Accessories

	Størrelse	Uploadet
MTC-CS-Teth1 Press-In Grille Safety Tether opdateret: sep 2021	204 kB	sep 2021

Speaker Tunings

	Version	Størrelse	Uploadet
Commercial, CBT, and AWC Tunings 220616 version A, opdateret: maj 2023	A	557 kB	maj 2023

Images

	Størrelse	Uploadet
Control 40CST HiRes opdateret: apr 2019	480 kB	apr 2019

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

Frequency Range	32 Hz - 300 Hz
Power Rating	IEC System Long-Term Ratings (low-Z direct): 200 Watts Continuous Program Power 100 Watts Continuous Pink Noise(400W peak), 100 hr
Sensitivity	95 dB (near corner), 89 dB (center of ceiling)
Transformer Taps	80W, 40W, 20W (& 10W at 70V only)
Impedance	8 ohms (in bypass mode)
Drivers	200 mm (8 in) subwoofer
Termination	Screw-down removable locking clip-in connector
Satellite Outputs	Connectors for 2 or 4 Control 42C satellite speakers
Included Accessories	C-rings, tile rails, paint shield, cutout template, grille
Dimensions (Diameter x Depth)	332mm Diameter x 338mm Diameter Depth (13.1 in x 13.3 in)
Transformer Taps	80 W 40 W, 20 W, (& 10 W @ 70V), plus transformer bypass
Maximum SPL (1m)	109 dB (low-impedance, 115 dB peak, center of ceiling) 115 dB (low-impedance, 121 dB peak near corner) 108 dB (70V/100V, center of ceiling) 114 dB (70V/100V near corner)
Input Connectors	6 removeable locking 2-pin connectors with screwdown terminals.
Color	White
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	formed steel (included "blind-mount")
Baffle/Rim	ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
Ceiling Cutout Size	307 mm Diameter (12.1 in) (cardboard cutout template included)
Optional Accessories	MTC-19NC New Construction Bracket, MTC-19MR Mud Ring Construction Bracket
Plenum Usage	Yes, backcan included
Coverage Angle	Omnidirectional

Tilbehør

MTC-48TRx12 | Loftpaneleskinner til 4' x 4' loftplader

Større billeder

Tile Rail for 4' x 4' Ceiling Tiles

MTC-48TRx12 er et tilbehørsskinne til installation af mange af JBL's lofthøjttalere i 4 ft x 4 ft
(1200 x 1200 mm; 48 x 48 inch) loftsplader i ophængte loftskonstruktioner.

Kan bruges med alle JBL-lofttalere med C-ring/tile-rail-monteringssystem.
Omfatter (ved produktudgivelse):
• Control 24C/CT Micro & 24CT MicroPlus
• Control 24C/CT, 26C/CT, 19CS/CST
• Control 47C/T, 47LP, 47HC, 40CS/T, 42C
• Control 226C/T
• 8124/8128
• Ikke til JBL-talere, der installeres med tile bridges (såsom CSS-serien, 8138, C227C/CT, C300-seriemodeller). Kontakt JBL Professional kundeservice for den mest opdaterede kompatibilitetsliste.
Inverteret V-rille giver støtte til tile rail-gitteret i tilfælde af flisefejl og reducerer vibrationstransmission til – og lyd fra – loftsflisegittersystemet.
1,2 mm (0,05 tommer) metaltykkelse giver den yderligere støtte, som det lange spænd kræver.
Flere C-ring-monteringshul. Yderligere hulpositioner kan bores af installatøren.
Én MTC-48TRx12 er en pakke med 12 tile rails, nok til 6 talere (2 pr. taler).
