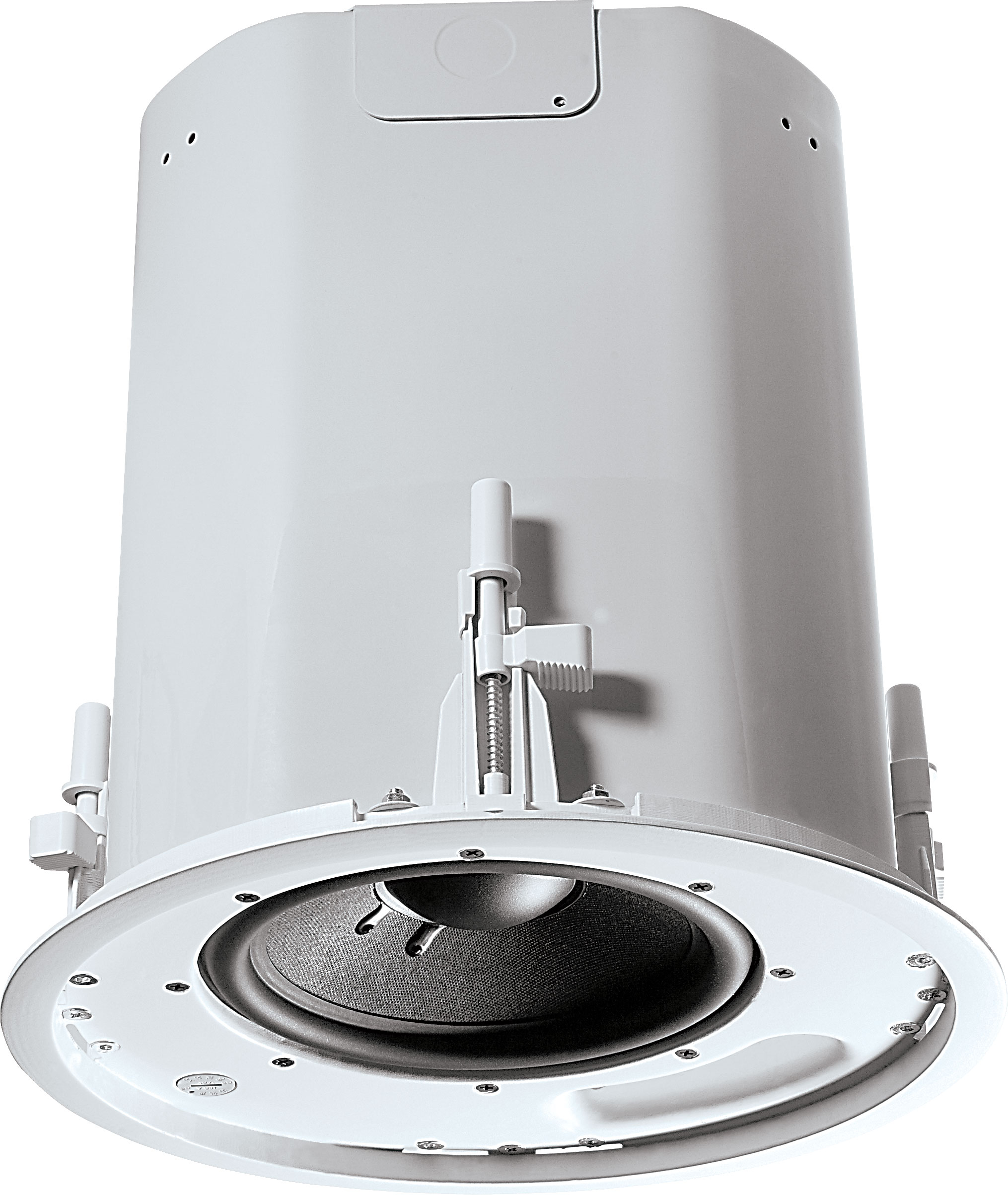

JBL Professional Control 40CS/T

Gambar Lebih Besar

Subwoofer In-Ceiling Berdampak Tinggi

Control 40CS/T adalah subwoofer 8" berpancar langsung dengan dampak tinggi yang dilengkapi jaringan crossover pasif bawaan, memungkinkan Control 40CS/T digunakan sebagai bagian dari sistem subwoofer-satelit. Ketika dikombinasikan dengan Control 42, Control 40CS/T menawarkan sistem subwoofer-satelit yang terdengar sangat alami dan bertenaga, sempurna untuk aplikasi yang memerlukan bandwidth lebar dan performa sonik superior dengan dampak visual minimal. Sistem ini juga dapat digunakan melalui desain crossover aktif dengan sisa lini in-ceiling Control Contractor untuk respons bass superior dan dapat dioperasikan dari jalur terdistribusi 70V / 100V atau dalam mode langsung.

Fitur

Respons Bass Diperpanjang dengan Dampak Maksimal
Jaringan Crossover Pasif untuk Sistem Subwoofer-Satelit yang Mudah Dipasang
70V/100V atau Low-Z yang Dapat Dialihkan
Desain elegan sesuai dengan dekorasi apa pun

Unduhan

Data Sheets

	Versi	Ukuran	Diunggah
Control 40CST Spec Sheet versi C, diperbarui: Apr 2020	C	509 KB	Apr 2020

Manuals

	Versi	Ukuran	Diunggah
Ceiling Speaker Accessory Guide versi A, diperbarui: Mei 2026	A	127 KB	Mei 2026

Brochures

	Versi	Bahasa	Ukuran	Diunggah
Control Contractor Brochure (2025) versi A, diperbarui: Mar 2026	A		23 MB	Mar 2026
Control Contractor Brochure (2024) versi D, diperbarui: Feb 2024	D		14 MB	Feb 2024
Control 40 Brochure diperbarui: Sep 2019			716 KB	Sep 2019
Control Contractor Brochure (2026) diperbarui: Mar 2026			21 MB	Mar 2026

CAD Drawings

	Versi	Ukuran	Diunggah
Control 47HC & 40CST 3D Drawing versi B, diperbarui: Nov 2020	B	1,59 MB	Nov 2020
Control 47HC & 40CST 2D Drawing versi B, diperbarui: Nov 2020	B	185 KB	Nov 2020

Compliances

	Ukuran	Diunggah
JBL Control Series Passive Speakers DoC diperbarui: Des 2019	179 KB	Des 2019
Control 40 Series Declaration of Conformity diperbarui: Okt 2019	154 KB	Okt 2019

User Guides

	Ukuran	Diunggah
Control 40 Users Guide diperbarui: Okt 2020	934 KB	Okt 2020

Accessories

	Ukuran	Diunggah
MTC-CS-Teth1 Press-In Grille Safety Tether diperbarui: Sep 2021	204 KB	Sep 2021

Speaker Tunings

	Versi	Ukuran	Diunggah
Commercial, CBT, and AWC Tunings 220616 versi A, diperbarui: Mei 2023	A	557 KB	Mei 2023

Images

	Ukuran	Diunggah
Control 40CST HiRes diperbarui: Apr 2019	480 KB	Apr 2019

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

Frequency Range	32 Hz - 300 Hz
Power Rating	IEC System Long-Term Ratings (low-Z direct): 200 Watts Continuous Program Power 100 Watts Continuous Pink Noise(400W peak), 100 hr
Sensitivity	95 dB (near corner), 89 dB (center of ceiling)
Transformer Taps	80W, 40W, 20W (& 10W at 70V only)
Impedance	8 ohms (in bypass mode)
Drivers	200 mm (8 in) subwoofer
Termination	Screw-down removable locking clip-in connector
Satellite Outputs	Connectors for 2 or 4 Control 42C satellite speakers
Included Accessories	C-rings, tile rails, paint shield, cutout template, grille
Dimensions (Diameter x Depth)	332mm Diameter x 338mm Diameter Depth (13.1 in x 13.3 in)
Transformer Taps	80 W 40 W, 20 W, (& 10 W @ 70V), plus transformer bypass
Maximum SPL (1m)	109 dB (low-impedance, 115 dB peak, center of ceiling) 115 dB (low-impedance, 121 dB peak near corner) 108 dB (70V/100V, center of ceiling) 114 dB (70V/100V near corner)
Input Connectors	6 removeable locking 2-pin connectors with screwdown terminals.
Color	White
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	formed steel (included "blind-mount")
Baffle/Rim	ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
Ceiling Cutout Size	307 mm Diameter (12.1 in) (cardboard cutout template included)
Optional Accessories	MTC-19NC New Construction Bracket, MTC-19MR Mud Ring Construction Bracket
Plenum Usage	Yes, backcan included
Coverage Angle	Omnidirectional

Aksesori

MTC-48TRx12 | Rel Ubin untuk Ubin Plafon 4' x 4'

Gambar Lebih Besar

Tile Rail untuk Ceiling Tiles 4' x 4'

MTC-48TRx12 adalah rel tile aksesori untuk memasang banyak ceiling loudspeaker JBL ke dalam ceiling tiles 4 ft x 4 ft
(1200 x 1200 mm; 48 x 48 inch) di aplikasi suspended ceiling.

Dapat digunakan dengan speaker plafon JBL apa pun yang memiliki sistem pemasangan C-ring/tile-rail.
Termasuk (pada peluncuran produk):
• Control 24C/CT Micro & 24CT MicroPlus
• Control 24C/CT, 26C/CT, 19CS/CST
• Control 47C/T, 47LP, 47HC, 40CS/T, 42C
• Control 226C/T
• 8124/8128
• Tidak untuk speaker JBL yang dipasang dengan tile bridge (seperti CSS Series, 8138, C227C/CT, C300 Series models). Hubungi JBL Professional Customer Service untuk mendapatkan daftar kompatibilitas terkini.
Alur V terbalik memberikan dukungan ke grid tile rail dalam hal kegagalan tile sambil mengurangi transfer getaran ke – dan bunyi gemerisik dari – sistem grid tile plafon.
Ketebalan logam 1,2 mm (0,05 in) memberikan dukungan tambahan yang diperlukan oleh rentang panjang.
Lubang pemasangan C-ring ganda. Lokasi lubang tambahan dapat dibor oleh installer.
Satu MTC-48TRx12 adalah paket 12 tile rail, cukup untuk 6 speaker (2 per speaker).

Dokumentasi

MTC-48TRx12 Spec Sheet (revB) [77,2 KB]
