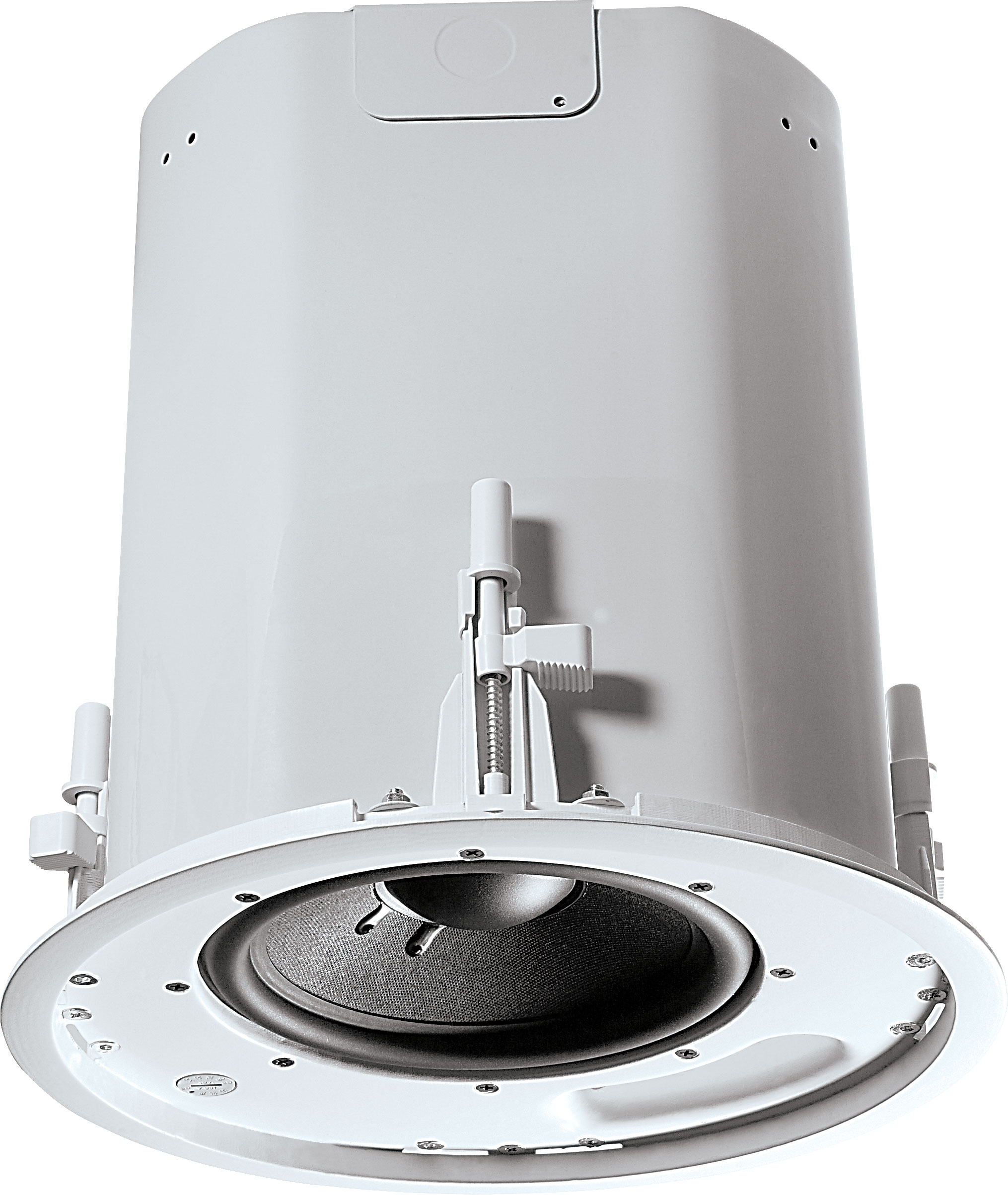

JBL Professional Control 40CS/T

Större bilder

High-Impact In-Ceiling Subwoofer

The Control 40CS/T is a direct radiating, high impact, 8" subwoofer with a built-in passive crossover network enabling the Control 40CS/T to be used as part of a subwoofer-satellite system. When combined with the Control 42, the Control 40CS/T offers an extremely natural sounding and powerful subwoofer-satellite system that is perfect for applications requiring wide bandwidth and superior sonic performance with minimal visual impact. The system can also be used via an active crossover design with the rest of the Control Contractor in-ceiling line for superior bass response and can be operated off a 70V / 100V distributed line or in direct mode.

Funktioner

Extended Bass Response with Maximum Impact
Passive Crossover Network for Easy to Install Subwoofer-Satellite Systems
Switchable 70V/100V or Low-Z
Elegant design fits any décor

Nedladdningar

Data Sheets

	Version	Storlek	Uppladdat
Control 40CST Spec Sheet version C, uppdaterad: apr 2020	C	509 KB	apr 2020

Manuals

	Version	Storlek	Uppladdat
Ceiling Speaker Accessory Guide version A, uppdaterad: maj 2026	A	127 KB	maj 2026

Brochures

	Version	Språk	Storlek	Uppladdat
Control Contractor Brochure (2025) version A, uppdaterad: mar 2026	A		23 MB	mar 2026
Control Contractor Brochure (2024) version D, uppdaterad: feb 2024	D		14 MB	feb 2024
Control 40 Brochure uppdaterad: sep 2019			716 KB	sep 2019
Control Contractor Brochure (2026) uppdaterad: mar 2026			21 MB	mar 2026

CAD Drawings

	Version	Storlek	Uppladdat
Control 47HC & 40CST 3D Drawing version B, uppdaterad: nov 2020	B	1,59 MB	nov 2020
Control 47HC & 40CST 2D Drawing version B, uppdaterad: nov 2020	B	185 KB	nov 2020

Compliances

	Storlek	Uppladdat
JBL Control Series Passive Speakers DoC uppdaterad: dec 2019	179 KB	dec 2019
Control 40 Series Declaration of Conformity uppdaterad: okt 2019	154 KB	okt 2019

User Guides

	Storlek	Uppladdat
Control 40 Users Guide uppdaterad: okt 2020	934 KB	okt 2020

Accessories

	Storlek	Uppladdat
MTC-CS-Teth1 Press-In Grille Safety Tether uppdaterad: sep 2021	204 KB	sep 2021

Speaker Tunings

	Version	Storlek	Uppladdat
Commercial, CBT, and AWC Tunings 220616 version A, uppdaterad: maj 2023	A	557 KB	maj 2023

Images

	Storlek	Uppladdat
Control 40CST HiRes uppdaterad: apr 2019	480 KB	apr 2019

Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.

Reservdelar och service

Specifikationer

Frequency Range	32 Hz - 300 Hz
Power Rating	IEC System Long-Term Ratings (low-Z direct): 200 Watts Continuous Program Power 100 Watts Continuous Pink Noise(400W peak), 100 hr
Sensitivity	95 dB (near corner), 89 dB (center of ceiling)
Transformer Taps	80W, 40W, 20W (& 10W at 70V only)
Impedance	8 ohms (in bypass mode)
Drivers	200 mm (8 in) subwoofer
Termination	Screw-down removable locking clip-in connector
Satellite Outputs	Connectors for 2 or 4 Control 42C satellite speakers
Included Accessories	C-rings, tile rails, paint shield, cutout template, grille
Dimensions (Diameter x Depth)	332mm Diameter x 338mm Diameter Depth (13.1 in x 13.3 in)
Transformer Taps	80 W 40 W, 20 W, (& 10 W @ 70V), plus transformer bypass
Maximum SPL (1m)	109 dB (low-impedance, 115 dB peak, center of ceiling) 115 dB (low-impedance, 121 dB peak near corner) 108 dB (70V/100V, center of ceiling) 114 dB (70V/100V near corner)
Input Connectors	6 removeable locking 2-pin connectors with screwdown terminals.
Color	White
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	formed steel (included "blind-mount")
Baffle/Rim	ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
Ceiling Cutout Size	307 mm Diameter (12.1 in) (cardboard cutout template included)
Optional Accessories	MTC-19NC New Construction Bracket, MTC-19MR Mud Ring Construction Bracket
Plenum Usage	Yes, backcan included
Coverage Angle	Omnidirectional

Tillbehör

MTC-48TRx12 | Takprofil för 4' x 4' takplattor

Större bilder

Takskena för 4' x 4' takplattor

MTC-48TRx12 är en tillbehörsskena för installation av många av JBL:s takmontering högtalar in i 4 ft x 4 ft
(1200 x 1200 mm; 48 x 48 tum) takplattor i upphängda takapplikationer.

Kan användas med alla JBL-takhögtalare som har C-ring/tile-rail-monteringssystem.
Inkluderar (vid produktrelease):
• Control 24C/CT Micro & 24CT MicroPlus
• Control 24C/CT, 26C/CT, 19CS/CST
• Control 47C/T, 47LP, 47HC, 40CS/T, 42C
• Control 226C/T
• 8124/8128
• Inte för JBL-högtalare som installeras med tile bridges (såsom CSS Series, 8138, C227C/CT, C300 Series-modeller). Kontakta JBL Professional Customer Service för den senaste kompatibilitetslistan.
Inverterad V-spår ger stöd till tile rail-systemet i fall av takpanelskada och minskar vibrationsöverföring till – och skramling från – takpanelssystemet.
1,2 mm (0,05 tum) metalltycklek ger det extra stöd som krävs för den långa spännvidden.
Flera C-ring-monteringshål. Ytterligare hållpositioner kan borras av installatören.
En MTC-48TRx12 är ett paket med 12 tile rails, tillräckligt för 6 högtalare (2 per högtalare).
