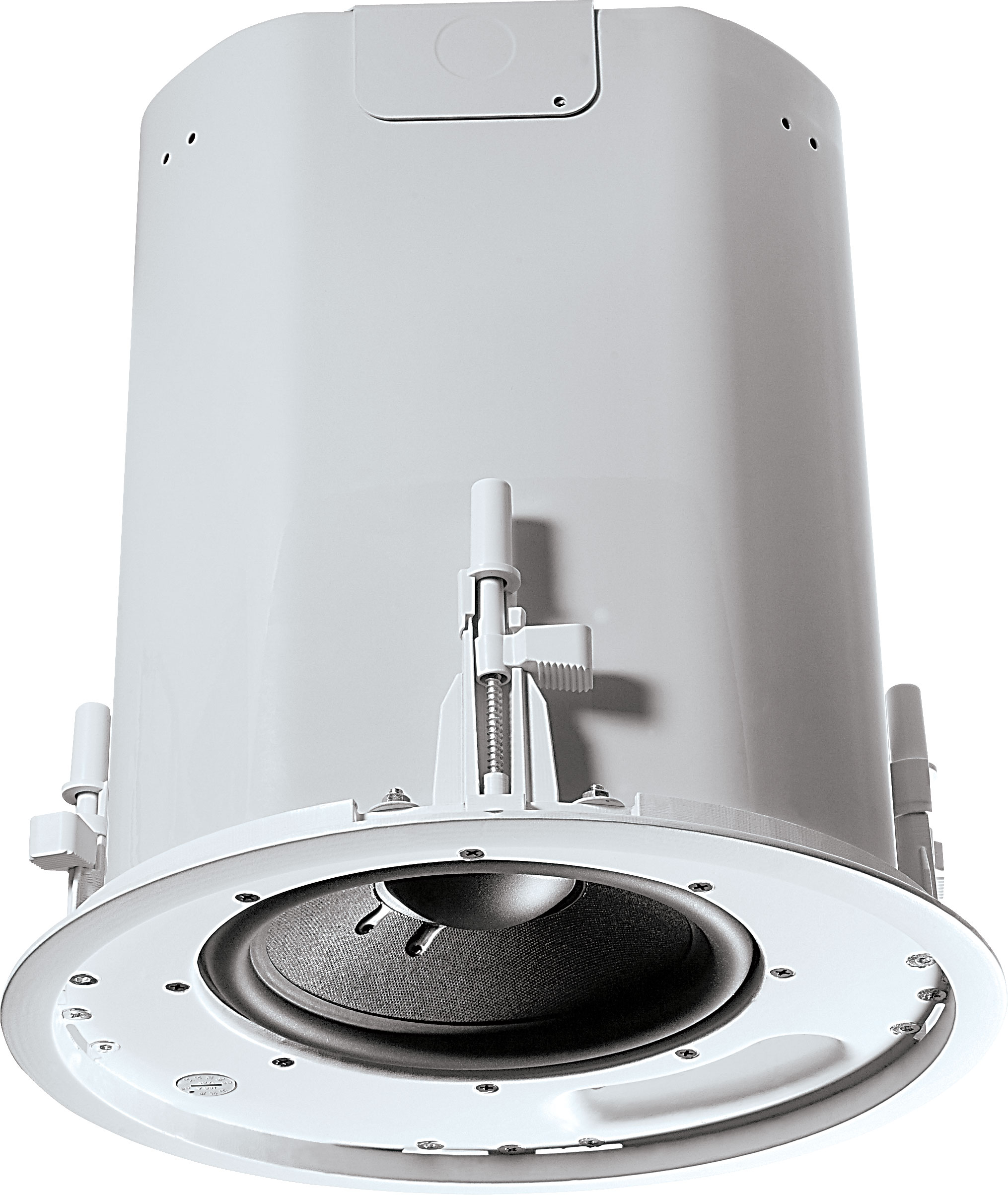

Control 40CS/T

សាប-វូហ្វើរ​ម៉ោនផ្ទាំងលាប ដែលមានឥទ្ធិពលខ្ពស់

Control 40CS/T
រូបភាពធំជាង

សាប្វូហ្វឺរដែលដាក់នៅលើដំបូលដែលមានផលប៉ះពាល់ខ្ពស់

Control 40CS/T គឺជាសាប្វូហ្វឺរ 8" ដែលបង្កើតឯករាديచរិយ ដែលមានផលប៉ះពាល់ខ្ពស់ ដែលមាន crossover បង្អាក់ដែលបង្កើតក្នុងខ្លួនដែលអនុញ្ញាតឱ្យ Control 40CS/T ត្រូវបានប្រើប្រាស់ជាផ្នែកនៃប្រព័ន្ធ subwoofer-satellite។ នៅពេលដែលរួមបញ្ចូលជាមួយ Control 42 Control 40CS/T ផ្តល់នូវប្រព័ន្ធ subwoofer-satellite ដែលមានសម្លេងធម្មជាតិ និងមានអានុភាពខ្ពស់ដែលល្អឥតខ្ចោះសម្រាប់ការប្រើប្រាស់ដែលតម្រូវការក្រុមប្រេកង់ធំទូលាយ និងការងារសូនិកលម្អិតលម្អិត ដែលមានផលប៉ះពាល់ដែលមើលឃើញតិចតួច។ ប្រព័ន្ធក៏អាចត្រូវបានប្រើប្រាស់តាមរយៈការរចនា crossover សកម្មលេខ ជាមួយនឹងបន្ទាត់ Control Contractor ដែលដាក់នៅលើដំបូលដែលនៅសល់ សម្រាប់ការឆលើយឆ្លងយ៉ាងល្អបំផុត ហើយអាចដំណើរការបានលើ ​​ក្រុម 70V / 100V ឬក្នុងរបៀបដោះស្រាយដោយផ្ទាល់។

លក្ខណៈពិសេស

  • ការឆ្លើយតបលម្អិតមូលដ្ឋានដែលបានពង្រីកដោយឥទ្ធិពលអតិបរមា
  • បណ្តាញក្រូសអូভើ៉ែរប៉ាស៊ីវសម្រាប់ប្រព័ន្ធសឹម្ផូហ្វើវ៉ារ៉ститលីដែលងាយស្ដែងក្នុងការដំឡើង
  • ដែលបានប្តូរបាន 70V/100V ឬ Low-Z
  • ការរចនាដ៏ស្ទាក់ស្ទើរសមស្របនឹងលម្នាម់ផ្សេងៗ

ការទាញយក

Data Sheets
  កំណែ ទំហំ បានផ្ទុកឡើង
file type icon Control 40CST Spec Sheet
កំណែ C, បានធ្វើបច្ចុប្បន្នភាព: មេសា 2020
509 KB មេសា 2020
Manuals
  កំណែ ទំហំ បានផ្ទុកឡើង
file type icon Ceiling Speaker Accessory Guide
កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: ឧសភា 2026
127 KB ឧសភា 2026
Brochures
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon Control Contractor Brochure (2025)
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
en  23 MB មិនា 2026
file type icon Control Contractor Brochure (2024)
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2024
en  14 MB កុម្ភៈ 2024
file type icon Control 40 Brochure
បានធ្វើបច្ចុប្បន្នភាព: កញ្ញា 2019
    716 KB កញ្ញា 2019
file type icon Control Contractor Brochure (2026)
en បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
  en  21 MB មិនា 2026
CAD Drawings
  កំណែ ទំហំ បានផ្ទុកឡើង
file type icon Control 47HC & 40CST 3D Drawing
កំណែ B, បានធ្វើបច្ចុប្បន្នភាព: វិច្ឆិកា 2020
1.59 MB វិច្ឆិកា 2020
file type icon Control 47HC & 40CST 2D Drawing
កំណែ B, បានធ្វើបច្ចុប្បន្នភាព: វិច្ឆិកា 2020
185 KB វិច្ឆិកា 2020
Compliances
  ទំហំ បានផ្ទុកឡើង
file type icon JBL Control Series Passive Speakers DoC
បានធ្វើបច្ចុប្បន្នភាព: ធ្នូ 2019
179 KB ធ្នូ 2019
file type icon Control 40 Series Declaration of Conformity
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019
154 KB តុលា 2019
User Guides
  ទំហំ បានផ្ទុកឡើង
file type icon Control 40 Users Guide
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
934 KB តុលា 2020
Accessories
  ទំហំ បានផ្ទុកឡើង
file type icon MTC-CS-Teth1 Press-In Grille Safety Tether
បានធ្វើបច្ចុប្បន្នភាព: កញ្ញា 2021
204 KB កញ្ញា 2021
Speaker Tunings
  កំណែ ទំហំ បានផ្ទុកឡើង
file type icon Commercial, CBT, and AWC Tunings 220616
កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: ឧសភា 2023
557 KB ឧសភា 2023
Images
  ទំហំ បានផ្ទុកឡើង
file type icon Control 40CST HiRes
បានធ្វើបច្ចុប្បន្នភាព: មេសា 2019
480 KB មេសា 2019

ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។

ផ្នែក និងសេវាកម្ម

លក្ខណៈពិសេស

Frequency Range 32 Hz - 300 Hz
Power Rating IEC System Long-Term Ratings (low-Z direct):
200 Watts Continuous Program Power
100 Watts Continuous Pink Noise(400W peak), 100 hr
Sensitivity 95 dB (near corner), 89 dB (center of ceiling)
Transformer Taps 80W, 40W, 20W (& 10W at 70V only)
Impedance 8 ohms (in bypass mode)
Drivers 200 mm (8 in) subwoofer
Termination Screw-down removable locking clip-in connector
Satellite Outputs Connectors for 2 or 4 Control 42C satellite speakers
Included Accessories C-rings, tile rails, paint shield, cutout template, grille
Dimensions (Diameter x Depth) 332mm Diameter x 338mm Diameter Depth (13.1 in x 13.3 in)
Transformer Taps 80 W 40 W, 20 W, (& 10 W @ 70V), plus transformer bypass
Maximum SPL (1m) 109 dB (low-impedance, 115 dB peak, center of ceiling)
115 dB (low-impedance, 121 dB peak near corner)
108 dB (70V/100V, center of ceiling)
114 dB (70V/100V near corner)
Input Connectors 6 removeable locking 2-pin connectors with screwdown terminals.
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
Ceiling Cutout Size 307 mm Diameter (12.1 in) (cardboard cutout template included)
Optional Accessories MTC-19NC New Construction Bracket, MTC-19MR Mud Ring Construction Bracket
Plenum Usage Yes, backcan included
Coverage Angle Omnidirectional

គ្រឿងបន្លាស់

MTC-48TRx12 | ក្រុមផ្នែកសម្រាប់ក្បឿងពិដានขະមាด ៤' x ៤'
MTC-48TRx12 Main photo
រូបភាពធំជាង
MTC-48TRx12 detail thumbnail #1

레일រ៉ែលដំឡើងក្រឡាលើលិច ៤' x ៤'

MTC-48TRx12 គឺជាក្រឡាលើលិចបន្ថែមសម្រាប់ការដំឡើងឌីណាមិកលើលិចរបស់ JBL ច្រើនទៀតចូលក្នុង 4 ft ដោយ 4 ft
(1200 x 1200 mm; 48 x 48 inch) ក្រឡាលើលិចក្នុងកម្មវិធីលើលិចព្យួរ។

  • អាចប្រើប្រាស់ជាមួយលក្ខណៈស្បែកពិដានលក្ខណៈផ្សេងទៀតរបស់ JBL ដែលមានប្រព័ន្ធម៉ោន C-ring/tile-rail។
    រួមបញ្ចូល (នៅពេលរោងផលិតកម្ម):
    • Control 24C/CT Micro & 24CT MicroPlus
    • Control 24C/CT, 26C/CT, 19CS/CST
    • Control 47C/T, 47LP, 47HC, 40CS/T, 42C
    • Control 226C/T
    • 8124/8128
    • មិនមែនសម្រាប់ឧបករណ៍បង្ហោះសំឡេង JBL ដែលដំឡើងដោយប្រើស្ពាន់ក្បឿង (ឧទាហរណ៍ CSS Series, 8138, C227C/CT, C300 Series models)។ សូមពិគ្រោះយោបល់ក្រុមសេវាកម្មអតិថិជនរបស់ JBL Professional សម្រាប់បញ្ជីភាពឆបគ្នាដែលទាក់ទងបច្ចុប្បន្ន។
  • រន្ធ V-groove បញ្ច្រាសផ្តល់នូវការគាំទងលើក្រឡាចត្រង្គក្បឿងក្នុងករណីលទ្ធផលចម្បងឡើងវិញខណៈពេលកាត់បន្ថយការផ្ទេរលំយោលទៅ - និងរំលោះរអ៊ី - ពីប្រព័ន្ធក្រឡាចត្រង្គក្បឿងពិដាន។
  • ក្រាស់ដែក 1.2 មម (0.05 អ៊ីញ) ផ្តល់នូវការគាំទងបន្ថែមដែលត្រូវការដោយលំហូរវែង។
  • ច្រើនដង C-ring mounting holes។ ទីតាំងរន្ធបន្ថែមដែលចាក់ដោយអ្នកដំឡើង។
  • MTC-48TRx12 មួយគឺជាកញ្ចប់នៃក្បឿង 12, គ្រប់គ្រាន់សម្រាប់ឧបករណ៍បង្ហោះសំឡេង 6 (ចំនួន 2 ក្នុងមួយឧបករណ៍)។
