JBL Professional CBT 100LA-1

Større billeder

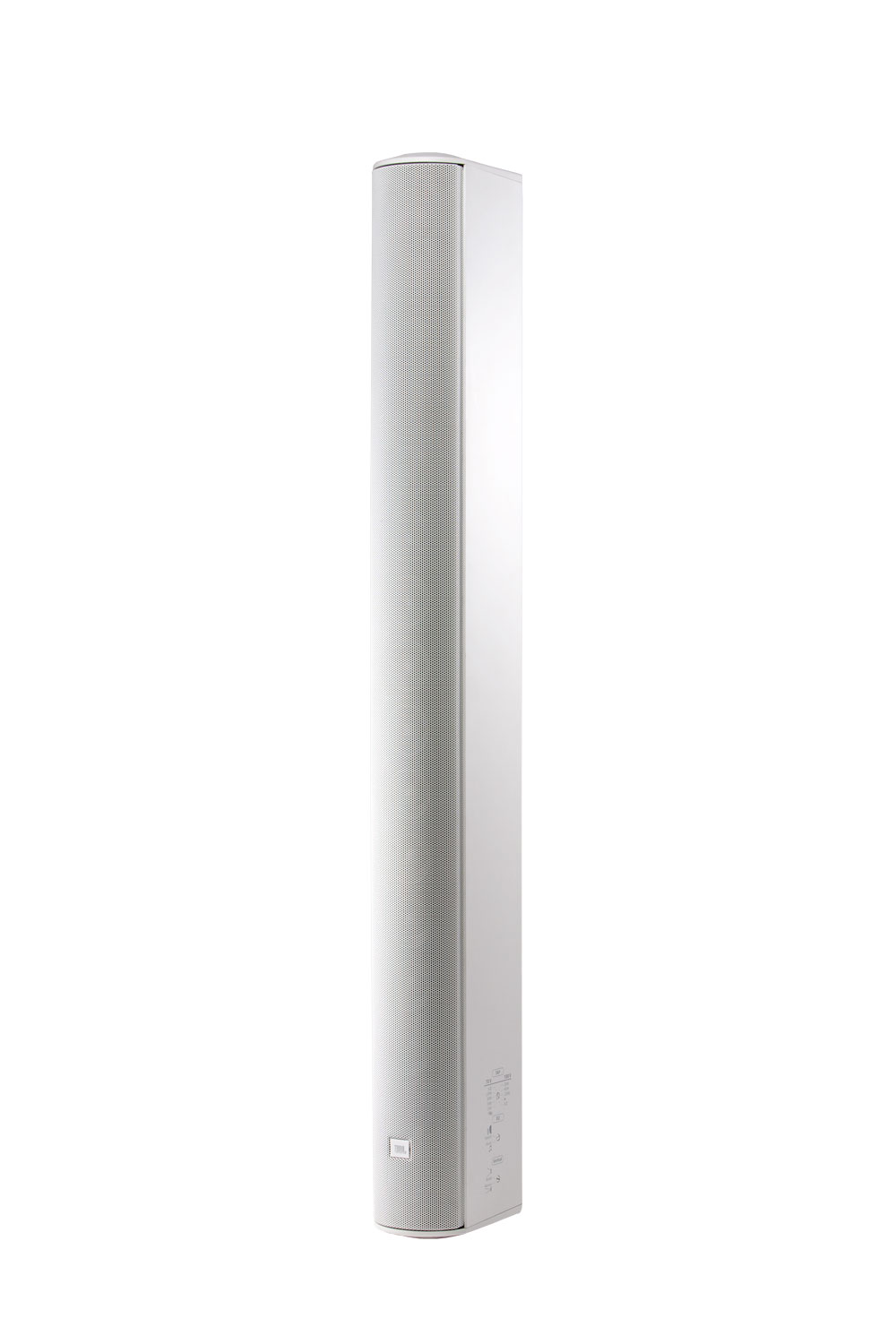

Constant Beamwidth Technology™ Line Array Column-højtaler med seksten 50 mm (2 in) drivere. Med forbedret monteringsbøjle for øget fleksibilitet ved sigtning.

CBT 100LA-1 med Constant Beamwidth Technology™ repræsenterer et gennembrud inden for konsistens i mønsterkontrol ved hjælp af kompleks analog delay beam-forming og amplitude tapering for at opnå overlegen, konsistent vertikal dækning uden det smalle vertikale beam og out-of-coverage lobing, som er typisk for højttalersøjler med lige formfaktor.

Funktioner

Patentanmeld Constant Beamwidth Technology™ giver konstant direktivitet op til de højeste frekvenser og reducerer out-of-coverage lobing.
Vertikal mønsterdækning kan skiftes mellem 40° til medium-throw dækning og 15° til
long-throw anvendelser.
Skifte voicing giver fladt frekvensgang i musiktilstand eller mid-range presence peak i taletilstand.
Dynamisk SonicGuard™ overload-beskyttelse
Drejelig (pan)/tilt vægbeslag inkluderet.
Indbygget 70V/100V transformer plus 8 ohm direkte kapacitet.

Downloads

Specifications

	Version	Størrelse	Uploadet
CBT 100LA-1 Spec Sheet version B, opdateret: mar 2026	B	8,39 MB	mar 2026

Brochures

	Sprog	Størrelse	Uploadet
CBT Brochure opdateret: okt 2020		973 kB	okt 2020
Loudspeakers for Sports Facilities opdateret: jul 2024		5,71 MB	jul 2024

CAD Drawings

	Størrelse	Uploadet
CBT 3D DXF Drawings opdateret: okt 2020	8,14 MB	okt 2020
CBT 50LA-1/100LA-1 Wall Bracket PDF opdateret: okt 2020	33,2 kB	okt 2020
CBT 50LA-1/100LA-1 Wall Bracket - DWG opdateret: mar 2025	3,63 MB	mar 2025
CBT 2D DXF/PDF Drawing opdateret: okt 2020	1,23 MB	okt 2020

Compliances

	Størrelse	Uploadet
CBT-1 Series Declaration of Conformity opdateret: okt 2019	144 kB	okt 2019

Software

	Version	Størrelse	Uploadet
CBT Calculator version 1.3.0.1, udgivet: aug 2023	1.3.0.1	3,66 MB	aug 2023

Tech Notes

	Størrelse	Uploadet
Tech Note: Volume 1, #35 opdateret: okt 2020	2,23 MB	okt 2020

Install Guides

	Størrelse	Uploadet
MTC-PC2 & MTC-PC3 Installation opdateret: apr 2025	58,7 kB	apr 2025
MTC-CBT-FMx Flush-Mount Wall Brackets for CBT Speakers opdateret: feb 2026	440 kB	feb 2026
CBT Quick Start Guide opdateret: okt 2020	1,15 MB	okt 2020
CBT 50LA-1/100LA-1 Bracket Installation Guide opdateret: okt 2020	277 kB	okt 2020
CBT Stand-Mount Bracket Guide opdateret: okt 2020	476 kB	okt 2020

Information documents

	Størrelse	Uploadet
CBT Cabinet Painting Instructions opdateret: okt 2019	17,2 kB	okt 2019

Images

	Størrelse	Uploadet
CBT Family Hi-Res Image opdateret: okt 2019	237 kB	okt 2019
CBT 100LA Hi Res Image opdateret: okt 2020	72,9 kB	okt 2020

Speaker Tunings

	Version	Størrelse	Uploadet
Commercial, CBT, and AWC Tunings 220616 version A, opdateret: maj 2023	A	557 kB	maj 2023

Application Guides

	Sprog	Størrelse	Uploadet
Constant Beamwidth Technology – CBT Series Passive Controlled-Coverage Columns opdateret: okt 2022		8,48 MB	okt 2022

EASE Files

	Størrelse	Uploadet
CBT 50, 100 and 200 GLL Files opdateret: maj 2024	8,41 MB	maj 2024

FAQs

	Størrelse	Uploadet
CBT Frequently Asked Questions opdateret: okt 2020	193 kB	okt 2020

Accessories

	Størrelse	Uploadet
CBT Suspension Bracket opdateret: okt 2020	305 kB	okt 2020

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

Drivers	Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10dB)	80 Hz – 20 kHz
Coverage Angle	Vertical: Switchable, Narrow Mode: 15° (±10°), Broad Mode: 40° (±10°), Horizontal: 150°(±20°)
Sensitivity	Narrow: (speech mode) 96 dB (2 kHz - 14 kHz )(music mode) 93 dB (300 Hz - 18 kHz)Broad: (speech mode) 93 dB (2 kHz - 14 kHz)(music mode) 90 dB (300 Hz - 18 kHz)
Impedance	5 ohms (in Thru mode)
Power Capacity	325 W (1300W peak), 2 hrs 200 W (800W peak), 100 hrs
Maximum SPL (1m)	Narrow: (speech mode) 121 dB cont ave (127 peak)(music mode) 118 dB cont ave (124 peak)Broad: (speech mode) 118 dB cont ave (124 peak)(music mode) 115 dB cont ave (121 peak)
Transformer Taps	120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch
Enclosure	Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability	IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Color	Black or White (-WH)
Insert Points	18 M6 insert points on back panel.
Mounting	Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D)	1000 x 98.5 x 153(39.4 in x 3.8 in x 6.0 in)
Net Weight	7.2 kg (15.8 lb)
Included Accessories	Swivel (pan) / tilt wall bracket
Optional Accessories	MTC-PC2 terminal panel coverMTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
