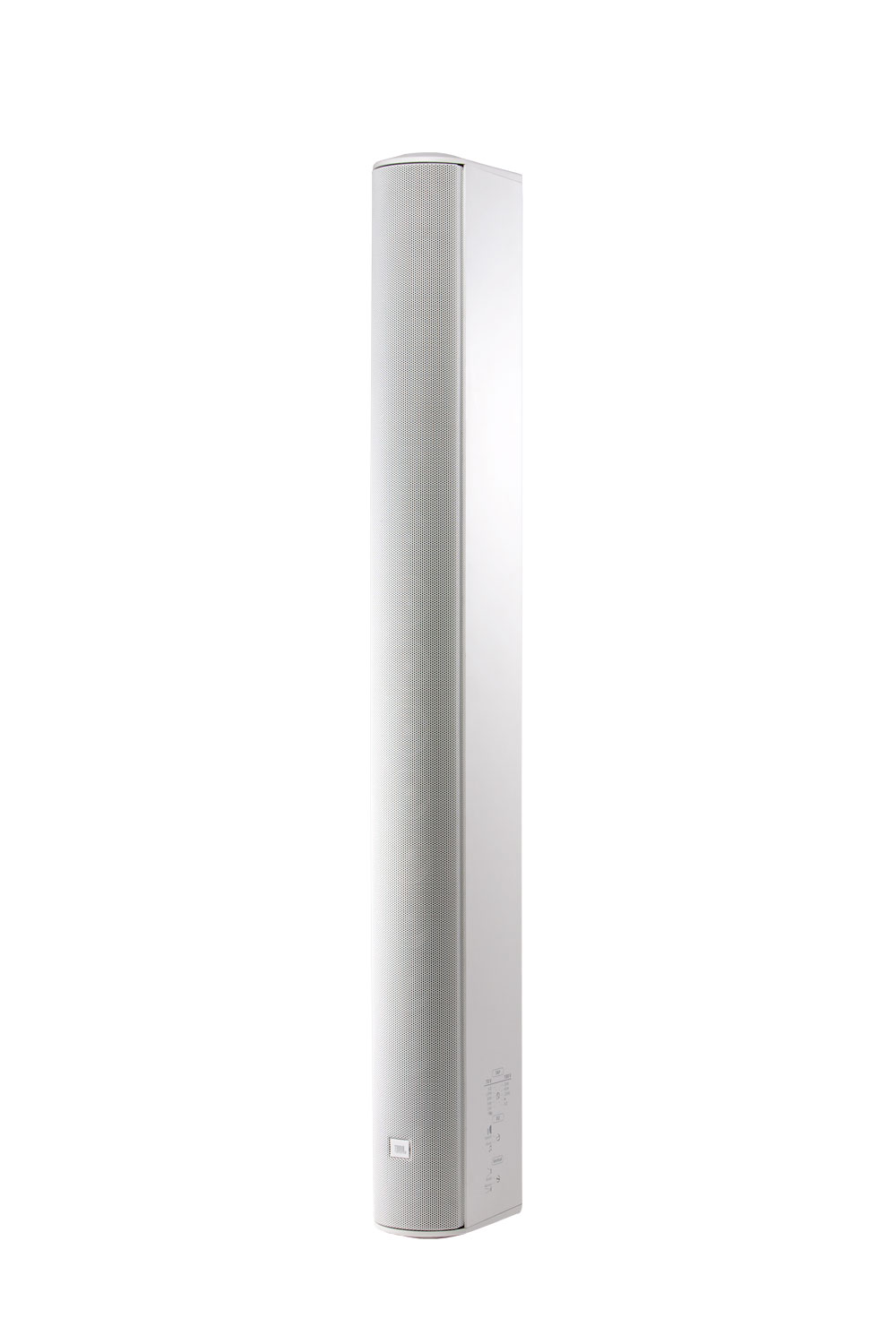

JBL Professional CBT 100LA-1

Imágenes más grandes

Constant Beamwidth Technology™ Line Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers. With improved mounting bracket for enhanced aiming flexibility.

The CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

Características

Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for
long-throw applications.
Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
Dynamic SonicGuard™ overload protection
Swivel (pan)/tilt wall bracket included.
Built-in 70V/100V transformer, plus 8 ohm direct capability.

Descargas

Specifications

	Versión	Tamaño	Subido
CBT 100LA-1 Spec Sheet versión B, actualizado: mar 2026	B	8,39 MB	mar 2026

Brochures

	Idioma	Tamaño	Subido
CBT Brochure actualizado: oct 2020		973 KB	oct 2020
Loudspeakers for Sports Facilities actualizado: jul 2024		5,71 MB	jul 2024

CAD Drawings

	Tamaño	Subido
CBT 3D DXF Drawings actualizado: oct 2020	8,14 MB	oct 2020
CBT 50LA-1/100LA-1 Wall Bracket PDF actualizado: oct 2020	33,2 KB	oct 2020
CBT 50LA-1/100LA-1 Wall Bracket - DWG actualizado: mar 2025	3,63 MB	mar 2025
CBT 2D DXF/PDF Drawing actualizado: oct 2020	1,23 MB	oct 2020

Compliances

	Tamaño	Subido
CBT-1 Series Declaration of Conformity actualizado: oct 2019	144 KB	oct 2019

Software

	Versión	Tamaño	Subido
CBT Calculator versión 1.3.0.1, publicado: ago 2023	1.3.0.1	3,66 MB	ago 2023

Tech Notes

	Tamaño	Subido
Tech Note: Volume 1, #35 actualizado: oct 2020	2,23 MB	oct 2020

Install Guides

	Tamaño	Subido
MTC-PC2 & MTC-PC3 Installation actualizado: abr 2025	58,7 KB	abr 2025
MTC-CBT-FMx Flush-Mount Wall Brackets for CBT Speakers actualizado: feb 2026	440 KB	feb 2026
CBT Quick Start Guide actualizado: oct 2020	1,15 MB	oct 2020
CBT 50LA-1/100LA-1 Bracket Installation Guide actualizado: oct 2020	277 KB	oct 2020
CBT Stand-Mount Bracket Guide actualizado: oct 2020	476 KB	oct 2020

Information documents

	Tamaño	Subido
CBT Cabinet Painting Instructions actualizado: oct 2019	17,2 KB	oct 2019

Images

	Tamaño	Subido
CBT Family Hi-Res Image actualizado: oct 2019	237 KB	oct 2019
CBT 100LA Hi Res Image actualizado: oct 2020	72,9 KB	oct 2020

Speaker Tunings

	Versión	Tamaño	Subido
Commercial, CBT, and AWC Tunings 220616 versión A, actualizado: may 2023	A	557 KB	may 2023

Application Guides

	Idioma	Tamaño	Subido
Constant Beamwidth Technology – CBT Series Passive Controlled-Coverage Columns actualizado: oct 2022		8,48 MB	oct 2022

EASE Files

	Tamaño	Subido
CBT 50, 100 and 200 GLL Files actualizado: may 2024	8,41 MB	may 2024

FAQs

	Tamaño	Subido
CBT Frequently Asked Questions actualizado: oct 2020	193 KB	oct 2020

Accessories

	Tamaño	Subido
CBT Suspension Bracket actualizado: oct 2020	305 KB	oct 2020

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

Drivers	Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10dB)	80 Hz – 20 kHz
Coverage Angle	Vertical: Switchable, Narrow Mode: 15° (±10°), Broad Mode: 40° (±10°), Horizontal: 150°(±20°)
Sensitivity	Narrow: (speech mode) 96 dB (2 kHz - 14 kHz )(music mode) 93 dB (300 Hz - 18 kHz)Broad: (speech mode) 93 dB (2 kHz - 14 kHz)(music mode) 90 dB (300 Hz - 18 kHz)
Impedancia	5 ohms (in Thru mode)
Power Capacity	325 W (1300W peak), 2 hrs 200 W (800W peak), 100 hrs
Maximum SPL (1m)	Narrow: (speech mode) 121 dB cont ave (127 peak)(music mode) 118 dB cont ave (124 peak)Broad: (speech mode) 118 dB cont ave (124 peak)(music mode) 115 dB cont ave (121 peak)
Transformer Taps	120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch
Enclosure	Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability	IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Color	Black or White (-WH)
Insert Points	18 M6 insert points on back panel.
MONTAJE	Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D)	1000 x 98.5 x 153(39.4 in x 3.8 in x 6.0 in)
PESO NETO	7.2 kg (15.8 lb)
Included Accessories	Swivel (pan) / tilt wall bracket
Optional Accessories	MTC-PC2 terminal panel coverMTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
