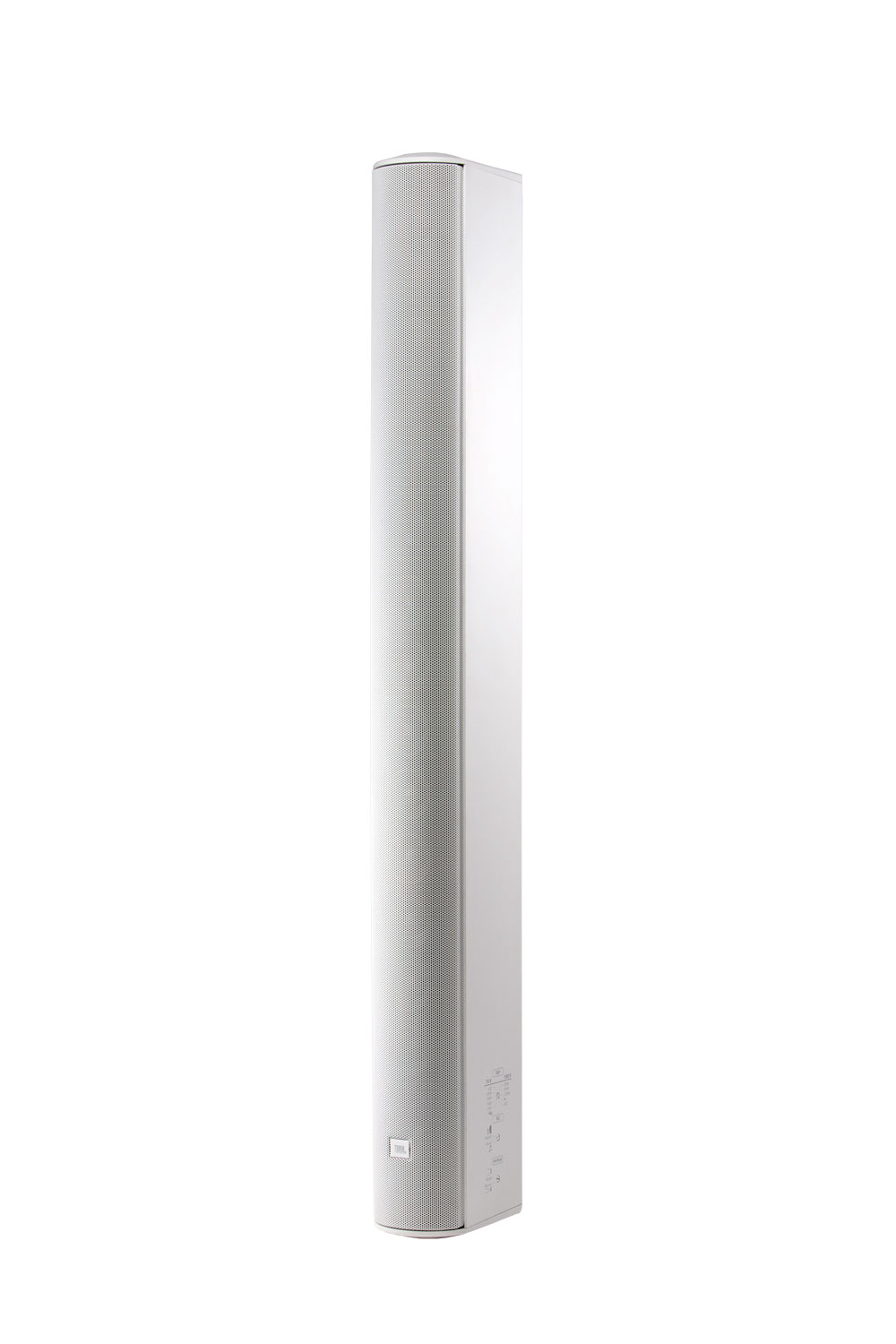

يمثل نموذج CBT 100LA-1، المزود بتقنية Constant Beamwidth Technology™، اختراقًا في اتساق التحكم بالنمط، حيث يستخدم تشكيل شعاع تأخير تماثلي معقد وتناقص السعة لتحقيق تغطية رأسية متفوقة واتساقًا دون الحزم الرأسي الضيق والفصيصات خارج منطقة التغطية التي تكون نموذجية لسماعات الأعمدة ذات عامل الشكل الخطي المستقيم.
| الحجم | |
|
|
8.39 MB |
| الحجم | |
|
|
973 KB |
|
|
5.71 MB |
| الحجم | |
|
|
8.14 MB |
|
|
33.2 KB |
|
|
3.63 MB |
|
|
1.23 MB |
| الحجم | |
|
|
144 KB |
| الحجم | |
|
|
3.66 MB |
| الحجم | |
|
|
2.23 MB |
| الحجم | |
|
|
58.7 KB |
|
|
440 KB |
|
|
1.15 MB |
|
|
277 KB |
|
|
476 KB |
| الحجم | |
|
|
17.2 KB |
| الحجم | |
|
|
237 KB |
|
|
72.9 KB |
| الحجم | |
|
|
557 KB |
| الحجم | |
Constant Beamwidth Technology – CBT Series Passive Controlled-Coverage Columns
تم التحديث: أكتوبر 2022
|
8.48 MB |
| الحجم | |
|
|
8.41 MB |
| الحجم | |
|
|
193 KB |
| الحجم | |
|
|
305 KB |
إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.
| Drivers | Sixteen 50 mm (2 in) Full-Range |
| Frequency Range (-10dB) | 80 Hz – 20 kHz |
| Coverage Angle | Vertical: Switchable, Narrow Mode: 15° (±10°), Broad Mode: 40° (±10°), Horizontal: 150°(±20°) |
| Sensitivity | Narrow: (speech mode) 96 dB (2 kHz - 14 kHz )(music mode) 93 dB (300 Hz - 18 kHz)Broad: (speech mode) 93 dB (2 kHz - 14 kHz)(music mode) 90 dB (300 Hz - 18 kHz) |
| Impedance | 5 ohms (in Thru mode) |
| Power Capacity | 325 W (1300W peak), 2 hrs 200 W (800W peak), 100 hrs |
| Maximum SPL (1m) | Narrow: (speech mode) 121 dB cont ave (127 peak)(music mode) 118 dB cont ave (124 peak)Broad: (speech mode) 118 dB cont ave (124 peak)(music mode) 115 dB cont ave (121 peak) |
| Transformer Taps | 120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch |
| Enclosure | Fiberglass reinforced ABS cabinet, painted aluminum grille |
| Outdoor Capability | IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant. |
| Color | Black or White (-WH) |
| Insert Points | 18 M6 insert points on back panel. |
| Mounting | Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension. |
| Dimensions (H x W x D) | 1000 x 98.5 x 153(39.4 in x 3.8 in x 6.0 in) |
| Net Weight | 7.2 kg (15.8 lb) |
| Included Accessories | Swivel (pan) / tilt wall bracket |
| Optional Accessories | MTC-PC2 terminal panel coverMTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand |
