JBL Professional CBT 100LA-1

Immagini più grandi

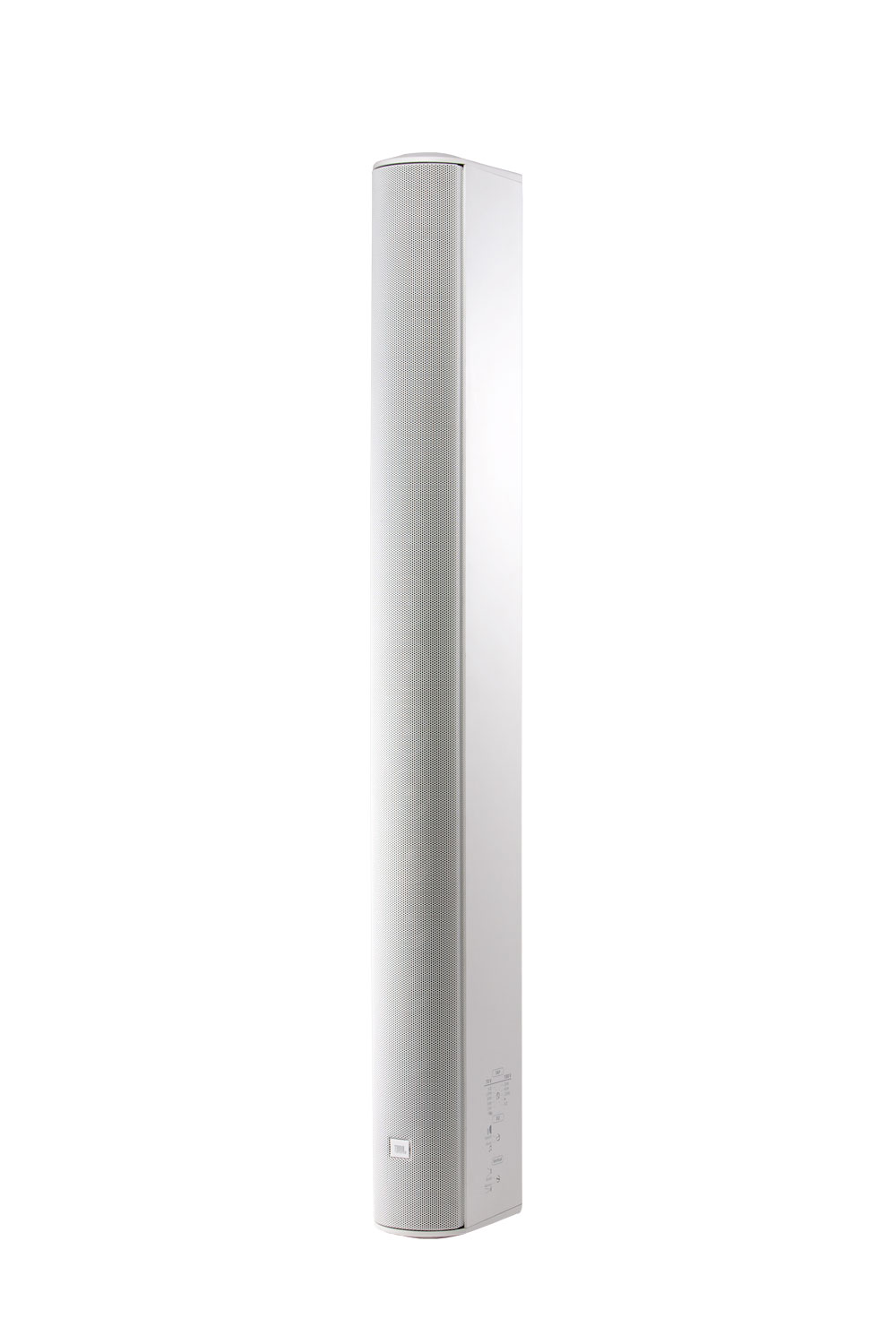

Constant Beamwidth Technology™ Line Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers. With improved mounting bracket for enhanced aiming flexibility.

The CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

Caratteristiche

Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for
long-throw applications.
Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
Dynamic SonicGuard™ overload protection
Swivel (pan)/tilt wall bracket included.
Built-in 70V/100V transformer, plus 8 ohm direct capability.

Download

Specifications

	Versione	Dimensione	Caricato
CBT 100LA-1 Spec Sheet versione B, aggiornato: mar 2026	B	8,39 MB	mar 2026

Brochures

	Lingua	Dimensione	Caricato
CBT Brochure aggiornato: ott 2020		973 KB	ott 2020
Loudspeakers for Sports Facilities aggiornato: lug 2024		5,71 MB	lug 2024

CAD Drawings

	Dimensione	Caricato
CBT 3D DXF Drawings aggiornato: ott 2020	8,14 MB	ott 2020
CBT 50LA-1/100LA-1 Wall Bracket PDF aggiornato: ott 2020	33,2 KB	ott 2020
CBT 50LA-1/100LA-1 Wall Bracket - DWG aggiornato: mar 2025	3,63 MB	mar 2025
CBT 2D DXF/PDF Drawing aggiornato: ott 2020	1,23 MB	ott 2020

Compliances

	Dimensione	Caricato
CBT-1 Series Declaration of Conformity aggiornato: ott 2019	144 KB	ott 2019

Software

	Versione	Dimensione	Caricato
CBT Calculator versione 1.3.0.1, rilasciato: ago 2023	1.3.0.1	3,66 MB	ago 2023

Tech Notes

	Dimensione	Caricato
Tech Note: Volume 1, #35 aggiornato: ott 2020	2,23 MB	ott 2020

Install Guides

	Dimensione	Caricato
MTC-PC2 & MTC-PC3 Installation aggiornato: apr 2025	58,7 KB	apr 2025
MTC-CBT-FMx Flush-Mount Wall Brackets for CBT Speakers aggiornato: feb 2026	440 KB	feb 2026
CBT Quick Start Guide aggiornato: ott 2020	1,15 MB	ott 2020
CBT 50LA-1/100LA-1 Bracket Installation Guide aggiornato: ott 2020	277 KB	ott 2020
CBT Stand-Mount Bracket Guide aggiornato: ott 2020	476 KB	ott 2020

Information documents

	Dimensione	Caricato
CBT Cabinet Painting Instructions aggiornato: ott 2019	17,2 KB	ott 2019

Images

	Dimensione	Caricato
CBT Family Hi-Res Image aggiornato: ott 2019	237 KB	ott 2019
CBT 100LA Hi Res Image aggiornato: ott 2020	72,9 KB	ott 2020

Speaker Tunings

	Versione	Dimensione	Caricato
Commercial, CBT, and AWC Tunings 220616 versione A, aggiornato: mag 2023	A	557 KB	mag 2023

Application Guides

	Lingua	Dimensione	Caricato
Constant Beamwidth Technology – CBT Series Passive Controlled-Coverage Columns aggiornato: ott 2022		8,48 MB	ott 2022

EASE Files

	Dimensione	Caricato
CBT 50, 100 and 200 GLL Files aggiornato: mag 2024	8,41 MB	mag 2024

FAQs

	Dimensione	Caricato
CBT Frequently Asked Questions aggiornato: ott 2020	193 KB	ott 2020

Accessories

	Dimensione	Caricato
CBT Suspension Bracket aggiornato: ott 2020	305 KB	ott 2020

Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.

Parti e assistenza

Specifiche

Drivers	Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10dB)	80 Hz – 20 kHz
Coverage Angle	Vertical: Switchable, Narrow Mode: 15° (±10°), Broad Mode: 40° (±10°), Horizontal: 150°(±20°)
Sensitivity	Narrow: (speech mode) 96 dB (2 kHz - 14 kHz )(music mode) 93 dB (300 Hz - 18 kHz)Broad: (speech mode) 93 dB (2 kHz - 14 kHz)(music mode) 90 dB (300 Hz - 18 kHz)
Impedance	5 ohms (in Thru mode)
Power Capacity	325 W (1300W peak), 2 hrs 200 W (800W peak), 100 hrs
Maximum SPL (1m)	Narrow: (speech mode) 121 dB cont ave (127 peak)(music mode) 118 dB cont ave (124 peak)Broad: (speech mode) 118 dB cont ave (124 peak)(music mode) 115 dB cont ave (121 peak)
Transformer Taps	120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch
Enclosure	Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability	IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Color	Black or White (-WH)
Insert Points	18 M6 insert points on back panel.
Mounting	Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D)	1000 x 98.5 x 153(39.4 in x 3.8 in x 6.0 in)
Net Weight	7.2 kg (15.8 lb)
Included Accessories	Swivel (pan) / tilt wall bracket
Optional Accessories	MTC-PC2 terminal panel coverMTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
