CBT 100LA-1

Constant Beamwidth Technology™ Line Array Column Loudspeaker

CBT 100LA-1
较大的图像

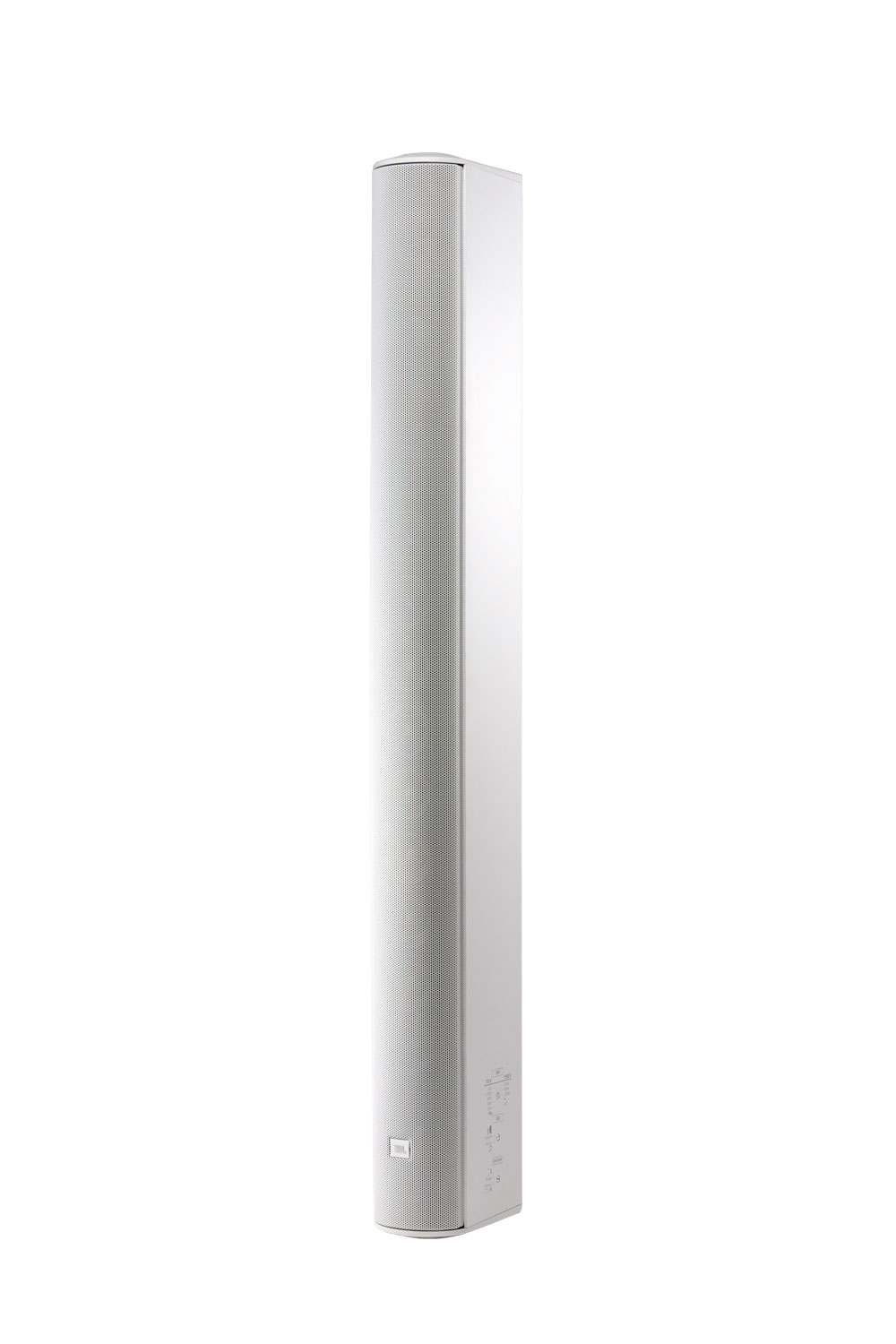

Constant Beamwidth Technology™ Line Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers. With improved mounting bracket for enhanced aiming flexibility.

The CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

特点

  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for
    long-throw applications.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard™ overload protection
  • Swivel (pan)/tilt wall bracket included.
  • Built-in 70V/100V transformer, plus 8 ohm direct capability.

下载

  Version Language Size Uploaded
Specifications
file type icon CBT 100LA-1 Spec Sheet
updated: 10月 2020
    4.9 MB 10月 2020
Brochures
file type icon CBT Brochure
updated: 10月 2020
    972.6 KB 10月 2020
CAD Drawings
file type icon CBT 3D DXF Drawings
updated: 10月 2020
    8.1 MB 10月 2020
file type icon CBT 50LA-1/100LA-1 Wall Bracket PDF
updated: 10月 2020
    33.2 KB 10月 2020
file type icon CBT 2D DXF/PDF Drawing
updated: 10月 2020
    1.2 MB 10月 2020
Compliances
file type icon CBT-1 Series Declaration of Conformity
updated: 10月 2019
    144.2 KB 10月 2019
Software
platform icon CBT Calculator
version 1.3.0.1, updated: 8月 2023
1.3.0.1     3.7 MB 8月 2023
Tech Notes
file type icon Tech Note: Volume 1, #35
updated: 10月 2020
    2.2 MB 10月 2020
Install Guides
file type icon MTC-PC2 & MTC-PC3 Installation
updated: 9月 2019
    42.5 KB 9月 2019
file type icon MTC-CBT-FM1/FM2 Flush-Mount Wall Brackets for CBT Speakers
updated: 10月 2020
    297.4 KB 10月 2020
file type icon CBT Quick Start Guide
updated: 10月 2020
    1.1 MB 10月 2020
file type icon CBT 50LA-1/100LA-1 Bracket Installation Guide
updated: 10月 2020
    276.7 KB 10月 2020
file type icon CBT Stand-Mount Bracket Guide
updated: 10月 2020
    476.1 KB 10月 2020
file type icon CBT Flush-mount Bracket
updated: 10月 2020
    338.3 KB 10月 2020
Information documents
file type icon CBT Cabinet Painting Instructions
updated: 10月 2019
    17.2 KB 10月 2019
Images
file type icon CBT Family Hi-Res Image
updated: 10月 2019
    237.1 KB 10月 2019
file type icon CBT 100LA Hi Res Image
updated: 10月 2020
    72.9 KB 10月 2020
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: 5月 2023
  557.0 KB 5月 2023
Application Guides
file type icon Loudspeakers for Sports Facilities
en updated: 5月 2021
  en  5.7 MB 5月 2021
file type icon Constant Beamwidth Technology – CBT Series Passive Controlled-Coverage Columns
en updated: 10月 2022
  en  8.5 MB 10月 2022
Accessories
file type icon CBT Suspension Bracket
updated: 10月 2020
    305.4 KB 10月 2020
FAQs
file type icon CBT Frequently Asked Questions
updated: 10月 2020
    193.2 KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

Drivers Sixteen 50 mm (2 in) Full-Range
频率范围 (-10dB) 80 Hz – 20 kHz
覆盖角度 Vertical: Switchable, Narrow Mode: 15° (±10°), Broad Mode: 40° (±10°), Horizontal: 150°(±20°)

灵敏度

Narrow: (speech mode) 96 dB (2 kHz - 14 kHz )(music mode) 93 dB (300 Hz - 18 kHz)Broad: (speech mode) 93 dB (2 kHz - 14 kHz)(music mode) 90 dB (300 Hz - 18 kHz)
阻抗 8 ohms (in Thru mode)
额定功率 325 W (1300W peak), 2 hrs200 W (800W peak), 100 hrs
Maximum SPL (1m) Narrow: (speech mode) 121 dB cont ave (127 peak)(music mode) 118 dB cont ave (124 peak)Broad: (speech mode) 118 dB cont ave (124 peak)(music mode) 115 dB cont ave (121 peak)
变压器抽头 120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch
Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
颜色 Black or White (-WH)
Insert Points 18 M6 insert points on back panel.
装配 Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
尺寸(高 x 宽 x 厚) 1000 x 98.5 x 153(39.4 in x 3.8 in x 6.0 in)
净重量 7.2 kg (15.8 lb)

随附配件

Swivel (pan) / tilt wall bracket
Optional Accessories MTC-PC2 terminal panel coverMTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
