JBL Professional CBT 100LA-1

Imagens maiores

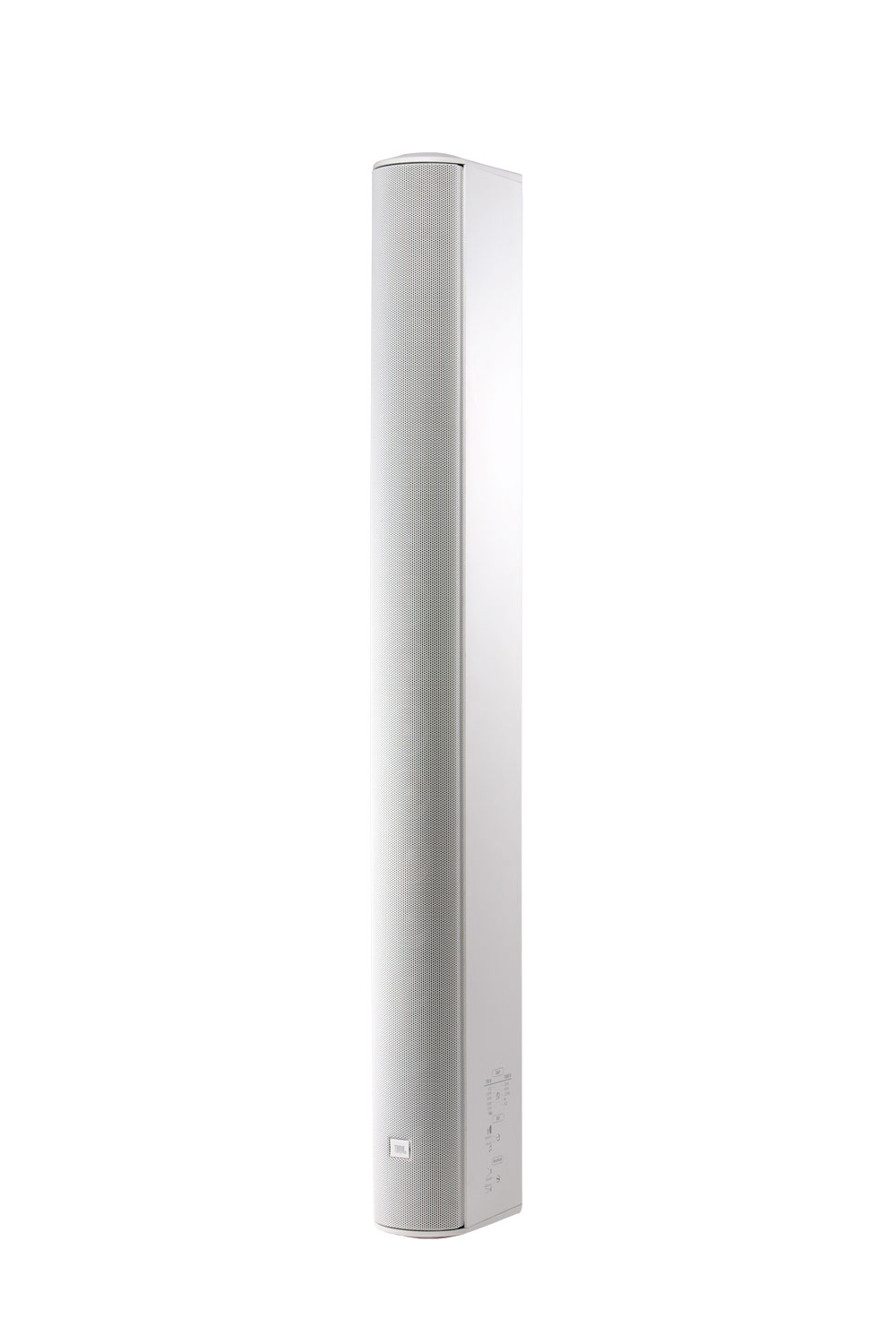

Constant Beamwidth Technology™ Line Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers. With improved mounting bracket for enhanced aiming flexibility.

The CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

Características

Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for
long-throw applications.
Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
Dynamic SonicGuard™ overload protection
Swivel (pan)/tilt wall bracket included.
Built-in 70V/100V transformer, plus 8 ohm direct capability.

Descarregamentos

Specifications

	Versão	Tamanho	Carregado
CBT 100LA-1 Spec Sheet versão B, atualizado: mar 2026	B	8 MB	mar 2026

Brochures

	Idioma	Tamanho	Carregado
CBT Brochure atualizado: out 2020		1000 KB	out 2020
Loudspeakers for Sports Facilities atualizado: jul 2024		6 MB	jul 2024

CAD Drawings

	Tamanho	Carregado
CBT 3D DXF Drawings atualizado: out 2020	8 MB	out 2020
CBT 50LA-1/100LA-1 Wall Bracket PDF atualizado: out 2020	30 KB	out 2020
CBT 50LA-1/100LA-1 Wall Bracket - DWG atualizado: mar 2025	4 MB	mar 2025
CBT 2D DXF/PDF Drawing atualizado: out 2020	1 MB	out 2020

Compliances

	Tamanho	Carregado
CBT-1 Series Declaration of Conformity atualizado: out 2019	100 KB	out 2019

Software

	Versão	Tamanho	Carregado
CBT Calculator versão 1.3.0.1, publicado: ago 2023	1.3.0.1	4 MB	ago 2023

Tech Notes

	Tamanho	Carregado
Tech Note: Volume 1, #35 atualizado: out 2020	2 MB	out 2020

Install Guides

	Tamanho	Carregado
MTC-PC2 & MTC-PC3 Installation atualizado: abr 2025	60 KB	abr 2025
MTC-CBT-FMx Flush-Mount Wall Brackets for CBT Speakers atualizado: fev 2026	400 KB	fev 2026
CBT Quick Start Guide atualizado: out 2020	1 MB	out 2020
CBT 50LA-1/100LA-1 Bracket Installation Guide atualizado: out 2020	300 KB	out 2020
CBT Stand-Mount Bracket Guide atualizado: out 2020	500 KB	out 2020

Information documents

	Tamanho	Carregado
CBT Cabinet Painting Instructions atualizado: out 2019	20 KB	out 2019

Images

	Tamanho	Carregado
CBT Family Hi-Res Image atualizado: out 2019	200 KB	out 2019
CBT 100LA Hi Res Image atualizado: out 2020	70 KB	out 2020

Speaker Tunings

	Versão	Tamanho	Carregado
Commercial, CBT, and AWC Tunings 220616 versão A, atualizado: mai 2023	A	600 KB	mai 2023

Application Guides

	Idioma	Tamanho	Carregado
Constant Beamwidth Technology – CBT Series Passive Controlled-Coverage Columns atualizado: out 2022		8 MB	out 2022

EASE Files

	Tamanho	Carregado
CBT 50, 100 and 200 GLL Files atualizado: mai 2024	8 MB	mai 2024

FAQs

	Tamanho	Carregado
CBT Frequently Asked Questions atualizado: out 2020	200 KB	out 2020

Accessories

	Tamanho	Carregado
CBT Suspension Bracket atualizado: out 2020	300 KB	out 2020

Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.

Peças e serviço

Especificações

Drivers	Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10dB)	80 Hz – 20 kHz
Coverage Angle	Vertical: Switchable, Narrow Mode: 15° (±10°), Broad Mode: 40° (±10°), Horizontal: 150°(±20°)
Sensitivity	Narrow: (speech mode) 96 dB (2 kHz - 14 kHz )(music mode) 93 dB (300 Hz - 18 kHz)Broad: (speech mode) 93 dB (2 kHz - 14 kHz)(music mode) 90 dB (300 Hz - 18 kHz)
Impedance	5 ohms (in Thru mode)
Power Capacity	325 W (1300W peak), 2 hrs 200 W (800W peak), 100 hrs
Maximum SPL (1m)	Narrow: (speech mode) 121 dB cont ave (127 peak)(music mode) 118 dB cont ave (124 peak)Broad: (speech mode) 118 dB cont ave (124 peak)(music mode) 115 dB cont ave (121 peak)
Transformer Taps	120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch
Enclosure	Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability	IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Color	Black or White (-WH)
Insert Points	18 M6 insert points on back panel.
Mounting	Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D)	1000 x 98.5 x 153(39.4 in x 3.8 in x 6.0 in)
Net Weight	7.2 kg (15.8 lb)
Included Accessories	Swivel (pan) / tilt wall bracket
Optional Accessories	MTC-PC2 terminal panel coverMTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
