JBL Professional CBT 100LA-1

Μεγαλύτερες εικόνες

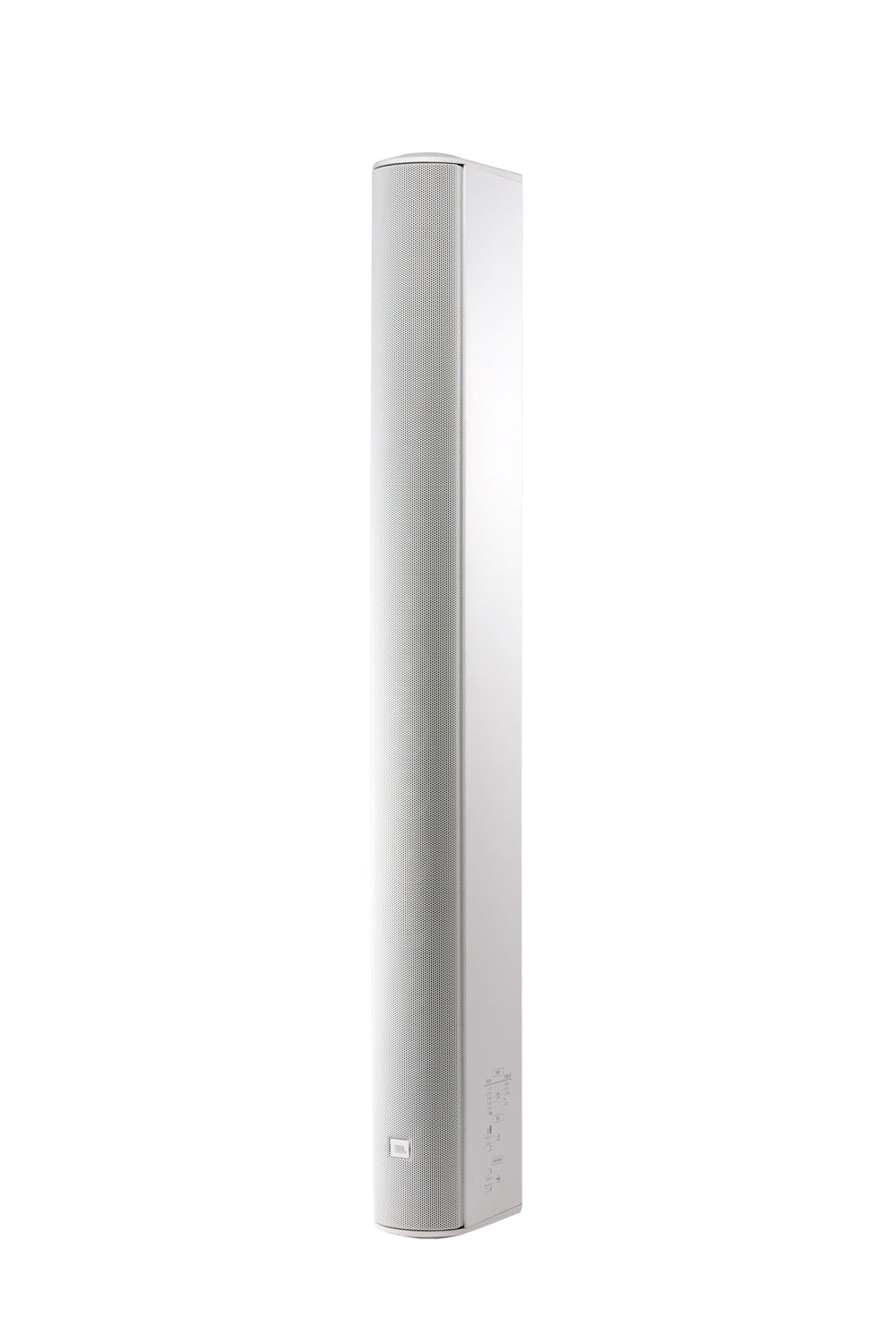

Constant Beamwidth Technology™ Line Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers. With improved mounting bracket for enhanced aiming flexibility.

The CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

Χαρακτηριστικά

Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for
long-throw applications.
Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
Dynamic SonicGuard™ overload protection
Swivel (pan)/tilt wall bracket included.
Built-in 70V/100V transformer, plus 8 ohm direct capability.

Λήψεις

Specifications

	Έκδοση	Μέγεθος	Ανέβηκε
CBT 100LA-1 Spec Sheet έκδοση B, ενημέρωση: Μαρ 2026	B	8 MB	Μαρ 2026

Brochures

	Γλώσσα	Μέγεθος	Ανέβηκε
CBT Brochure ενημέρωση: Οκτ 2020		1000 KB	Οκτ 2020
Loudspeakers for Sports Facilities ενημέρωση: Ιουλ 2024		6 MB	Ιουλ 2024

CAD Drawings

	Μέγεθος	Ανέβηκε
CBT 3D DXF Drawings ενημέρωση: Οκτ 2020	8 MB	Οκτ 2020
CBT 50LA-1/100LA-1 Wall Bracket PDF ενημέρωση: Οκτ 2020	30 KB	Οκτ 2020
CBT 50LA-1/100LA-1 Wall Bracket - DWG ενημέρωση: Μαρ 2025	4 MB	Μαρ 2025
CBT 2D DXF/PDF Drawing ενημέρωση: Οκτ 2020	1 MB	Οκτ 2020

Compliances

	Μέγεθος	Ανέβηκε
CBT-1 Series Declaration of Conformity ενημέρωση: Οκτ 2019	100 KB	Οκτ 2019

Software

	Έκδοση	Μέγεθος	Ανέβηκε
CBT Calculator έκδοση 1.3.0.1, κυκλοφορία: Αυγ 2023	1.3.0.1	4 MB	Αυγ 2023

Tech Notes

	Μέγεθος	Ανέβηκε
Tech Note: Volume 1, #35 ενημέρωση: Οκτ 2020	2 MB	Οκτ 2020

Install Guides

	Μέγεθος	Ανέβηκε
MTC-PC2 & MTC-PC3 Installation ενημέρωση: Απρ 2025	60 KB	Απρ 2025
MTC-CBT-FMx Flush-Mount Wall Brackets for CBT Speakers ενημέρωση: Φεβ 2026	400 KB	Φεβ 2026
CBT Quick Start Guide ενημέρωση: Οκτ 2020	1 MB	Οκτ 2020
CBT 50LA-1/100LA-1 Bracket Installation Guide ενημέρωση: Οκτ 2020	300 KB	Οκτ 2020
CBT Stand-Mount Bracket Guide ενημέρωση: Οκτ 2020	500 KB	Οκτ 2020

Information documents

	Μέγεθος	Ανέβηκε
CBT Cabinet Painting Instructions ενημέρωση: Οκτ 2019	20 KB	Οκτ 2019

Images

	Μέγεθος	Ανέβηκε
CBT Family Hi-Res Image ενημέρωση: Οκτ 2019	200 KB	Οκτ 2019
CBT 100LA Hi Res Image ενημέρωση: Οκτ 2020	70 KB	Οκτ 2020

Speaker Tunings

	Έκδοση	Μέγεθος	Ανέβηκε
Commercial, CBT, and AWC Tunings 220616 έκδοση A, ενημέρωση: Μαϊ 2023	A	600 KB	Μαϊ 2023

Application Guides

	Γλώσσα	Μέγεθος	Ανέβηκε
Constant Beamwidth Technology – CBT Series Passive Controlled-Coverage Columns ενημέρωση: Οκτ 2022		8 MB	Οκτ 2022

EASE Files

	Μέγεθος	Ανέβηκε
CBT 50, 100 and 200 GLL Files ενημέρωση: Μαϊ 2024	8 MB	Μαϊ 2024

FAQs

	Μέγεθος	Ανέβηκε
CBT Frequently Asked Questions ενημέρωση: Οκτ 2020	200 KB	Οκτ 2020

Accessories

	Μέγεθος	Ανέβηκε
CBT Suspension Bracket ενημέρωση: Οκτ 2020	300 KB	Οκτ 2020

Εάν κάποιος από τους παραπάνω συνδέσμους έχει ως αποτέλεσμα παράξενους χαρακτήρες στο πρόγραμμα περιήγησής σας, κάντε δεξί κλικ στο αρχείο για να το αποθηκεύσετε στον υπολογιστή σας.

Ανταλλακτικά και σέρβις

Προδιαγραφές

Drivers	Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10dB)	80 Hz – 20 kHz
Coverage Angle	Vertical: Switchable, Narrow Mode: 15° (±10°), Broad Mode: 40° (±10°), Horizontal: 150°(±20°)
Sensitivity	Narrow: (speech mode) 96 dB (2 kHz - 14 kHz )(music mode) 93 dB (300 Hz - 18 kHz)Broad: (speech mode) 93 dB (2 kHz - 14 kHz)(music mode) 90 dB (300 Hz - 18 kHz)
Impedance	5 ohms (in Thru mode)
Power Capacity	325 W (1300W peak), 2 hrs 200 W (800W peak), 100 hrs
Maximum SPL (1m)	Narrow: (speech mode) 121 dB cont ave (127 peak)(music mode) 118 dB cont ave (124 peak)Broad: (speech mode) 118 dB cont ave (124 peak)(music mode) 115 dB cont ave (121 peak)
Transformer Taps	120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch
Enclosure	Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability	IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Color	Black or White (-WH)
Insert Points	18 M6 insert points on back panel.
Mounting	Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D)	1000 x 98.5 x 153(39.4 in x 3.8 in x 6.0 in)
Net Weight	7.2 kg (15.8 lb)
Included Accessories	Swivel (pan) / tilt wall bracket
Optional Accessories	MTC-PC2 terminal panel coverMTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
