Background/ Foreground Ceiling Loudspeakers

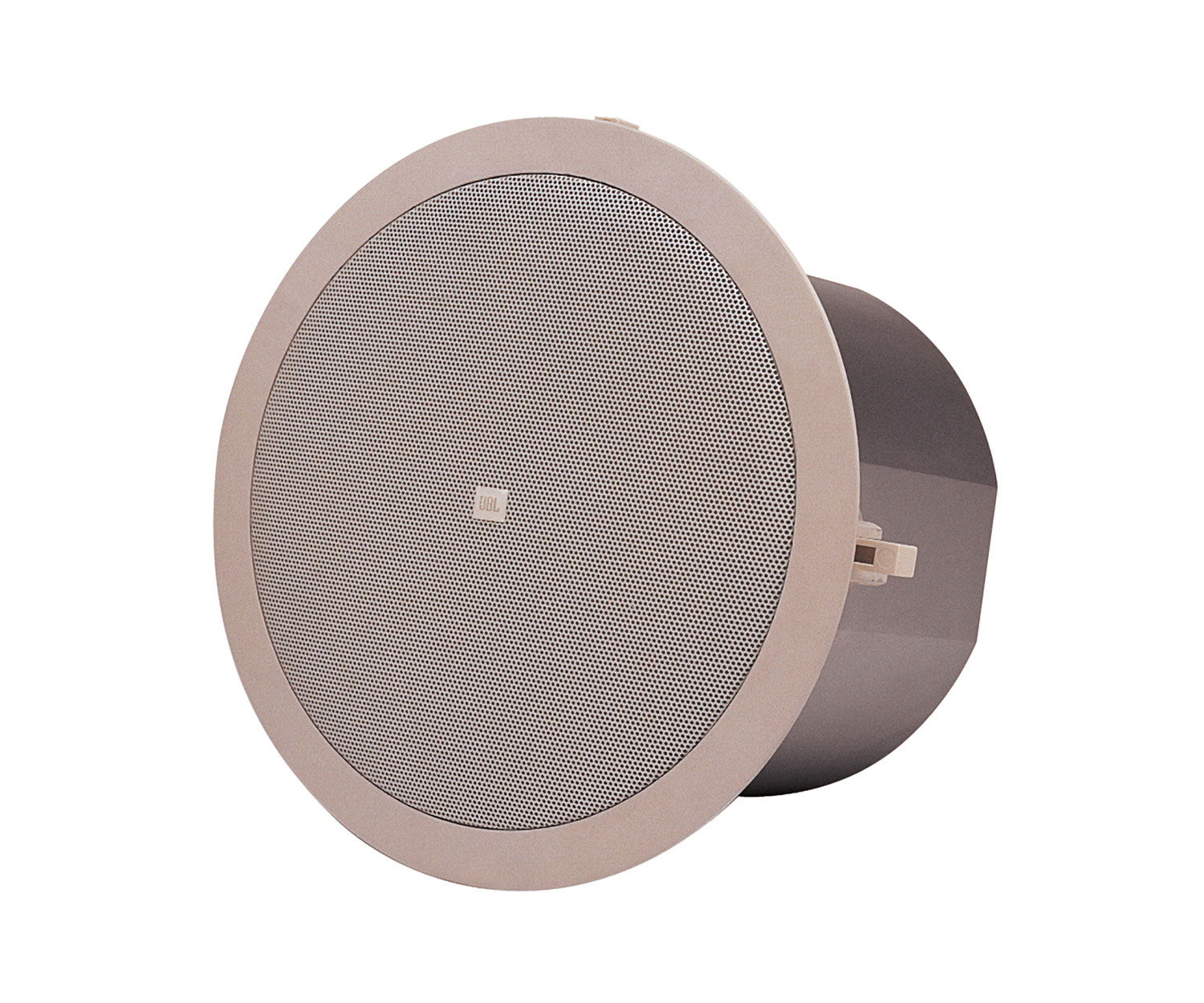

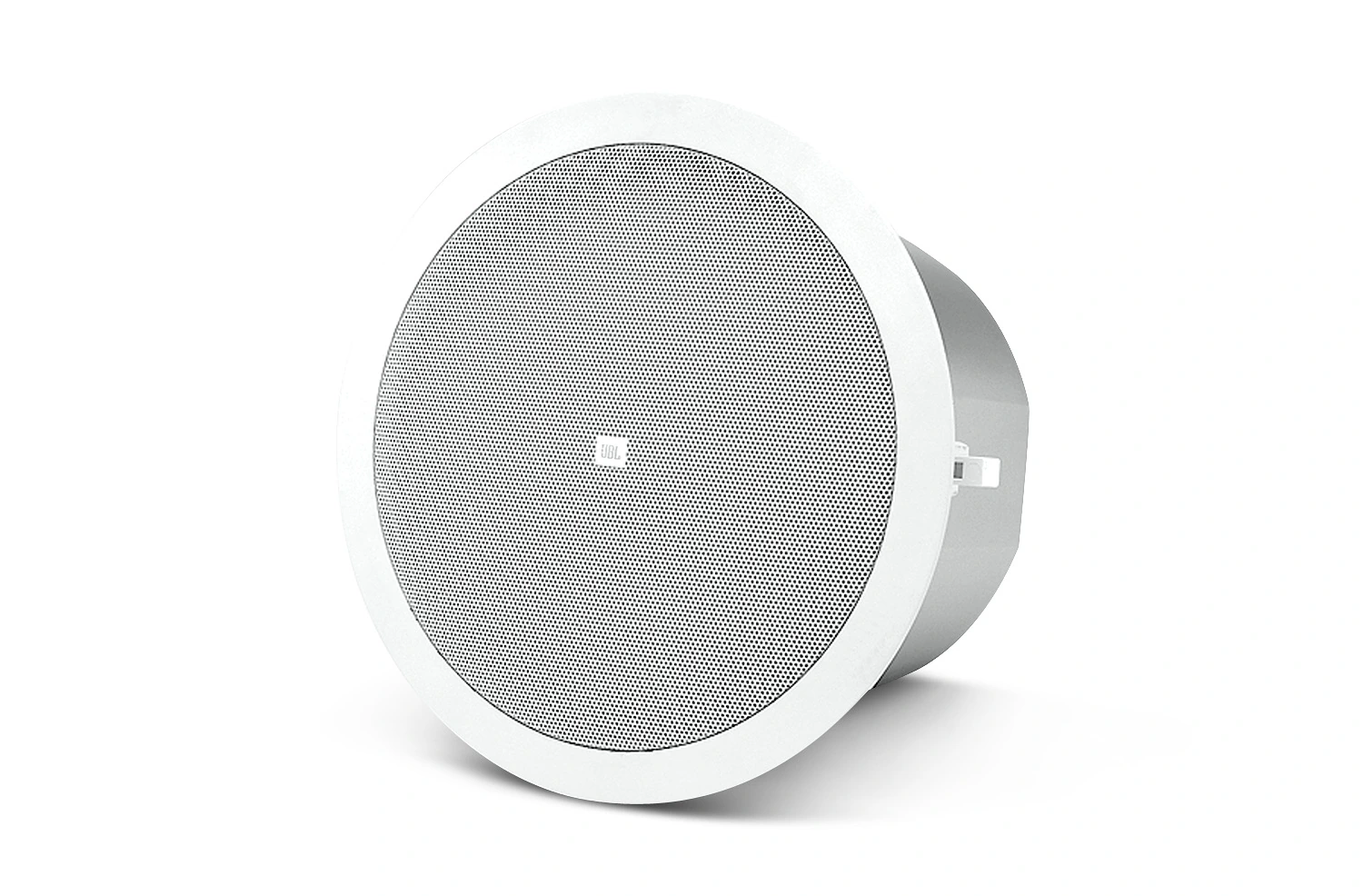

The Control 24C is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.
Imágenes más grandes
Características
- Woofer coaxial de 100 mm (4 in) montado con suspensión de caucho butílico y tweeter de 19 mm (.75 in) revestido de titanio con carga difractante.
- Alta potencia, respuesta de frecuencia amplia y baja distorsión para capacidad de nivel de sonido elevado.
- Cobertura amplia permite menos altavoces, reduciendo el costo del sistema de sonido instalado sin
comprometer el rendimiento. - La protección contra sobrecarga exclusiva SonicGuard™ de JBL permite niveles operativos más altos y mejor
confiabilidad del sistema. - Empaquetado con rejilla, contracaja y guías de cielo raso para instalación rápida y fácil almacenamiento para distribuidores.
Descargas
Data Sheets
| Tamaño | |
|
|
508 KB |
Manuals
| Tamaño | |
|
|
41,7 KB |
|
|
127 KB |
|
|
493 KB |
Brochures
| Tamaño | |
|
|
14 MB |
|
|
23 MB |
|
|
21 MB |
versión D,
actualizado: feb 2024
CAD Drawings
| Tamaño | |
|
|
674 KB |
|
|
3,42 MB |
BIM Objects
| Tamaño | |
|
|
Compliances
| Tamaño | |
|
|
179 KB |
|
|
131 KB |
Software
| Tamaño | |
|
|
11,3 KB |
|
|
13,4 KB |
|
|
612 KB |
Simulation Data
| Tamaño | |
|
|
21 MB |
|
|
24 MB |
Speaker Tunings
| Tamaño | |
|
|
557 KB |
Accessories
| Tamaño | |
|
|
204 KB |
Information documents
| Tamaño | |
|
|
113 KB |
Install Guides
| Tamaño | |
|
|
52,4 KB |
|
|
23,9 KB |
|
|
76,4 KB |
|
|
13,7 KB |
|
|
71,2 KB |
|
|
5,12 MB |
Owner's Manuals
| Tamaño | |
|
|
386 KB |
Images
| Tamaño | |
|
|
284 KB |
Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.
Piezas y servicio
Especificaciones
| Frequency Range | 80 Hz - 20 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 80 Watts Continuous Program Power 40 Watts Continuous Pink Noise (160W peak), 100 hrs |
| Sensitivity | 86 dB SPL @ 1 m (3.3 ft) |
| Coverage Angle | 130° conical |
| Directivity Factor (Q) | 2.4 dB averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 3.8 dB averaged 500 Hz to 4 kHz |
| Maximum SPL (1m) | 102 dB (low-impedance, 108 dB peak) |
| Impedancia | 16 ohms |
| CONEXIONES DE ENTRADA | Removable 4-pin locking connector with screw-down terminals. |
| Drivers | LF Driver: 100 mm (4.0 in) HF Driver: 19 mm (0.75 in) |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | Medium impact polystyrene, fire rated UL94V-0 |
| Ceiling Cutout Size | 168 mm (6.6 in) diameter (cardboard cutout template included) |
| Included Accessories | C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector |
| Plenum Usage | Yes, backcan included |
Accesorios
MTC-48TRx12 | Carril para Baldosas de Techo de 4' x 4'
Imágenes más grandes
Tile Rail for 4' x 4' Ceiling Tiles
MTC-48TRx12 is an accessory tile rail for installing many of
JBL’s ceiling loudspeakers into 4 ft by 4
ft
(1200 x 1200 mm; 48 x 48 inch)
ceiling tiles in suspended ceiling
applications.
- Can be used with any JBL ceiling
speakers having the C-ring/tile-rail
mounting system.
Includes (at product release):
• Control 24C/CT Micro & 24CT MicroPlus
• Control 24C/CT, 26C/CT, 19CS/CST
• Control 47C/T, 47LP, 47HC, 40CS/T, 42C
• Control 226C/T
• 8124/8128
• Not for JBL speakers that install with tile bridges (such as CSS Series, 8138, C227C/CT, C300 Series models). Check with JBL Professional Customer Service for most up-to-date compatibility list. - Inverted V-groove provides support to the tile rail grid in case of tile failure while reducing vibration transfer to – and rattling from – ceiling tile grid system.
- 1.2 mm (0.05 in) metal thickness provides the additional support required by the long span.
- Multiple C-ring mounting holes. Additional hole locations drillable by installer.
- One MTC-48TRx12 is a pack of 12 tile rails, enough for 6 speakers (2 per speaker).
Documentación
-
MTC-48TRx12 Spec Sheet (revB)
[77,2 KB]
