Background/ Foreground Ceiling Loudspeakers

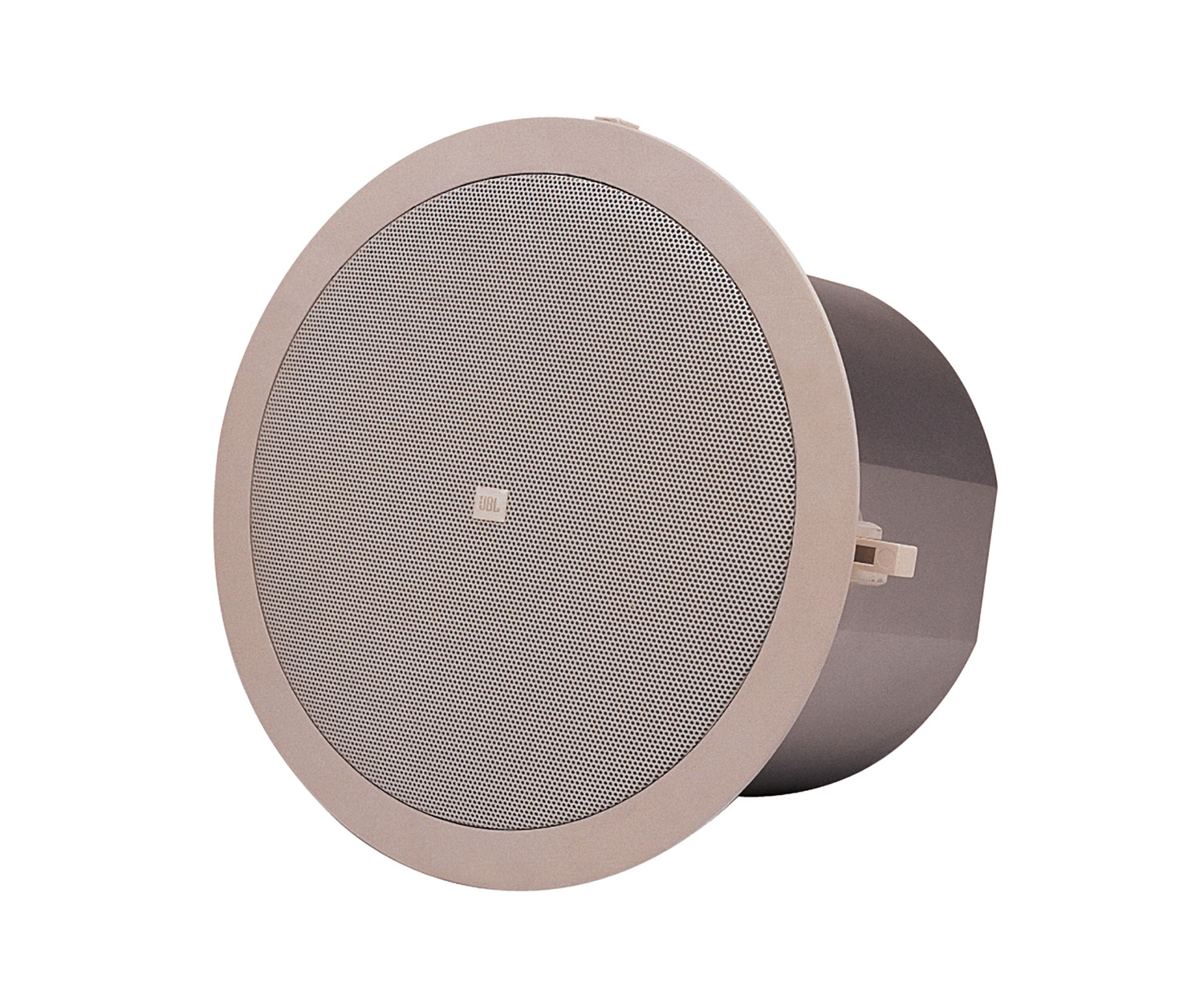

The Control 24C is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.
较大的图像
特点
- Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.
- High power, wide frequency response and low distortion for high sound level capability.
- Wide coverage allows fewer speakers, reducing the cost of
the installed sound system without
sacrificing performance. - JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved
system reliability. - Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
下载
| Size | ||||
Data Sheets | ||||
Control 24C/CT Spec Sheet
version B,
updated: 10月 2020
|
508.1 KB | |||
Manuals | ||||
|
MTC-TCD Thick-Ceiling Dogear
updated: 10月 2019
|
41.7 KB | |||
|
Ceiling Speaker Accessory Guide
updated: 10月 2019
|
126.9 KB | |||
|
Ceiling Speaker Application Guide
updated: 10月 2019
|
492.5 KB | |||
Brochures | ||||
Control Contractor Brochure (2023)
version B,
updated: 6月 2023
|
8.2 MB | |||
CAD Drawings | ||||
Control Surface Mount 2D Drawings
updated: 10月 2020
|
674.3 KB | |||
|
Control Contractor Ceiling Speakers 3D Drawing
updated: 10月 2020
|
3.4 MB | |||
BIM Objects | ||||
|
CONTROL 24C BIM Object
updated: 8月 2019
|
||||
Compliances | ||||
|
JBL Control Series Passive Speakers DoC
updated: 12月 2019
|
179.3 KB | |||
|
Control Contractor Series Declaration of Conformity
updated: 10月 2019
|
130.9 KB | |||
Software | ||||
|
Ceiling Speaker System Worksheet
version 2,
updated: 2月 2020
|
11.3 KB | |||
|
Ceiling Subwoofer Worksheet
updated: 11月 2020
|
13.4 KB | |||
Distributed System Design (DSD) v3.6.2
version 3.6.2,
updated: 9月 2021
|
804.8 KB | |||
Information documents | ||||
|
MTC-NC Ceiling Speaker New Construction Bracket Drawing
updated: 10月 2019
|
112.6 KB | |||
Ease Data | ||||
|
Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
|
21.0 MB | |||
Speaker Tunings | ||||
|
Commercial, CBT, and AWC Tunings 220616
version A,
updated: 5月 2023
|
557.0 KB | |||
Accessories | ||||
|
MTC-CS-Teth1 Press-In Grille Safety Tether
updated: 9月 2021
|
203.7 KB | |||
Simulation Data | ||||
|
JBL Pro ALL CLF Files
version 12-10-21,
updated: 5月 2023
|
24.0 MB | |||
Install Guides | ||||
|
Guide to Business Music
updated: 10月 2020
|
52.4 KB | |||
|
CC Ceiling Speakers: Myth versus Reality
updated: 10月 2020
|
23.9 KB | |||
|
Subwoofer - Satellite Application Guide
updated: 10月 2020
|
5.1 MB | |||
|
Attaching Control Contractor Speakers to Stands
updated: 11月 2019
|
76.4 KB | |||
|
Metric Ceiling Speaker System Worksheet
updated: 10月 2020
|
13.7 KB | |||
|
Trim Rings MTC-24TR & MTC-26TR Installation
updated: 10月 2020
|
71.2 KB | |||
Owner's Manuals | ||||
|
Control 24C/CT Manual
updated: 4月 2019
|
385.8 KB | |||
Images | ||||
|
Control 24C Photo
updated: 4月 2019
|
284.2 KB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
性能
| 频率范围 | 80 Hz - 20 kHz |
| 额定功率 | IEC System Long-Term Ratings (low-Z direct): 80 Watts Continuous Program Power 40 Watts Continuous Pink Noise (160W peak), 100 hrs |
灵敏度 |
86 dB SPL @ 1 m (3.3 ft) |
| 覆盖角度 | 130° conical |
| Directivity Factor (Q) | 2.4 dB averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 3.8 dB averaged 500 Hz to 4 kHz |
| Maximum SPL (1m) | 102 dB (low-impedance, 108 dB peak) |
| 阻抗 | 16 ohms |
| 输入接口 | Removable 4-pin locking connector with screw-down terminals. |
| Drivers | LF Driver: 100 mm (4.0 in) HF Driver: 19 mm (0.75 in) |
| 颜色 | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | Medium impact polystyrene, fire rated UL94V-0 |
| Ceiling Cutout Size | 168 mm (6.6 in) diameter (cardboard cutout template included) |
随附配件 |
C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector |
| Plenum Usage | Yes, backcan included |
accessories
MTC-48TRx12 | Tile Rail for 4' x 4' Ceiling Tiles
较大的图像
Tile Rail for 4' x 4' Ceiling Tiles
MTC-48TRx12 is an accessory tile rail for installing many of
JBL’s ceiling loudspeakers into 4 ft by 4
ft
(1200 x 1200 mm; 48 x 48 inch)
ceiling tiles in suspended ceiling
applications.
- Can be used with any JBL ceiling
speakers having the C-ring/tile-rail
mounting system.
Includes (at product release):
• Control 24C/CT Micro & 24CT MicroPlus
• Control 24C/CT, 26C/CT, 19CS/CST
• Control 47C/T, 47LP, 47HC, 40CS/T, 42C
• Control 226C/T
• 8124/8128
• Not for JBL speakers that install with tile bridges (such as CSS Series, 8138, C227C/CT, C300 Series models). Check with JBL Professional Customer Service for most up-to-date compatibility list. - Inverted V-groove provides support to the tile rail grid in case of tile failure while reducing vibration transfer to – and rattling from – ceiling tile grid system.
- 1.2 mm (0.05 in) metal thickness provides the additional support required by the long span.
- Multiple C-ring mounting holes. Additional hole locations drillable by installer.
- One MTC-48TRx12 is a pack of 12 tile rails, enough for 6 speakers (2 per speaker).
