Background/ Foreground Ceiling Loudspeakers

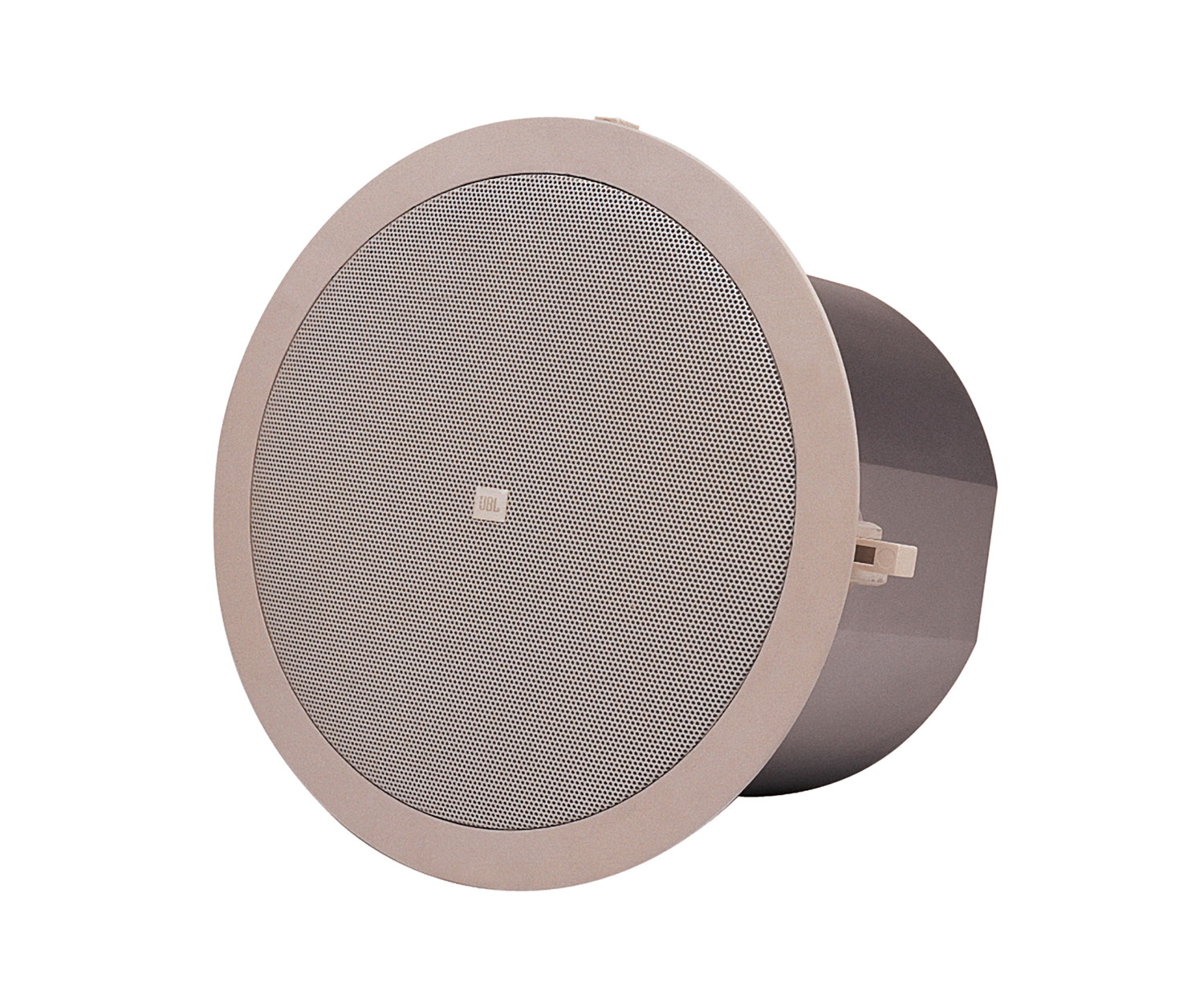

The Control 24C is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.
Gambar Lebih Besar
Fitur
- Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.
- High power, wide frequency response and low distortion for high sound level capability.
- Wide coverage allows fewer speakers, reducing the cost of
the installed sound system without
sacrificing performance. - JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved
system reliability. - Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
Unduhan
Data Sheets
| Ukuran | |
|
|
508 KB |
Manuals
| Ukuran | |
|
|
41,7 KB |
|
|
127 KB |
|
|
493 KB |
Brochures
| Ukuran | |
|
|
14 MB |
|
|
23 MB |
|
|
21 MB |
versi D,
diperbarui: Feb 2024
CAD Drawings
| Ukuran | |
|
|
674 KB |
|
|
3,42 MB |
BIM Objects
| Ukuran | |
|
|
Compliances
| Ukuran | |
|
|
179 KB |
|
|
131 KB |
Software
| Ukuran | |
|
|
11,3 KB |
|
|
13,4 KB |
|
|
612 KB |
Simulation Data
| Ukuran | |
|
|
21 MB |
|
|
24 MB |
Speaker Tunings
| Ukuran | |
|
|
557 KB |
Accessories
| Ukuran | |
|
|
204 KB |
Information documents
| Ukuran | |
|
|
113 KB |
Install Guides
| Ukuran | |
|
|
52,4 KB |
|
|
23,9 KB |
|
|
76,4 KB |
|
|
13,7 KB |
|
|
71,2 KB |
|
|
5,12 MB |
Owner's Manuals
| Ukuran | |
|
|
386 KB |
Images
| Ukuran | |
|
|
284 KB |
Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.
Suku Cadang & Servis
Spesifikasi
| Frequency Range | 80 Hz - 20 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 80 Watts Continuous Program Power 40 Watts Continuous Pink Noise (160W peak), 100 hrs |
| Sensitivity | 86 dB SPL @ 1 m (3.3 ft) |
| Coverage Angle | 130° conical |
| Directivity Factor (Q) | 2.4 dB averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 3.8 dB averaged 500 Hz to 4 kHz |
| Maximum SPL (1m) | 102 dB (low-impedance, 108 dB peak) |
| Impedance | 16 ohms |
| Input Connectors | Removable 4-pin locking connector with screw-down terminals. |
| Drivers | LF Driver: 100 mm (4.0 in) HF Driver: 19 mm (0.75 in) |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | Medium impact polystyrene, fire rated UL94V-0 |
| Ceiling Cutout Size | 168 mm (6.6 in) diameter (cardboard cutout template included) |
| Included Accessories | C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector |
| Plenum Usage | Yes, backcan included |
