Control 24C

Background / Foreground Ceiling Loudspeakers

Control 24C
Larger Images

Background/ Foreground Ceiling Loudspeakers

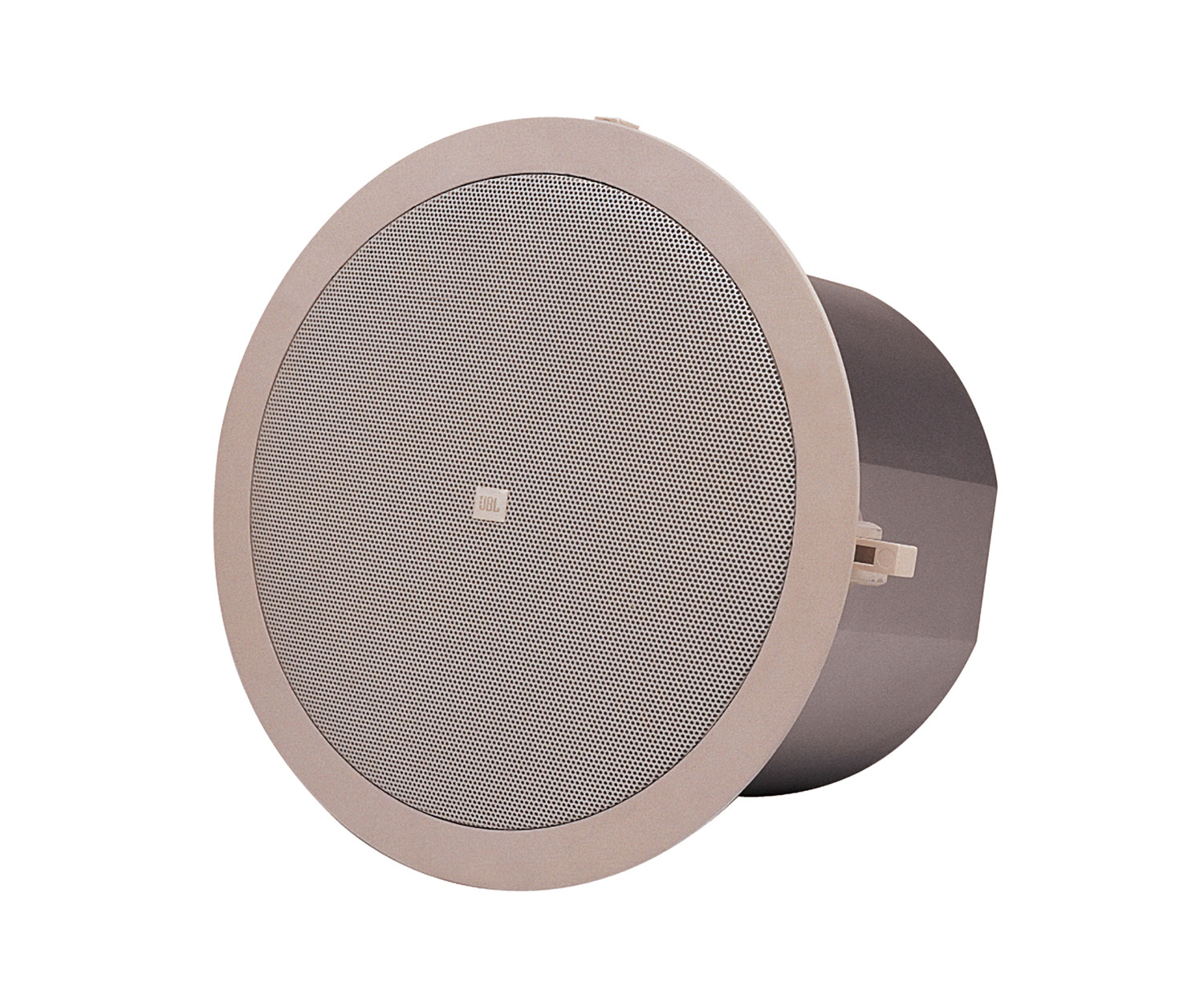

The Control 24C is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.

Features

  • Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.
  • High power, wide frequency response and low distortion for high sound level capability.
  • Wide coverage allows fewer speakers, reducing the cost of the installed sound system without
    sacrificing performance.
  • JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved
    system reliability.
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Downloads

  Version Language Size Uploaded
Data Sheets
file type icon Control 24C/CT Spec Sheet
version B, updated: Okt 2020
  508 KB Okt 2020
Manuals
file type icon MTC-TCD Thick-Ceiling Dogear
updated: Okt 2019
    41,7 KB Okt 2019
file type icon Ceiling Speaker Accessory Guide
version B, updated: Jan 2024
  231 KB Jan 2024
file type icon Ceiling Speaker Application Guide
updated: Okt 2019
    493 KB Okt 2019
Brochures
file type icon Control Contractor Brochure (2024)
en version E, updated: Mär 2024
en  14,2 MB Mär 2024
CAD Drawings
file type icon Control Surface Mount 2D Drawings
updated: Okt 2020
    674 KB Okt 2020
file type icon Control Contractor Ceiling Speakers 3D Drawing
updated: Okt 2020
    3,42 MB Okt 2020
BIM Objects
file type icon CONTROL 24C BIM Object
updated: Aug 2019
    Aug 2019
Compliances
file type icon JBL Control Series Passive Speakers DoC
updated: Dez 2019
    179 KB Dez 2019
file type icon Control Contractor Series Declaration of Conformity
updated: Okt 2019
    131 KB Okt 2019
Software
platform icon Ceiling Speaker System Worksheet
version 2, updated: Feb 2020
2     11,3 KB Feb 2020
platform icon Ceiling Subwoofer Worksheet
updated: Nov 2020
    13,4 KB Nov 2020
platform icon Distributed System Design (DSD)
version 3.7, updated: Nov 2023
3.7     1,07 MB Nov 2023
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: Mär 2022
    21 MB Mär 2022
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: Mai 2023
  557 KB Mai 2023
Accessories
file type icon MTC-CS-Teth1 Press-In Grille Safety Tether
updated: Sep 2021
    204 KB Sep 2021
Simulation Data
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: Mai 2023
12-10-21    24 MB Mai 2023
Information documents
file type icon MTC-NC Ceiling Speaker New Construction Bracket Drawing
updated: Okt 2019
    113 KB Okt 2019
Install Guides
file type icon Guide to Business Music
updated: Okt 2020
    52,4 KB Okt 2020
file type icon CC Ceiling Speakers: Myth versus Reality
updated: Okt 2020
    23,9 KB Okt 2020
file type icon Attaching Control Contractor Speakers to Stands
updated: Nov 2019
    76,4 KB Nov 2019
file type icon Metric Ceiling Speaker System Worksheet
updated: Okt 2020
    13,7 KB Okt 2020
file type icon Trim Rings MTC-24TR & MTC-26TR Installation
updated: Okt 2020
    71,2 KB Okt 2020
file type icon Subwoofer - Satellite Application Guide
updated: Okt 2020
    5,12 MB Okt 2020
Owner's Manuals
file type icon Control 24C/CT Manual
updated: Apr 2019
    386 KB Apr 2019
Images
file type icon Control 24C Photo
updated: Apr 2019
    284 KB Apr 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range 80 Hz - 20 kHz
Power Rating IEC System Long-Term Ratings (low-Z direct):
80 Watts Continuous Program Power
40 Watts Continuous Pink Noise (160W peak), 100 hrs
Sensitivity 86 dB SPL @ 1 m (3.3 ft)
Coverage Angle 130° conical
Directivity Factor (Q) 2.4 dB averaged 500 Hz to 4 kHz
Directivity Index (DI) 3.8 dB averaged 500 Hz to 4 kHz
Maximum SPL (1m) 102 dB (low-impedance, 108 dB peak)
Impedance 16 ohms
Input Connectors Removable 4-pin locking connector with screw-down terminals.
Drivers LF Driver: 100 mm (4.0 in)
HF Driver: 19 mm (0.75 in)
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size 168 mm (6.6 in) diameter (cardboard cutout template included)
Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
Plenum Usage Yes, backcan included

accessories

MTC-48TRx12 | Tile Rail for 4' x 4' Ceiling Tiles
MTC-48TRx12 Main photo
Larger Images

Tile Rail for 4' x 4' Ceiling Tiles

MTC-48TRx12 is an accessory tile rail for installing many of JBL’s ceiling loudspeakers into 4 ft by 4 ft
(1200 x 1200 mm; 48 x 48 inch) ceiling tiles in suspended ceiling applications.

  • Can be used with any JBL ceiling speakers having the C-ring/tile-rail mounting system.
    Includes (at product release):
    • Control 24C/CT Micro & 24CT MicroPlus
    • Control 24C/CT, 26C/CT, 19CS/CST
    • Control 47C/T, 47LP, 47HC, 40CS/T, 42C
    • Control 226C/T
    • 8124/8128
    • Not for JBL speakers that install with tile bridges (such as CSS Series, 8138, C227C/CT, C300 Series models). Check with JBL Professional Customer Service for most up-to-date compatibility list.
  • Inverted V-groove provides support to the tile rail grid in case of tile failure while reducing vibration transfer to – and rattling from – ceiling tile grid system.
  • 1.2 mm (0.05 in) metal thickness provides the additional support required by the long span.
  • Multiple C-ring mounting holes. Additional hole locations drillable by installer.
  • One MTC-48TRx12 is a pack of 12 tile rails, enough for 6 speakers (2 per speaker).
