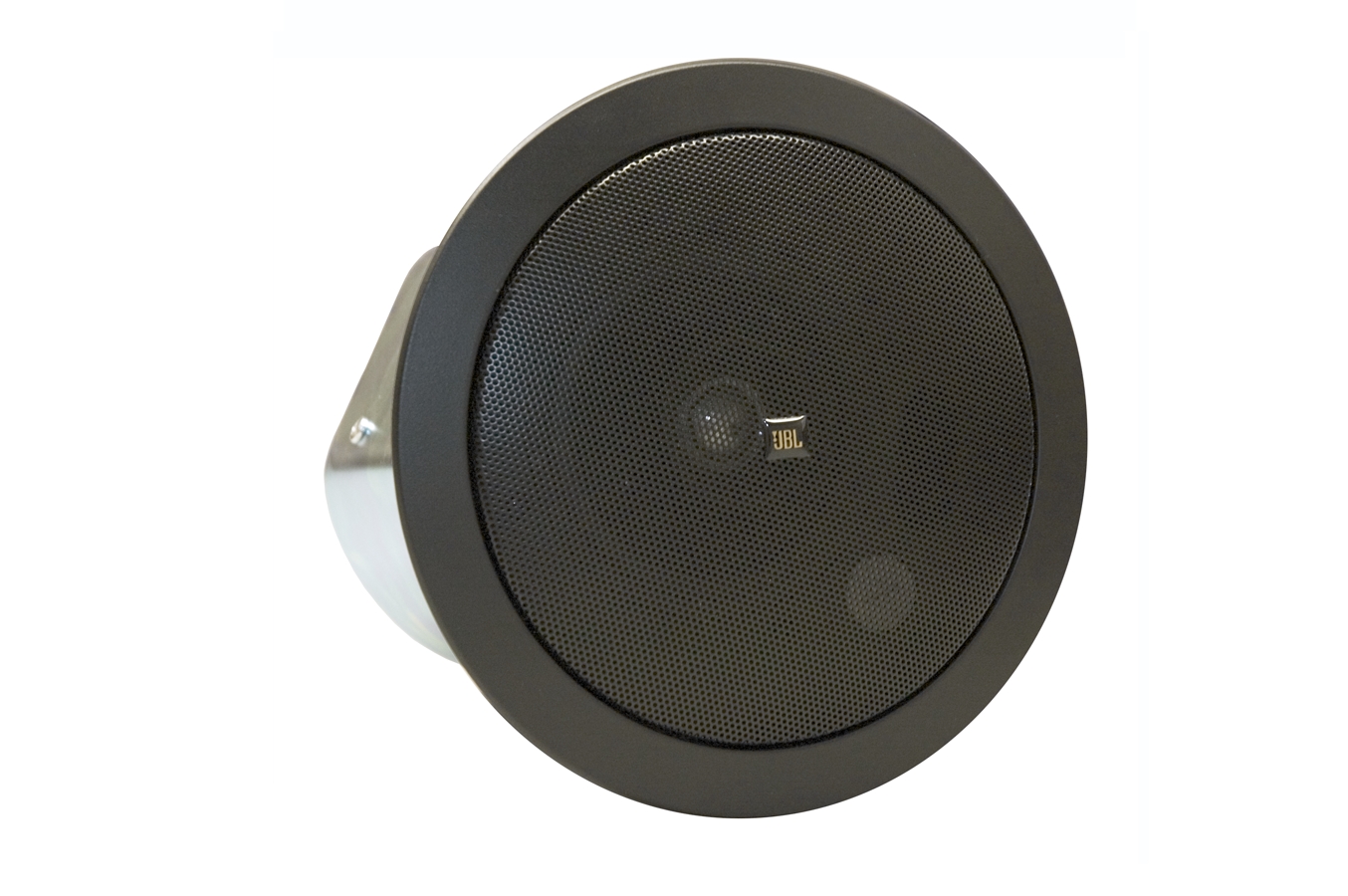

JBL Professional Control 24CT-BK

Μεγαλύτερες εικόνες

Background/Foreground Ceiling Speaker

The Control 24CT-BK is a compact ceiling speaker providing premium performance in background, foreground and music-pluspaging sound systems. The Control 24CT-BK is perfectly suited for a wide variety of applications from professional offices and airports to restaurants and specialty retail stores. High power handling, wide frequency response and low distortion make the Control 24CT-BK ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area.

Χαρακτηριστικά

Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
High power, wide frequency response and low distortion for high sound level capability
Wide coverage allows fewer speakers, reducing the cost of the installed sound system without
sacrificing performance
Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
Black baffle and grille works well in black and dark ceiling

Λήψεις

Data Sheets

	Έκδοση	Μέγεθος	Ανέβηκε
Control 24CT-BK Spec Sheet έκδοση B, ενημέρωση: Οκτ 2020	B	500 KB	Οκτ 2020

Manuals

	Μέγεθος	Ανέβηκε
MTC-TCD Thick-Ceiling Dogear ενημέρωση: Οκτ 2019	40 KB	Οκτ 2019

Brochures

	Έκδοση	Γλώσσα	Μέγεθος	Ανέβηκε
Control Contractor Brochure (2025) έκδοση A, ενημέρωση: Μαρ 2026	A		20 MB	Μαρ 2026
Control Contractor Brochure (2026) ενημέρωση: Μαρ 2026			20 MB	Μαρ 2026

CAD Drawings

	Μέγεθος	Ανέβηκε
Control Contractor Ceiling Speakers 3D Drawing ενημέρωση: Οκτ 2020	3 MB	Οκτ 2020
Control Surface Mount 2D Drawings ενημέρωση: Οκτ 2020	700 KB	Οκτ 2020

Compliances

	Μέγεθος	Ανέβηκε
JBL Control Series Passive Speakers DoC ενημέρωση: Δεκ 2019	200 KB	Δεκ 2019

Simulation Data

	Έκδοση	Μέγεθος	Ανέβηκε
JBL Pro ALL CLF Files έκδοση 12-10-21, ενημέρωση: Μαϊ 2023	12-10-21	20 MB	Μαϊ 2023

Owner's Manuals

	Μέγεθος	Ανέβηκε
Control Contractor Ceiling Loudspeakers Owner’s Manual ενημέρωση: Οκτ 2020	400 KB	Οκτ 2020

Accessories

	Μέγεθος	Ανέβηκε
MTC-CS-Teth1 Press-In Grille Safety Tether ενημέρωση: Σεπ 2021	200 KB	Σεπ 2021

Install Guides

	Μέγεθος	Ανέβηκε
Guide to Business Music ενημέρωση: Οκτ 2020	50 KB	Οκτ 2020
CC Ceiling Speakers: Myth versus Reality ενημέρωση: Οκτ 2020	20 KB	Οκτ 2020

Images

	Μέγεθος	Ανέβηκε
Control 24CT-BK Hi-Res Image ενημέρωση: Οκτ 2020	400 KB	Οκτ 2020

Εάν κάποιος από τους παραπάνω συνδέσμους έχει ως αποτέλεσμα παράξενους χαρακτήρες στο πρόγραμμα περιήγησής σας, κάντε δεξί κλικ στο αρχείο για να το αποθηκεύσετε στον υπολογιστή σας.

Ανταλλακτικά και σέρβις

Προδιαγραφές

Frequency Range	80 Hz - 20 kHz
Power Rating	See transformer taps
Transformer Taps	70V: 30W, 15W, 7.5W (& 3.7W @ 70V)
Coverage Angle	130° conical
Directivity Factor (Q)	2.4 dB averaged 500 Hz to 4 kHz
Directivity Index (DI)	3.8 dB averaged 500 Hz to 4 kHz
Maximum SPL (1m)	102 dB (top 70V/100V tap)
Nominal Impedance	16 ohms (Min Z 16.1 ohms @ 320 Hz)
Sensitivity	86 dB (100 Hz - 10 kHz)
Input Connectors	Removable 4-pin locking connector with screw-down terminals.
Drivers	LF Driver: 100 mm (4.0 in) HF Driver: 19 mm (0.75 in)
Color	Black
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	formed steel (included "blind-mount")
Baffle/Rim	Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size	168 mm (6.6 in) diameter (cardboard cutout template included)
Included Accessories	C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
Plenum Usage	Yes, backcan included
