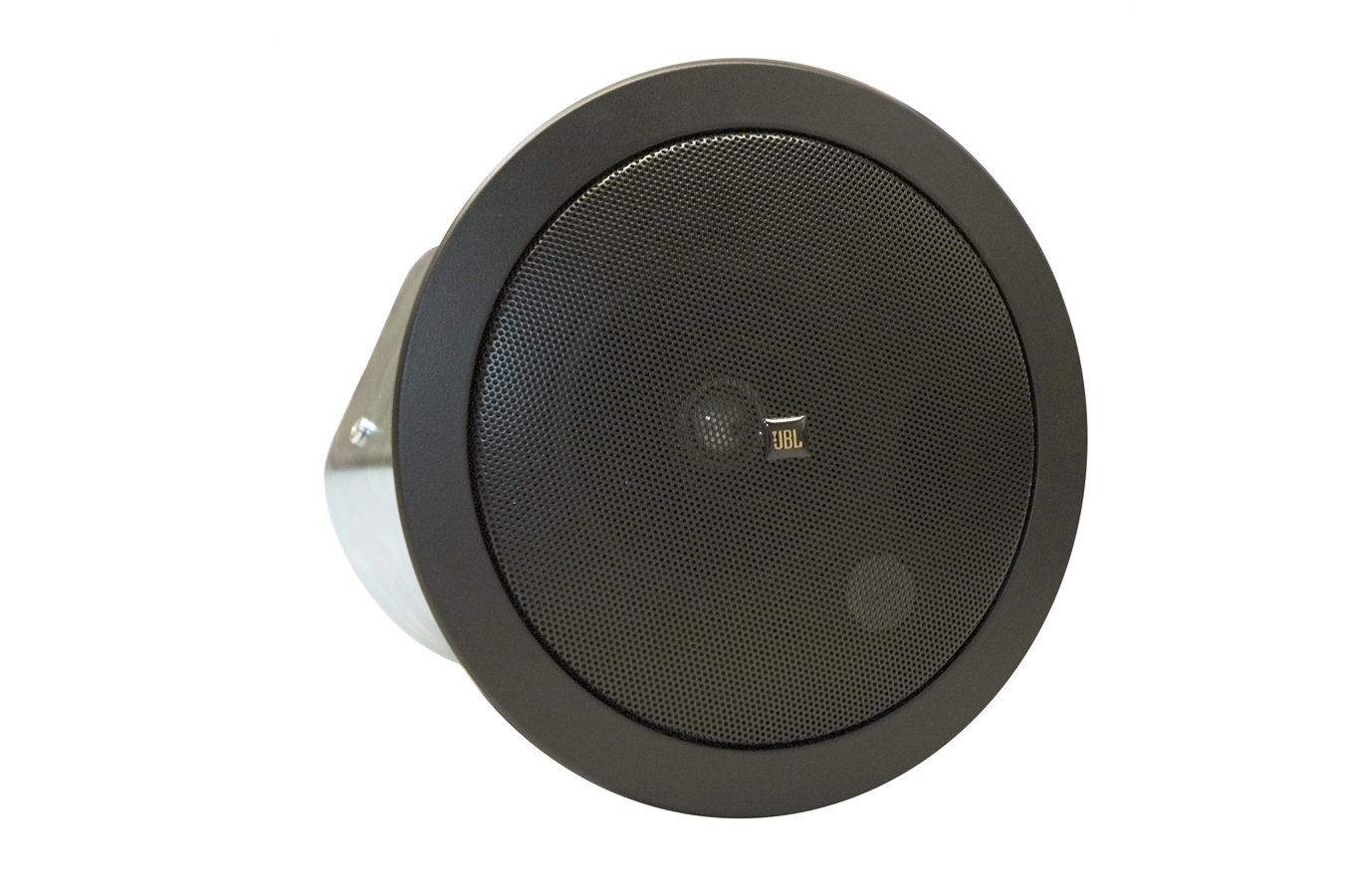

JBL Professional Control 24CT-BK

Gambar Lebih Besar

Speaker Plafon Latar Belakang/Latar Depan

Control 24CT-BK adalah speaker plafon kompak yang memberikan performa premium dalam sistem suara latar belakang, latar depan, dan musik-plus-paging. Control 24CT-BK sangat cocok untuk berbagai aplikasi mulai dari kantor profesional dan bandara hingga restoran dan toko ritel khusus. Penanganan daya tinggi, respons frekuensi luas, dan distorsi rendah menjadikan Control 24CT-BK ideal untuk sistem suara yang membutuhkan suara fidelitas lebih tinggi dari loudspeaker plafon. Kemampuan performa premium memastikan karakter suara yang sangat baik, memberikan suara yang menyenangkan dan menyelimuti seluruh area pendengaran.

Fitur

Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
High power, wide frequency response and low distortion for high sound level capability
Wide coverage allows fewer speakers, reducing the cost of the installed sound system without
sacrificing performance
Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
Black baffle and grille works well in black and dark ceiling

Unduhan

Data Sheets

	Versi	Ukuran	Diunggah
Control 24CT-BK Spec Sheet versi B, diperbarui: Okt 2020	B	516 KB	Okt 2020

Manuals

	Ukuran	Diunggah
MTC-TCD Thick-Ceiling Dogear diperbarui: Okt 2019	41,7 KB	Okt 2019

Brochures

	Versi	Bahasa	Ukuran	Diunggah
Control Contractor Brochure (2025) versi A, diperbarui: Mar 2026	A		23 MB	Mar 2026
Control Contractor Brochure (2026) diperbarui: Mar 2026			21 MB	Mar 2026

CAD Drawings

	Ukuran	Diunggah
Control Contractor Ceiling Speakers 3D Drawing diperbarui: Okt 2020	3,42 MB	Okt 2020
Control Surface Mount 2D Drawings diperbarui: Okt 2020	674 KB	Okt 2020

Compliances

	Ukuran	Diunggah
JBL Control Series Passive Speakers DoC diperbarui: Des 2019	179 KB	Des 2019

Simulation Data

	Versi	Ukuran	Diunggah
JBL Pro ALL CLF Files versi 12-10-21, diperbarui: Mei 2023	12-10-21	24 MB	Mei 2023

Owner's Manuals

	Ukuran	Diunggah
Control Contractor Ceiling Loudspeakers Owner’s Manual diperbarui: Okt 2020	386 KB	Okt 2020

Accessories

	Ukuran	Diunggah
MTC-CS-Teth1 Press-In Grille Safety Tether diperbarui: Sep 2021	204 KB	Sep 2021

Install Guides

	Ukuran	Diunggah
Guide to Business Music diperbarui: Okt 2020	52,4 KB	Okt 2020
CC Ceiling Speakers: Myth versus Reality diperbarui: Okt 2020	23,9 KB	Okt 2020

Images

	Ukuran	Diunggah
Control 24CT-BK Hi-Res Image diperbarui: Okt 2020	383 KB	Okt 2020

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

Frequency Range	80 Hz - 20 kHz
Power Rating	See transformer taps
Transformer Taps	70V: 30W, 15W, 7.5W (& 3.7W @ 70V)
Coverage Angle	130° conical
Directivity Factor (Q)	2.4 dB averaged 500 Hz to 4 kHz
Directivity Index (DI)	3.8 dB averaged 500 Hz to 4 kHz
Maximum SPL (1m)	102 dB (top 70V/100V tap)
Nominal Impedance	16 ohms (Min Z 16.1 ohms @ 320 Hz)
Sensitivity	86 dB (100 Hz - 10 kHz)
Input Connectors	Removable 4-pin locking connector with screw-down terminals.
Drivers	LF Driver: 100 mm (4.0 in) HF Driver: 19 mm (0.75 in)
Color	Black
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	formed steel (included "blind-mount")
Baffle/Rim	Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size	168 mm (6.6 in) diameter (cardboard cutout template included)
Included Accessories	C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
Plenum Usage	Yes, backcan included
