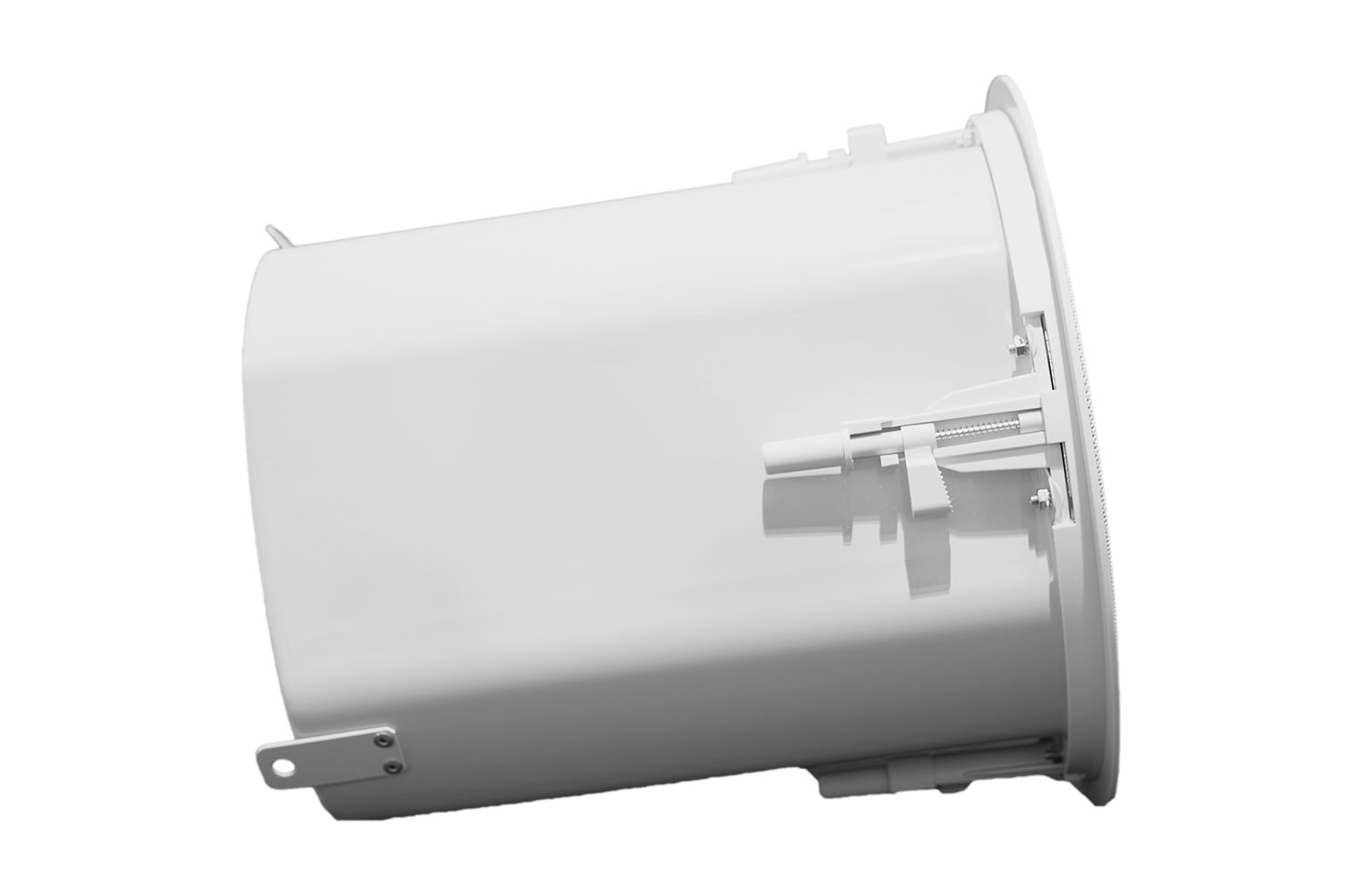

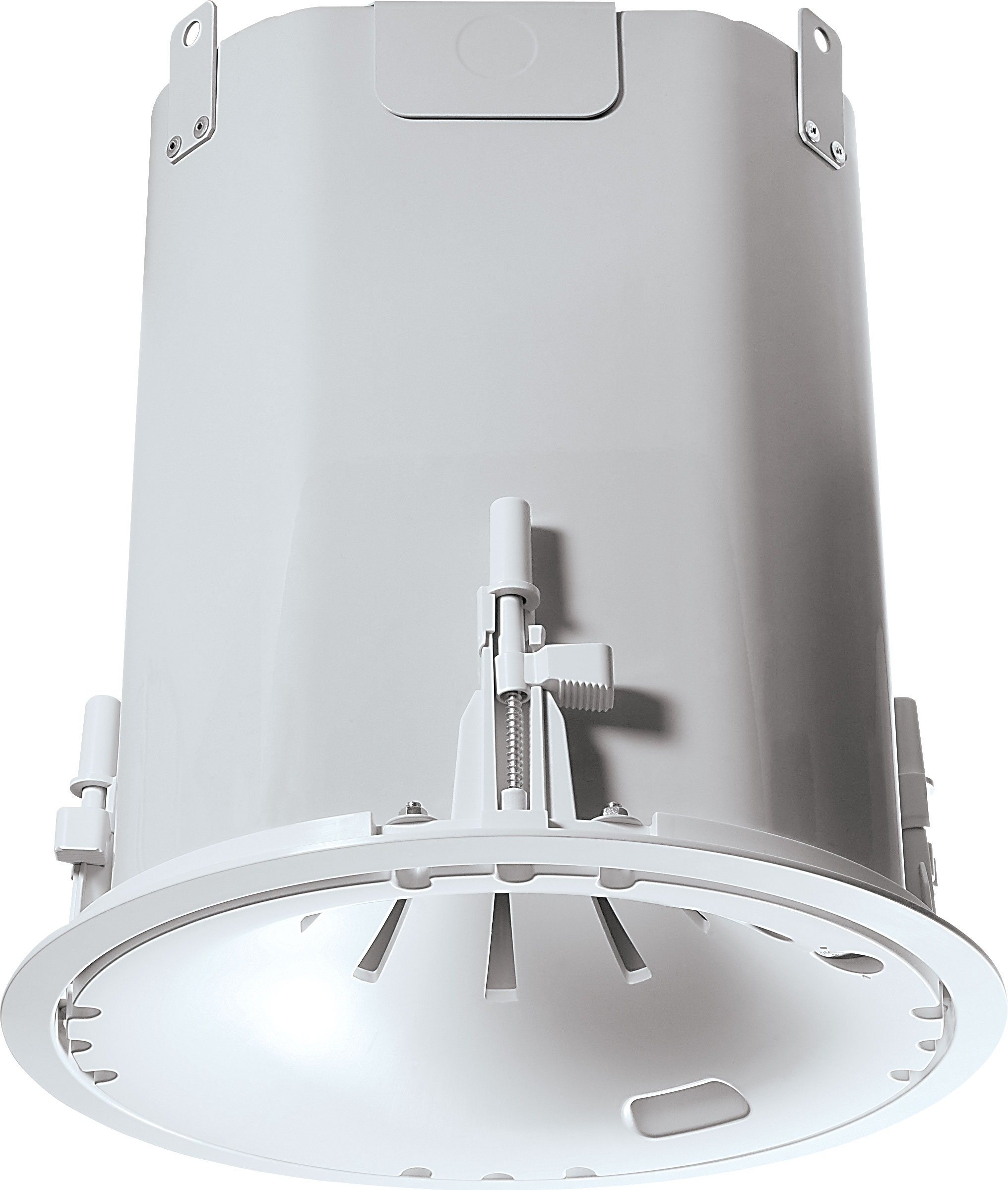

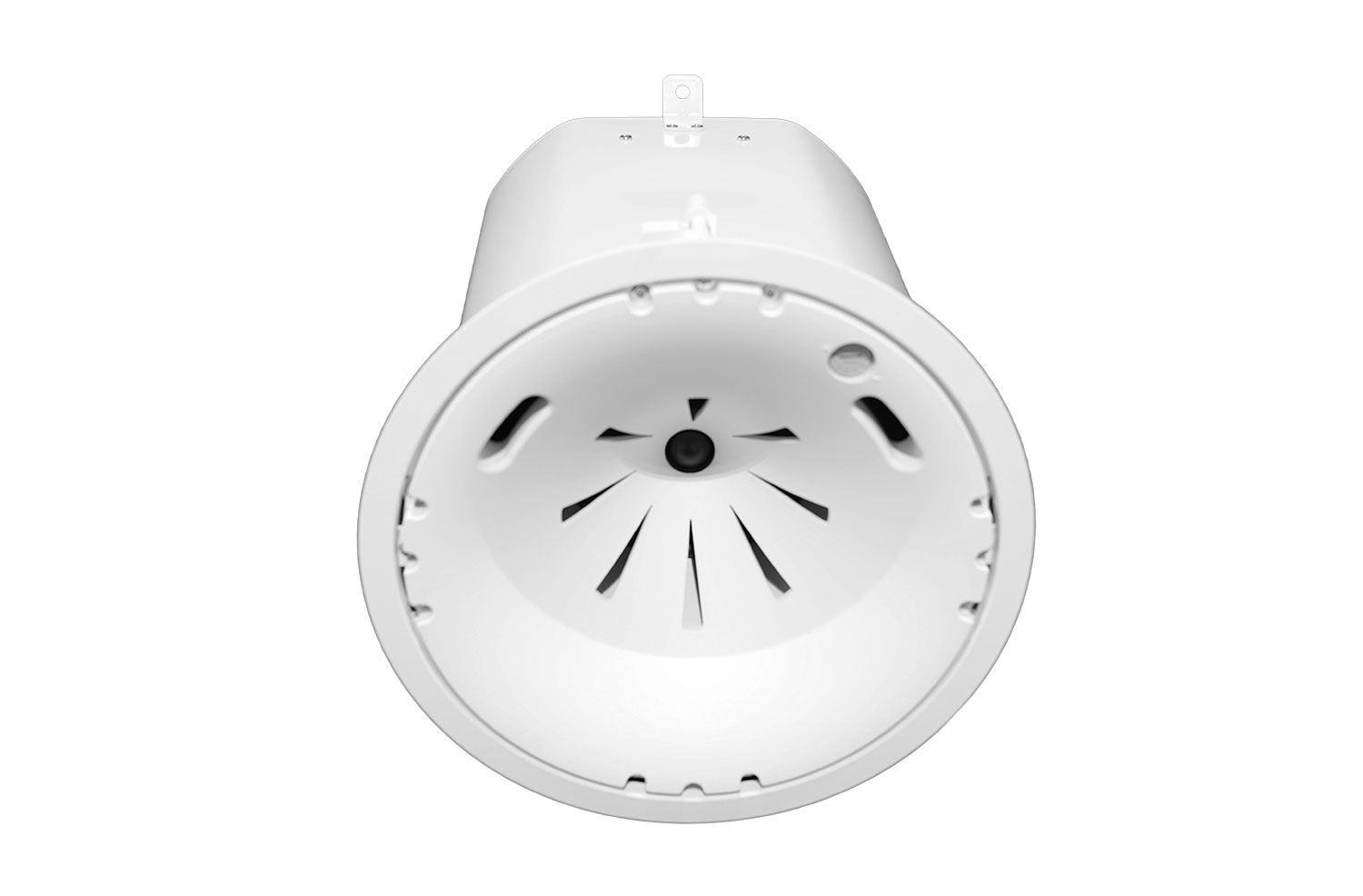

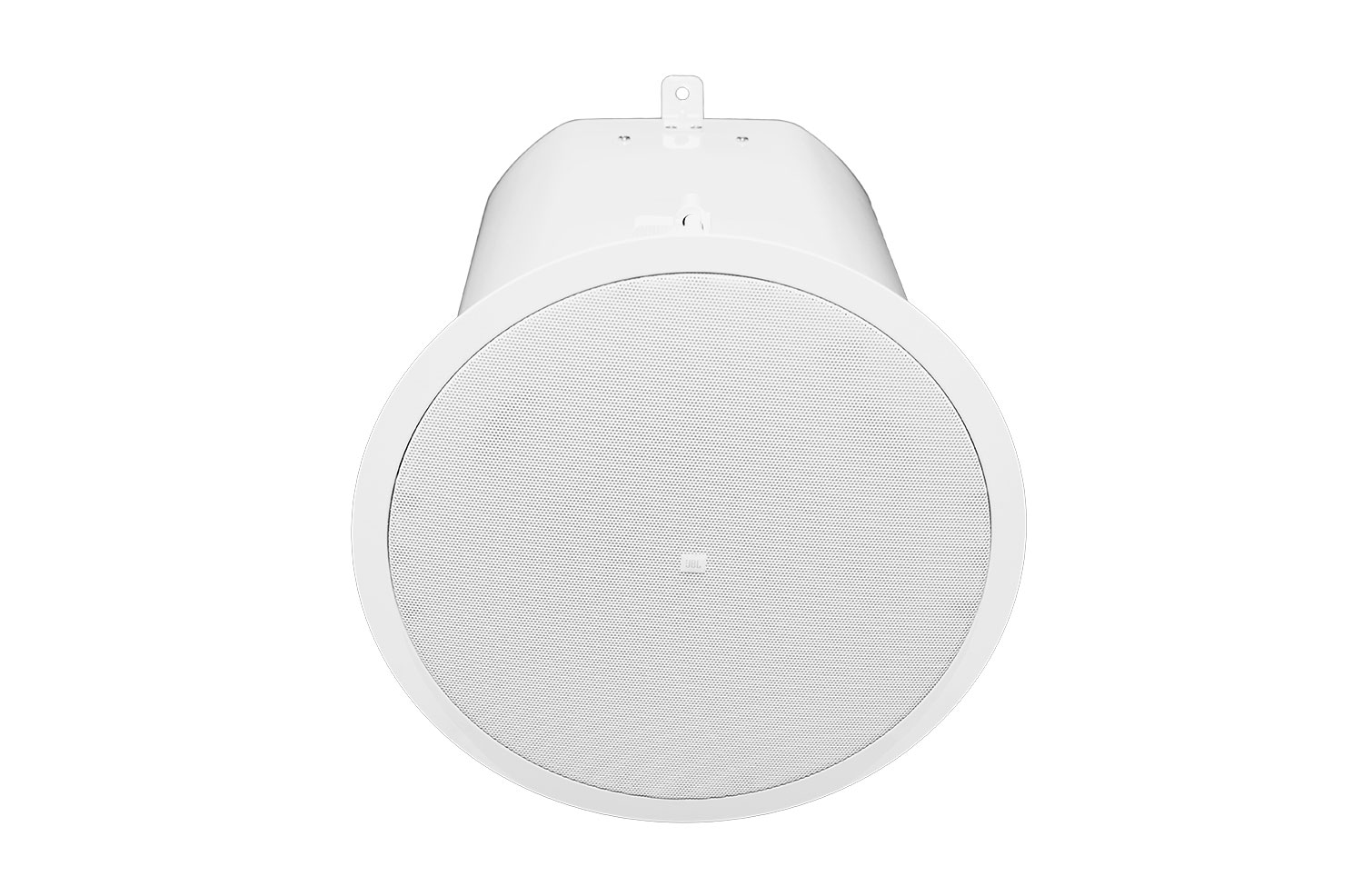

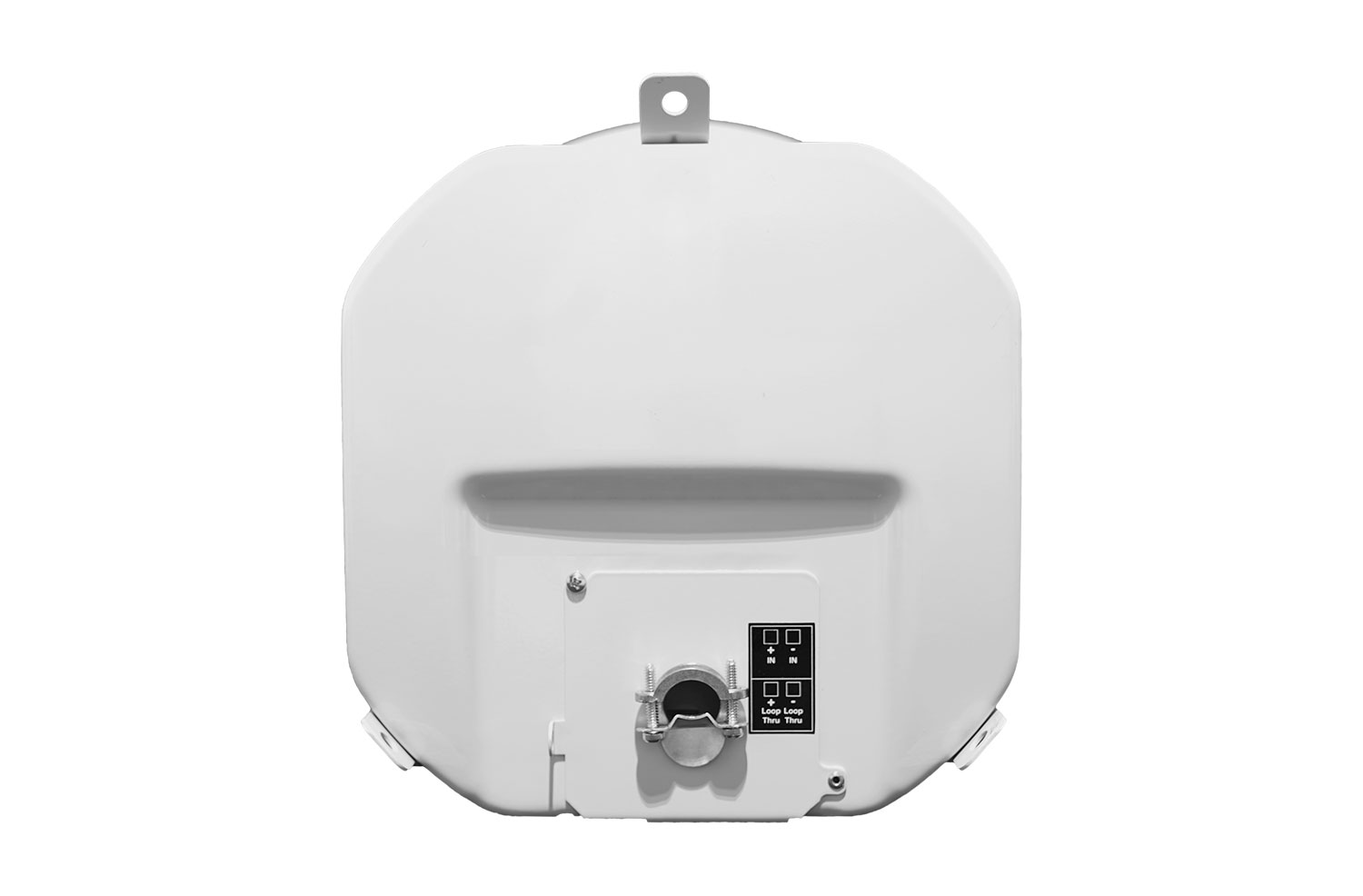

The Control 47HC features a narrow 75° coverage pattern ideal for use in highly reverberant spaces and high ceiling applications. This focused pattern helps minimize sound reflecting off of room surfaces as well as, time arrival anomalies from adjacent loudspeakers resulting in improved speech intelligibility. The Control 47HC features the same sonic character the Control 47C/T and is ideal for busy transit centers or large convention center spaces.
| ขนาด | |
|
|
297 กิโลไบต์ |
| ขนาด | |
|
|
127 กิโลไบต์ |
| ขนาด | |
|
|
21 เมกะไบต์ |
|
|
23 เมกะไบต์ |
|
|
14 เมกะไบต์ |
|
|
716 กิโลไบต์ |
| ขนาด | |
|
|
185 กิโลไบต์ |
|
|
1.59 เมกะไบต์ |
| ขนาด | |
|
|
154 กิโลไบต์ |
|
|
179 กิโลไบต์ |
| ขนาด | |
|
|
612 กิโลไบต์ |
| ขนาด | |
|
|
21 เมกะไบต์ |
| ขนาด | |
|
|
934 กิโลไบต์ |
| ขนาด | |
|
|
204 กิโลไบต์ |
| ขนาด | |
|
|
1.02 เมกะไบต์ |
| ขนาด | |
|
|
1.17 เมกะไบต์ |
|
|
11.5 เมกะไบต์ |
| ขนาด | |
|
|
42.2 กิโลไบต์ |
|
|
44.6 กิโลไบต์ |
|
|
146 กิโลไบต์ |
|
|
49.7 กิโลไบต์ |
|
|
327 กิโลไบต์ |
| ขนาด | |
|
|
557 กิโลไบต์ |
หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ
| Frequency Range | 55 Hz - 17 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (300W peak), 100 hrs |
| Sensitivity | 93 dB (1kHz - 16 kHz) |
| Transformer Taps | 60 W, 30 W, 15 W, (& 7.5 W @ 70 V), plus transformer bypass |
| Coverage Angle | 75° conical, constant directivity |
| Impedance | 8 ohms (in bypass mode) |
| Drivers | LF Driver: 165 mm (6.5 in) HF Driver: 25 mm (1 in) |
| Input Connectors | Two removeable locking 2-pin connectors with screwdown terminals. |
| Included Accessories | C-rings, tile rails, paint shield, cutout template, Grille |
| Suspension Tabs | Three, on top panel |
| Dimensions (Diameter x Depth) | 332mm Diameter x 351mm Diameter Depth (13.1 in x 13.8 in) |
| Maximum SPL (1m) | 112 dB (low-impedance, 118 dB peak) 111 dB (top 70V/100V tap) |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | ABS baffle with UL94-V0 flame class fire rating. |
| Ceiling Cutout Size | 307 mm Diameter (12.1 in) diameter (cardboard cutout template included) |
| Optional Accessories | MTC-19NC New Construction Bracket MTC-19MR Mud Ring Construction Bracket |
| Plenum Usage | Yes, backcan included |
MTC-48TRx12 is an accessory tile rail for installing many of
JBL’s ceiling loudspeakers into 4 ft by 4
ft
(1200 x 1200 mm; 48 x 48 inch)
ceiling tiles in suspended ceiling
applications.
MTC-48TRx12 Spec Sheet (revB)
[77.2 กิโลไบต์]
