The Control 47HC features a narrow 75° coverage pattern ideal for use in highly reverberant spaces and high ceiling applications. This focused pattern helps minimize sound reflecting off of room surfaces as well as, time arrival anomalies from adjacent loudspeakers resulting in improved speech intelligibility. The Control 47HC features the same sonic character the Control 47C/T and is ideal for busy transit centers or large convention center spaces.
| Size | ||||
Specifications | ||||
Control 47HC Spec Sheet
updated: 4월 2019
|
297KB | |||
Manuals | ||||
|
Ceiling Speaker Accessory Guide
updated: 10월 2019
|
127KB | |||
Brochures | ||||
Control Contractor Brochure (2023)
version B,
updated: 6월 2023
|
8.18MB | |||
|
Control 40 Brochure
updated: 9월 2019
|
716KB | |||
CAD Drawings | ||||
Control 47HC & 40CST 2D Drawing
version B,
updated: 11월 2020
|
185KB | |||
|
Control 47HC & 40CST 3D Drawing
version B,
updated: 11월 2020
|
1.59MB | |||
Compliances | ||||
|
Control 40 Series Declaration of Conformity
updated: 10월 2019
|
154KB | |||
|
JBL Control Series Passive Speakers DoC
updated: 12월 2019
|
179KB | |||
Software | ||||
Distributed System Design (DSD)
version 3.7,
updated: 11월 2023
|
1.07MB | |||
User Guides | ||||
|
Control 40 Users Guide
updated: 10월 2020
|
934KB | |||
Ease Data | ||||
|
Ease SPK/DLL Files - Full JBL Pro Line
updated: 3월 2022
|
21MB | |||
|
Authorized EASE ADDRESS files
updated: 8월 2021
|
1.17MB | |||
|
Full EASE ADDRESS Software with JBL Speaker Data
version A,
updated: 12월 2021
|
11.5MB | |||
Accessories | ||||
|
MTC-CS-Teth1 Press-In Grille Safety Tether
updated: 9월 2021
|
204KB | |||
Technical Papers | ||||
|
C40 RBI White Paper
updated: 8월 2021
|
1.02MB | |||
Images | ||||
|

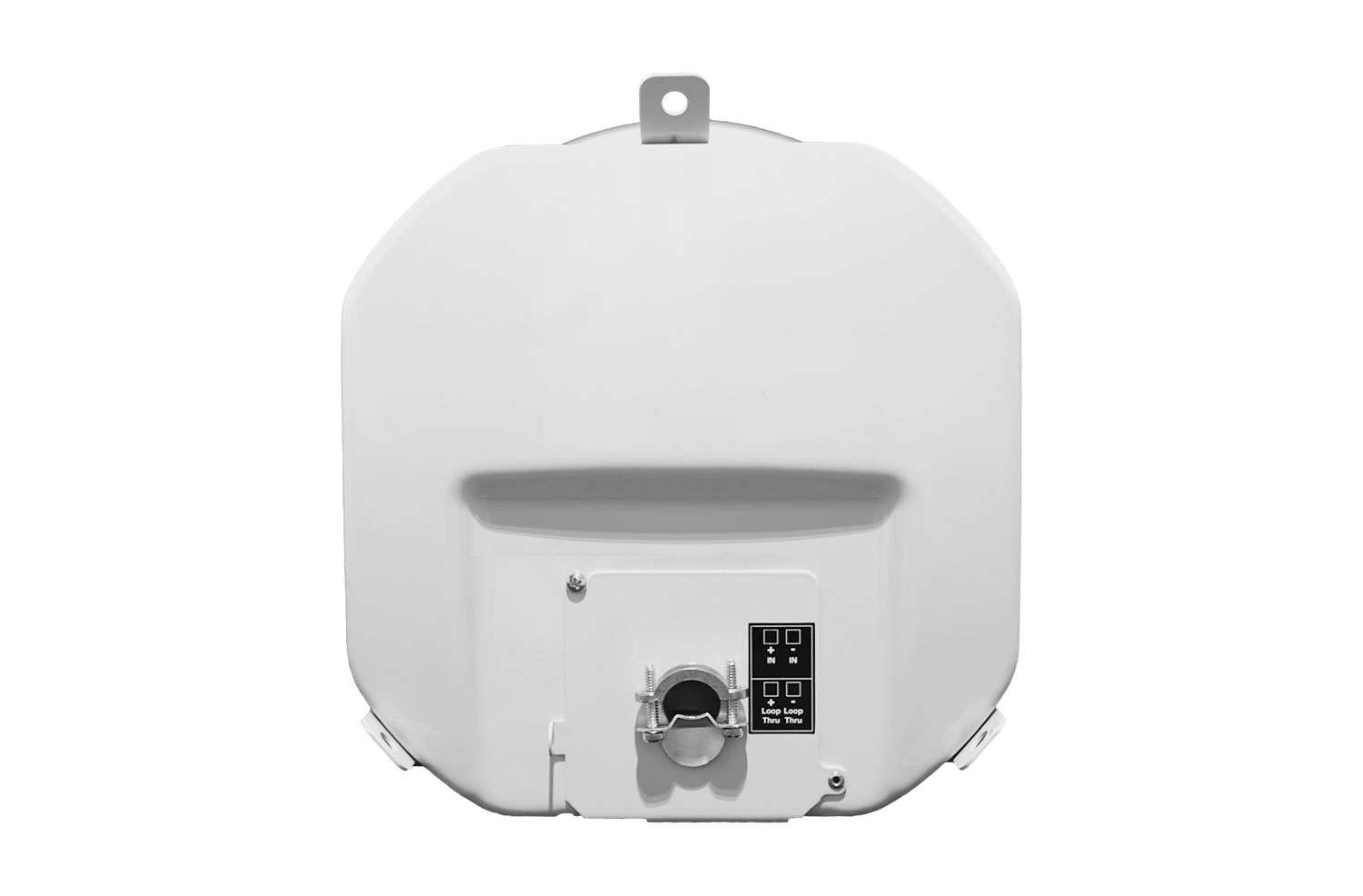

Control 47HC 04
updated: 4월 2019
|
42.2KB | |||
|

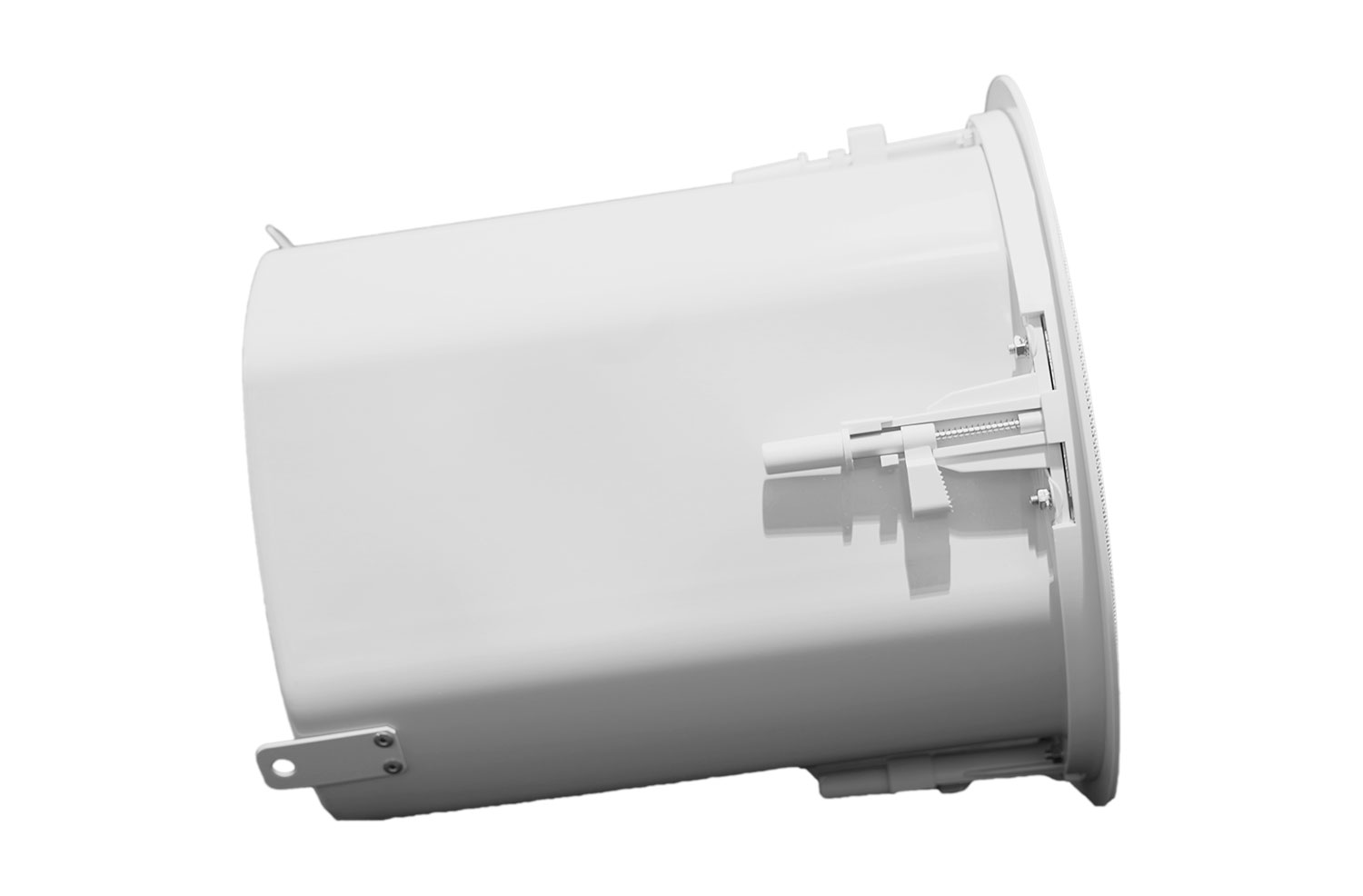

Control 47HC 03
updated: 4월 2019
|
44.6KB | |||
|

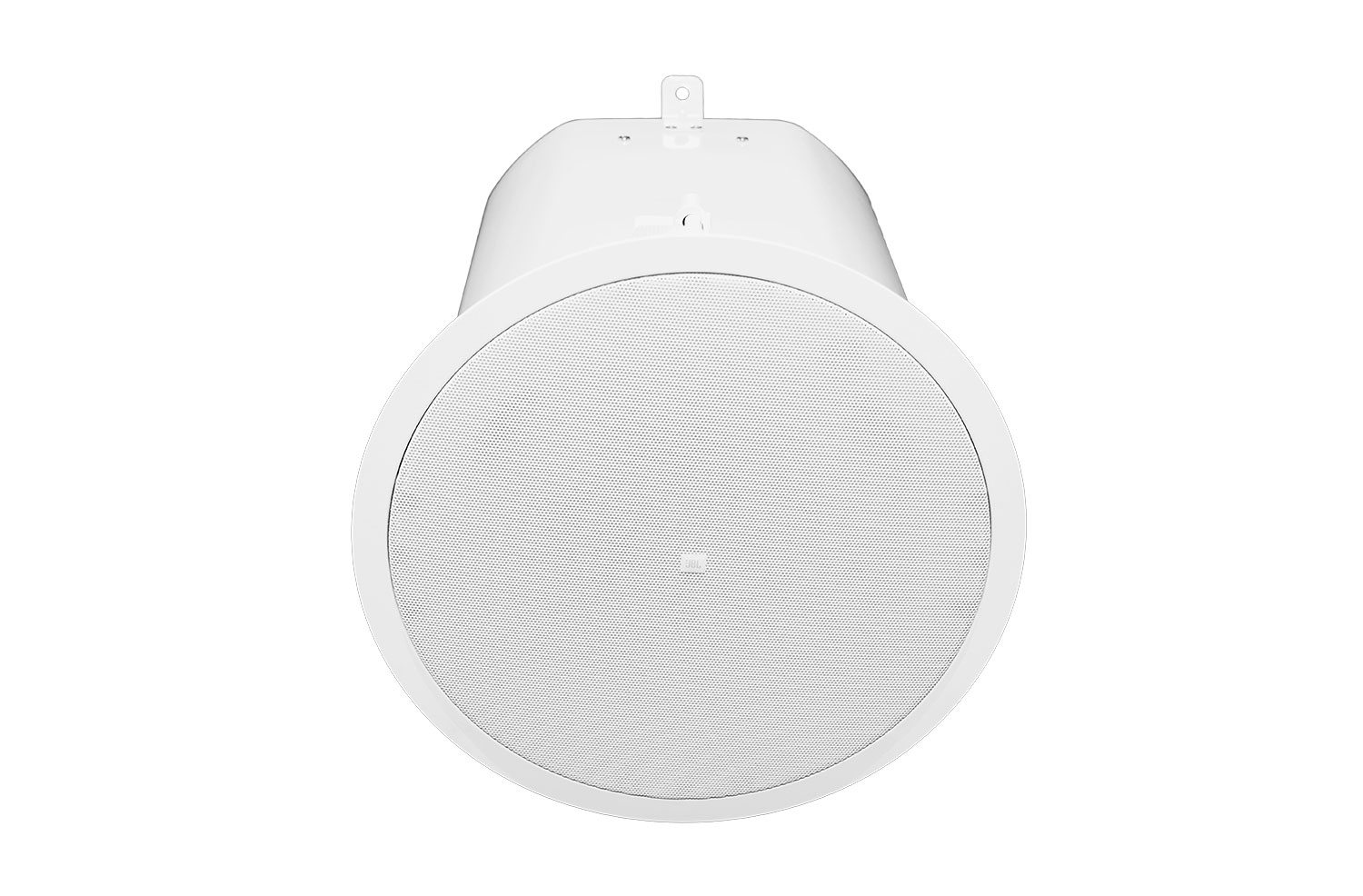

Control 47HC 02
updated: 4월 2019
|
146KB | |||
|

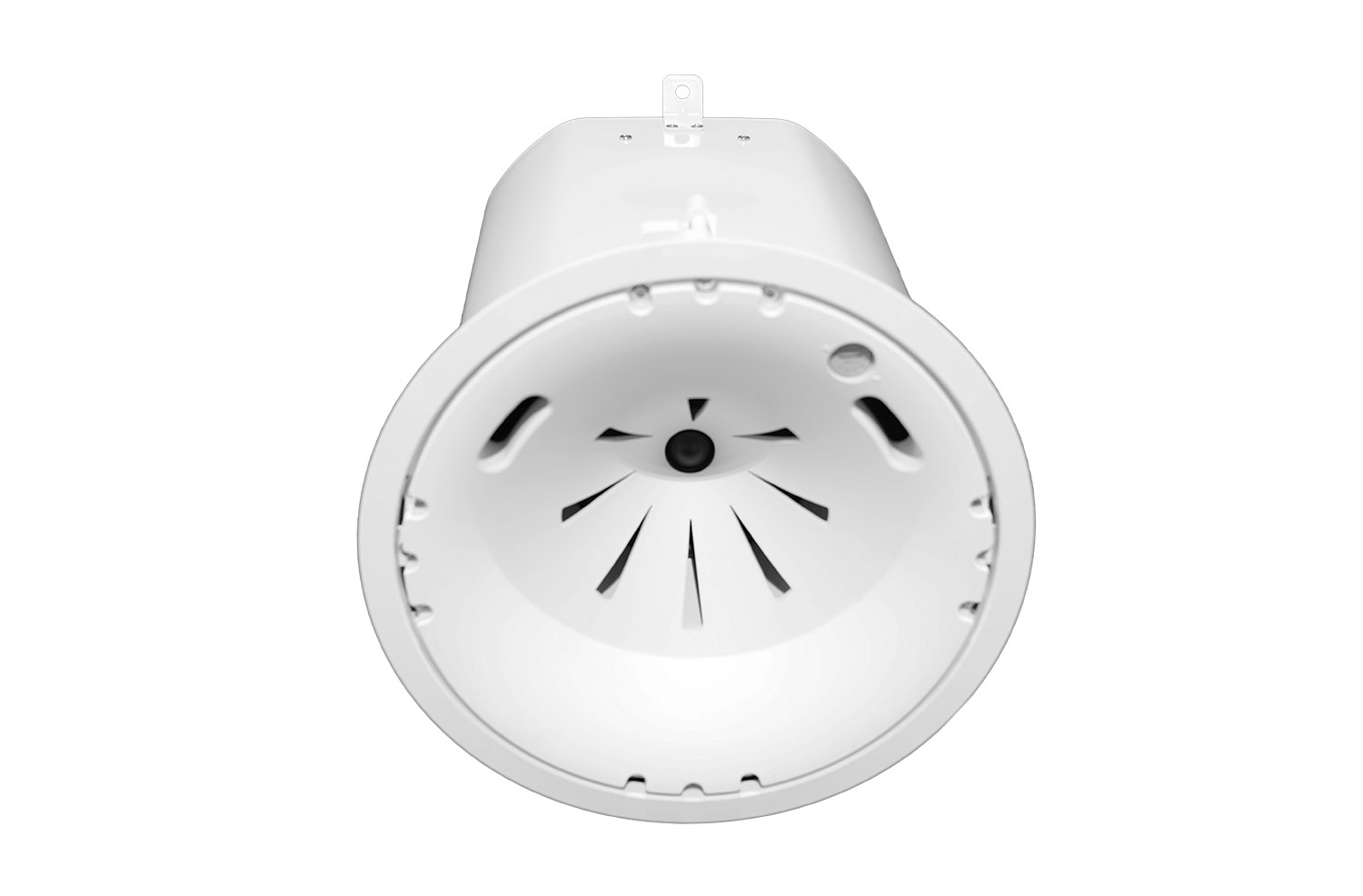

Control 47HC 01
updated: 4월 2019
|
49.7KB | |||
|

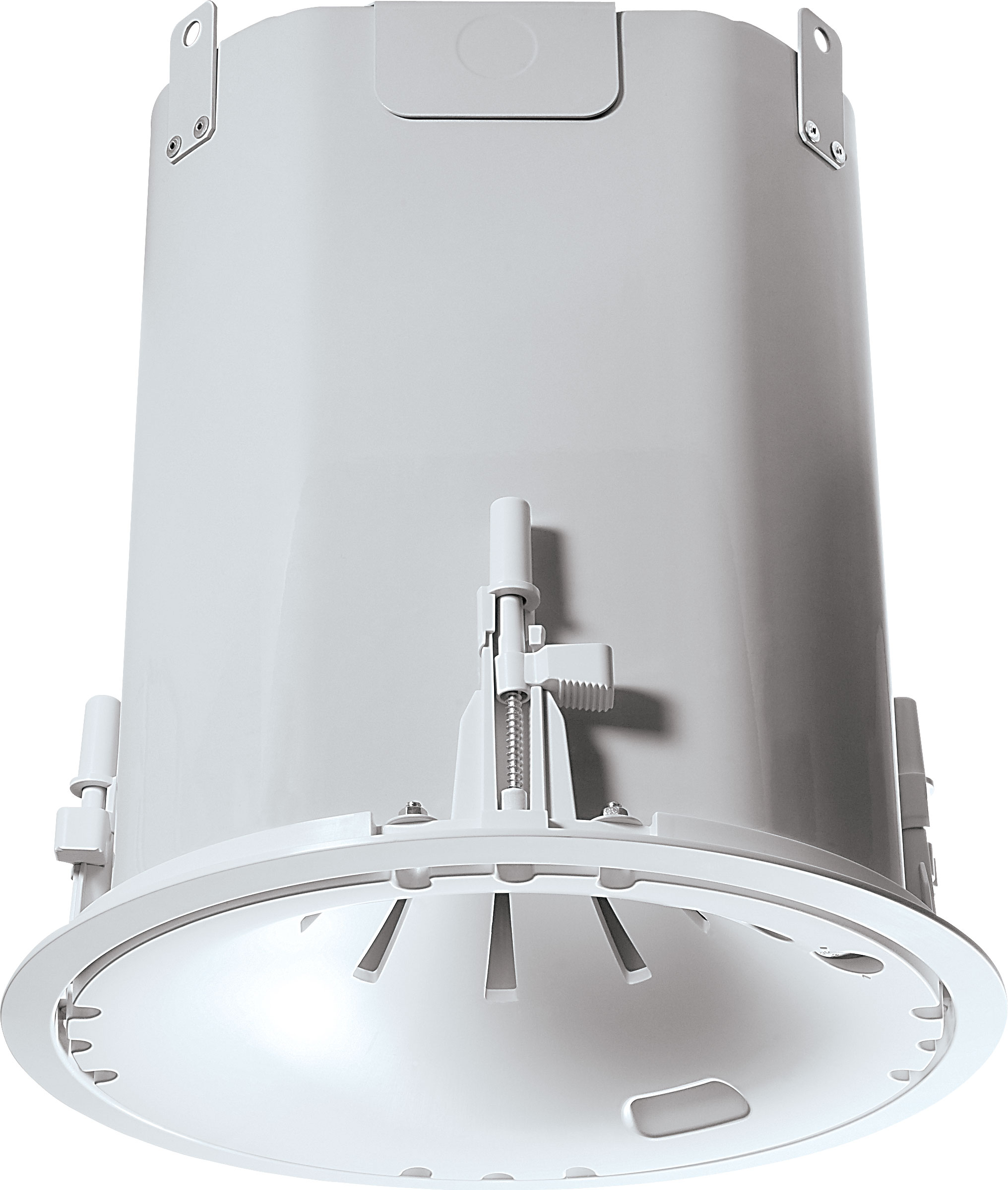

Control 47HC HiRes
updated: 4월 2019
|
327KB | |||
Speaker Tunings | ||||
|
Commercial, CBT, and AWC Tunings 220616
version A,
updated: 5월 2023
|
557KB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
| Frequency Range | 55 Hz - 17 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (300W peak), 100 hrs |
| Sensitivity | 93 dB (1kHz - 16 kHz) |
| Transformer Taps | 60 W, 30 W, 15 W, (& 7.5 W @ 70 V), plus transformer bypass |
| Coverage Angle | 75° conical, constant directivity |
| Impedance | 8 ohms (in bypass mode) |
| Drivers | LF Driver: 165 mm (6.5 in) HF Driver: 25 mm (1 in) |
| Input Connectors | Two removeable locking 2-pin connectors with screwdown terminals. |
| Included Accessories | C-rings, tile rails, paint shield, cutout template, Grille |
| Suspension Tabs | Three, on top panel |
| Dimensions (Diameter x Depth) | 332mm Diameter x 351mm Diameter Depth (13.1 in x 13.8 in) |
| Maximum SPL (1m) | 112 dB (low-impedance, 118 dB peak) 111 dB (top 70V/100V tap) |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | ABS baffle with UL94-V0 flame class fire rating. |
| Ceiling Cutout Size | 307 mm Diameter (12.1 in) diameter (cardboard cutout template included) |
| Optional Accessories | MTC-19NC New Construction Bracket MTC-19MR Mud Ring Construction Bracket |
| Plenum Usage | Yes, backcan included |
MTC-48TRx12 is an accessory tile rail for installing many of
JBL’s ceiling loudspeakers into 4 ft by 4
ft
(1200 x 1200 mm; 48 x 48 inch)
ceiling tiles in suspended ceiling
applications.
MTC-48TRx12 Spec Sheet (revB)
[77.2KB]
