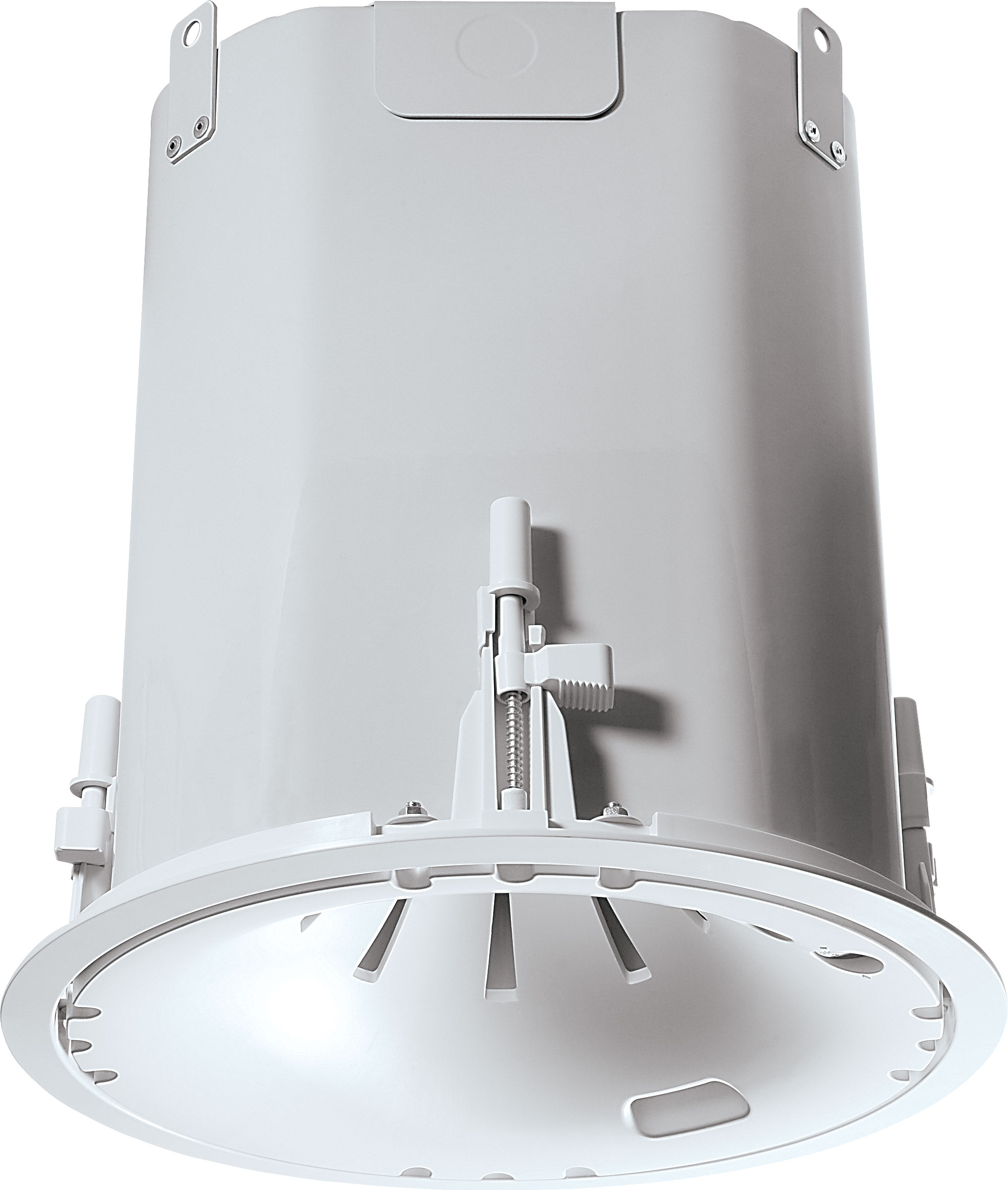

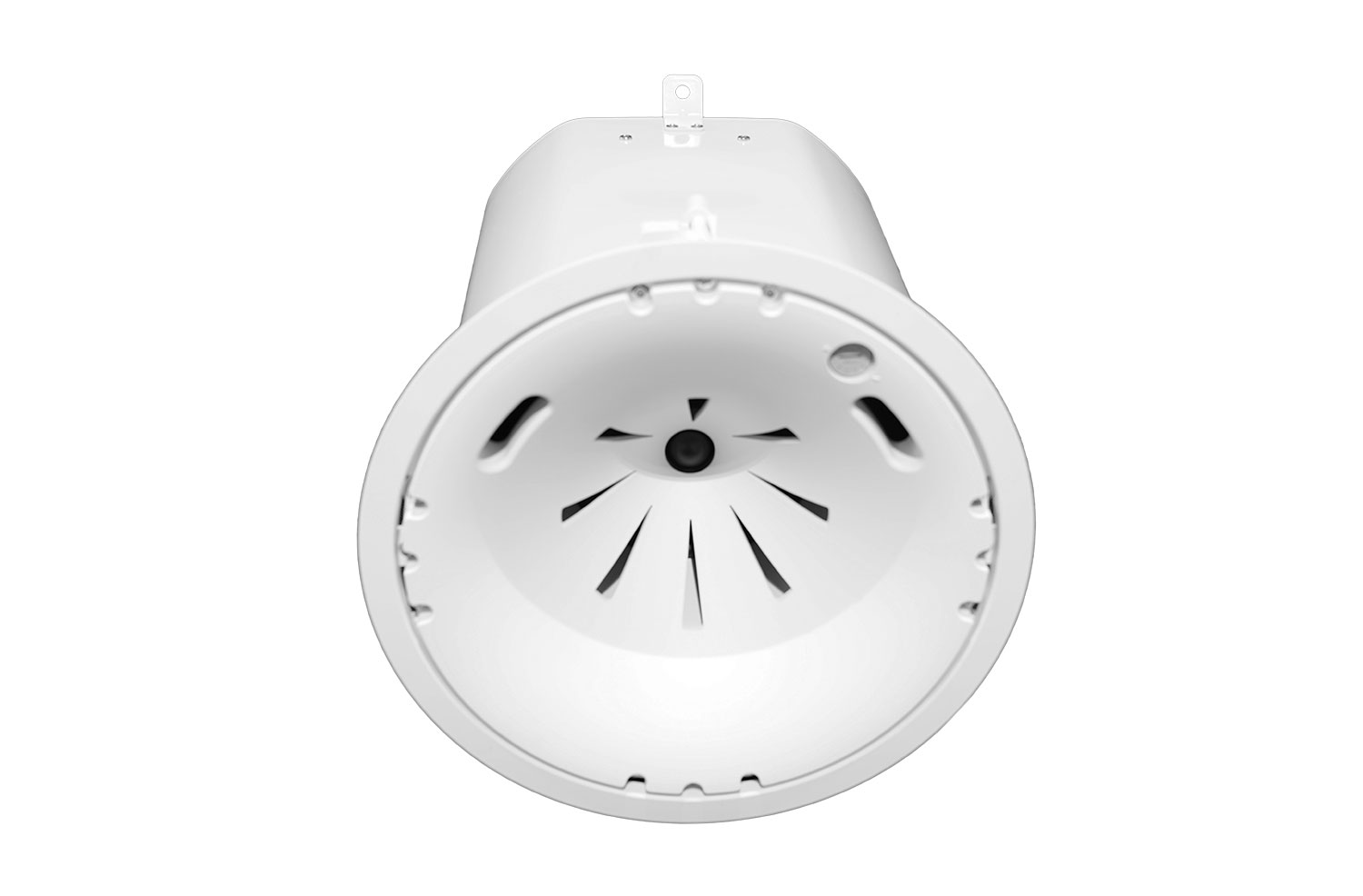

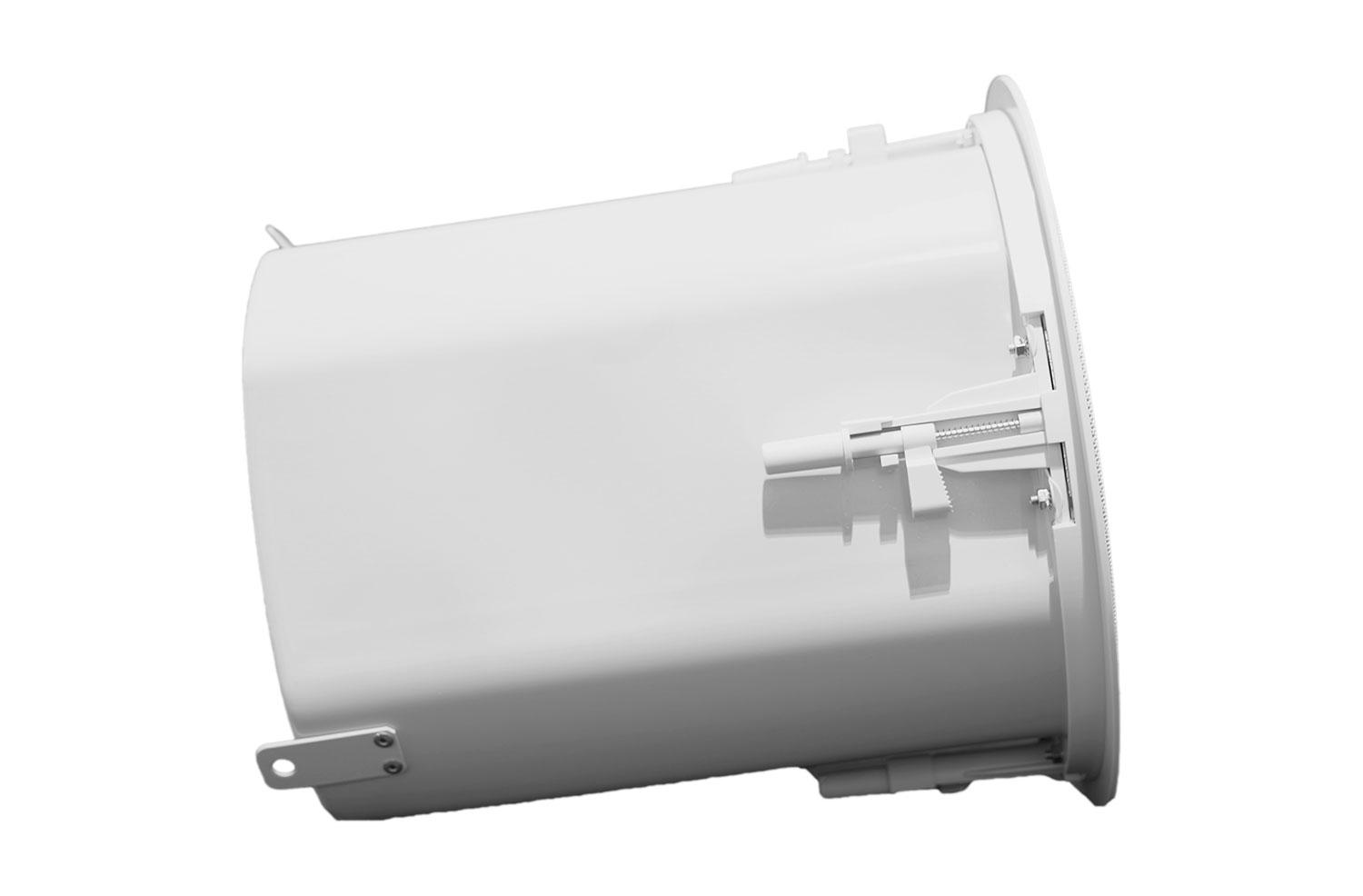

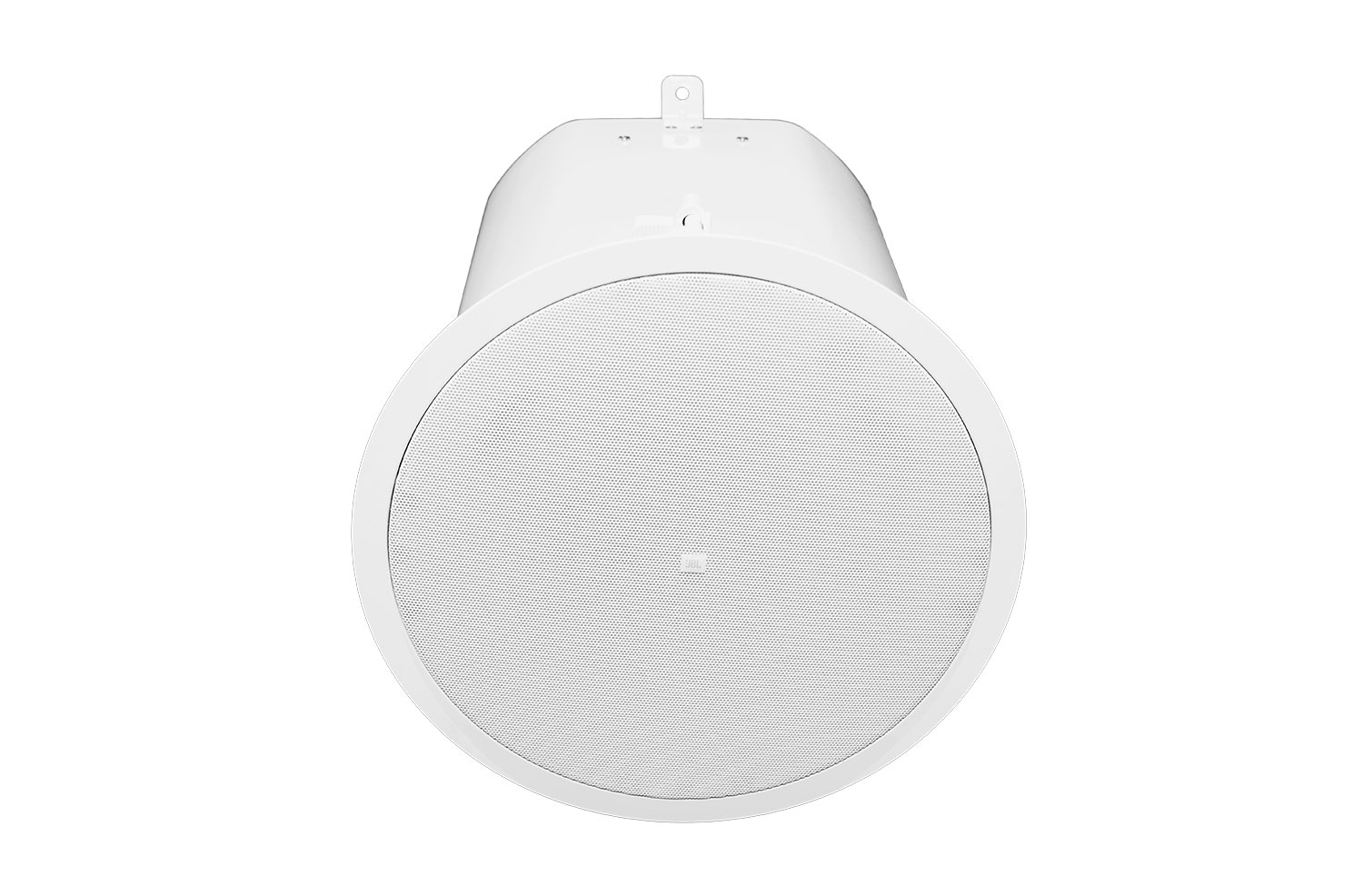

The Control 47HC features a narrow 75° coverage pattern ideal for use in highly reverberant spaces and high ceiling applications. This focused pattern helps minimize sound reflecting off of room surfaces as well as, time arrival anomalies from adjacent loudspeakers resulting in improved speech intelligibility. The Control 47HC features the same sonic character the Control 47C/T and is ideal for busy transit centers or large convention center spaces.
| ទំហំ | |
|
|
297 KB |
| ទំហំ | |
|
|
127 KB |
| ទំហំ | |
|
|
21 MB |
|
|
23 MB |
|
|
14 MB |
|
|
716 KB |
| ទំហំ | |
|
|
185 KB |
|
|
1.59 MB |
| ទំហំ | |
|
|
154 KB |
|
|
179 KB |
| ទំហំ | |
|
|
612 KB |
| ទំហំ | |
|
|
21 MB |
| ទំហំ | |
|
|
934 KB |
| ទំហំ | |
|
|
204 KB |
| ទំហំ | |
|
|
1.02 MB |
| ទំហំ | |
|
|
1.17 MB |
|
|
11.5 MB |
| ទំហំ | |
|
|
42.2 KB |
|
|
44.6 KB |
|
|
146 KB |
|
|
49.7 KB |
|
|
327 KB |
| ទំហំ | |
|
|
557 KB |
ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។
| Frequency Range | 55 Hz - 17 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (300W peak), 100 hrs |
| Sensitivity | 93 dB (1kHz - 16 kHz) |
| Transformer Taps | 60 W, 30 W, 15 W, (& 7.5 W @ 70 V), plus transformer bypass |
| Coverage Angle | 75° conical, constant directivity |
| Impedance | 8 ohms (in bypass mode) |
| Drivers | LF Driver: 165 mm (6.5 in) HF Driver: 25 mm (1 in) |

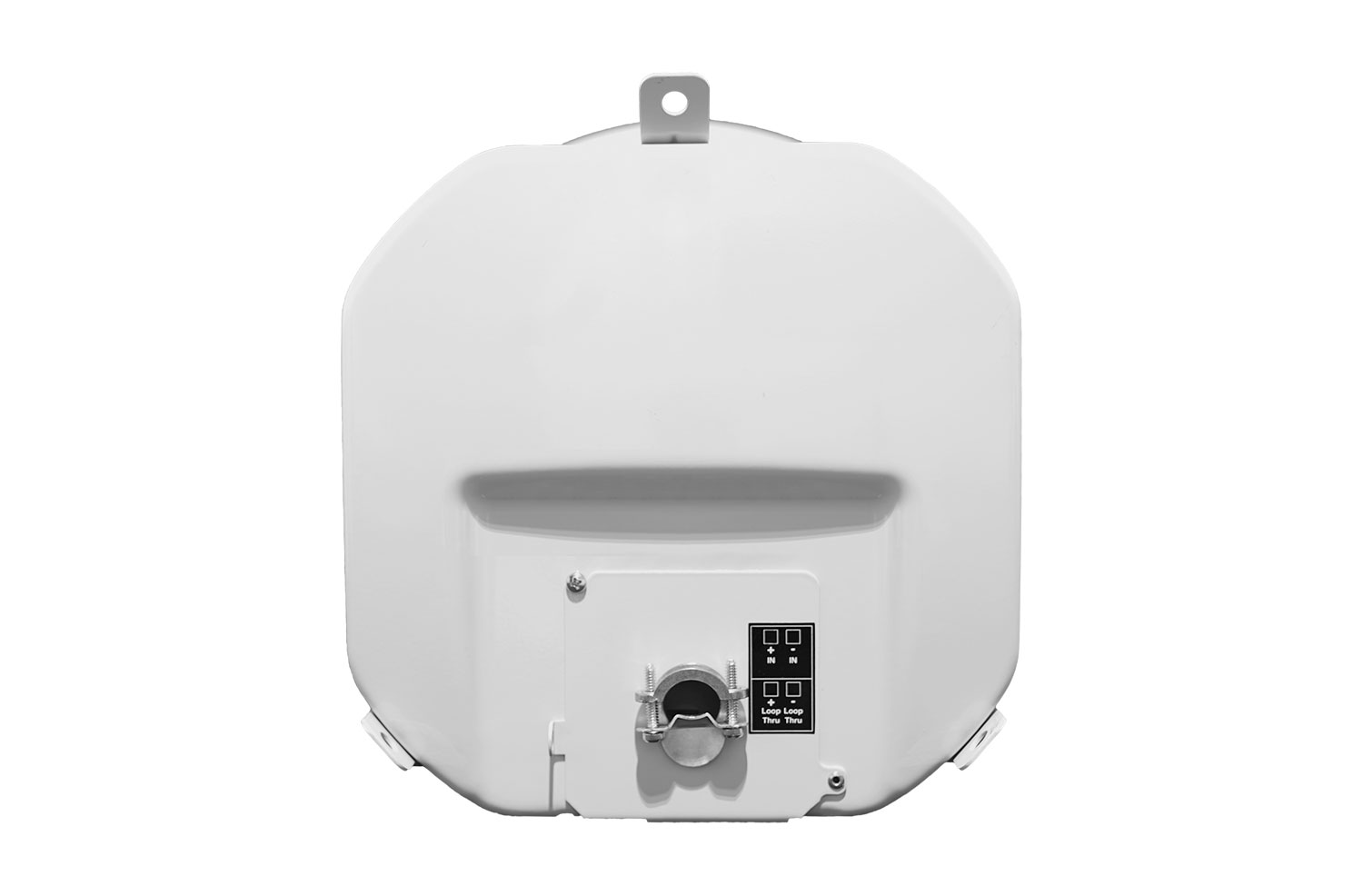

| Input Connectors | Two removeable locking 2-pin connectors with screwdown terminals. |
| Included Accessories | C-rings, tile rails, paint shield, cutout template, Grille |
| Suspension Tabs | Three, on top panel |
| Dimensions (Diameter x Depth) | 332mm Diameter x 351mm Diameter Depth (13.1 in x 13.8 in) |
| Maximum SPL (1m) | 112 dB (low-impedance, 118 dB peak) 111 dB (top 70V/100V tap) |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | ABS baffle with UL94-V0 flame class fire rating. |
| Ceiling Cutout Size | 307 mm Diameter (12.1 in) diameter (cardboard cutout template included) |
| Optional Accessories | MTC-19NC New Construction Bracket MTC-19MR Mud Ring Construction Bracket |
| Plenum Usage | Yes, backcan included |
MTC-48TRx12 គឺជាក្រឡាលើលិចបន្ថែមសម្រាប់ការដំឡើងឌីណាមិកលើលិចរបស់ JBL ច្រើនទៀតចូលក្នុង 4 ft ដោយ 4 ft
(1200 x 1200 mm; 48 x 48 inch) ក្រឡាលើលិចក្នុងកម្មវិធីលើលិចព្យួរ។
