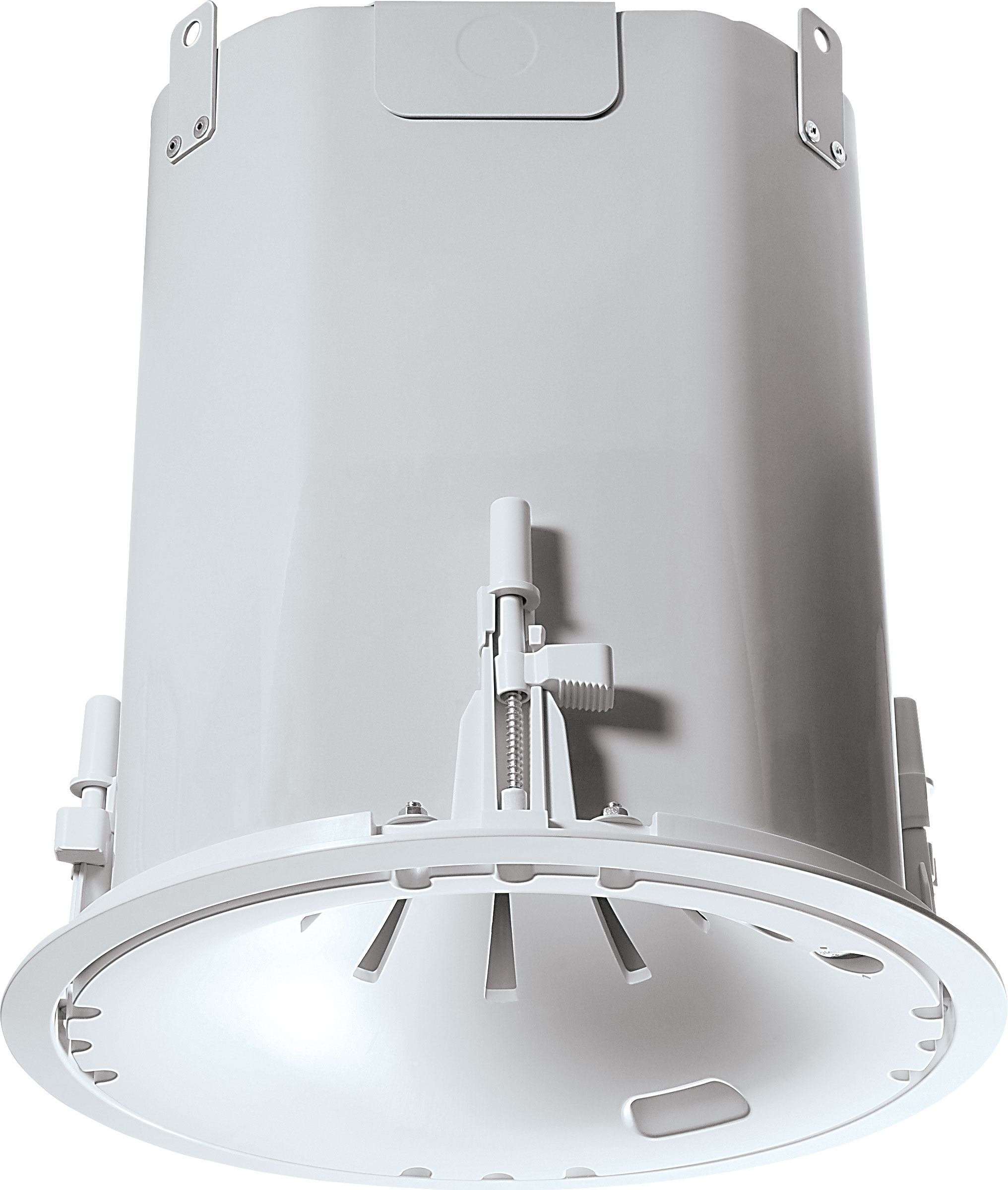

Control 47HC menampilkan pola cakupan sempit 75° yang ideal untuk digunakan di ruang yang sangat bergema dan aplikasi plafon tinggi. Pola tersegmentasi ini membantu meminimalkan suara yang memantul dari permukaan ruangan serta anomali kedatangan waktu dari loudspeaker berdampingan, sehingga meningkatkan kejelasan ucapan. Control 47HC menampilkan karakter sonik yang sama seperti Control 47C/T dan ideal untuk pusat transit ramai atau ruang pusat konvensi besar.
| Ukuran | |
|
|
297 KB |
| Ukuran | |
|
|
127 KB |
| Ukuran | |
|
|
21 MB |
|
|
23 MB |
|
|
14 MB |
|
|
716 KB |
| Ukuran | |
|
|
185 KB |
|
|
1,59 MB |
| Ukuran | |
|
|
154 KB |
|
|
179 KB |
| Ukuran | |
|
|
612 KB |
| Ukuran | |
|
|
21 MB |
| Ukuran | |
|
|
934 KB |
| Ukuran | |
|
|
204 KB |
| Ukuran | |
|
|
1,02 MB |
| Ukuran | |
|
|
1,17 MB |
|
|
11,5 MB |
| Ukuran | |
|
|
42,2 KB |
|
|
44,6 KB |
|
|
146 KB |
|
|
49,7 KB |
|
|
327 KB |
| Ukuran | |
|
|
557 KB |
Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.
| Frequency Range | 55 Hz - 17 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (300W peak), 100 hrs |
| Sensitivity | 93 dB (1kHz - 16 kHz) |
| Transformer Taps | 60 W, 30 W, 15 W, (& 7.5 W @ 70 V), plus transformer bypass |
| Coverage Angle | 75° conical, constant directivity |
| Impedance | 8 ohms (in bypass mode) |
| Drivers | LF Driver: 165 mm (6.5 in) HF Driver: 25 mm (1 in) |
| Input Connectors | Two removeable locking 2-pin connectors with screwdown terminals. |
| Included Accessories | C-rings, tile rails, paint shield, cutout template, Grille |
| Suspension Tabs | Three, on top panel |
| Dimensions (Diameter x Depth) | 332mm Diameter x 351mm Diameter Depth (13.1 in x 13.8 in) |
| Maximum SPL (1m) | 112 dB (low-impedance, 118 dB peak) 111 dB (top 70V/100V tap) |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | ABS baffle with UL94-V0 flame class fire rating. |
| Ceiling Cutout Size | 307 mm Diameter (12.1 in) diameter (cardboard cutout template included) |
| Optional Accessories | MTC-19NC New Construction Bracket MTC-19MR Mud Ring Construction Bracket |
| Plenum Usage | Yes, backcan included |
MTC-48TRx12 adalah rel tile aksesori untuk memasang banyak ceiling loudspeaker JBL ke dalam ceiling tiles 4 ft x 4 ft
(1200 x 1200 mm; 48 x 48 inch) di aplikasi suspended ceiling.
MTC-48TRx12 Spec Sheet (revB)
[77,2 KB]
