Three-Way Biamplified or Triamplified (T) ScreenArray
Loudspeaker System

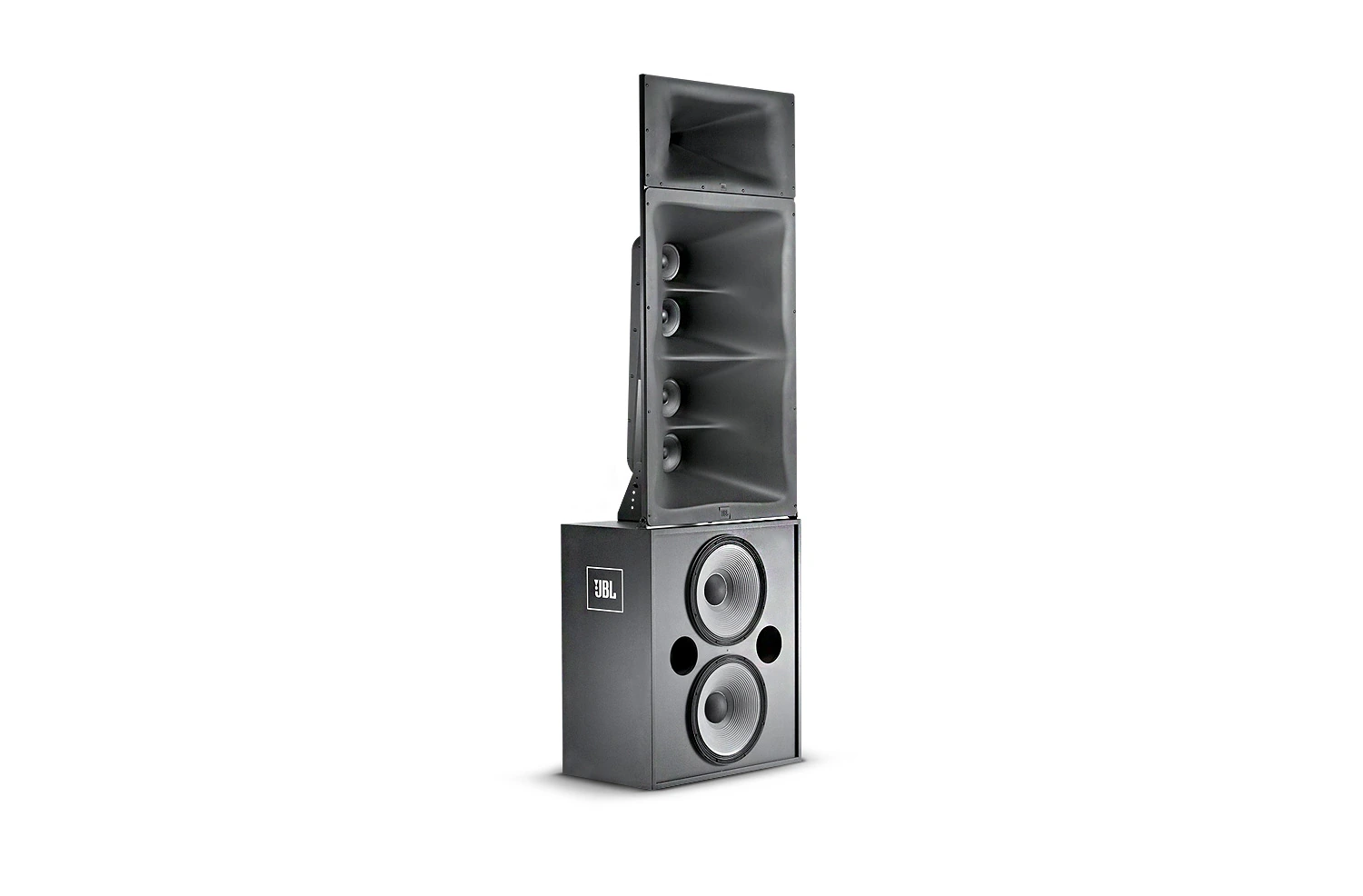

The 4732 ScreenArray features true three-way system design enhanced for critical film sound reproduction in medium to large cinemas environments


  • Three-way ScreenArray™ design for maximum output,
    optimal coverage, and minimum distortion
  • Triamplified (T) or Biamplified operation
  • Approved for THX® certified applications (4732T)
  • Ships fully assembled
  • Second Generation Optimized Aperture Waveguide
    technology for ultra-low distortion, and extremely
    uniform frequency response
  • SSC™ Screen Spreading Compensation
  • Focused Coverage Technology™
  • Flat-front waveguide design for easy baffle wall
    installation Shallow profile for minimum behind
    screen depth requirements .


  Version Language Size Uploaded
file type icon 4732 Spec Sheet
updated: oct. 2020
    168 ko oct. 2020
CAD Drawings
file type icon 4732 CAD Drawings
updated: oct. 2020
    4,27 Mo oct. 2020
file type icon SR Series
updated: oct. 2020
    573 ko oct. 2020
file type icon 4732 Front Angle
updated: oct. 2020
    38,7 ko oct. 2020
Simulation Data
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: mai 2023
12-10-21    24 Mo mai 2023
