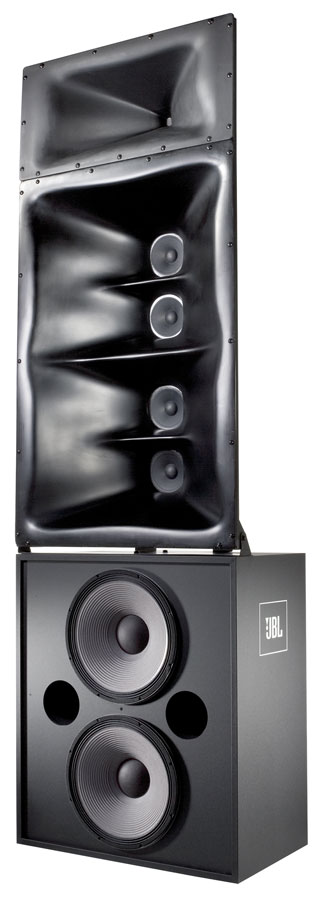

JBL Professional 4732

Gambar Lebih Besar

Sistem Loudspeaker ScreenArray Tiga Arah Biamplified atau Triamplified (T)

ScreenArray 4732 menampilkan desain sistem tiga arah sejati yang ditingkatkan untuk reproduksi suara film yang kritis di lingkungan bioskop menengah hingga besar

Fitur

Three-way ScreenArray™ design for maximum output,
optimal coverage, and minimum distortion
Triamplified (T) or Biamplified operation
Approved for THX® certified applications (4732T)
Ships fully assembled
Second Generation Optimized Aperture Waveguide
technology for ultra-low distortion, and extremely
uniform frequency response
SSC™ Screen Spreading Compensation
Focused Coverage Technology™
Flat-front waveguide design for easy baffle wall
installation Shallow profile for minimum behind
screen depth requirements .

Unduhan

Specifications

	Ukuran	Diunggah
4732 Spec Sheet diperbarui: Okt 2020	168 KB	Okt 2020

CAD Drawings

	Ukuran	Diunggah
4732 CAD Drawings diperbarui: Okt 2020	4,27 MB	Okt 2020
SR Series diperbarui: Okt 2020	573 KB	Okt 2020

Simulation Data

	Versi	Ukuran	Diunggah
JBL Pro ALL CLF Files versi 12-10-21, diperbarui: Mei 2023	12-10-21	24 MB	Mei 2023

Images

	Ukuran	Diunggah
4732 Front Angle diperbarui: Okt 2020	38,7 KB	Okt 2020

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

Frequency Response (±3 dB)	40 Hz - 19 kHz
Frequency Range (-10dB)	30 Hz - 20 kHz
Sensitivity	107 dB, 2.83V @ 1m (3.3 ft)
Maximum SPL (1m)	130 dB @ 1m (3.3 ft), 136 dB peak
System Input Power Rating	4732: LF: 800 W, M/HF: 200 W 4732-T: HF: 85 W
Horizontal Coverage Angle	90° (-6 dB)
Vertical Coverage Angle	20° up, 30° down (-6 dB)
Directivity Factor (Q)	10.0
Directivity Index (DI)	10 dB
Crossover Frequencies	4732: 250 Hz4732-T: 1.2 kHz]
Dimensions (H x W x D)	2427 x 762 x 450 mm (95.6 x 30 x 17.75 in)
Net Weight (each)	186 lbs (84.4 kg)
Shipping Weight	228 lbs (103.5 kg)
Nominal Impedance	4Ω
Power Handling (2Hr AES Rating)	800W
Power Handling (100Hr AES Rating)	500W
