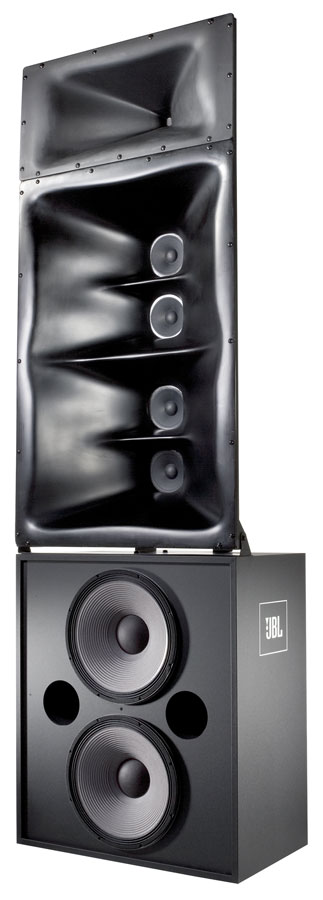

The 4732 ScreenArray features true three-way system design enhanced for critical film sound reproduction in medium to large cinemas environments
| الحجم | |
|
|
168 KB |
| الحجم | |
|
|
4.27 MB |
|
|
573 KB |
| الحجم | |
|
|
24 MB |
| الحجم | |
|
|
38.7 KB |
إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.
| Frequency Response (±3 dB) | 40 Hz - 19 kHz |
| Frequency Range (-10dB) | 30 Hz - 20 kHz |
| Sensitivity | 107 dB, 2.83V @ 1m (3.3 ft) |
| Maximum SPL (1m) | 130 dB @ 1m (3.3 ft), 136 dB peak |
| System Input Power Rating | 4732: LF: 800 W, M/HF: 200 W 4732-T: HF: 85 W |
| Horizontal Coverage Angle | 90° (-6 dB) |
| Vertical Coverage Angle | 20° up, 30° down (-6 dB) |
| Directivity Factor (Q) | 10.0 |
| Directivity Index (DI) | 10 dB |
| Crossover Frequencies | 4732: 250 Hz4732-T: 1.2 kHz] |
| Dimensions (H x W x D) | 2427 x 762 x 450 mm (95.6 x 30 x 17.75 in) |
| Net Weight (each) | 186 lbs (84.4 kg) |
| Shipping Weight | 228 lbs (103.5 kg) |
| Nominal Impedance | 4Ω |
| Power Handling (2Hr AES Rating) | 800W |
| Power Handling (100Hr AES Rating) | 500W |
