Background/ Foreground Ceiling Loudspeakers

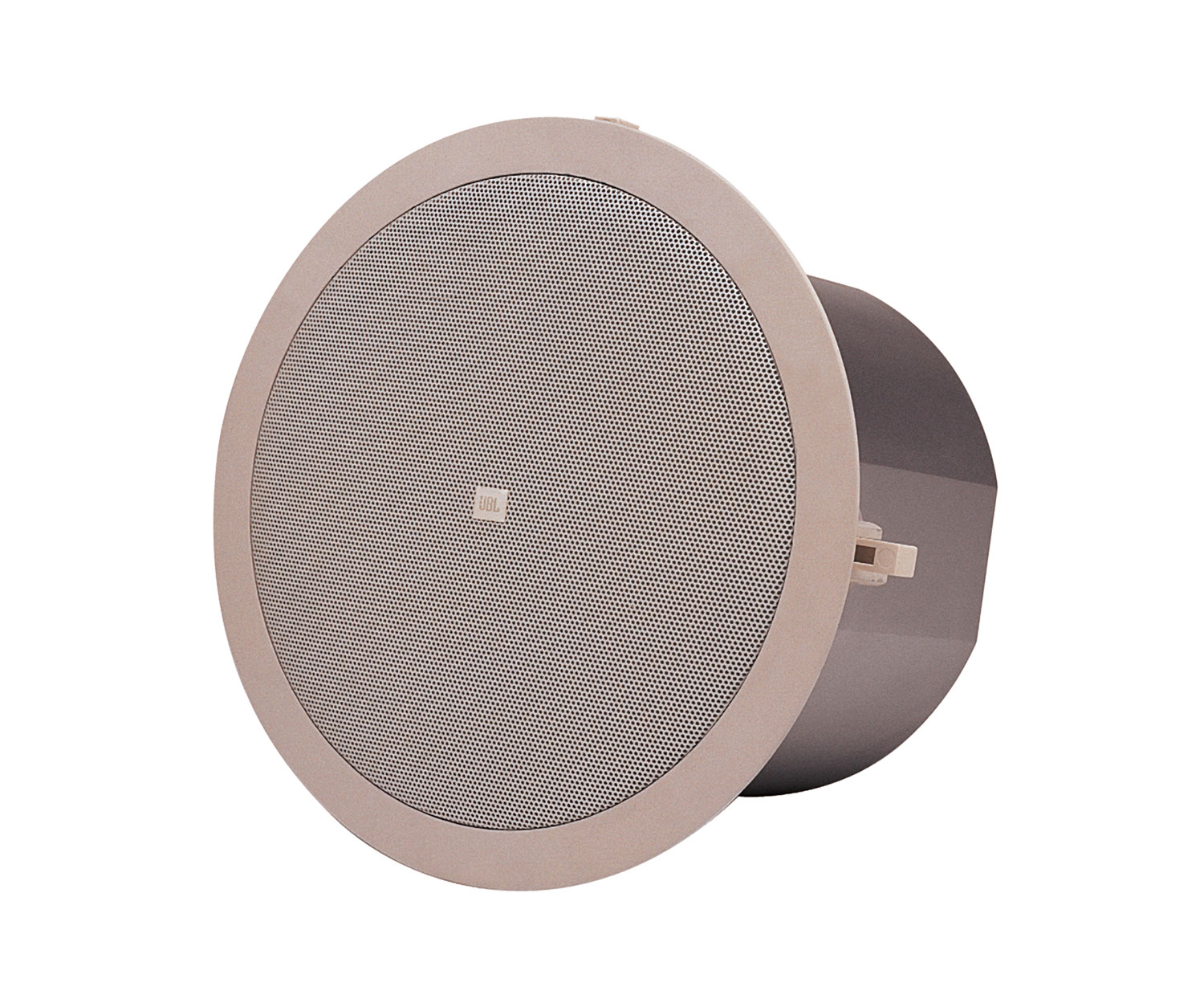

The Control 24C is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.
Større billeder
Funktioner
- Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.
- High power, wide frequency response and low distortion for high sound level capability.
- Wide coverage allows fewer speakers, reducing the cost of
the installed sound system without
sacrificing performance. - JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved
system reliability. - Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
Downloads
Data Sheets
| Størrelse | |
|
|
508 kB |
Manuals
| Størrelse | |
|
|
41,7 kB |
|
|
127 kB |
|
|
493 kB |
Brochures
| Størrelse | |
|
|
14 MB |
|
|
23 MB |
|
|
21 MB |
version D,
opdateret: feb 2024
CAD Drawings
| Størrelse | |
|
|
674 kB |
|
|
3,42 MB |
BIM Objects
| Størrelse | |
|
|
Compliances
| Størrelse | |
|
|
179 kB |
|
|
131 kB |
Software
| Størrelse | |
|
|
11,3 kB |
|
|
13,4 kB |
|
|
612 kB |
Simulation Data
| Størrelse | |
|
|
21 MB |
|
|
24 MB |
Speaker Tunings
| Størrelse | |
|
|
557 kB |
Accessories
| Størrelse | |
|
|
204 kB |
Information documents
| Størrelse | |
|
|
113 kB |
Install Guides
| Størrelse | |
|
|
52,4 kB |
|
|
23,9 kB |
|
|
76,4 kB |
|
|
13,7 kB |
|
|
71,2 kB |
|
|
5,12 MB |
Owner's Manuals
| Størrelse | |
|
|
386 kB |
Images
| Størrelse | |
|
|
284 kB |
Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.
Reservedele og service
Specifikationer
| Frequency Range | 80 Hz - 20 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 80 Watts Continuous Program Power 40 Watts Continuous Pink Noise (160W peak), 100 hrs |
| Sensitivity | 86 dB SPL @ 1 m (3.3 ft) |
| Coverage Angle | 130° conical |
| Directivity Factor (Q) | 2.4 dB averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 3.8 dB averaged 500 Hz to 4 kHz |
| Maximum SPL (1m) | 102 dB (low-impedance, 108 dB peak) |
| Impedance | 16 ohms |
| Input Connectors | Removable 4-pin locking connector with screw-down terminals. |
| Drivers | LF Driver: 100 mm (4.0 in) HF Driver: 19 mm (0.75 in) |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | Medium impact polystyrene, fire rated UL94V-0 |
| Ceiling Cutout Size | 168 mm (6.6 in) diameter (cardboard cutout template included) |
| Included Accessories | C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector |
| Plenum Usage | Yes, backcan included |
Tilbehør
MTC-48TRx12 | Loftpaneleskinner til 4' x 4' loftplader
Større billeder
Tile Rail for 4' x 4' Ceiling Tiles
MTC-48TRx12 er et tilbehørsskinne til installation af mange af JBL's lofthøjttalere i 4 ft x 4 ft
(1200 x 1200 mm; 48 x 48 inch) loftsplader i ophængte loftskonstruktioner.
- Kan bruges med alle JBL-lofttalere med C-ring/tile-rail-monteringssystem.
Omfatter (ved produktudgivelse):
• Control 24C/CT Micro & 24CT MicroPlus
• Control 24C/CT, 26C/CT, 19CS/CST
• Control 47C/T, 47LP, 47HC, 40CS/T, 42C
• Control 226C/T
• 8124/8128
• Ikke til JBL-talere, der installeres med tile bridges (såsom CSS-serien, 8138, C227C/CT, C300-seriemodeller). Kontakt JBL Professional kundeservice for den mest opdaterede kompatibilitetsliste. - Inverteret V-rille giver støtte til tile rail-gitteret i tilfælde af flisefejl og reducerer vibrationstransmission til – og lyd fra – loftsflisegittersystemet.
- 1,2 mm (0,05 tommer) metaltykkelse giver den yderligere støtte, som det lange spænd kræver.
- Flere C-ring-monteringshul. Yderligere hulpositioner kan bores af installatøren.
- Én MTC-48TRx12 er en pakke med 12 tile rails, nok til 6 talere (2 pr. taler).
Dokumentation
-
MTC-48TRx12 Spec Sheet (revB)
[77,2 kB]
Konsulentsupport
