MSC1 (discontinued)

Monitor System Controller with Room Mode Correction

Larger Images

Monitor System Controller with Room Mode Correction

The MSC1 Monitor System Controller includes essential “Monitor Strip” features found in large mixing consoles so you can take control of all monitoring functions from your place at the mix position. Since the acoustics of the room can play a big part in what you hear, the MSC1 includes JBL's highly acclaimed RMC Room Mode Correction Technology to tune your monitor system to the room. The end-result is a calibrated reference environment in which your speakers work in harmony with your room to take the guesswork out of mixing.

Features

  • Master Volume Control
  • A/B Speaker Select
  • A/B/C input Source Select
  • Subwoofer Output with Level Control and Selectable Cross Over Frequencies
  • Adjustable Low Frequency and High Frequency Speaker EQ
  • Headphone Output with Volume Control
  • Monitor Mute Control
  • RMC On/Bypass Control
  • Adjustable input gain with Signal Present and Clip indicator
  • Can be used with any studio monitor system

Downloads

  Version Language Size Uploaded
Manuals
MSC1 Control Center Software Users Guide Mac
updated: Oct 18, 2019
    12.1 MB Oct 18, 2019
MSC1 Control Center Software Users Guide
updated: Oct 18, 2019
    13.2 MB Oct 18, 2019
Brochures
MSC1 Brochure
updated: Jul 16, 2019
    605 KB Jul 16, 2019
Compliances
LSR Series MSC1 Declaration of Conformity
updated: Oct 18, 2019
    144 KB Oct 18, 2019
Software
MSC1 Control Center Software Power PC Mac
version 1.1, updated: Jan 15, 2020
1.1     114 MB Jan 15, 2020
MSC1 Control Center Software Intel Mac
version 1.1, updated: Jan 15, 2020
1.1     110 MB Jan 15, 2020
MSC1 Control Center Software Windows
version 1.3.3, updated: Jan 15, 2020
1.3.3     136 MB Jan 15, 2020
Information Documents
MSC1 Control Center Software Read Me
updated: Oct 18, 2019
    15.8 KB Oct 18, 2019
MSC1 Power Supply Versions
updated: Oct 18, 2019
    158 KB Oct 18, 2019
Images

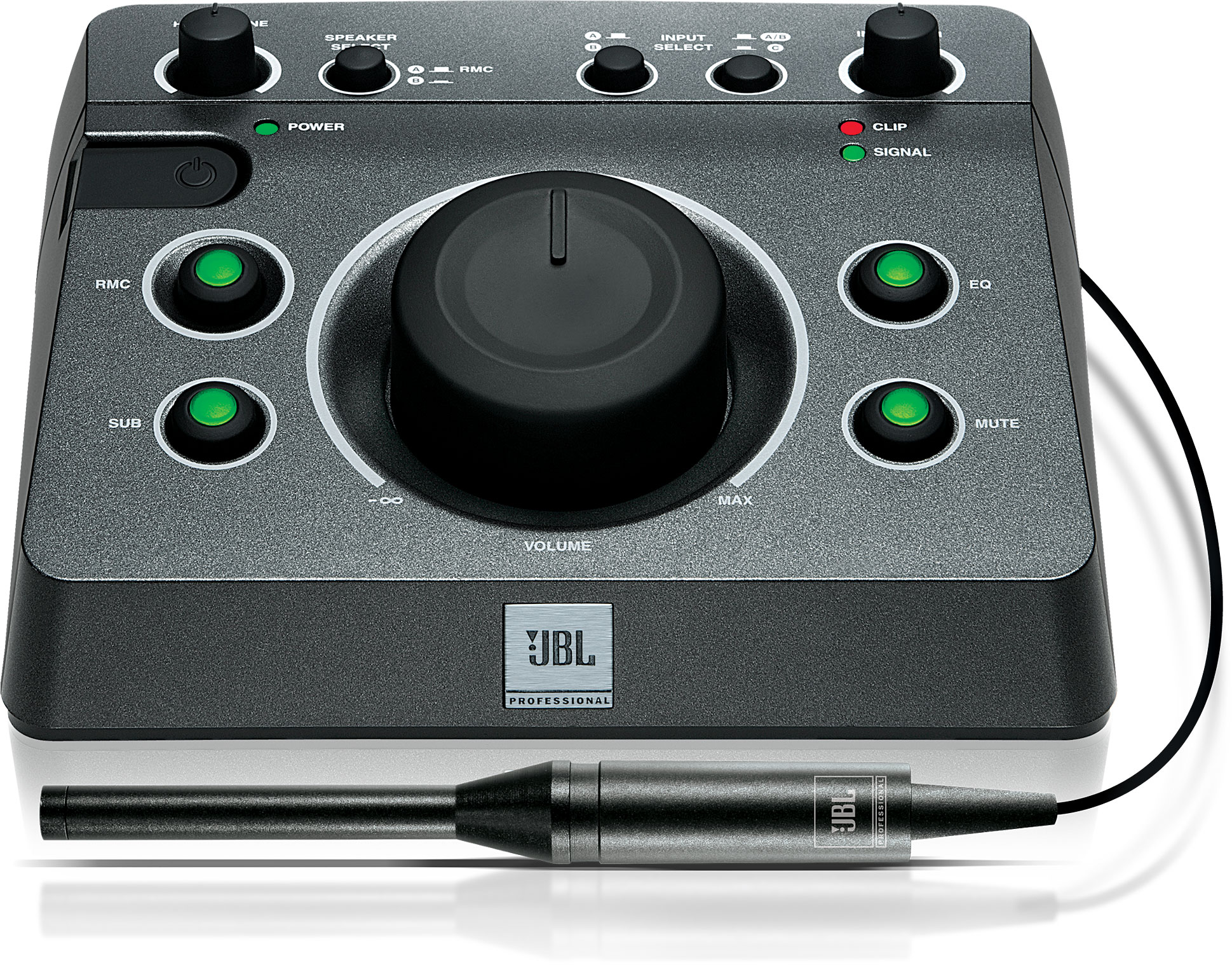

MSC1 Hi Res Photo
updated: Jul 16, 2019
    799 KB Jul 16, 2019

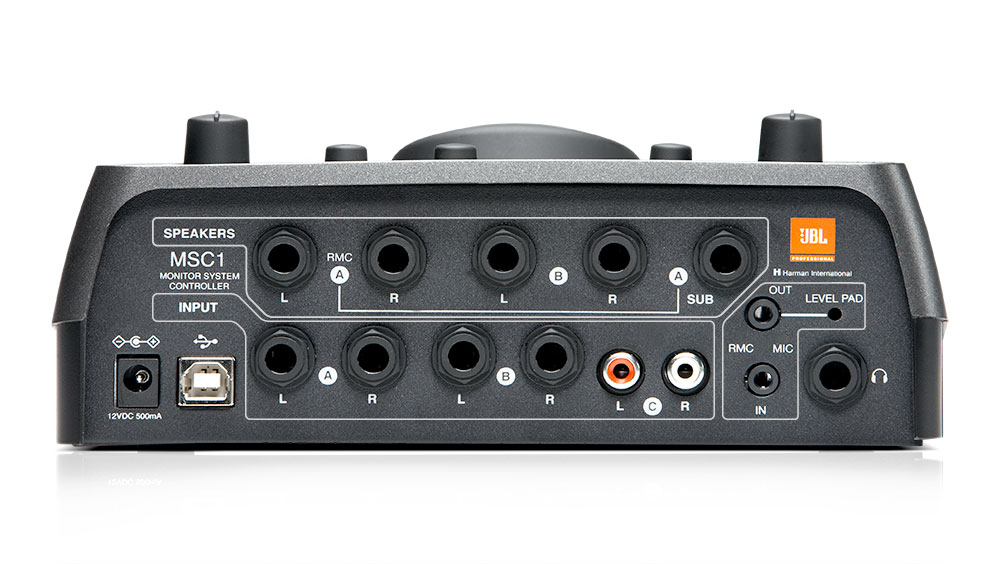

Back View
updated: Jul 16, 2019
    93.6 KB Jul 16, 2019

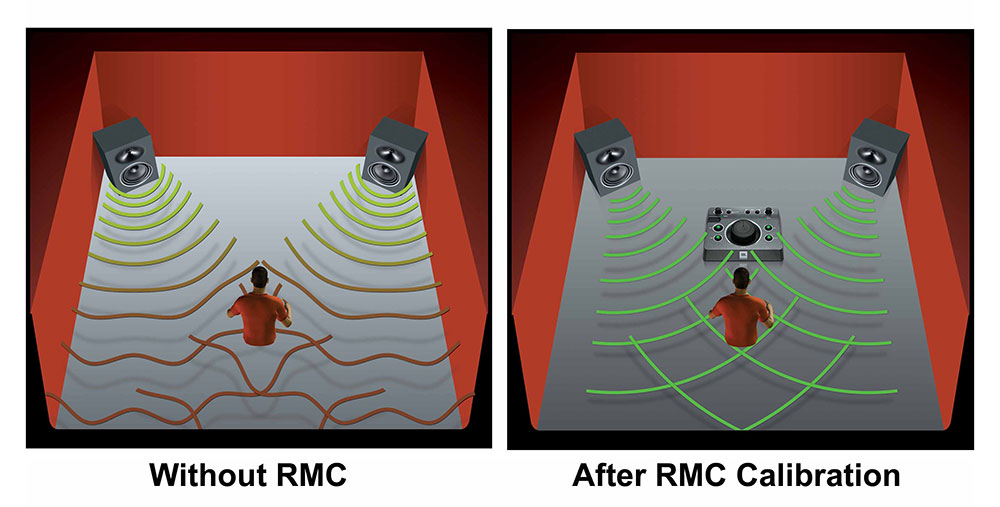

RMC Before and After
updated: Jul 16, 2019
    85.9 KB Jul 16, 2019

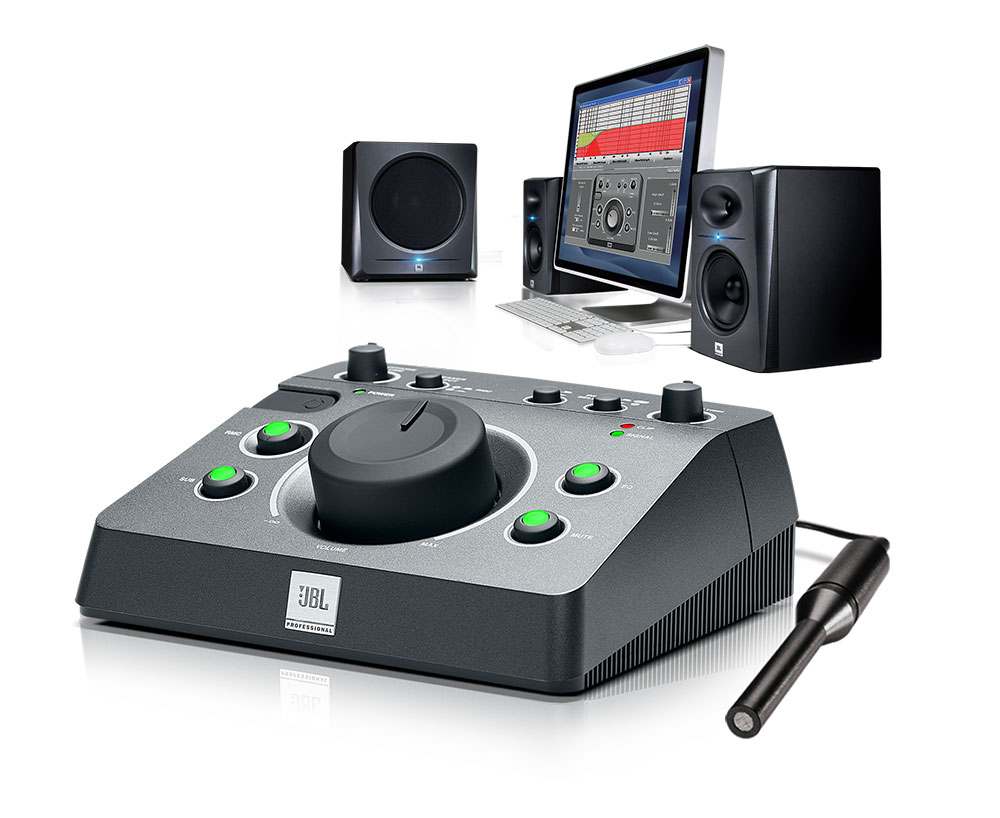

MSC1 with speakers
updated: Jul 16, 2019
    96.7 KB Jul 16, 2019
Owner's Manuals
MSC1 Owner's Manual
updated: Jan 15, 2020
    2.37 MB Jan 15, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

S/N, Dynamic Range 110 dB typicalA-weighted20 Hz - 20 kHz
Frequency Response +0/-O.5 dB, 20 Hz - 20 kHz
THD+N < 0.04% A/D/A, 20 Hz - 20 kHz
A/D, DA Converters 24 Bit
Internal Processing 48 Bit, 48 kHz
Maximum Input Level +24 dBU 6.5mm (1/4" TRS Inputs)+4 dBu phono (RCA Inputs)
Maximum Output Before Clipping +17 dBu
Power Requirements 12 VDC, 0.5A
Dimensions W x D x H 198 x 165 x 83 mm(7.8 x 6.5 x 3.25 in)
Inputs A, B / C 4 Balanced 1/4" TRS2 Unbalanced RCA
Outputs A, B and Subwoofer 5 Balanced 1/4" TRS
Headphone Stereo 1/4"
RMC Mic IN / OUT 1/8" TRS
Computer Interface USB 2.0
LF EQ Frequency 20 Hz to 1.1 kHz Shelf32 options
LF EQ Gain +/- 3 dB in .25 dB increments
HF EQ Frequency 2.5 kHz to 17 kHz Shelf28 options
HF EQ Gain +/- 3 dB in .25 dB increments
Level +/- 10 dB from nominal in .5 dB increments
Selectable Crossover Frequencies 60 Hz, 80 Hz, 120 Hz
Polarity 0 degrees / 180 degrees
