JBL Professional MSC1

រូបភាពធំជាង

Monitor System Controller with Room Mode Correction

The MSC1 Monitor System Controller includes essential “Monitor Strip” features found in large mixing consoles so you can take control of all monitoring functions from your place at the mix position. Since the acoustics of the room can play a big part in what you hear, the MSC1 includes JBL's highly acclaimed RMC Room Mode Correction Technology to tune your monitor system to the room. The end-result is a calibrated reference environment in which your speakers work in harmony with your room to take the guesswork out of mixing.

លក្ខណៈពិសេស

Master Volume Control
A/B Speaker Select
A/B/C input Source Select
Subwoofer Output with Level Control and Selectable Cross Over Frequencies
Adjustable Low Frequency and High Frequency Speaker EQ
Headphone Output with Volume Control
Monitor Mute Control
RMC On/Bypass Control
Adjustable input gain with Signal Present and Clip indicator
Can be used with any studio monitor system

ការទាញយក

Manuals

	ទំហំ	បានផ្ទុកឡើង
MSC1 Control Center Software Users Guide Mac បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019	12.1 MB	តុលា 2019
MSC1 Control Center Software Users Guide បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019	13.2 MB	តុលា 2019

Brochures

	ទំហំ	បានផ្ទុកឡើង
MSC1 Brochure បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	605 KB	តុលា 2020

Compliances

	ទំហំ	បានផ្ទុកឡើង
LSR Series MSC1 Declaration of Conformity បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019	144 KB	តុលា 2019

Software

	កំណែ	ទំហំ	បានផ្ទុកឡើង
MSC1 Control Center Software Power PC Mac កំណែ 1.1 (Power PC), ចេញផ្សាយ: មករា 2020	1.1 (Power PC)	114 MB	មករា 2020
MSC1 Control Center Software Intel Mac កំណែ 1.1 (Power PC), ចេញផ្សាយ: មករា 2020	1.1 (Power PC)	110 MB	មករា 2020
MSC1 Control Center Software Windows កំណែ 1.3.3, ចេញផ្សាយ: មករា 2020	1.3.3	136 MB	មករា 2020

Information documents

	ទំហំ	បានផ្ទុកឡើង
MSC1 Control Center Software Read Me បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019	15.8 KB	តុលា 2019
MSC1 Power Supply Versions បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019	158 KB	តុលា 2019

Images

	ទំហំ	បានផ្ទុកឡើង

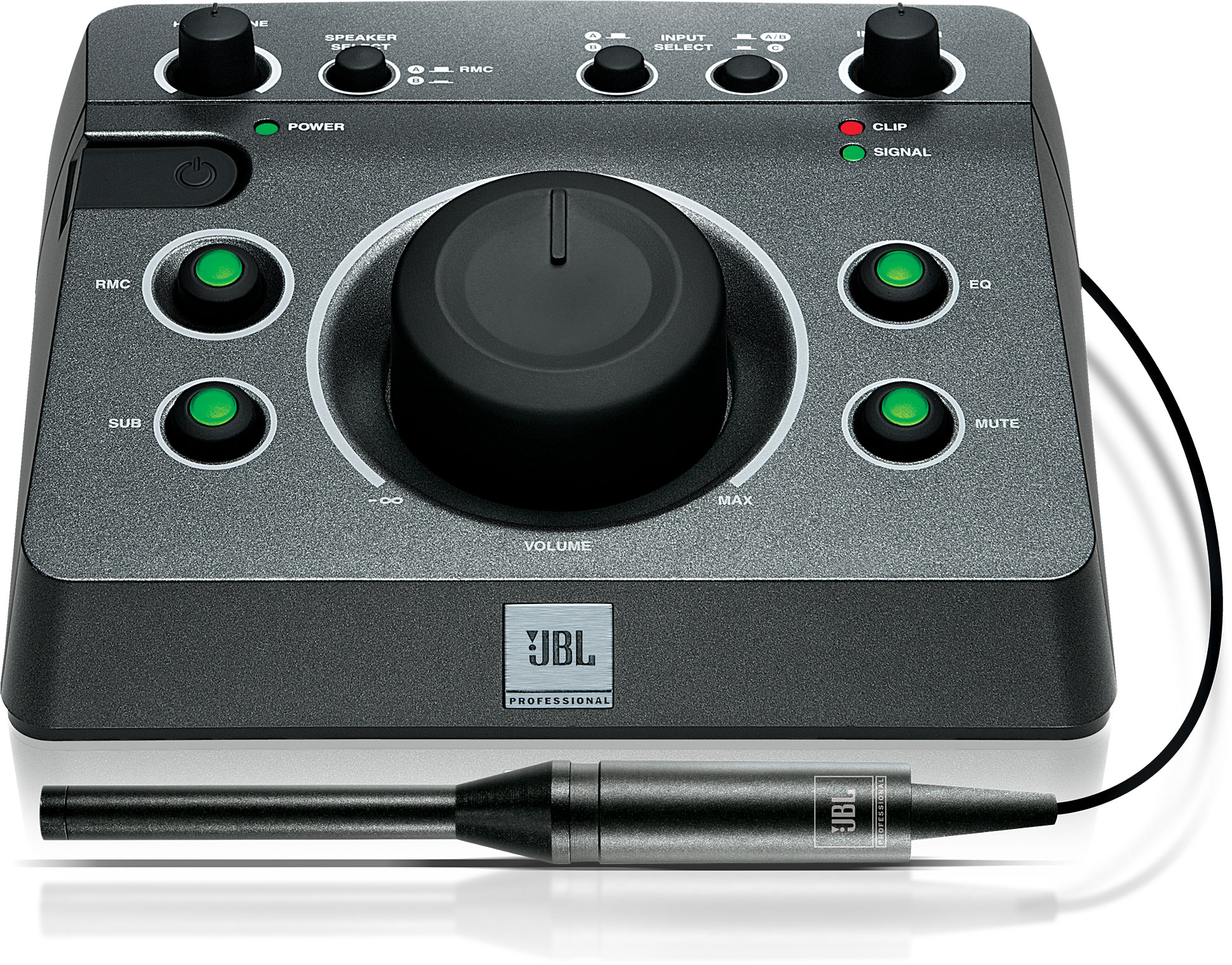

MSC1 Hi Res Photo បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	799 KB	តុលា 2020

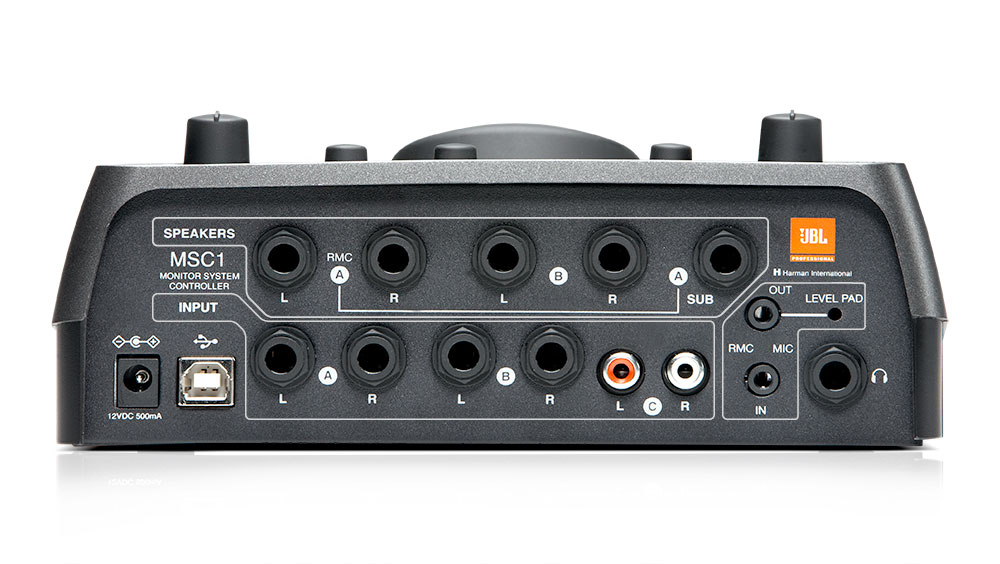

Back View បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	93.6 KB	តុលា 2020
RMC Before and After បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	85.9 KB	តុលា 2020

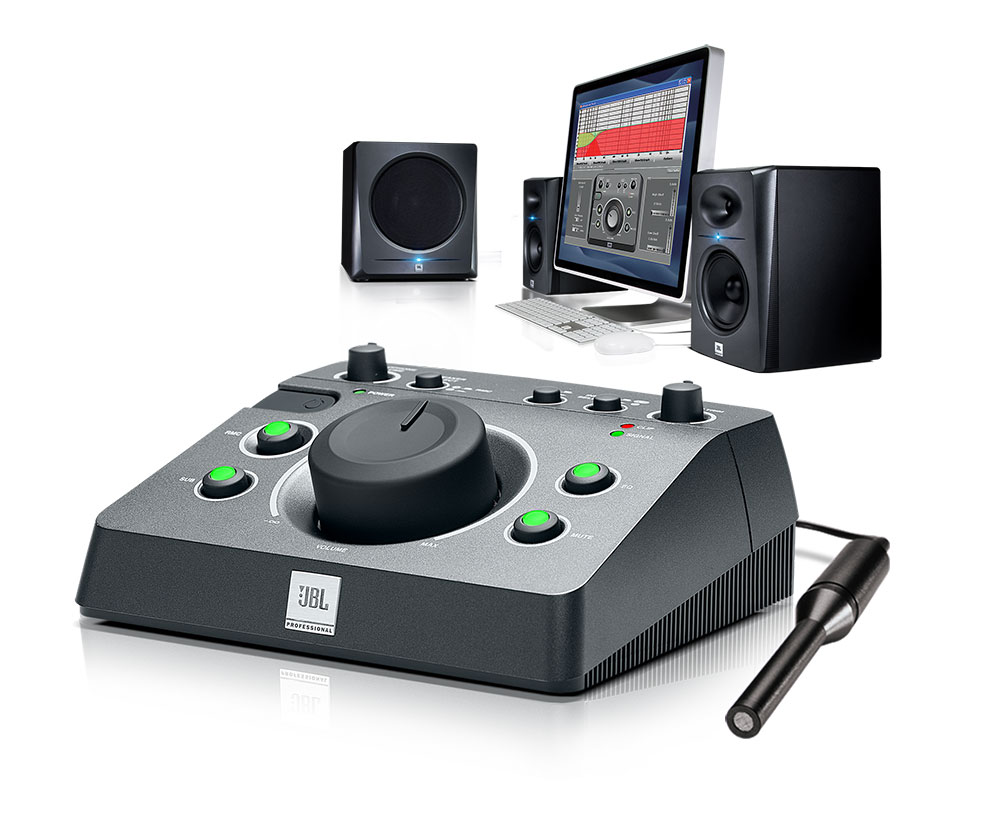

MSC1 with speakers បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	96.7 KB	តុលា 2020

Owner's Manuals

	ទំហំ	បានផ្ទុកឡើង
MSC1 Owner's Manual បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	2.37 MB	តុលា 2020

ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។

ផ្នែក និងសេវាកម្ម

លក្ខណៈពិសេស

S/N, Dynamic Range	110 dB typicalA-weighted20 Hz - 20 kHz
Frequency Response	+0/-O.5 dB, 20 Hz - 20 kHz
THD+N	< 0.04% A/D/A, 20 Hz - 20 kHz
A/D, DA Converters	24 Bit
Internal Processing	48 Bit, 48 kHz
Maximum Input Level	+24 dBU 6.5mm (1/4" TRS Inputs)+4 dBu phono (RCA Inputs)
Maximum Output Before Clipping	+17 dBu
Power Requirements	12 VDC, 0.5A
Dimensions W x D x H	198 x 165 x 83 mm(7.8 x 6.5 x 3.25 in)
Inputs A, B / C	4 Balanced 1/4" TRS2 Unbalanced RCA
Outputs A, B and Subwoofer	5 Balanced 1/4" TRS
Headphone	Stereo 1/4"
RMC Mic IN / OUT	1/8" TRS
Computer Interface	USB 2.0
LF EQ Frequency	20 Hz to 1.1 kHz Shelf32 options
LF EQ Gain	+/- 3 dB in .25 dB increments
HF EQ Frequency	2.5 kHz to 17 kHz Shelf28 options
HF EQ Gain	+/- 3 dB in .25 dB increments
Level	+/- 10 dB from nominal in .5 dB increments
Selectable Crossover Frequencies	60 Hz, 80 Hz, 120 Hz
Polarity	0 degrees / 180 degrees
