MSC1 (discontinued)

Monitor System Controller with Room Mode Correction

MSC1
Larger Images

Monitor System Controller with Room Mode Correction

The MSC1 Monitor System Controller includes essential “Monitor Strip” features found in large mixing consoles so you can take control of all monitoring functions from your place at the mix position. Since the acoustics of the room can play a big part in what you hear, the MSC1 includes JBL's highly acclaimed RMC Room Mode Correction Technology to tune your monitor system to the room. The end-result is a calibrated reference environment in which your speakers work in harmony with your room to take the guesswork out of mixing.

Features

  • Master Volume Control
  • A/B Speaker Select
  • A/B/C input Source Select
  • Subwoofer Output with Level Control and Selectable Cross Over Frequencies
  • Adjustable Low Frequency and High Frequency Speaker EQ
  • Headphone Output with Volume Control
  • Monitor Mute Control
  • RMC On/Bypass Control
  • Adjustable input gain with Signal Present and Clip indicator
  • Can be used with any studio monitor system

Downloads

  Version Language Size Uploaded
Manuals
file type icon MSC1 Control Center Software Users Guide Mac
updated: ต.ค. 2019
    12.1 เมกะไบต์ ต.ค. 2019
file type icon MSC1 Control Center Software Users Guide
updated: ต.ค. 2019
    13.2 เมกะไบต์ ต.ค. 2019
Brochures
file type icon MSC1 Brochure
updated: ต.ค. 2020
    605 กิโลไบต์ ต.ค. 2020
Compliances
file type icon LSR Series MSC1 Declaration of Conformity
updated: ต.ค. 2019
    144 กิโลไบต์ ต.ค. 2019
Software
platform icon MSC1 Control Center Software Power PC Mac
version 1.1 (Power PC), updated: ม.ค. 2020
1.1 (Power PC)     114 เมกะไบต์ ม.ค. 2020
platform icon MSC1 Control Center Software Intel Mac
version 1.1 (Power PC), updated: ม.ค. 2020
1.1 (Power PC)     110 เมกะไบต์ ม.ค. 2020
platform icon MSC1 Control Center Software Windows
version 1.3.3, updated: ม.ค. 2020
1.3.3     136 เมกะไบต์ ม.ค. 2020
Information documents
file type icon MSC1 Control Center Software Read Me
updated: ต.ค. 2019
    15.8 กิโลไบต์ ต.ค. 2019
file type icon MSC1 Power Supply Versions
updated: ต.ค. 2019
    158 กิโลไบต์ ต.ค. 2019
Images

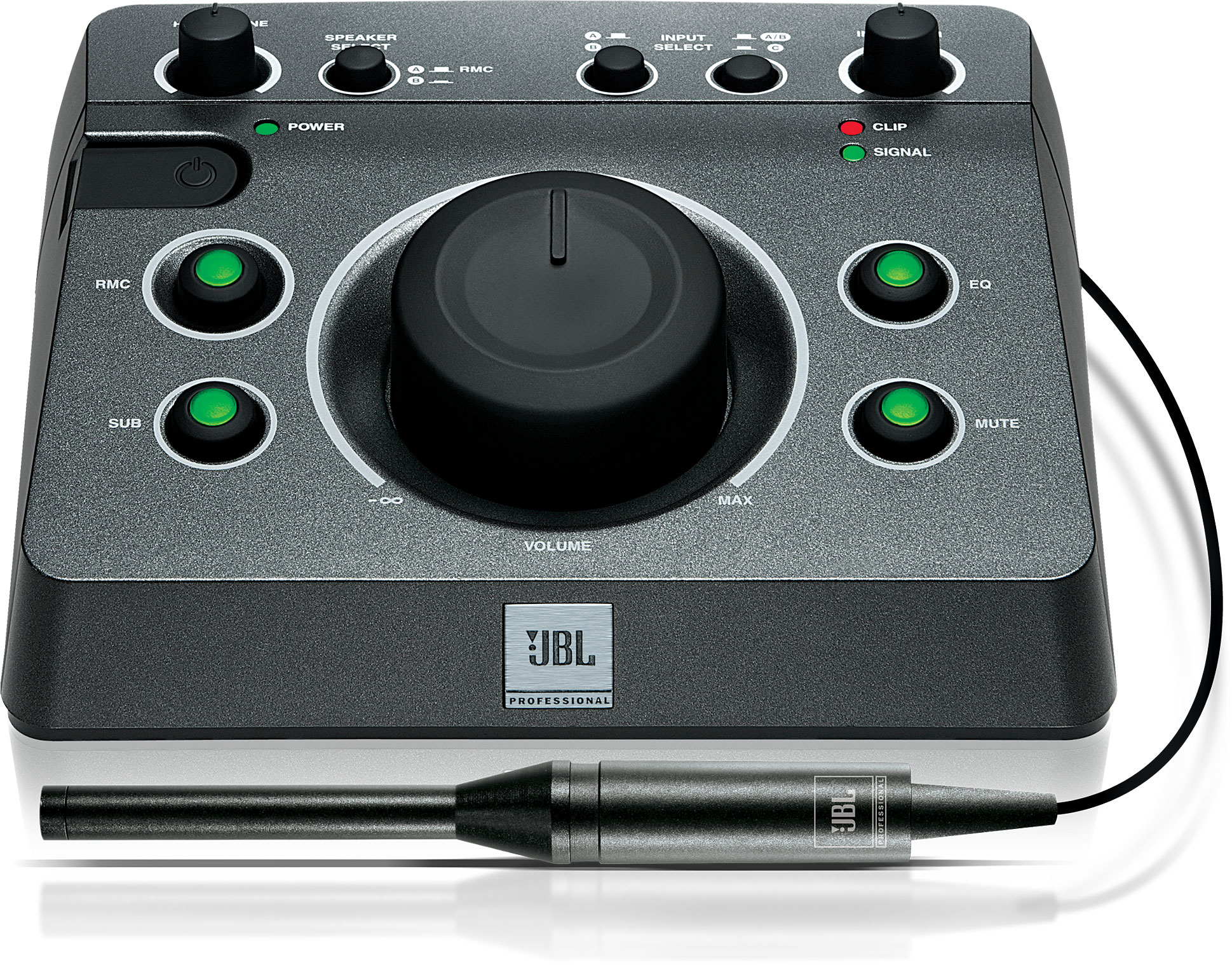

file type icon MSC1 Hi Res Photo
updated: ต.ค. 2020
    799 กิโลไบต์ ต.ค. 2020

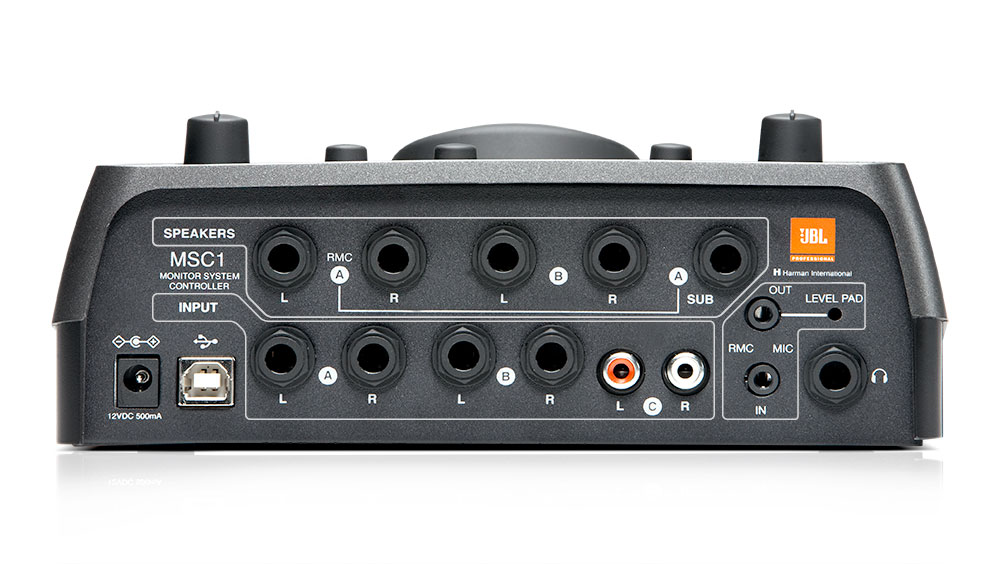

file type icon Back View
updated: ต.ค. 2020
    93.6 กิโลไบต์ ต.ค. 2020

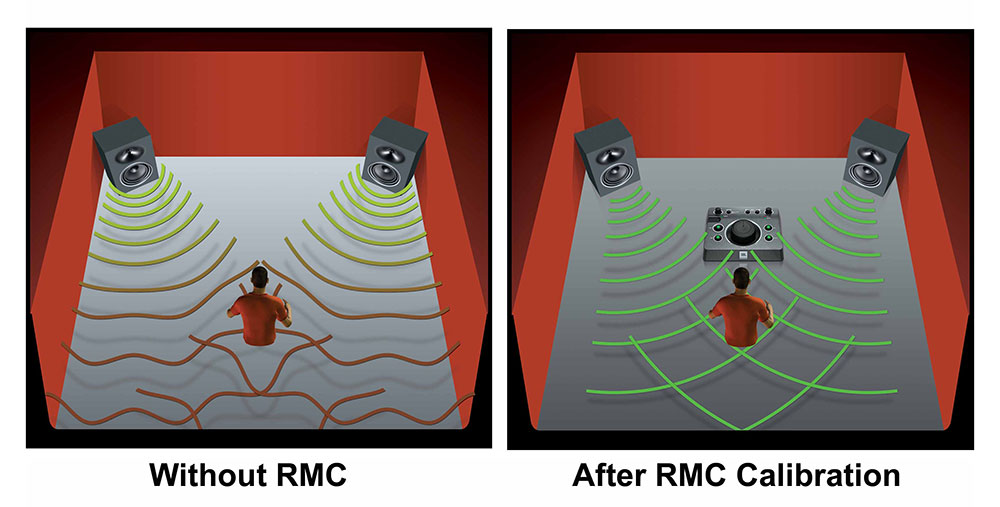

file type icon RMC Before and After
updated: ต.ค. 2020
    85.9 กิโลไบต์ ต.ค. 2020

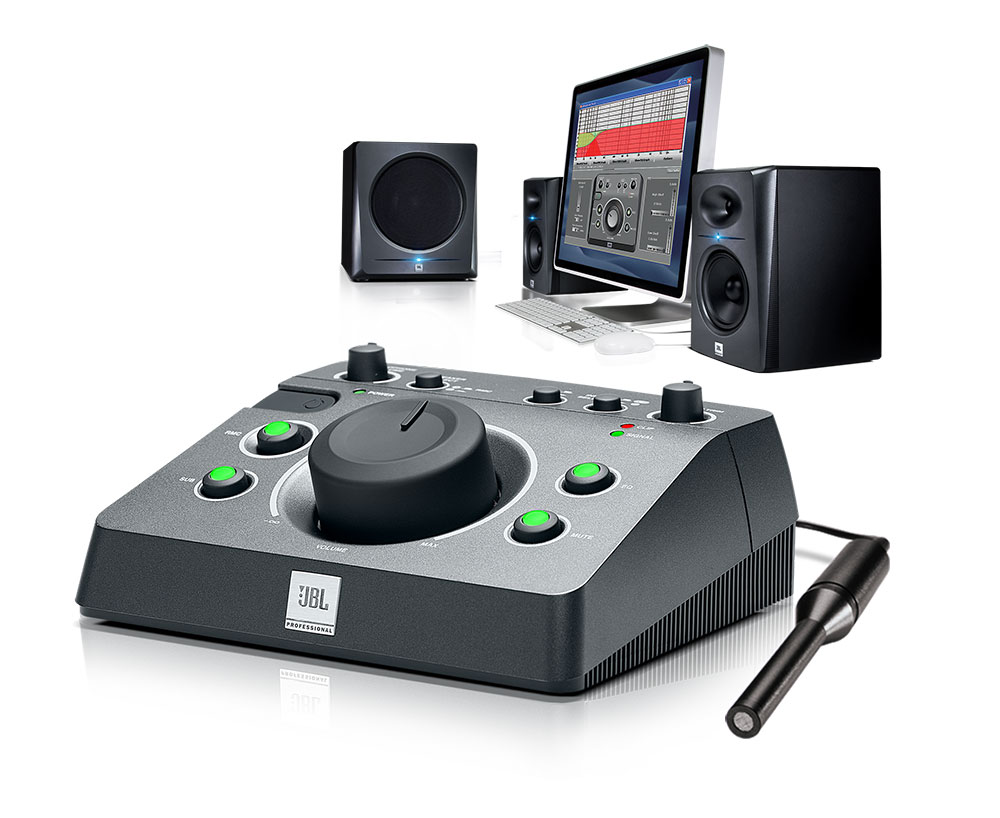

file type icon MSC1 with speakers
updated: ต.ค. 2020
    96.7 กิโลไบต์ ต.ค. 2020
Owner's Manuals
file type icon MSC1 Owner's Manual
updated: ต.ค. 2020
    2.37 เมกะไบต์ ต.ค. 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

S/N, Dynamic Range 110 dB typicalA-weighted20 Hz - 20 kHz
Frequency Response +0/-O.5 dB, 20 Hz - 20 kHz
THD+N < 0.04% A/D/A, 20 Hz - 20 kHz
A/D, DA Converters 24 Bit
Internal Processing 48 Bit, 48 kHz
Maximum Input Level +24 dBU 6.5mm (1/4" TRS Inputs)+4 dBu phono (RCA Inputs)
Maximum Output Before Clipping +17 dBu
Power Requirements 12 VDC, 0.5A
Dimensions W x D x H 198 x 165 x 83 mm(7.8 x 6.5 x 3.25 in)
Inputs A, B / C 4 Balanced 1/4" TRS2 Unbalanced RCA
Outputs A, B and Subwoofer 5 Balanced 1/4" TRS
Headphone Stereo 1/4"
RMC Mic IN / OUT 1/8" TRS
Computer Interface USB 2.0
LF EQ Frequency 20 Hz to 1.1 kHz Shelf32 options
LF EQ Gain +/- 3 dB in .25 dB increments
HF EQ Frequency 2.5 kHz to 17 kHz Shelf28 options
HF EQ Gain +/- 3 dB in .25 dB increments
Level +/- 10 dB from nominal in .5 dB increments
Selectable Crossover Frequencies 60 Hz, 80 Hz, 120 Hz
Polarity 0 degrees / 180 degrees
