MSC1
Descontinuado

Controlador de Sistema de Monitoramento com Correção de Modo de Sala

MSC1
Imagens Grandes

Monitor System Controller with Room Mode Correction

The MSC1 Monitor System Controller includes essential “Monitor Strip” features found in large mixing consoles so you can take control of all monitoring functions from your place at the mix position. Since the acoustics of the room can play a big part in what you hear, the MSC1 includes JBL's highly acclaimed RMC Room Mode Correction Technology to tune your monitor system to the room. The end-result is a calibrated reference environment in which your speakers work in harmony with your room to take the guesswork out of mixing.

Recursos

  • Master Volume Control
  • A/B Speaker Select
  • A/B/C input Source Select
  • Subwoofer Output with Level Control and Selectable Cross Over Frequencies
  • Adjustable Low Frequency and High Frequency Speaker EQ
  • Headphone Output with Volume Control
  • Monitor Mute Control
  • RMC On/Bypass Control
  • Adjustable input gain with Signal Present and Clip indicator
  • Can be used with any studio monitor system

Downloads

Manuals
  Tamanho Enviado
12,1 MB out 2019
13,2 MB out 2019
Brochures
  Tamanho Enviado
file type icon MSC1 Brochure
atualizado: out 2020
605 KB out 2020
Compliances
  Tamanho Enviado
144 KB out 2019
Software
  Versão Tamanho Enviado
MacOS download icon MSC1 Control Center Software Power PC Mac
versão 1.1 (Power PC), lançado: jan 2020
1.1 (Power PC)   114 MB jan 2020
MacOS download icon MSC1 Control Center Software Intel Mac
versão 1.1 (Power PC), lançado: jan 2020
1.1 (Power PC)   110 MB jan 2020
Windows download icon MSC1 Control Center Software Windows
versão 1.3.3, lançado: jan 2020
1.3.3   136 MB jan 2020
Information documents
  Tamanho Enviado
15,8 KB out 2019
file type icon MSC1 Power Supply Versions
atualizado: out 2019
158 KB out 2019
Images
  Tamanho Enviado

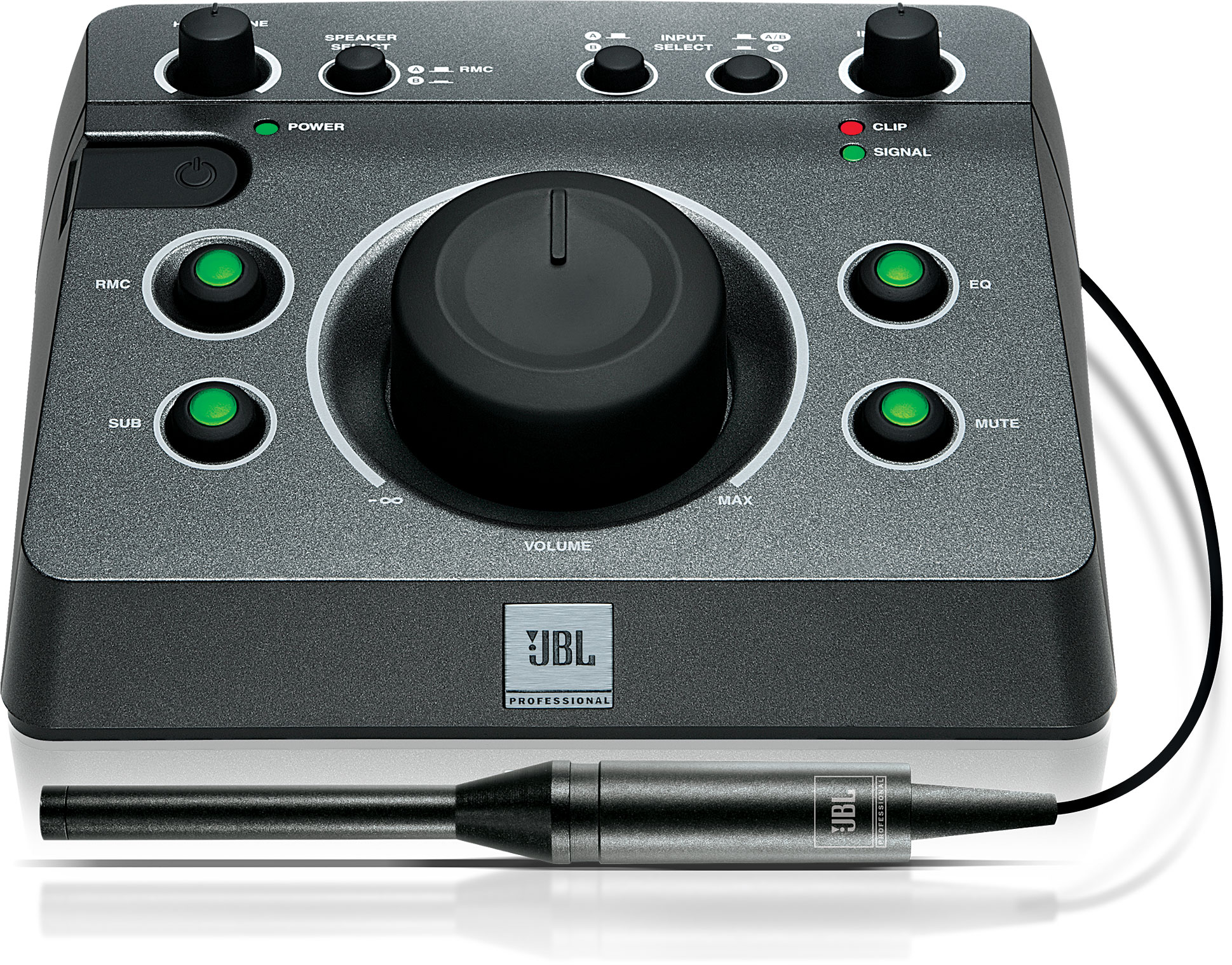

file type icon MSC1 Hi Res Photo
atualizado: out 2020
799 KB out 2020

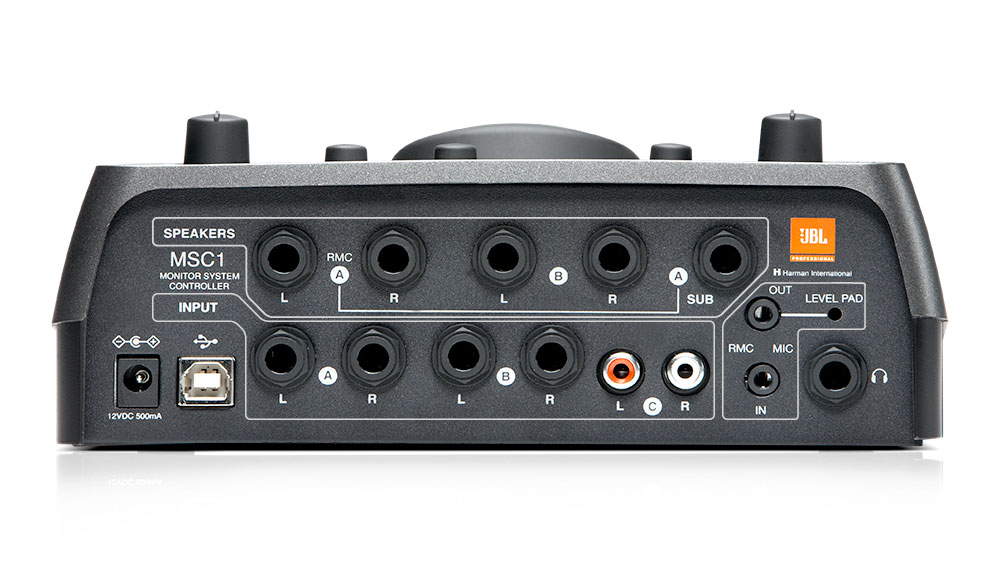

file type icon Back View
atualizado: out 2020
93,6 KB out 2020
file type icon RMC Before and After
atualizado: out 2020
85,9 KB out 2020

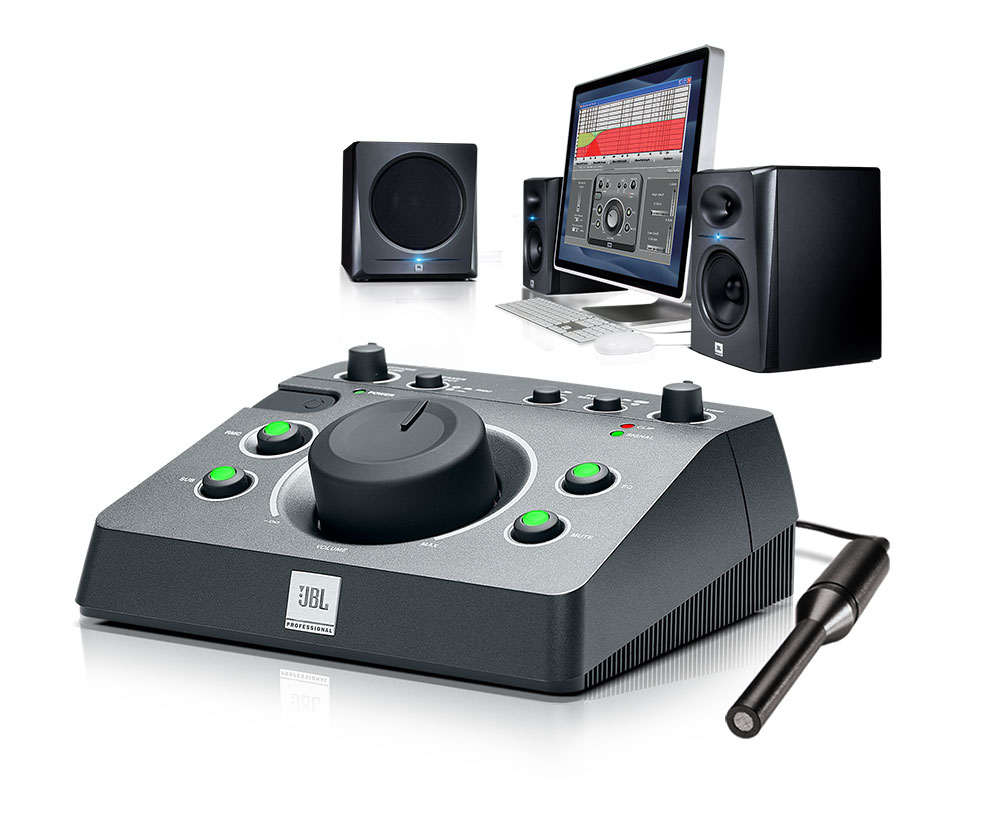

file type icon MSC1 with speakers
atualizado: out 2020
96,7 KB out 2020
Owner's Manuals
  Tamanho Enviado
file type icon MSC1 Owner's Manual
atualizado: out 2020
2,37 MB out 2020

Se algum dos links acima resultar em caracteres estranhos em seu navegador, clique com o botão direito no arquivo para salvá-lo em seu computador.

Peças e Serviços

Especificações

S/N, Dynamic Range 110 dB typicalA-weighted20 Hz - 20 kHz
Resposta de Frequência +0/-O.5 dB, 20 Hz - 20 kHz
THD+N < 0.04% A/D/A, 20 Hz - 20 kHz
A/D, DA Converters 24 Bit
Internal Processing 48 Bit, 48 kHz
Maximum Input Level +24 dBU 6.5mm (1/4" TRS Inputs)+4 dBu phono (RCA Inputs)
Maximum Output Before Clipping +17 dBu
Power Requirements 12 VDC, 0.5A
Dimensions W x D x H 198 x 165 x 83 mm(7.8 x 6.5 x 3.25 in)
Inputs A, B / C 4 Balanced 1/4" TRS2 Unbalanced RCA
Outputs A, B and Subwoofer 5 Balanced 1/4" TRS
Headphone Stereo 1/4"
RMC Mic IN / OUT 1/8" TRS
Computer Interface USB 2.0
LF EQ Frequency 20 Hz to 1.1 kHz Shelf32 options
LF EQ Gain +/- 3 dB in .25 dB increments
HF EQ Frequency 2.5 kHz to 17 kHz Shelf28 options
HF EQ Gain +/- 3 dB in .25 dB increments
Level +/- 10 dB from nominal in .5 dB increments
Selectable Crossover Frequencies 60 Hz, 80 Hz, 120 Hz
Polarity 0 degrees / 180 degrees
