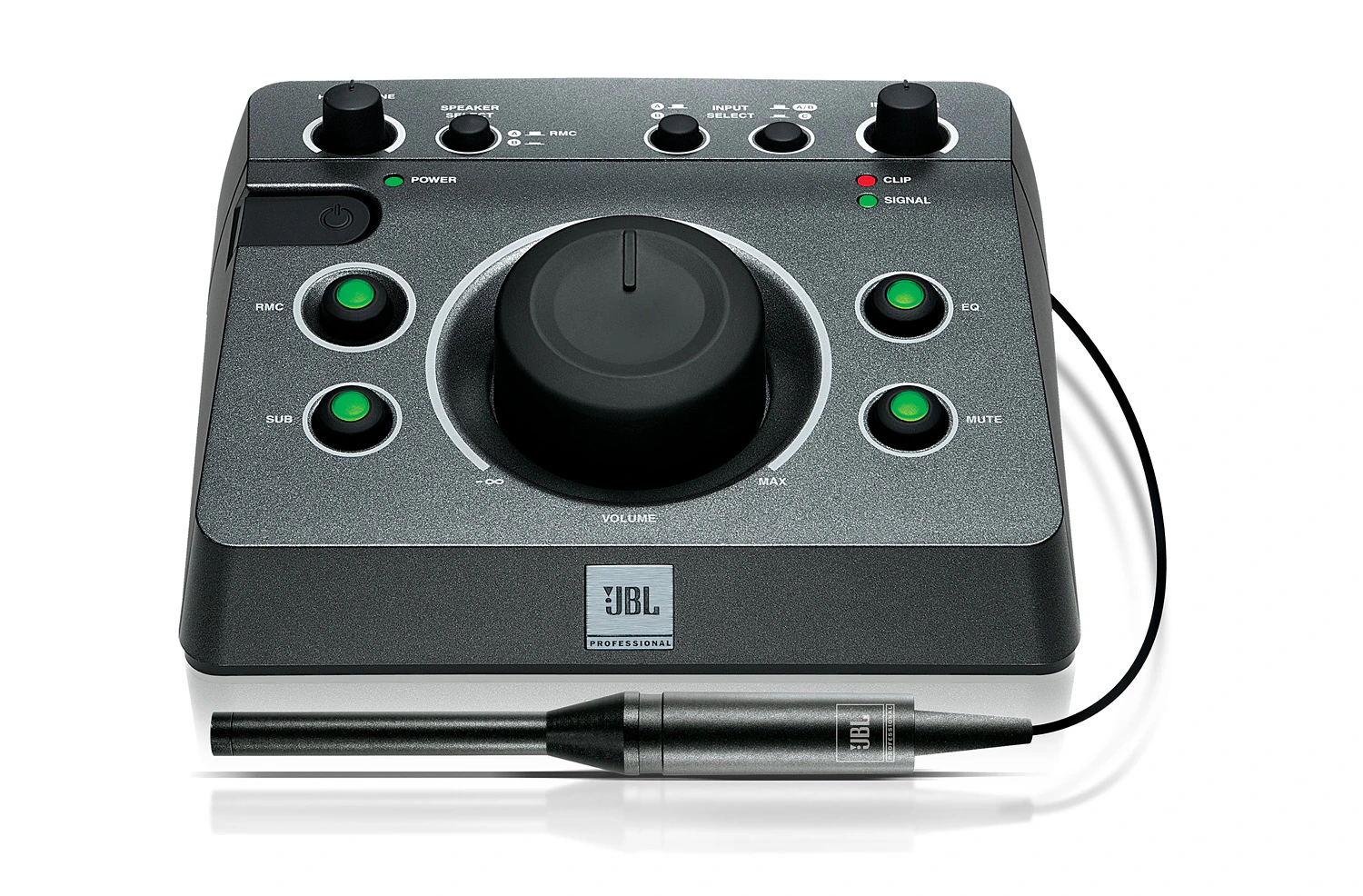

JBL Professional MSC1

Större bilder

Monitor System Controller with Room Mode Correction

The MSC1 Monitor System Controller includes essential “Monitor Strip” features found in large mixing consoles so you can take control of all monitoring functions from your place at the mix position. Since the acoustics of the room can play a big part in what you hear, the MSC1 includes JBL's highly acclaimed RMC Room Mode Correction Technology to tune your monitor system to the room. The end-result is a calibrated reference environment in which your speakers work in harmony with your room to take the guesswork out of mixing.

Funktioner

Master Volume Control
A/B Speaker Select
A/B/C input Source Select
Subwoofer Output with Level Control and Selectable Cross Over Frequencies
Adjustable Low Frequency and High Frequency Speaker EQ
Headphone Output with Volume Control
Monitor Mute Control
RMC On/Bypass Control
Adjustable input gain with Signal Present and Clip indicator
Can be used with any studio monitor system

Nedladdningar

Manuals

	Storlek	Uppladdat
MSC1 Control Center Software Users Guide Mac uppdaterad: okt 2019	12,1 MB	okt 2019
MSC1 Control Center Software Users Guide uppdaterad: okt 2019	13,2 MB	okt 2019

Brochures

	Storlek	Uppladdat
MSC1 Brochure uppdaterad: okt 2020	605 KB	okt 2020

Compliances

	Storlek	Uppladdat
LSR Series MSC1 Declaration of Conformity uppdaterad: okt 2019	144 KB	okt 2019

Software

	Version	Storlek	Uppladdat
MSC1 Control Center Software Power PC Mac version 1.1 (Power PC), släppt: jan 2020	1.1 (Power PC)	114 MB	jan 2020
MSC1 Control Center Software Intel Mac version 1.1 (Power PC), släppt: jan 2020	1.1 (Power PC)	110 MB	jan 2020
MSC1 Control Center Software Windows version 1.3.3, släppt: jan 2020	1.3.3	136 MB	jan 2020

Information documents

	Storlek	Uppladdat
MSC1 Control Center Software Read Me uppdaterad: okt 2019	15,8 KB	okt 2019
MSC1 Power Supply Versions uppdaterad: okt 2019	158 KB	okt 2019

Images

	Storlek	Uppladdat

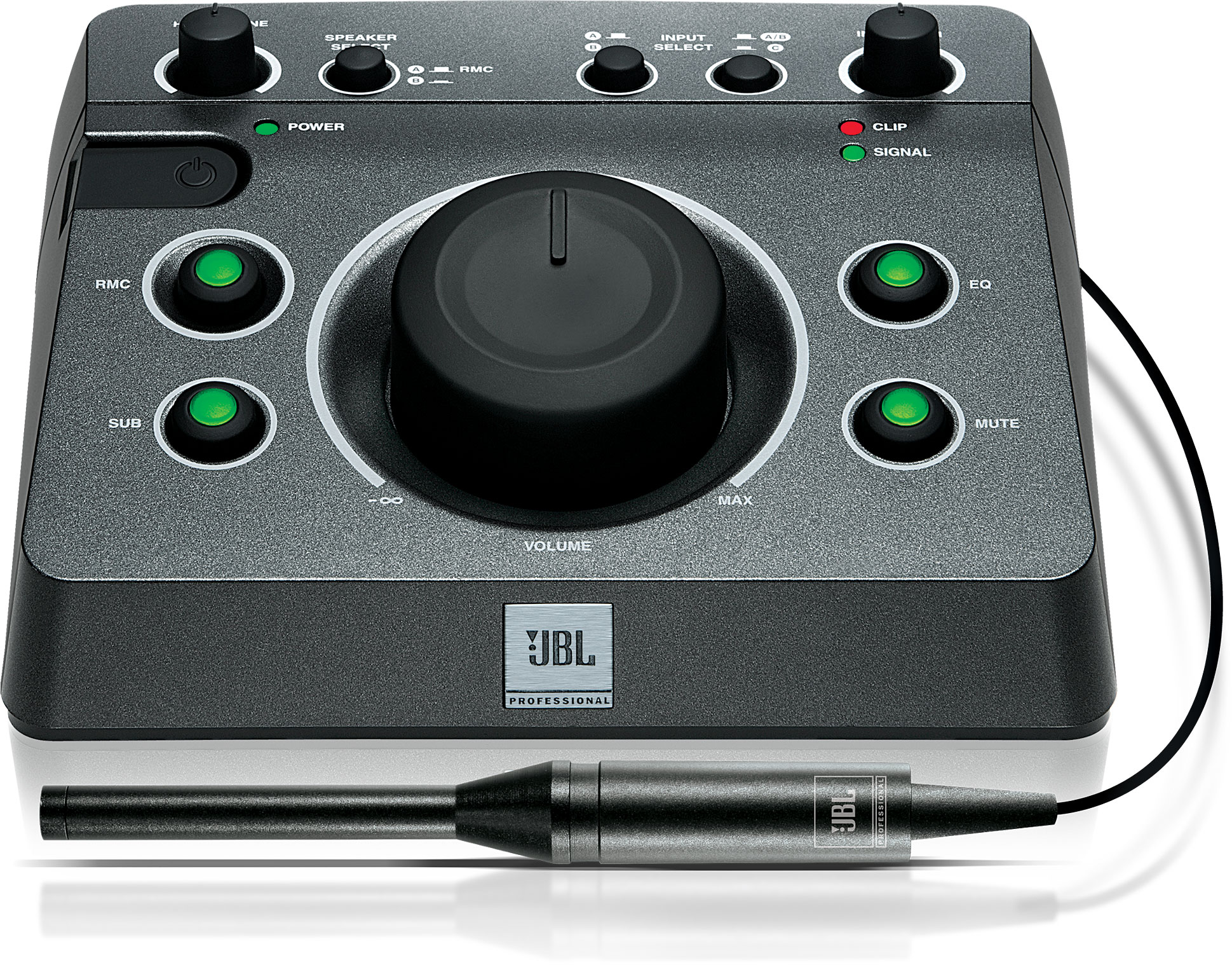

MSC1 Hi Res Photo uppdaterad: okt 2020	799 KB	okt 2020

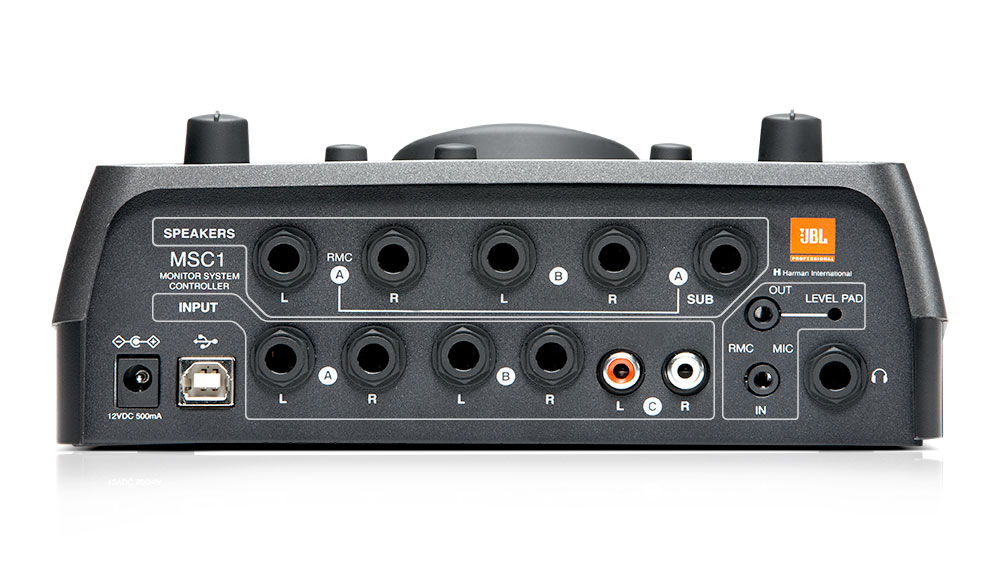

Back View uppdaterad: okt 2020	93,6 KB	okt 2020

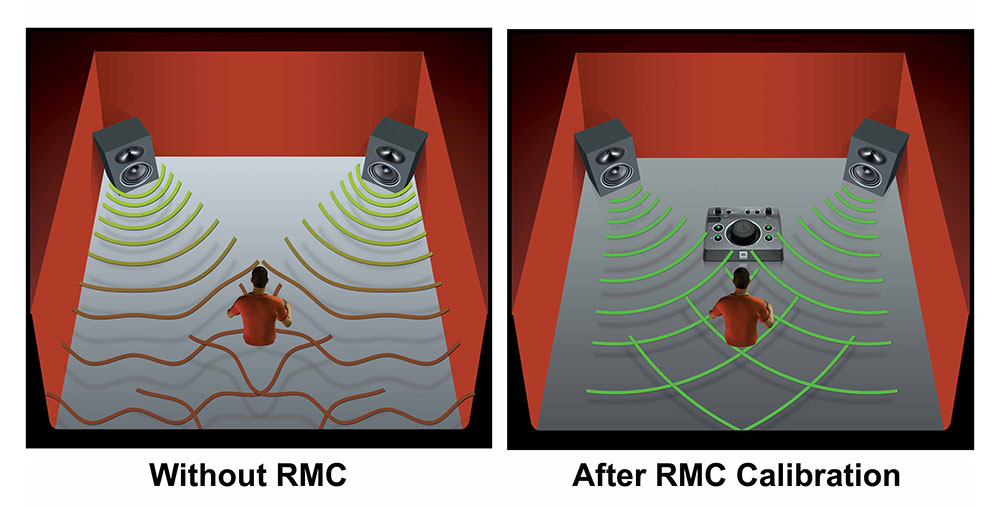

RMC Before and After uppdaterad: okt 2020	85,9 KB	okt 2020

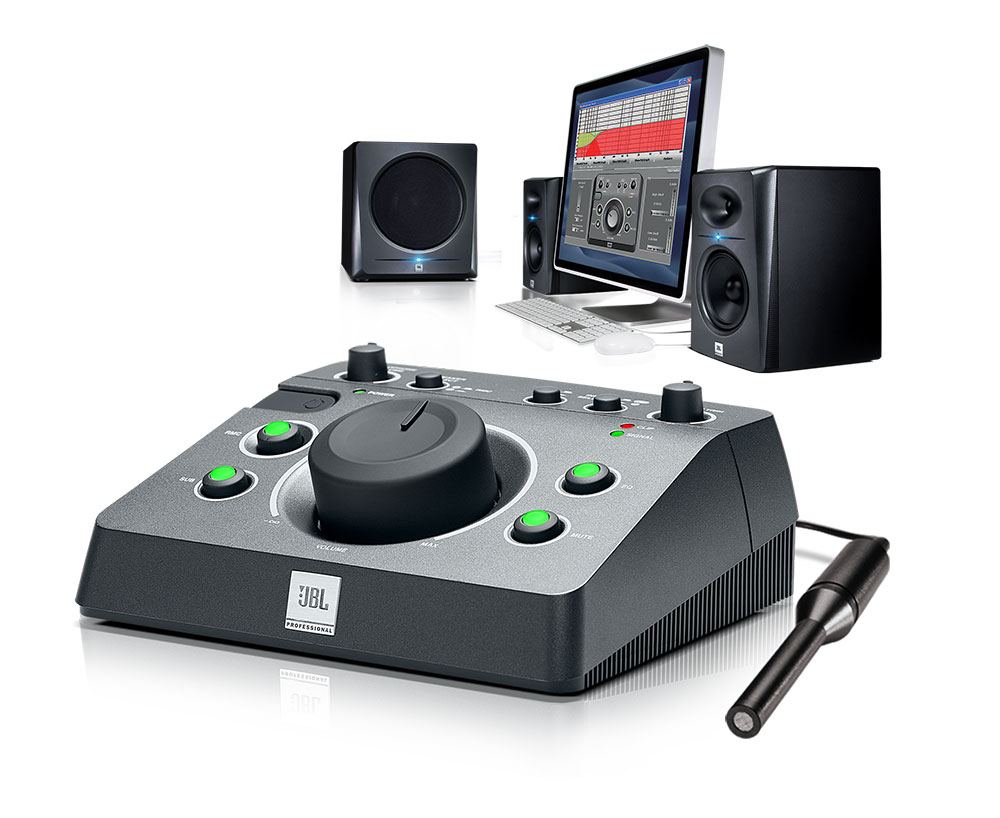

MSC1 with speakers uppdaterad: okt 2020	96,7 KB	okt 2020

Owner's Manuals

	Storlek	Uppladdat
MSC1 Owner's Manual uppdaterad: okt 2020	2,37 MB	okt 2020

Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.

Reservdelar och service

Specifikationer

S/N, Dynamic Range	110 dB typicalA-weighted20 Hz - 20 kHz
Frequency Response	+0/-O.5 dB, 20 Hz - 20 kHz
THD+N	< 0.04% A/D/A, 20 Hz - 20 kHz
A/D, DA Converters	24 Bit
Internal Processing	48 Bit, 48 kHz
Maximum Input Level	+24 dBU 6.5mm (1/4" TRS Inputs)+4 dBu phono (RCA Inputs)
Maximum Output Before Clipping	+17 dBu
Power Requirements	12 VDC, 0.5A
Dimensions W x D x H	198 x 165 x 83 mm(7.8 x 6.5 x 3.25 in)
Inputs A, B / C	4 Balanced 1/4" TRS2 Unbalanced RCA
Outputs A, B and Subwoofer	5 Balanced 1/4" TRS
Headphone	Stereo 1/4"
RMC Mic IN / OUT	1/8" TRS
Computer Interface	USB 2.0
LF EQ Frequency	20 Hz to 1.1 kHz Shelf32 options
LF EQ Gain	+/- 3 dB in .25 dB increments
HF EQ Frequency	2.5 kHz to 17 kHz Shelf28 options
HF EQ Gain	+/- 3 dB in .25 dB increments
Level	+/- 10 dB from nominal in .5 dB increments
Selectable Crossover Frequencies	60 Hz, 80 Hz, 120 Hz
Polarity	0 degrees / 180 degrees
