MSC1 (停产)

Monitor System Controller with Room Mode Correction


Monitor System Controller with Room Mode Correction

The MSC1 Monitor System Controller includes essential “Monitor Strip” features found in large mixing consoles so you can take control of all monitoring functions from your place at the mix position. Since the acoustics of the room can play a big part in what you hear, the MSC1 includes JBL's highly acclaimed RMC Room Mode Correction Technology to tune your monitor system to the room. The end-result is a calibrated reference environment in which your speakers work in harmony with your room to take the guesswork out of mixing.


  • Master Volume Control
  • A/B Speaker Select
  • A/B/C input Source Select
  • Subwoofer Output with Level Control and Selectable Cross Over Frequencies
  • Adjustable Low Frequency and High Frequency Speaker EQ
  • Headphone Output with Volume Control
  • Monitor Mute Control
  • RMC On/Bypass Control
  • Adjustable input gain with Signal Present and Clip indicator
  • Can be used with any studio monitor system


  Version Language Size Uploaded
MSC1 Control Center Software Users Guide Mac
updated: 10月18日
    12.1 MB 10月18日
MSC1 Control Center Software Users Guide
updated: 10月18日
    13.2 MB 10月18日
MSC1 Brochure
updated: 10月22日
    604.5 KB 10月22日
LSR Series MSC1 Declaration of Conformity
updated: 10月18日
    144.2 KB 10月18日
MSC1 Control Center Software Power PC Mac
version 1.1 (Power PC), updated: 1月15日
1.1 (Power PC)     113.9 MB 1月15日
MSC1 Control Center Software Intel Mac
version 1.1 (Power PC), updated: 1月15日
1.1 (Power PC)     110.2 MB 1月15日
MSC1 Control Center Software Windows
version 1.3.3, updated: 1月15日
1.3.3     136.2 MB 1月15日
Information Documents
MSC1 Control Center Software Read Me
updated: 10月18日
    15.8 KB 10月18日
MSC1 Power Supply Versions
updated: 10月18日
    157.6 KB 10月18日
MSC1 Hi Res Photo
updated: 10月22日
    799.0 KB 10月22日

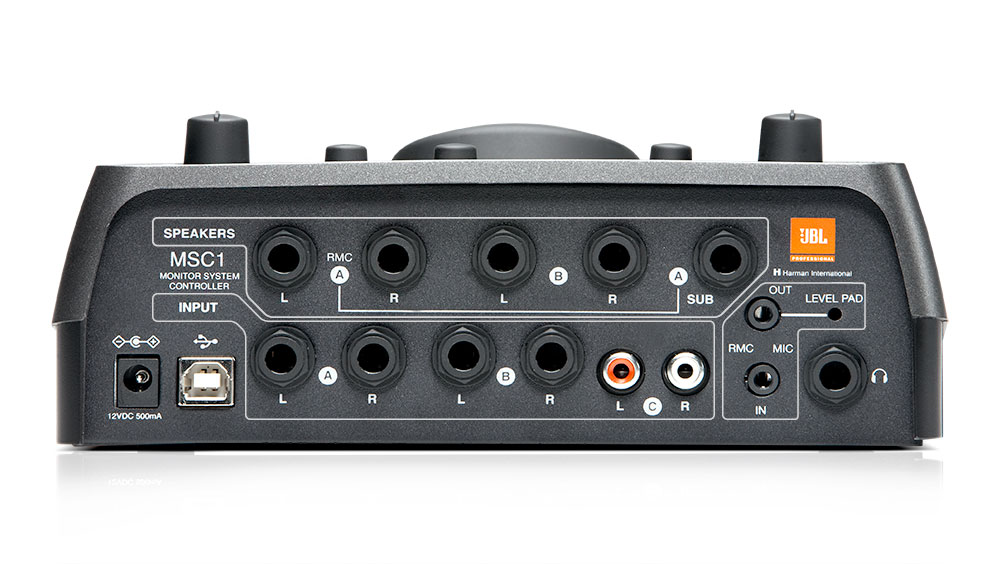

Back View
updated: 10月22日
    93.6 KB 10月22日
RMC Before and After
updated: 10月22日
    85.9 KB 10月22日
MSC1 with speakers
updated: 10月22日
    96.7 KB 10月22日
Owner's Manuals
MSC1 Owner's Manual
updated: 10月22日
    2.4 MB 10月22日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


S/N, Dynamic Range 110 dB typicalA-weighted20 Hz - 20 kHz


+0/-O.5 dB, 20 Hz - 20 kHz
THD+N < 0.04% A/D/A, 20 Hz - 20 kHz
A/D, DA Converters 24 Bit
内部处理 48 Bit, 48 kHz
最大输入电平 +24 dBU 6.5mm (1/4" TRS Inputs)+4 dBu phono (RCA Inputs)
Maximum Output Before Clipping +17 dBu
电源要求 12 VDC, 0.5A
Dimensions W x D x H 198 x 165 x 83 mm(7.8 x 6.5 x 3.25 in)
Inputs A, B / C 4 Balanced 1/4" TRS2 Unbalanced RCA
Outputs A, B and Subwoofer 5 Balanced 1/4" TRS
Headphone Stereo 1/4"
RMC Mic IN / OUT 1/8" TRS
Computer Interface USB 2.0
LF EQ Frequency 20 Hz to 1.1 kHz Shelf32 options
LF EQ Gain +/- 3 dB in .25 dB increments
HF EQ Frequency 2.5 kHz to 17 kHz Shelf28 options
HF EQ Gain +/- 3 dB in .25 dB increments
Level +/- 10 dB from nominal in .5 dB increments
Selectable Crossover Frequencies 60 Hz, 80 Hz, 120 Hz
极性 0 degrees / 180 degrees
