JBL Professional MSC1

Immagini più grandi

Monitor System Controller with Room Mode Correction

The MSC1 Monitor System Controller includes essential “Monitor Strip” features found in large mixing consoles so you can take control of all monitoring functions from your place at the mix position. Since the acoustics of the room can play a big part in what you hear, the MSC1 includes JBL's highly acclaimed RMC Room Mode Correction Technology to tune your monitor system to the room. The end-result is a calibrated reference environment in which your speakers work in harmony with your room to take the guesswork out of mixing.

Caratteristiche

Master Volume Control
A/B Speaker Select
A/B/C input Source Select
Subwoofer Output with Level Control and Selectable Cross Over Frequencies
Adjustable Low Frequency and High Frequency Speaker EQ
Headphone Output with Volume Control
Monitor Mute Control
RMC On/Bypass Control
Adjustable input gain with Signal Present and Clip indicator
Can be used with any studio monitor system

Download

Manuals

	Dimensione	Caricato
MSC1 Control Center Software Users Guide Mac aggiornato: ott 2019	12,1 MB	ott 2019
MSC1 Control Center Software Users Guide aggiornato: ott 2019	13,2 MB	ott 2019

Brochures

	Dimensione	Caricato
MSC1 Brochure aggiornato: ott 2020	605 KB	ott 2020

Compliances

	Dimensione	Caricato
LSR Series MSC1 Declaration of Conformity aggiornato: ott 2019	144 KB	ott 2019

Software

	Versione	Dimensione	Caricato
MSC1 Control Center Software Power PC Mac versione 1.1 (Power PC), rilasciato: gen 2020	1.1 (Power PC)	114 MB	gen 2020
MSC1 Control Center Software Intel Mac versione 1.1 (Power PC), rilasciato: gen 2020	1.1 (Power PC)	110 MB	gen 2020
MSC1 Control Center Software Windows versione 1.3.3, rilasciato: gen 2020	1.3.3	136 MB	gen 2020

Information documents

	Dimensione	Caricato
MSC1 Control Center Software Read Me aggiornato: ott 2019	15,8 KB	ott 2019
MSC1 Power Supply Versions aggiornato: ott 2019	158 KB	ott 2019

Images

	Dimensione	Caricato
MSC1 Hi Res Photo aggiornato: ott 2020	799 KB	ott 2020

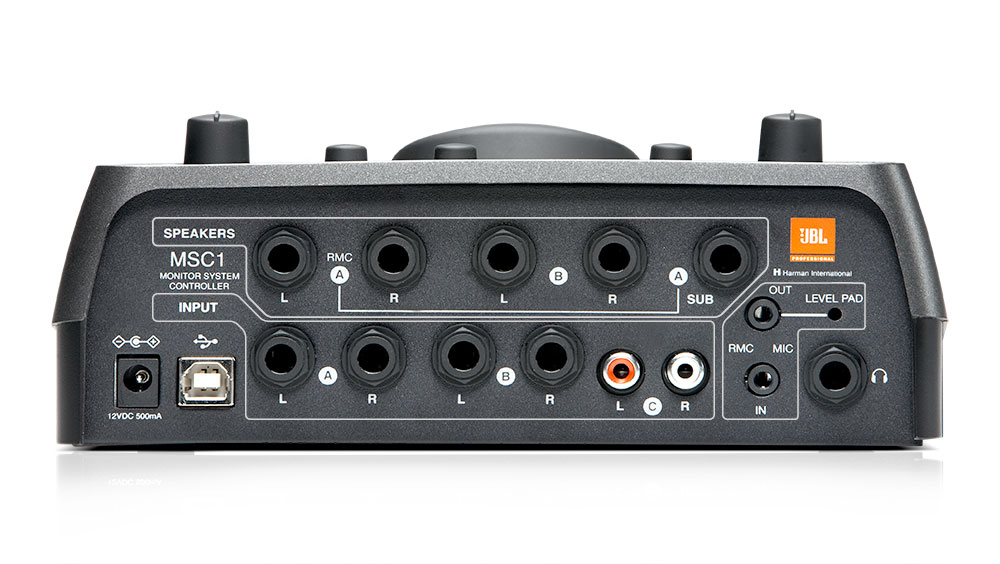

Back View aggiornato: ott 2020	93,6 KB	ott 2020

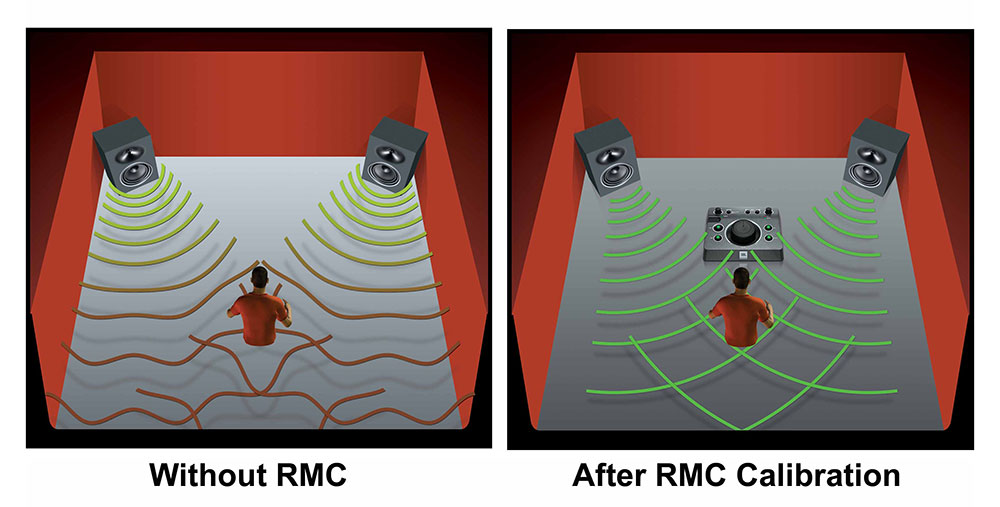

RMC Before and After aggiornato: ott 2020	85,9 KB	ott 2020

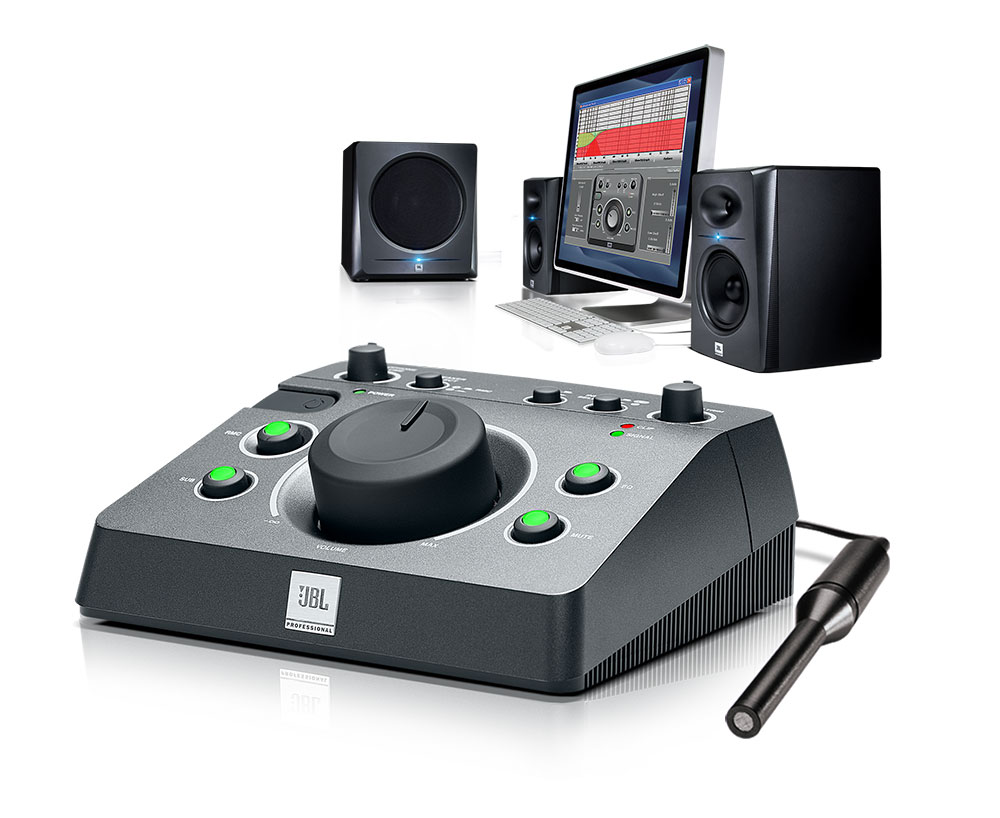

MSC1 with speakers aggiornato: ott 2020	96,7 KB	ott 2020

Owner's Manuals

	Dimensione	Caricato
MSC1 Owner's Manual aggiornato: ott 2020	2,37 MB	ott 2020

Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.

Parti e assistenza

Specifiche

S/N, Dynamic Range	110 dB typicalA-weighted20 Hz - 20 kHz
Frequency Response	+0/-O.5 dB, 20 Hz - 20 kHz
THD+N	< 0.04% A/D/A, 20 Hz - 20 kHz
A/D, DA Converters	24 Bit
Internal Processing	48 Bit, 48 kHz
Maximum Input Level	+24 dBU 6.5mm (1/4" TRS Inputs)+4 dBu phono (RCA Inputs)
Maximum Output Before Clipping	+17 dBu
Power Requirements	12 VDC, 0.5A
Dimensions W x D x H	198 x 165 x 83 mm(7.8 x 6.5 x 3.25 in)
Inputs A, B / C	4 Balanced 1/4" TRS2 Unbalanced RCA
Outputs A, B and Subwoofer	5 Balanced 1/4" TRS
Headphone	Stereo 1/4"
RMC Mic IN / OUT	1/8" TRS
Computer Interface	USB 2.0
LF EQ Frequency	20 Hz to 1.1 kHz Shelf32 options
LF EQ Gain	+/- 3 dB in .25 dB increments
HF EQ Frequency	2.5 kHz to 17 kHz Shelf28 options
HF EQ Gain	+/- 3 dB in .25 dB increments
Level	+/- 10 dB from nominal in .5 dB increments
Selectable Crossover Frequencies	60 Hz, 80 Hz, 120 Hz
Polarity	0 degrees / 180 degrees
