JBL Professional MSC1

Gambar Lebih Besar

Monitor System Controller with Room Mode Correction

The MSC1 Monitor System Controller includes essential “Monitor Strip” features found in large mixing consoles so you can take control of all monitoring functions from your place at the mix position. Since the acoustics of the room can play a big part in what you hear, the MSC1 includes JBL's highly acclaimed RMC Room Mode Correction Technology to tune your monitor system to the room. The end-result is a calibrated reference environment in which your speakers work in harmony with your room to take the guesswork out of mixing.

Fitur

Master Volume Control
A/B Speaker Select
A/B/C input Source Select
Subwoofer Output with Level Control and Selectable Cross Over Frequencies
Adjustable Low Frequency and High Frequency Speaker EQ
Headphone Output with Volume Control
Monitor Mute Control
RMC On/Bypass Control
Adjustable input gain with Signal Present and Clip indicator
Can be used with any studio monitor system

Unduhan

Manuals

	Ukuran	Diunggah
MSC1 Control Center Software Users Guide Mac diperbarui: Okt 2019	12,1 MB	Okt 2019
MSC1 Control Center Software Users Guide diperbarui: Okt 2019	13,2 MB	Okt 2019

Brochures

	Ukuran	Diunggah
MSC1 Brochure diperbarui: Okt 2020	605 KB	Okt 2020

Compliances

	Ukuran	Diunggah
LSR Series MSC1 Declaration of Conformity diperbarui: Okt 2019	144 KB	Okt 2019

Software

	Versi	Ukuran	Diunggah
MSC1 Control Center Software Power PC Mac versi 1.1 (Power PC), dirilis: Jan 2020	1.1 (Power PC)	114 MB	Jan 2020
MSC1 Control Center Software Intel Mac versi 1.1 (Power PC), dirilis: Jan 2020	1.1 (Power PC)	110 MB	Jan 2020
MSC1 Control Center Software Windows versi 1.3.3, dirilis: Jan 2020	1.3.3	136 MB	Jan 2020

Information documents

	Ukuran	Diunggah
MSC1 Control Center Software Read Me diperbarui: Okt 2019	15,8 KB	Okt 2019
MSC1 Power Supply Versions diperbarui: Okt 2019	158 KB	Okt 2019

Images

	Ukuran	Diunggah

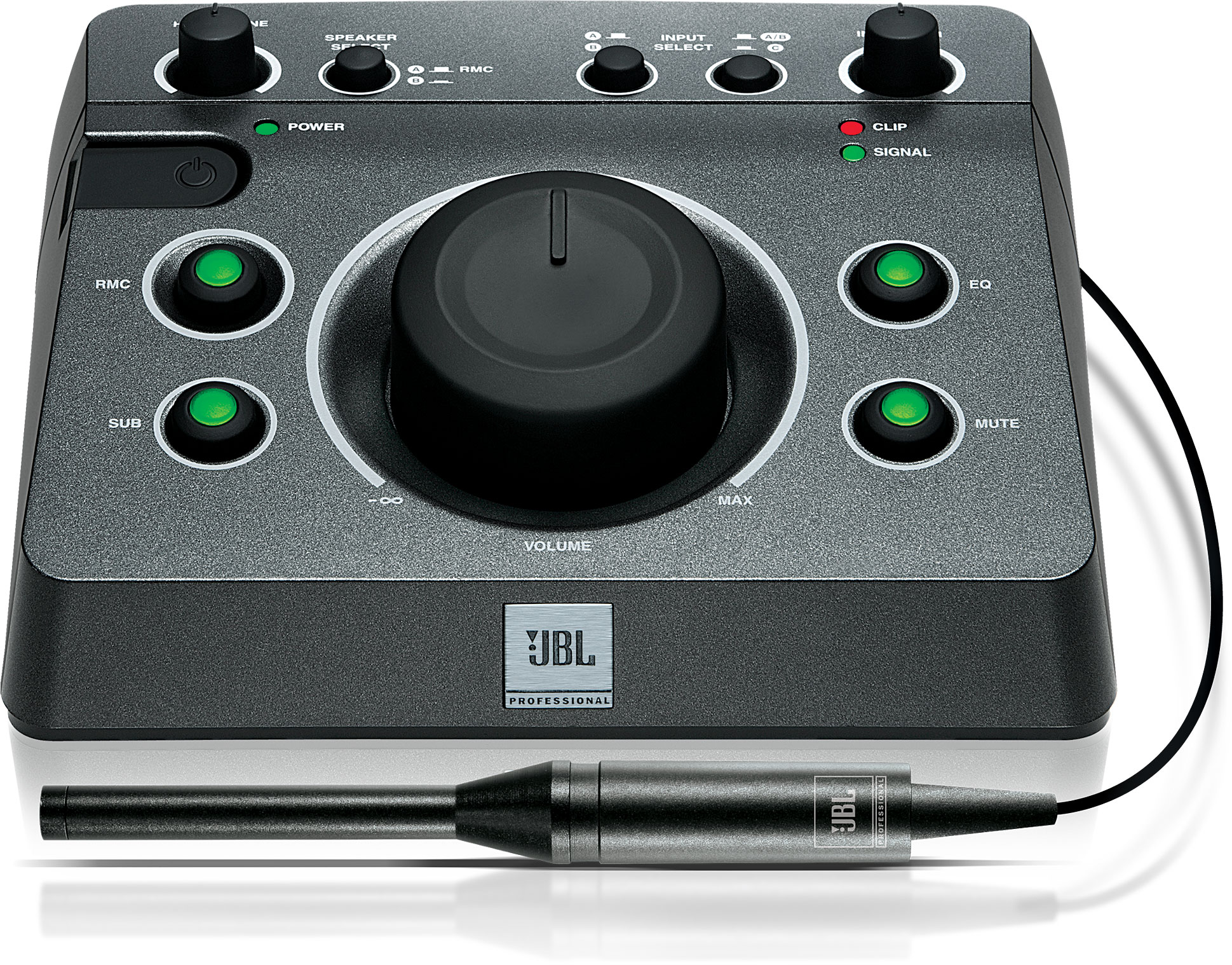

MSC1 Hi Res Photo diperbarui: Okt 2020	799 KB	Okt 2020

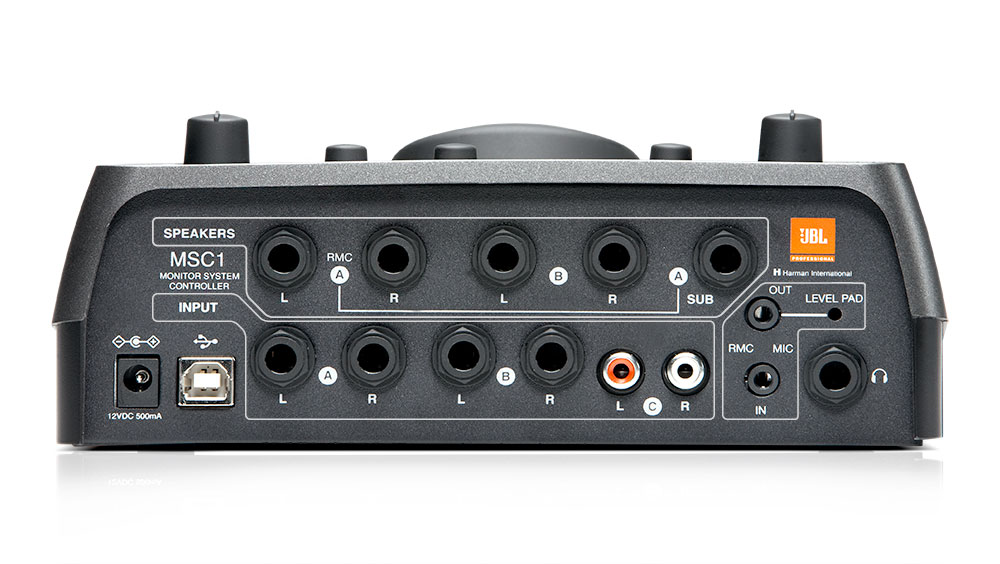

Back View diperbarui: Okt 2020	93,6 KB	Okt 2020

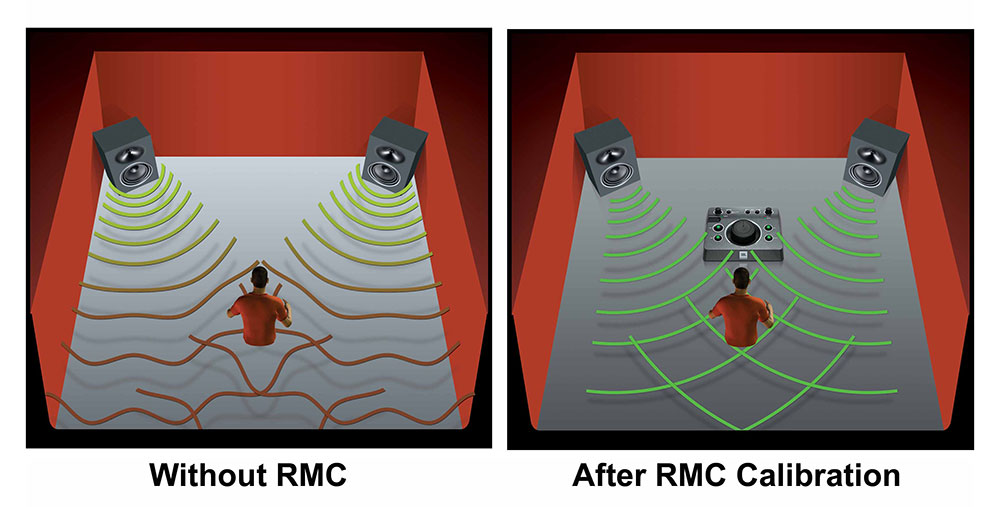

RMC Before and After diperbarui: Okt 2020	85,9 KB	Okt 2020

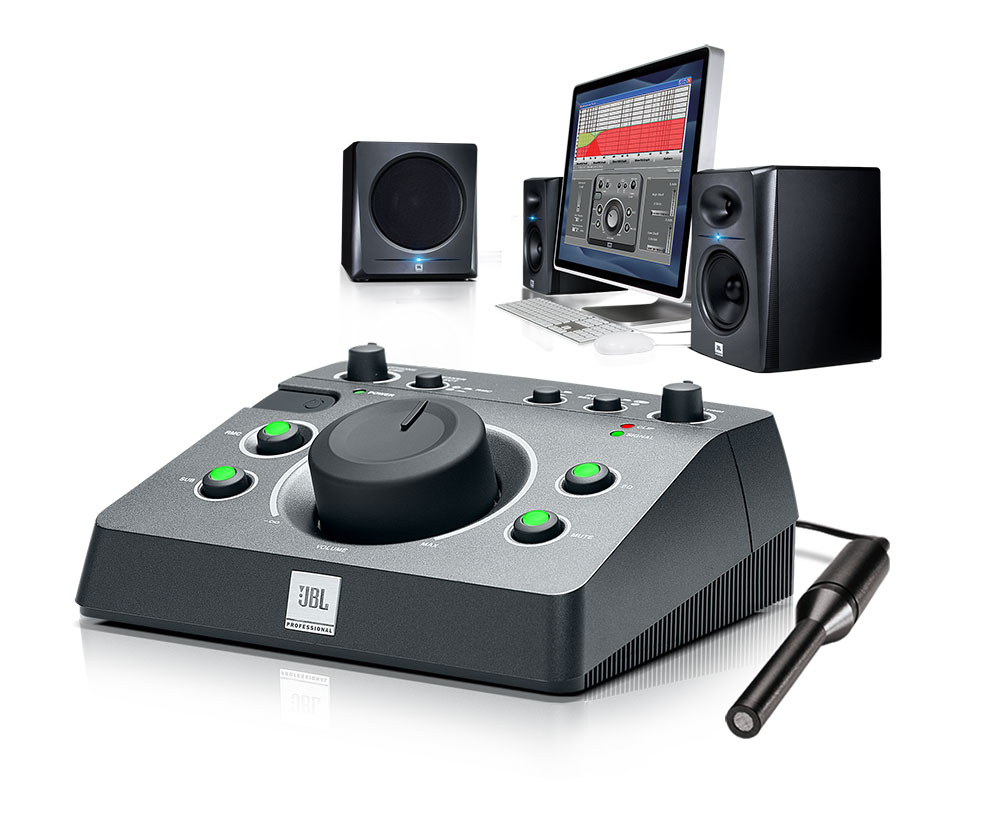

MSC1 with speakers diperbarui: Okt 2020	96,7 KB	Okt 2020

Owner's Manuals

	Ukuran	Diunggah
MSC1 Owner's Manual diperbarui: Okt 2020	2,37 MB	Okt 2020

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

S/N, Dynamic Range	110 dB typicalA-weighted20 Hz - 20 kHz
Frequency Response	+0/-O.5 dB, 20 Hz - 20 kHz
THD+N	< 0.04% A/D/A, 20 Hz - 20 kHz
A/D, DA Converters	24 Bit
Internal Processing	48 Bit, 48 kHz
Maximum Input Level	+24 dBU 6.5mm (1/4" TRS Inputs)+4 dBu phono (RCA Inputs)
Maximum Output Before Clipping	+17 dBu
Power Requirements	12 VDC, 0.5A
Dimensions W x D x H	198 x 165 x 83 mm(7.8 x 6.5 x 3.25 in)
Inputs A, B / C	4 Balanced 1/4" TRS2 Unbalanced RCA
Outputs A, B and Subwoofer	5 Balanced 1/4" TRS
Headphone	Stereo 1/4"
RMC Mic IN / OUT	1/8" TRS
Computer Interface	USB 2.0
LF EQ Frequency	20 Hz to 1.1 kHz Shelf32 options
LF EQ Gain	+/- 3 dB in .25 dB increments
HF EQ Frequency	2.5 kHz to 17 kHz Shelf28 options
HF EQ Gain	+/- 3 dB in .25 dB increments
Level	+/- 10 dB from nominal in .5 dB increments
Selectable Crossover Frequencies	60 Hz, 80 Hz, 120 Hz
Polarity	0 degrees / 180 degrees
