JBL Professional MSC1

Imagens maiores

Monitor System Controller with Room Mode Correction

The MSC1 Monitor System Controller includes essential “Monitor Strip” features found in large mixing consoles so you can take control of all monitoring functions from your place at the mix position. Since the acoustics of the room can play a big part in what you hear, the MSC1 includes JBL's highly acclaimed RMC Room Mode Correction Technology to tune your monitor system to the room. The end-result is a calibrated reference environment in which your speakers work in harmony with your room to take the guesswork out of mixing.

Características

Master Volume Control
A/B Speaker Select
A/B/C input Source Select
Subwoofer Output with Level Control and Selectable Cross Over Frequencies
Adjustable Low Frequency and High Frequency Speaker EQ
Headphone Output with Volume Control
Monitor Mute Control
RMC On/Bypass Control
Adjustable input gain with Signal Present and Clip indicator
Can be used with any studio monitor system

Descarregamentos

Manuals

	Tamanho	Carregado
MSC1 Control Center Software Users Guide Mac atualizado: out 2019	10 MB	out 2019
MSC1 Control Center Software Users Guide atualizado: out 2019	10 MB	out 2019

Brochures

	Tamanho	Carregado
MSC1 Brochure atualizado: out 2020	600 KB	out 2020

Compliances

	Tamanho	Carregado
LSR Series MSC1 Declaration of Conformity atualizado: out 2019	100 KB	out 2019

Software

	Versão	Tamanho	Carregado
MSC1 Control Center Software Power PC Mac versão 1.1 (Power PC), publicado: jan 2020	1.1 (Power PC)	100 MB	jan 2020
MSC1 Control Center Software Intel Mac versão 1.1 (Power PC), publicado: jan 2020	1.1 (Power PC)	100 MB	jan 2020
MSC1 Control Center Software Windows versão 1.3.3, publicado: jan 2020	1.3.3	100 MB	jan 2020

Information documents

	Tamanho	Carregado
MSC1 Control Center Software Read Me atualizado: out 2019	20 KB	out 2019
MSC1 Power Supply Versions atualizado: out 2019	200 KB	out 2019

Images

	Tamanho	Carregado

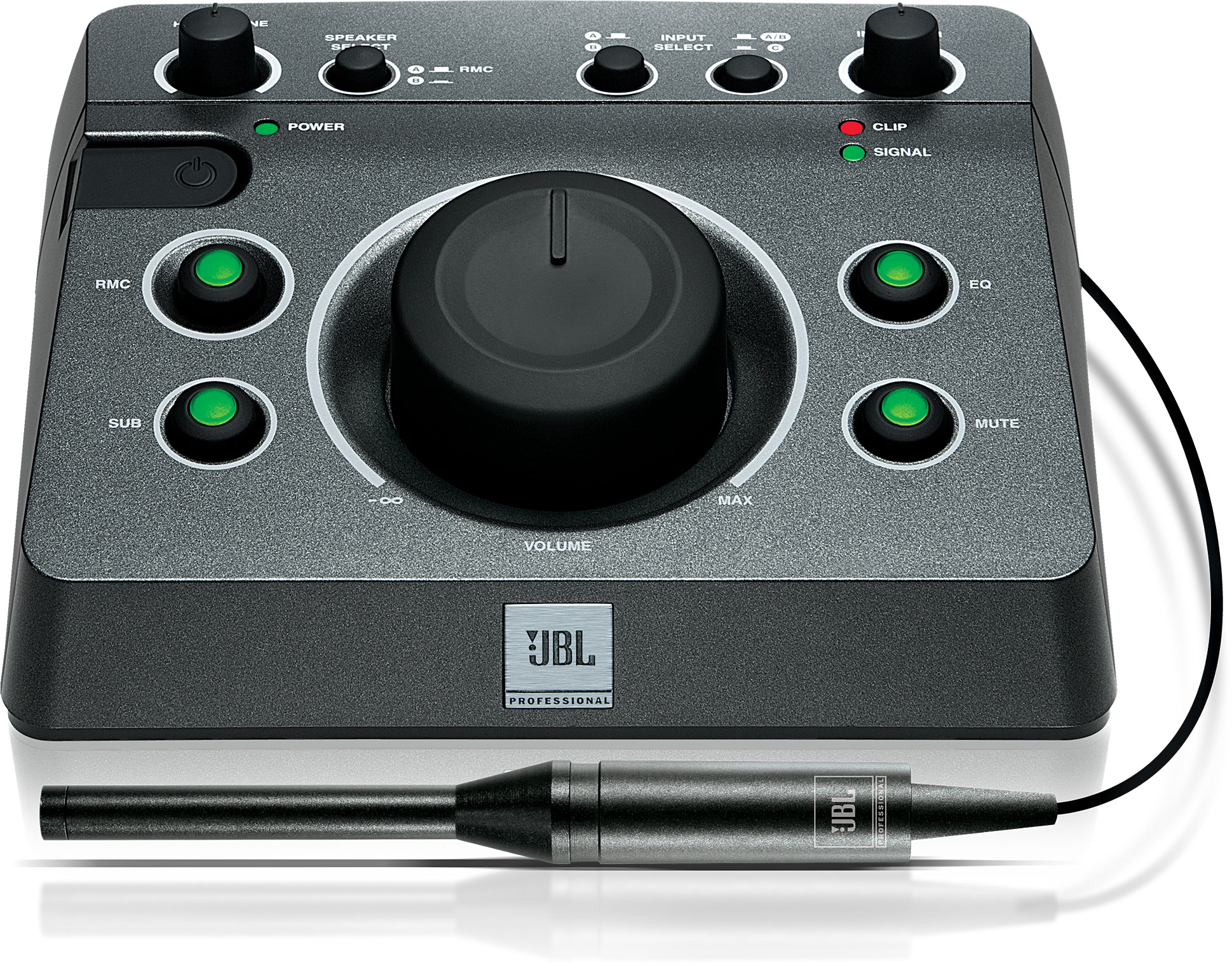

MSC1 Hi Res Photo atualizado: out 2020	800 KB	out 2020

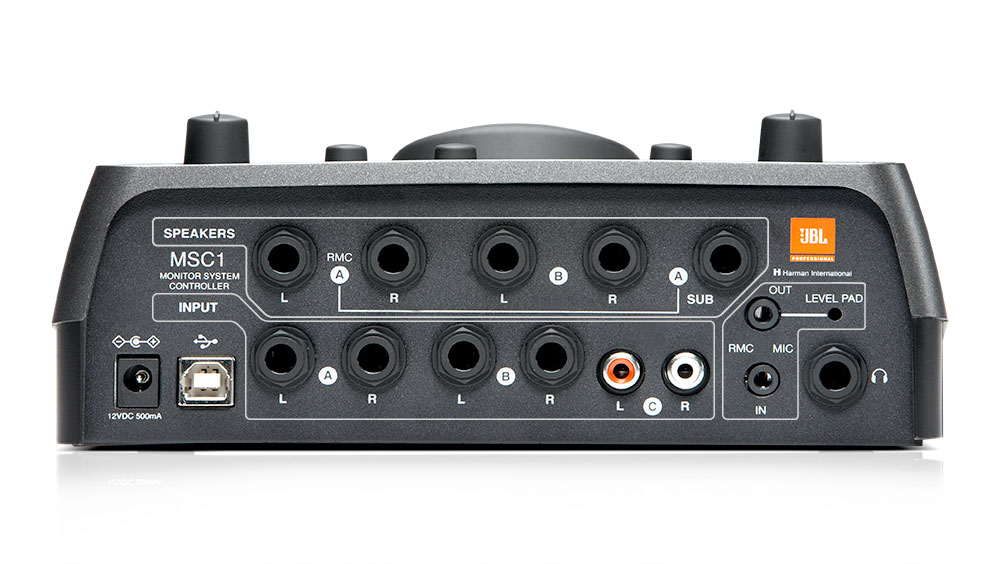

Back View atualizado: out 2020	90 KB	out 2020

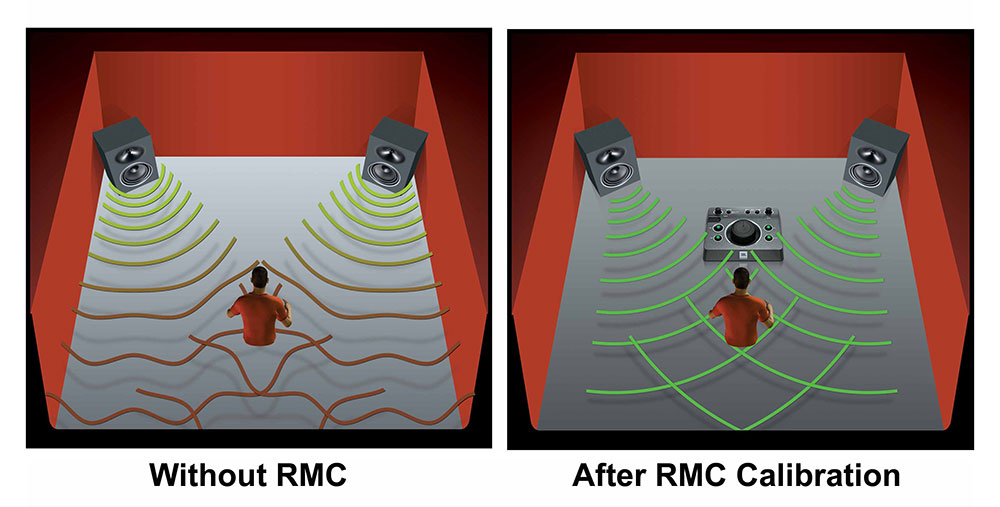

RMC Before and After atualizado: out 2020	90 KB	out 2020

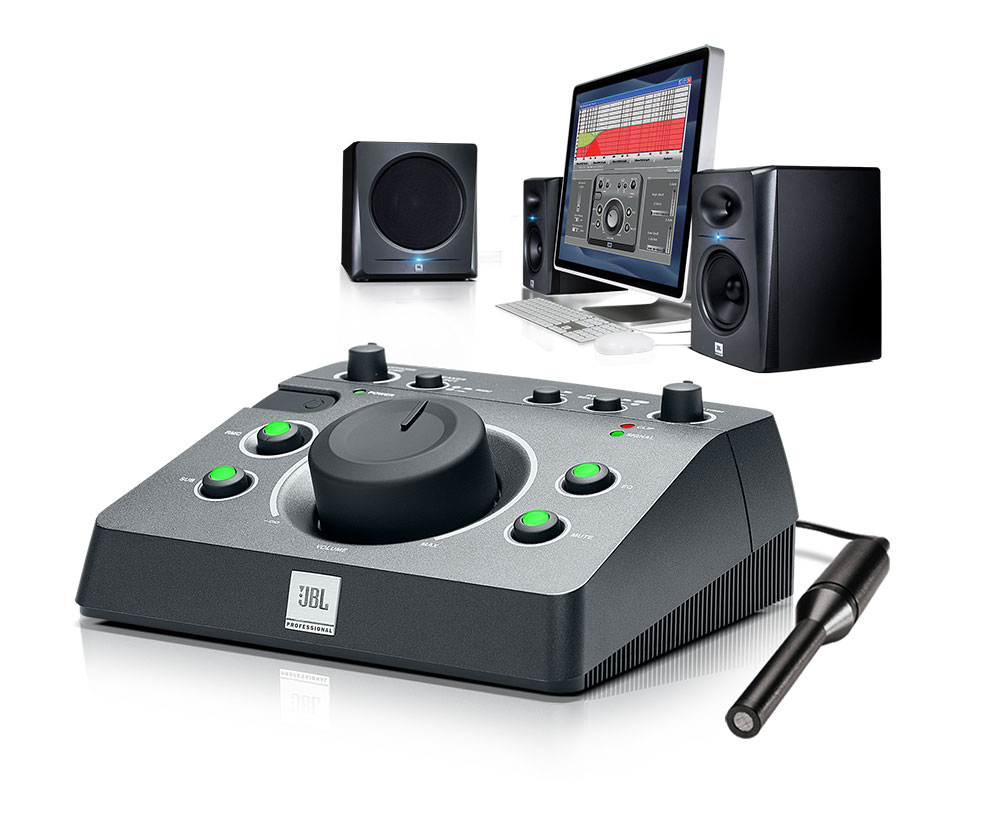

MSC1 with speakers atualizado: out 2020	100 KB	out 2020

Owner's Manuals

	Tamanho	Carregado
MSC1 Owner's Manual atualizado: out 2020	2 MB	out 2020

Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.

Peças e serviço

Especificações

S/N, Dynamic Range	110 dB typicalA-weighted20 Hz - 20 kHz
Frequency Response	+0/-O.5 dB, 20 Hz - 20 kHz
THD+N	< 0.04% A/D/A, 20 Hz - 20 kHz
A/D, DA Converters	24 Bit
Internal Processing	48 Bit, 48 kHz
Maximum Input Level	+24 dBU 6.5mm (1/4" TRS Inputs)+4 dBu phono (RCA Inputs)
Maximum Output Before Clipping	+17 dBu
Power Requirements	12 VDC, 0.5A
Dimensions W x D x H	198 x 165 x 83 mm(7.8 x 6.5 x 3.25 in)
Inputs A, B / C	4 Balanced 1/4" TRS2 Unbalanced RCA
Outputs A, B and Subwoofer	5 Balanced 1/4" TRS
Headphone	Stereo 1/4"
RMC Mic IN / OUT	1/8" TRS
Computer Interface	USB 2.0
LF EQ Frequency	20 Hz to 1.1 kHz Shelf32 options
LF EQ Gain	+/- 3 dB in .25 dB increments
HF EQ Frequency	2.5 kHz to 17 kHz Shelf28 options
HF EQ Gain	+/- 3 dB in .25 dB increments
Level	+/- 10 dB from nominal in .5 dB increments
Selectable Crossover Frequencies	60 Hz, 80 Hz, 120 Hz
Polarity	0 degrees / 180 degrees
