Powered 15 in. 3-way Integrated Loudspeaker System

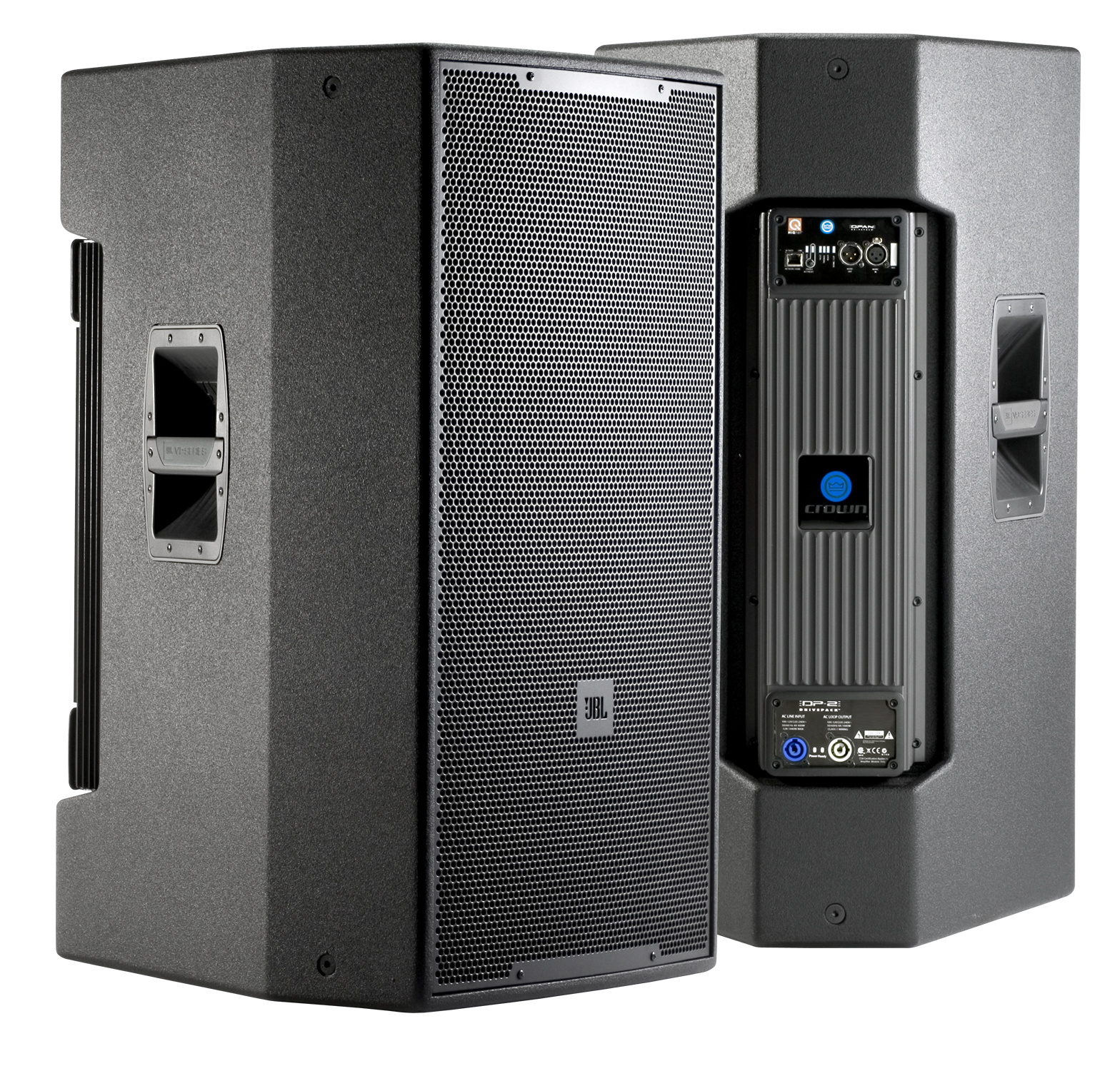

The VP7315/64DP is a powered 15" 3-way integrated loudspeaker system featuring 2200 watts of peak output power, 1100 watts continuous, and onboard digital signal processing.
Grandes images
Caractéristiques
- Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for portable or installed use.
- 2200 Watts peak output power, 1100 Watts continuous.
- HiQnet™ compatible; network control.
- 15-inch Differential Drive® low-frequency driver for extended low-frequency output.
- 60° x 40°coverage.
- Stylized and ergonomically designed powder-coated die cast aluminum handles.
- Six 3-inch fly track suspension points and fourteen M10 fittings (optional detachable flying fittings and forged eye bolt kits available).
Téléchargements
Documents
| Taille | |
VP Series Brochure
mis à jour : avr. 2026
|
2,73 Mo |
|
DPDA Input Module Spec Sheet
mis à jour : avr. 2026
|
475 ko |
|
VP7315/64DP Spec Sheet
mis à jour : avr. 2026
|
1,29 Mo |
Specifications
| Taille | |
|
|
5,85 Mo |
|
|
475 ko |
|
|
925 ko |
Manuals
| Taille | |
|
|
1,54 Mo |
Brochures
| Taille | |
|
|
2,73 Mo |
CAD Drawings
| Taille | |
|
|
2,54 Mo |
|
|
300 ko |
|
|
199 ko |
|
|
54,9 ko |
Compliances
| Taille | |
|
|
93,3 ko |
Simulation Data
| Taille | |
|
|
21 Mo |
|
|
24 Mo |
Ease Data
| Taille | |
|
|
261 ko |
Images
| Taille | |
|
|
1,52 Mo |
Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.
Pièces détachées et réparations
Caractéristiques techniques
| Frequency Range | 34 Hz to 20 kHz (-10 dB) |
| Frequency Response | 43 Hz to 18 kHz ( ± 3 dB) |
| Coverage Pattern | 60°x 40° rotatable waveguide |
| Directivity Factor (Q) | 15.85 |
| Directivity Index (DI) | 12 dB |
| Maximum Peak Output1 | 138 dB SPL 1m |
| Low Frequency Section | JBL 2265G, 381 mm (15 in) dia.,76 mm (3 in) Dual Coil neodymium Differential Drive®, Direct Cooled |
| Bandpass Nominal Impedance | 4 ohms |
| Mid Frequency | JBL CMCD-82H, 200mm (8in) Dual Coil Differential® transducer |
| High Frequency | JBL2452H-SL, 100mm (4in) titanium damped diaphragm, 1.5in. exit |
| Waveguide | JBL PT-K64-MHF |
| DP2 Internal Amplification Output (at nominal load) | 2200 Watts Peak, 1100 Watts Continuous |
| DP2 Output (Continuous IEC shaped pink noise into rated load impedance) | 750LF/350HF Watts |
| DP2 Output Section | 2-Channel, Class I |
| Audio Input Connector | XLR with loop-through |
| Signal Processing | DSP Based, resident in Input Module |
| System Management | DSP based limiters for mechanical and thermal protection |
| AC Power Operating Range | Auto Select 90-132VAC/216-264VAC, 50/60Hz |
| AC Line Voltage | 50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%) |
| AC Input Connector | Neutrik PowerCon |
| AC Loop-thru | Neutrik PowerCon |
| AC Current Requirement | 6A per system at 120V, 3A per system at 240V |
| Box Construction | 5/8in. multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish. |
| Suspension System | 6 standard air-cargo 3 in. track and 12 M10 fittings |
| Grille | 14 Gauge Black powder-coated perforated steel with foam backing |
| Dimensions (H x W x D) | 914.4 x 528.3 x 624.8mm(36 x 20.8 x 24.6 in) |
| Net Weight | 44 kg (97 lb) |
