VP7315/64DP (停产)

Powered 15 in. 3-way Integrated Loudspeaker System

VP7315/64DP
较大的图像

Powered 15 in. 3-way Integrated Loudspeaker System

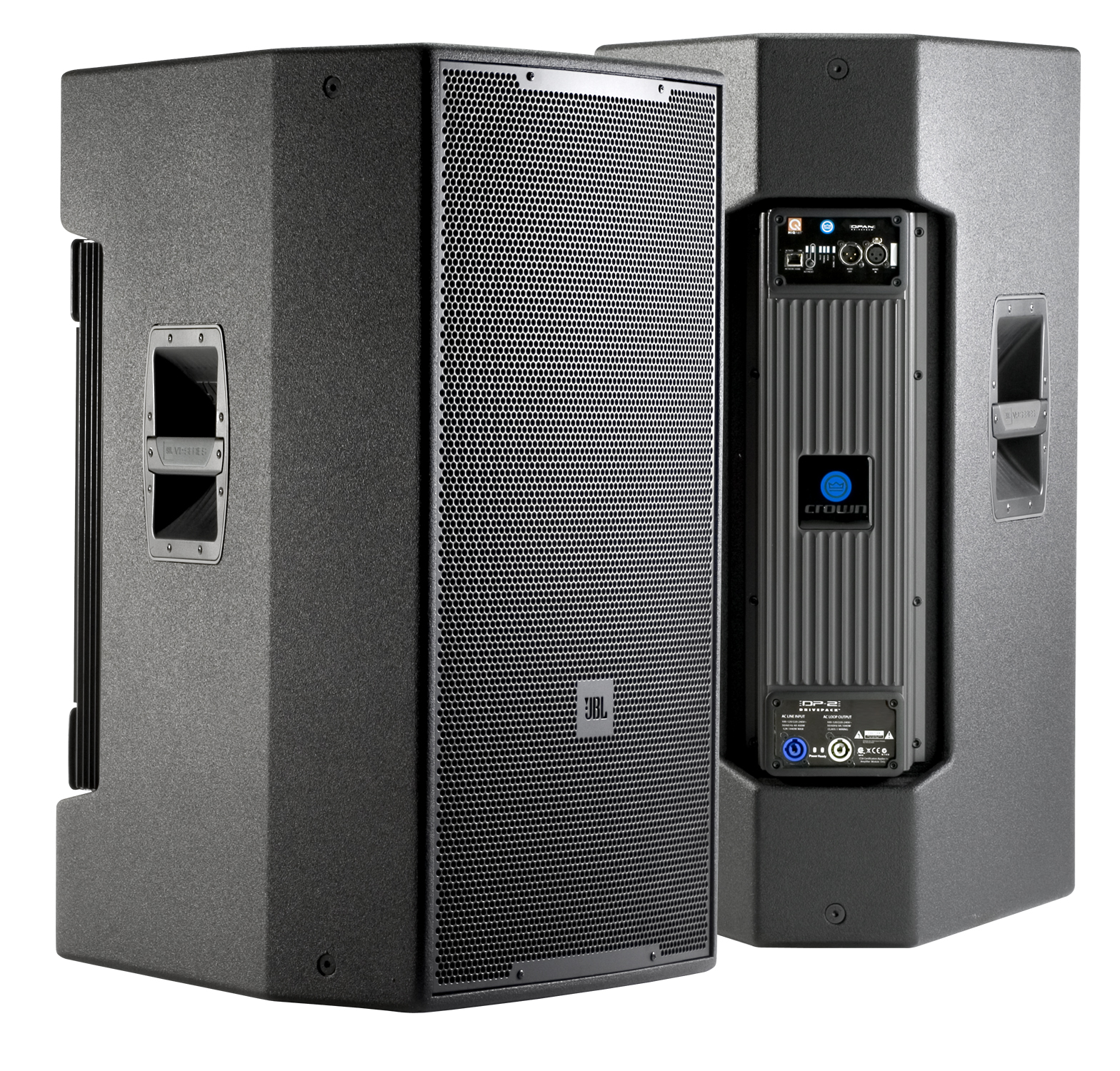

The VP7315/64DP is a powered 15" 3-way integrated loudspeaker system featuring 2200 watts of peak output power, 1100 watts continuous, and onboard digital signal processing.

特点

  • Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for portable or installed use.
  • 2200 Watts peak output power, 1100 Watts continuous.
  • HiQnet™ compatible; network control.
  • 15-inch Differential Drive® low-frequency driver for extended low-frequency output.
  • 60° x 40°coverage.
  • Stylized and ergonomically designed powder-coated die cast aluminum handles.
  • Six 3-inch fly track suspension points and fourteen M10 fittings (optional detachable flying fittings and forged eye bolt kits available).

下载

  Version Language Size Uploaded
file type icon VP Series Brochure
en updated: 3月 2024
  en  2.7 MB 3月 2024
file type icon DPDA Input Module Spec Sheet
en updated: 3月 2024
  en  475.0 KB 3月 2024
file type icon VP7315/64DP Spec Sheet
en updated: 3月 2024
  en  1.3 MB 3月 2024
Specifications
file type icon VP DPDA Spec Sheet
updated: 7月 2019
    5.9 MB 7月 2019
file type icon DPDA Input Module Spec Sheet
updated: 7月 2019
    475.0 KB 7月 2019
file type icon VP7315/64DP Spec Sheet
updated: 7月 2019
    925.5 KB 7月 2019
Manuals
file type icon VP User's Guide
updated: 10月 2019
    1.5 MB 10月 2019
Brochures
file type icon VP Series Brochure
updated: 7月 2019
    2.7 MB 7月 2019
CAD Drawings
file type icon VP Series
updated: 10月 2019
    2.5 MB 10月 2019
file type icon VP7315/64DP 3D DXF
updated: 7月 2019
    300.3 KB 7月 2019
file type icon VP7315/64DP 2D DXF
updated: 7月 2019
    199.1 KB 7月 2019
file type icon VP7315/64DP 2D PDF
updated: 7月 2019
    54.9 KB 7月 2019
Compliances
file type icon VP Series Declaration of Conformity
updated: 10月 2019
    93.3 KB 10月 2019
Ease Data
file type icon VP Series Ease Files
updated: 10月 2019
    261.0 KB 10月 2019
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
    21.0 MB 3月 2022
Images
file type icon VP7315 photo
updated: 7月 2019
    1.5 MB 7月 2019
Simulation Data
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: 5月 2023
12-10-21    24.0 MB 5月 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 34 Hz to 20 kHz (-10 dB)

频率响应

43 Hz to 18 kHz ( ± 3 dB)
覆盖范围 60°x 40° rotatable waveguide
Directivity Factor (Q) 15.85
Directivity Index (DI) 12 dB
Maximum Peak Output1 138 dB SPL 1m
Low Frequency Section JBL 2265G, 381 mm (15 in) dia.,76 mm (3 in) Dual Coil neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance 4 ohms
Mid Frequency JBL CMCD-82H, 200mm (8in) Dual Coil Differential® transducer
High Frequency JBL2452H-SL, 100mm (4in) titanium damped diaphragm, 1.5in. exit
Waveguide JBL PT-K64-MHF
DP2 Internal Amplification Output (at nominal load) 2200 Watts Peak, 1100 Watts Continuous
DP2 Output (Continuous IEC shaped pink noise into rated load impedance) 750LF/350HF Watts
DP2 Output Section 2-Channel, Class I
Audio Input Connector XLR with loop-through
Signal Processing DSP Based, resident in Input Module
System Management DSP based limiters for mechanical and thermal protection
AC Power Operating Range Auto Select 90-132VAC/216-264VAC, 50/60Hz
AC 线路电压 50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%)
AC Input Connector Neutrik PowerCon
AC Loop-thru Neutrik PowerCon
AC Current Requirement 6A per system at 120V, 3A per system at 240V
Box Construction 5/8in. multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish.
Suspension System 6 standard air-cargo 3 in. track and 12 M10 fittings
网罩 14 Gauge Black powder-coated perforated steel with foam backing
尺寸(高 x 宽 x 厚) 914.4 x 528.3 x 624.8mm(36 x 20.8 x 24.6 in)
净重量 44 kg (97 lb)
