LSR6325P-1

Linear Spatial Reference Bi-Amplified Studio Monitor

Larger Images

Linear Spatial Reference Bi-Amplified Studio Monitor

The compact LSR6325P-1 provides exceptional performance for use in applications where accuracy is a must, but space is limited. THX® pm3 Approved.

Features

  • High Performance bi-amplified design with proprietary JBL transducer technology.
  • Titanium composite high-frequency transducer.
  • LSR Linear Spatial Reference technology ensures neutral off-axis response for greater clarity at the mix position.
  • User-selectable Boundary Compensation restores accurate response when speaker is positioned near a wall or on a work surface.
  • Front Panel Volume and Power Controls.
  • Integrated mounting points.
  • Magnetic shielding minimizes interference when used in close proximity to CRT monitors.
  • Shielded for use next to Video Monitors.
  • Die cast aluminum enclosure provides high inertial ground for optimum transducer performance
    and low resonance.
  • THX pm3® approved*.

Downloads

  Version Language Size Uploaded
Specifications
LSR6325P-1 Spec Sheet
updated: Apr 29, 2019
    348 KB Apr 29, 2019
Brochures
LSR 6300 Brochure
updated: Apr 29, 2019
    5.89 MB Apr 29, 2019
Compliances
LSR6300 Series Declaration of Conformity
updated: Oct 18, 2019
    93.2 KB Oct 18, 2019
Tech Notes
Tech Note: The New JBL LSR6300 Series Studio Monitors
updated: Oct 18, 2019
    627 KB Oct 18, 2019
Helpful Links
RMC White Paper
updated: Oct 02, 2019
    189 KB Oct 02, 2019
RMC Graph Paper
updated: Oct 02, 2019
    60 KB Oct 02, 2019
User Guides
RMC User Guide
updated: Oct 02, 2019
    2.58 MB Oct 02, 2019
Install Guides
R&B Mounting Brackets
updated: Oct 02, 2019
    26.2 KB Oct 02, 2019
Images

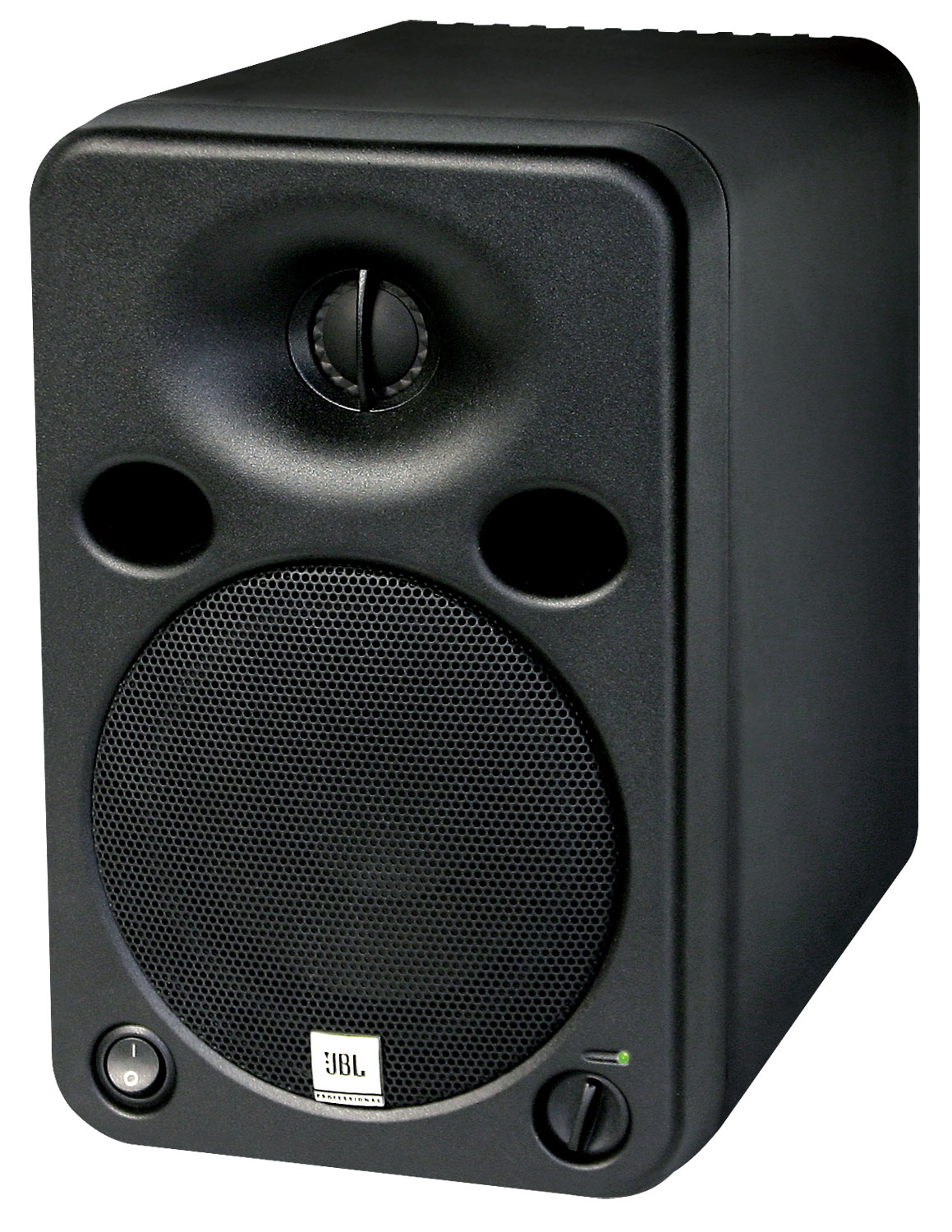

LSR6325P-1 Left Angle
updated: Apr 29, 2019
    330 KB Apr 29, 2019
Owner's Manuals
LSR6325P Owners Manual
updated: Apr 29, 2019
    4.69 MB Apr 29, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Response 70 Hz - 20 kHz (+1, -2 dB)
Low Frequency Extension -10 dB : 48 Hz
Amplifier Power (LF/HF) 100w/ 50w
SPL (Continuous/Peak) SPL: 106 dB / 109 dB
Drivers (LF, MF, HF) 5.25” / 1”
Sensitivity 96 dB / 1 m
Crossover Frequencies 2.3 kHz
Finish gray powdercoat
Dimensions (WxHxD) 173 x 269 x 241 mm 6.8 x 10.6 x 9.5 in
Weight 7.7 kg (17 lb)
THX PM3 Certified Yes
