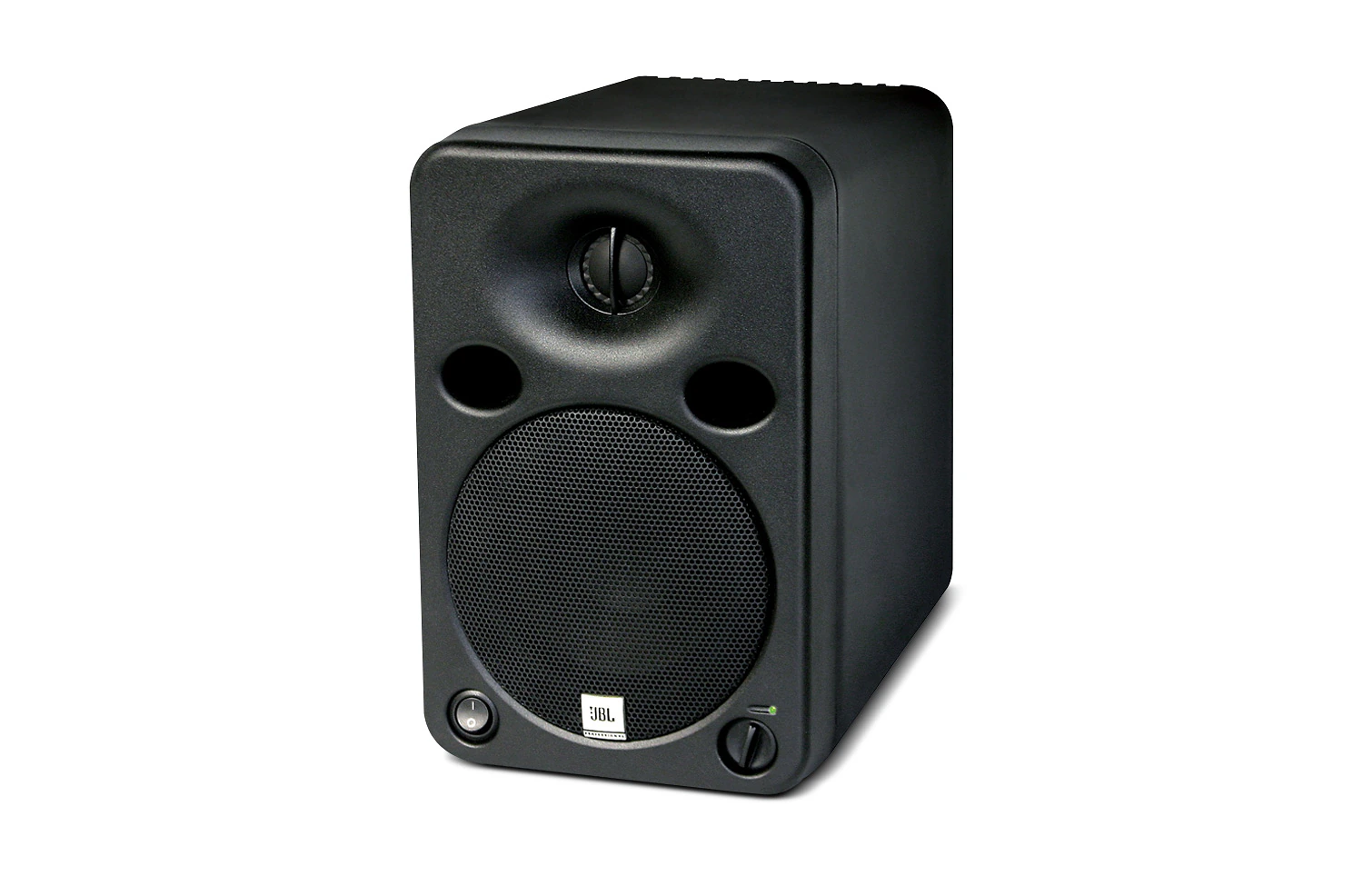

LSR6325P-1 (discontinued)

Linear Spatial Reference Bi-Amplified Studio Monitor

LSR6325P-1
Larger Images

Linear Spatial Reference Bi-Amplified Studio Monitor

The compact LSR6325P-1 provides exceptional performance for use in applications where accuracy is a must, but space is limited. THX® pm3 Approved.

Fitur

  • High Performance bi-amplified design with proprietary JBL transducer technology.
  • Titanium composite high-frequency transducer.
  • LSR Linear Spatial Reference technology ensures neutral off-axis response for greater clarity at the mix position.
  • User-selectable Boundary Compensation restores accurate response when speaker is positioned near a wall or on a work surface.
  • Front Panel Volume and Power Controls.
  • Integrated mounting points.
  • Magnetic shielding minimizes interference when used in close proximity to CRT monitors.
  • Shielded for use next to Video Monitors.
  • Die cast aluminum enclosure provides high inertial ground for optimum transducer performance
    and low resonance.
  • THX pm3® approved*.

Downloads

  Version Language Size Uploaded
Specifications
file type icon LSR6325P-1 Spec Sheet
updated: Apr 2019
    348 KB Apr 2019
Brochures
file type icon LSR 6300 Brochure
updated: Okt 2020
    5,89 MB Okt 2020
Compliances
file type icon LSR6300 Series Declaration of Conformity
updated: Okt 2019
    93,2 KB Okt 2019
Tech Notes
file type icon Tech Note: The New JBL LSR6300 Series Studio Monitors
updated: Okt 2019
    627 KB Okt 2019
Helpful Links
file type icon RMC White Paper
updated: Okt 2020
    189 KB Okt 2020
file type icon RMC Graph Paper
updated: Okt 2020
    60 KB Okt 2020
User Guides
file type icon RMC User Guide
updated: Okt 2020
    2,58 MB Okt 2020
Install Guides
file type icon R&B Mounting Brackets
updated: Okt 2020
    26,2 KB Okt 2020
Images
file type icon LSR6325P-1 Left Angle
updated: Apr 2019
    330 KB Apr 2019
Owner's Manuals
file type icon LSR6325P Owners Manual
updated: Apr 2019
    4,69 MB Apr 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Response (±3 dB) 70 Hz - 20 kHz
Low Frequency Extension -10 dB : 48 Hz
Amplifier Power (LF/HF) 100w/ 50w
Maximum Peak SPL 109 dB SPL
Drivers (LF, MF, HF) 5.25” / 1”
Sensitivity 96 dB / 1 m
Crossover Frequencies 2.3 kHz
Finish gray powdercoat
Dimensions (WxHxD) 173 x 269 x 241 mm 6.8 x 10.6 x 9.5 in
Net Weight (each) 7.7 kg (17 lb)
THX PM3 Certified Yes
LF Driver 5.25in (134mm)
LF Driver Power Handling 100W Bridged Class A-B Monolithic
Maximum Continuous SPL 106 dB SPL
Input Connectors Balanced XLR, unbalanced RCA
Enclosure Diecast Aluminum
