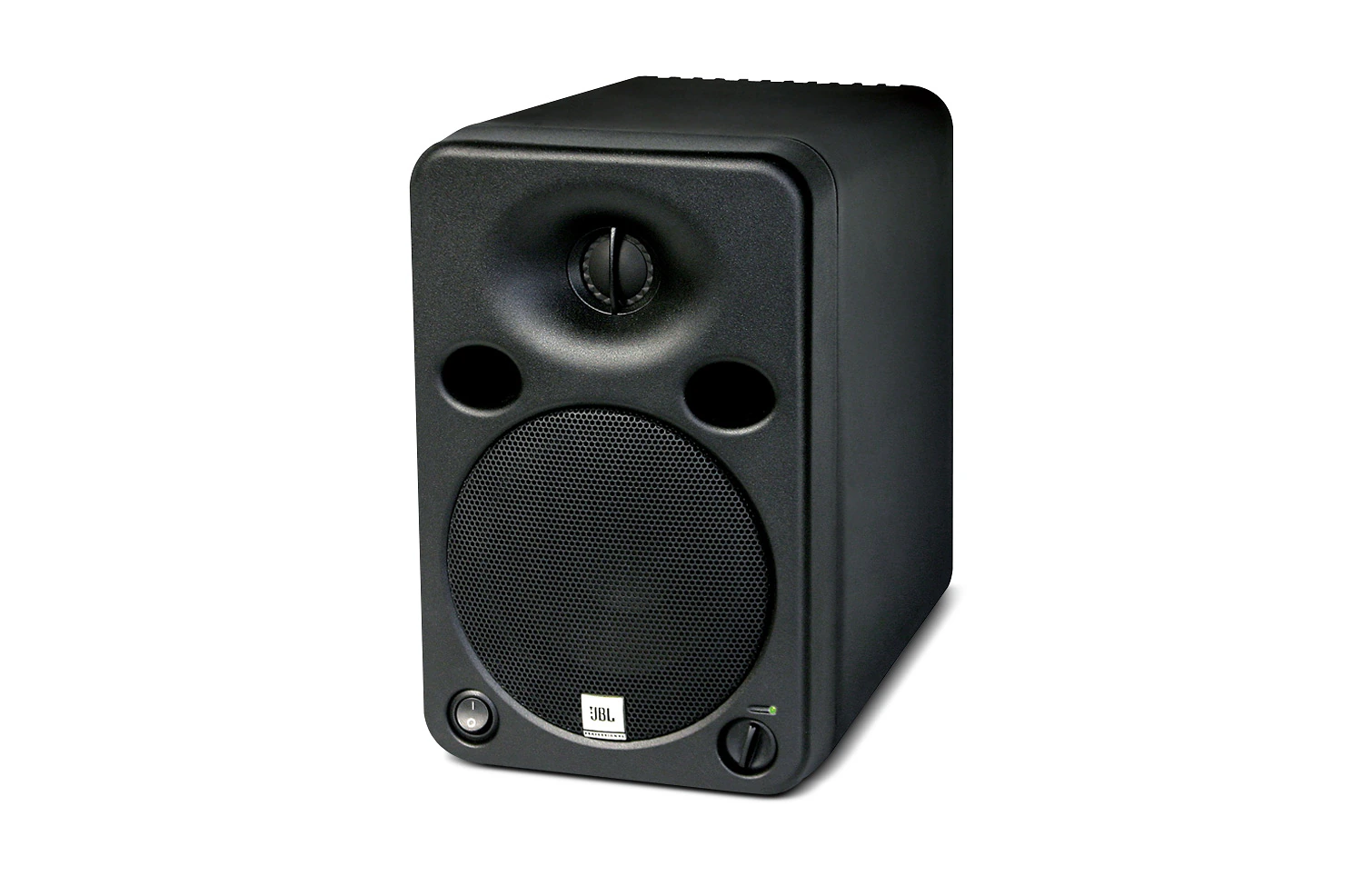

JBL Professional LSR6325P-1

Större bilder

The compact LSR6325P-1 provides exceptional performance for use in applications where accuracy is a must, but space is limited. THX® pm3 Approved.

High Performance bi-amplified design with proprietary JBL transducer technology.
Titanium composite high-frequency transducer.
LSR Linear Spatial Reference technology ensures neutral off-axis response for greater clarity at the mix position.
User-selectable Boundary Compensation restores accurate response when speaker is positioned near a wall or on a work surface.
Front Panel Volume and Power Controls.
Integrated mounting points.
Magnetic shielding minimizes interference when used in close proximity to CRT monitors.
Shielded for use next to Video Monitors.
Die cast aluminum enclosure provides high inertial ground for optimum transducer performance
and low resonance.
THX pm3® approved*.

Specifications

	Storlek	Uppladdat
LSR6325P-1 Spec Sheet uppdaterad: apr 2019	348 KB	apr 2019

Brochures

	Storlek	Uppladdat
LSR 6300 Brochure uppdaterad: okt 2020	5,89 MB	okt 2020

Compliances

	Storlek	Uppladdat
LSR6300 Series Declaration of Conformity uppdaterad: okt 2019	93,2 KB	okt 2019

Tech Notes

	Storlek	Uppladdat
Tech Note: The New JBL LSR6300 Series Studio Monitors uppdaterad: okt 2019	627 KB	okt 2019

Helpful Links

	Storlek	Uppladdat
RMC White Paper uppdaterad: okt 2020	189 KB	okt 2020
RMC Graph Paper uppdaterad: okt 2020	60 KB	okt 2020

User Guides

	Storlek	Uppladdat
RMC User Guide uppdaterad: okt 2020	2,58 MB	okt 2020

Install Guides

	Storlek	Uppladdat
R&B Mounting Brackets uppdaterad: okt 2020	26,2 KB	okt 2020

Images

	Storlek	Uppladdat

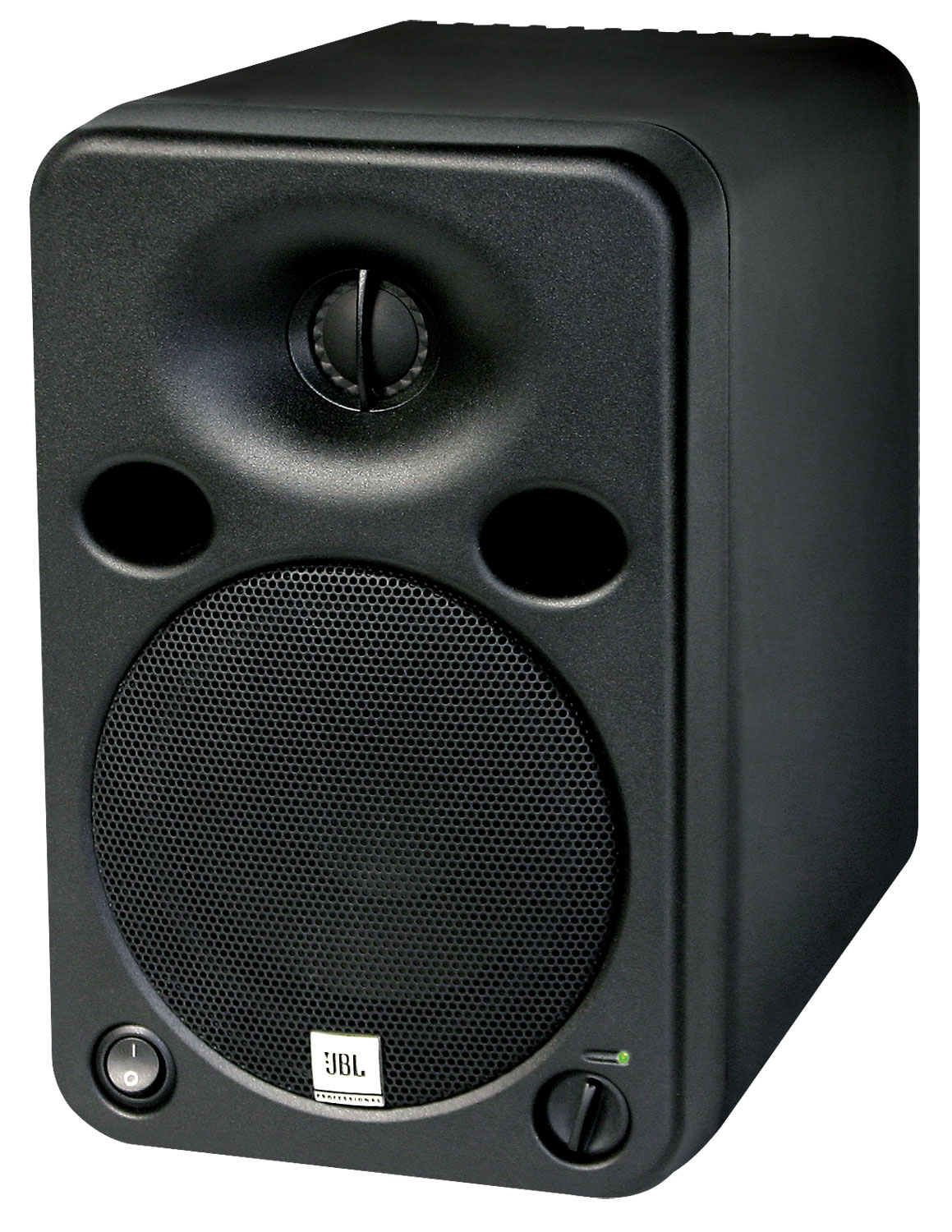

LSR6325P-1 Left Angle uppdaterad: apr 2019	330 KB	apr 2019

Owner's Manuals

	Storlek	Uppladdat
LSR6325P Owners Manual uppdaterad: apr 2019	4,69 MB	apr 2019

Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.

Frequency Response (±3 dB)	70 Hz - 20 kHz
Low Frequency Extension	-10 dB : 48 Hz
Amplifier Power (LF/HF)	100w/ 50w
Maximum Peak SPL	109 dB SPL
Drivers (LF, MF, HF)	5.25” / 1”
Sensitivity	96 dB / 1 m
Crossover Frequencies	2.3 kHz
Finish	gray powdercoat
Dimensions (WxHxD)	173 x 269 x 241 mm 6.8 x 10.6 x 9.5 in
Net Weight (each)	7.7 kg (17 lb)
THX PM3 Certified
LF Driver	5.25in (134mm)
LF Driver Power Handling	100W Bridged Class A-B Monolithic
Maximum Continuous SPL	106 dB SPL
Input Connectors	Balanced XLR, unbalanced RCA
Enclosure	Diecast Aluminum
