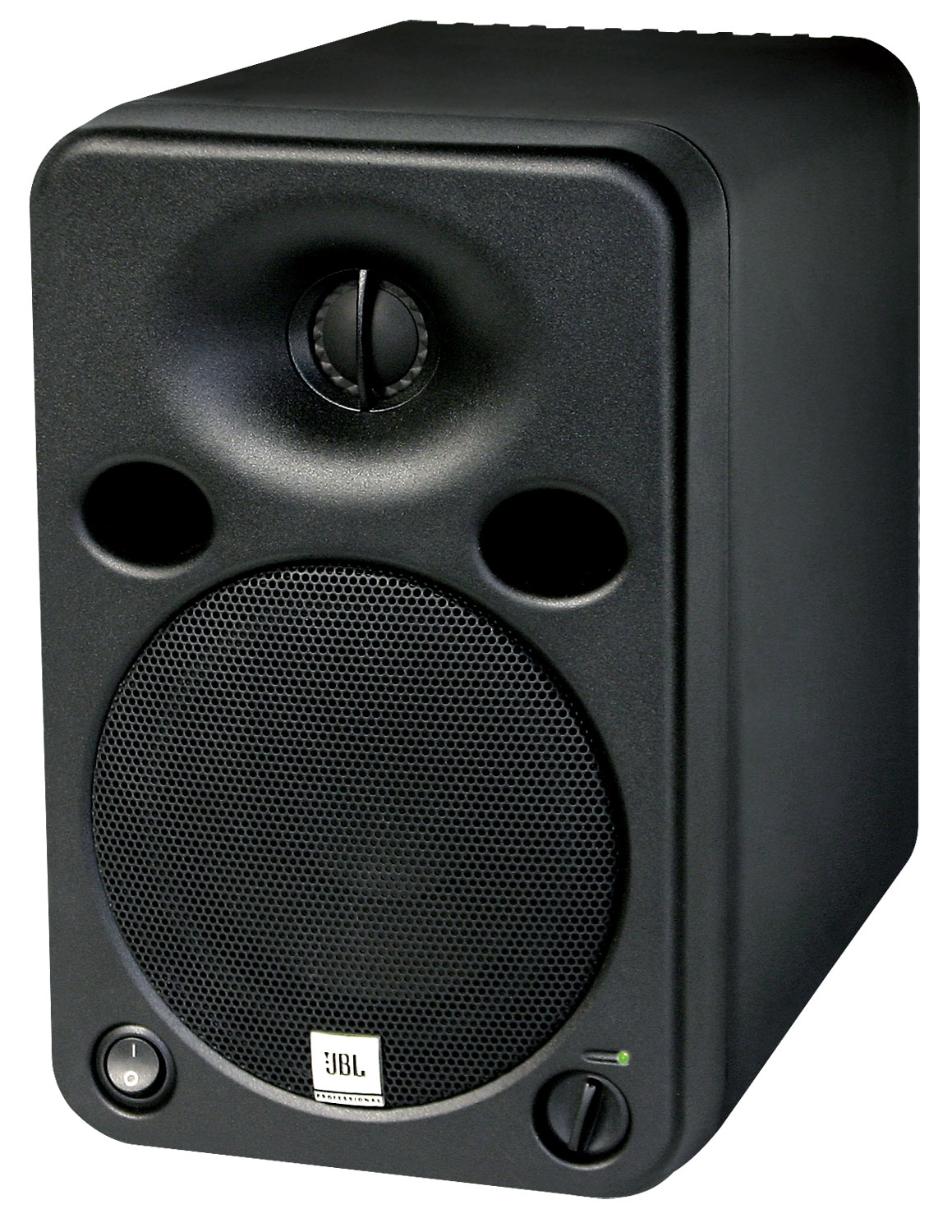

JBL Professional LSR6325P-1

Larger Images

The compact LSR6325P-1 provides exceptional performance for use in applications where accuracy is a must, but space is limited. THX® pm3 Approved.

High Performance bi-amplified design with proprietary JBL transducer technology.
Titanium composite high-frequency transducer.
LSR Linear Spatial Reference technology ensures neutral off-axis response for greater clarity at the mix position.
User-selectable Boundary Compensation restores accurate response when speaker is positioned near a wall or on a work surface.
Front Panel Volume and Power Controls.
Integrated mounting points.
Magnetic shielding minimizes interference when used in close proximity to CRT monitors.
Shielded for use next to Video Monitors.
Die cast aluminum enclosure provides high inertial ground for optimum transducer performance
and low resonance.
THX pm3® approved*.

	Version	Language	Size	Uploaded
Specifications
LSR6325P-1 Spec Sheet updated: เม.ย. 2019			348 กิโลไบต์	เม.ย. 2019
Brochures
LSR 6300 Brochure updated: ต.ค. 2020			5.89 เมกะไบต์	ต.ค. 2020
Compliances
LSR6300 Series Declaration of Conformity updated: ต.ค. 2019			93.2 กิโลไบต์	ต.ค. 2019
Tech Notes
Tech Note: The New JBL LSR6300 Series Studio Monitors updated: ต.ค. 2019			627 กิโลไบต์	ต.ค. 2019
Helpful Links
RMC White Paper updated: ต.ค. 2020			189 กิโลไบต์	ต.ค. 2020
RMC Graph Paper updated: ต.ค. 2020			60 กิโลไบต์	ต.ค. 2020
User Guides
RMC User Guide updated: ต.ค. 2020			2.58 เมกะไบต์	ต.ค. 2020
Install Guides
R&B Mounting Brackets updated: ต.ค. 2020			26.2 กิโลไบต์	ต.ค. 2020
Images
LSR6325P-1 Left Angle updated: เม.ย. 2019			330 กิโลไบต์	เม.ย. 2019
Owner's Manuals
LSR6325P Owners Manual updated: เม.ย. 2019			4.69 เมกะไบต์	เม.ย. 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Frequency Response (±3 dB)	70 Hz - 20 kHz
Low Frequency Extension	-10 dB : 48 Hz
Amplifier Power (LF/HF)	100w/ 50w
Maximum Peak SPL	109 dB SPL
Drivers (LF, MF, HF)	5.25” / 1”
Sensitivity	96 dB / 1 m
Crossover Frequencies	2.3 kHz
Finish	gray powdercoat
Dimensions (WxHxD)	173 x 269 x 241 mm 6.8 x 10.6 x 9.5 in
Net Weight (each)	7.7 kg (17 lb)
THX PM3 Certified
LF Driver	5.25in (134mm)
LF Driver Power Handling	100W Bridged Class A-B Monolithic
Maximum Continuous SPL	106 dB SPL
Input Connectors	Balanced XLR, unbalanced RCA
Enclosure	Diecast Aluminum
