LSR6325P-1 (停产)

Linear Spatial Reference Bi-Amplified Studio Monitor

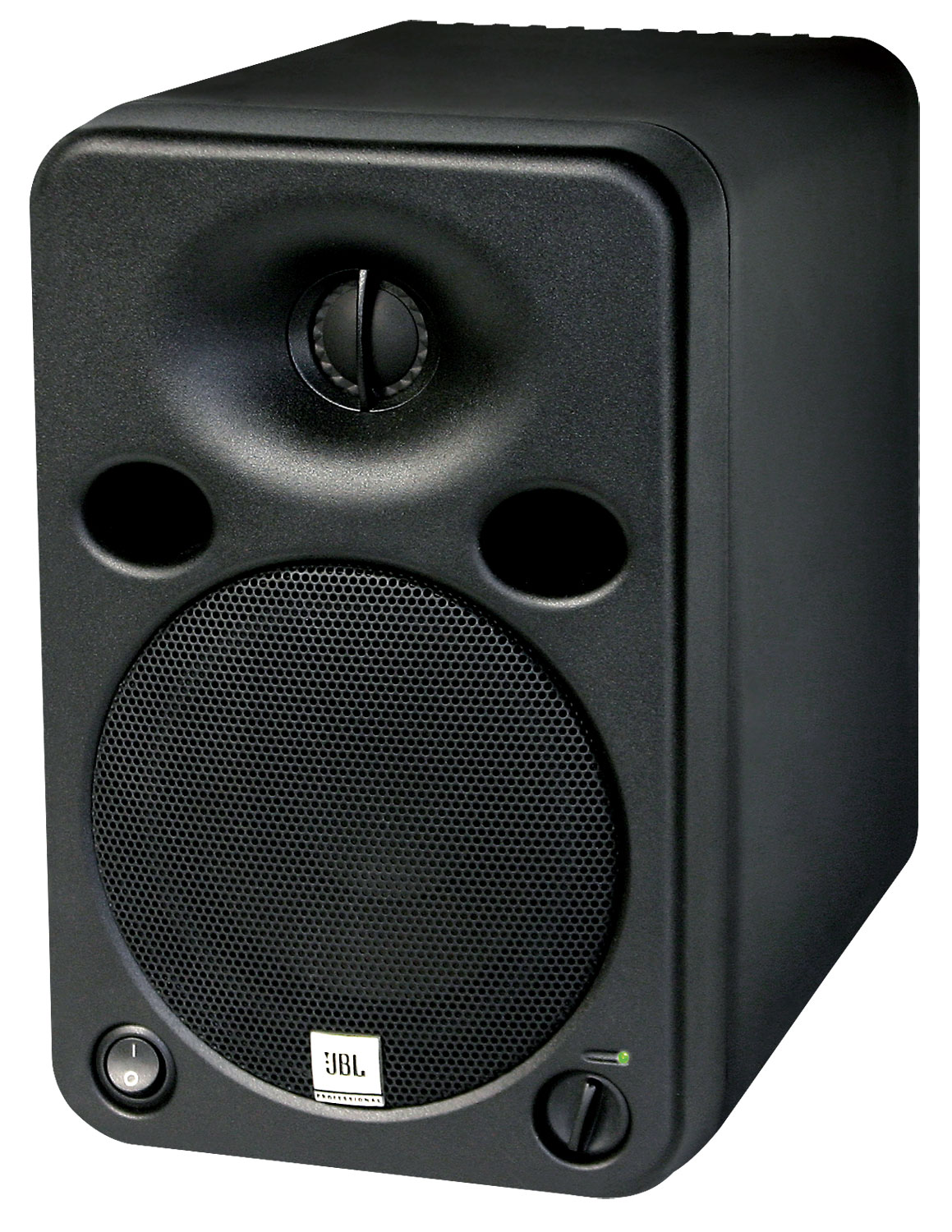

LSR6325P-1
较大的图像

Linear Spatial Reference Bi-Amplified Studio Monitor

The compact LSR6325P-1 provides exceptional performance for use in applications where accuracy is a must, but space is limited. THX® pm3 Approved.

特点

  • High Performance bi-amplified design with proprietary JBL transducer technology.
  • Titanium composite high-frequency transducer.
  • LSR Linear Spatial Reference technology ensures neutral off-axis response for greater clarity at the mix position.
  • User-selectable Boundary Compensation restores accurate response when speaker is positioned near a wall or on a work surface.
  • Front Panel Volume and Power Controls.
  • Integrated mounting points.
  • Magnetic shielding minimizes interference when used in close proximity to CRT monitors.
  • Shielded for use next to Video Monitors.
  • Die cast aluminum enclosure provides high inertial ground for optimum transducer performance
    and low resonance.
  • THX pm3® approved*.

下载

  Version Language Size Uploaded
Specifications
file type icon LSR6325P-1 Spec Sheet
updated: 4月 2019
    347.5 KB 4月 2019
Brochures
file type icon LSR 6300 Brochure
updated: 10月 2020
    5.9 MB 10月 2020
Compliances
file type icon LSR6300 Series Declaration of Conformity
updated: 10月 2019
    93.2 KB 10月 2019
Tech Notes
file type icon Tech Note: The New JBL LSR6300 Series Studio Monitors
updated: 10月 2019
    627.1 KB 10月 2019
Helpful Links
file type icon RMC White Paper
updated: 10月 2020
    188.7 KB 10月 2020
file type icon RMC Graph Paper
updated: 10月 2020
    60.0 KB 10月 2020
User Guides
file type icon RMC User Guide
updated: 10月 2020
    2.6 MB 10月 2020
Install Guides
file type icon R&B Mounting Brackets
updated: 10月 2020
    26.2 KB 10月 2020
Images
file type icon LSR6325P-1 Left Angle
updated: 4月 2019
    329.7 KB 4月 2019
Owner's Manuals
file type icon LSR6325P Owners Manual
updated: 4月 2019
    4.7 MB 4月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

Frequency Response (±3 dB) 70 Hz - 20 kHz
Low Frequency Extension -10 dB : 48 Hz
Amplifier Power (LF/HF) 100w/ 50w
最大SPL峰值 109 dB SPL
Drivers (LF, MF, HF) 5.25” / 1”

灵敏度

96 dB / 1 m
Crossover Frequencies 2.3 kHz
外观颜色 gray powdercoat
Dimensions (WxHxD) 173 x 269 x 241 mm 6.8 x 10.6 x 9.5 in
Net Weight (each) 7.7 kg (17 lb)
THX PM3 Certified Yes
低频驱动单元 5.25in (134mm)
LF Driver Power Handling 100W Bridged Class A-B Monolithic
Maximum Continuous SPL 106 dB SPL
输入接口 Balanced XLR, unbalanced RCA
Enclosure Diecast Aluminum
