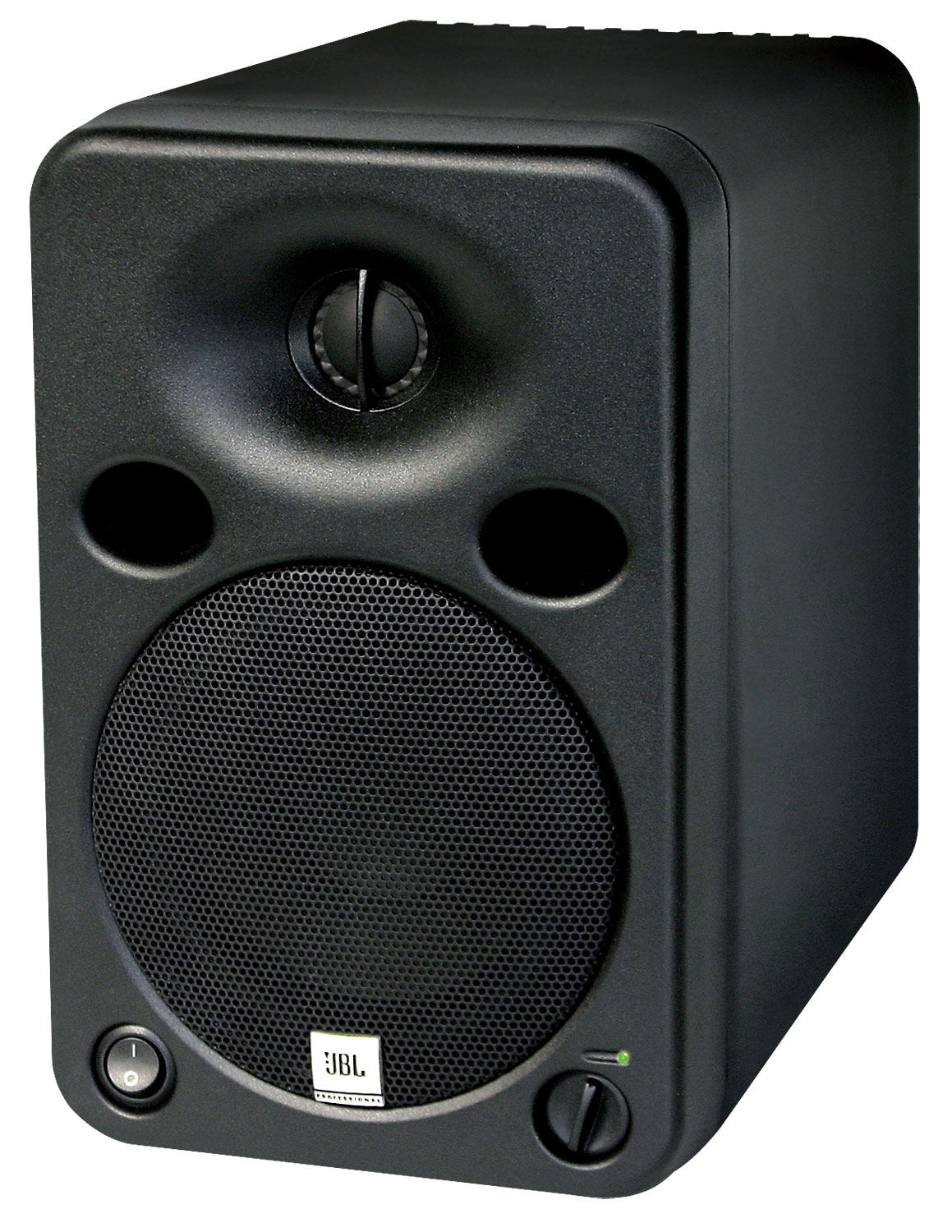

JBL Professional LSR6325P-1

Immagini più grandi

The compact LSR6325P-1 provides exceptional performance for use in applications where accuracy is a must, but space is limited. THX® pm3 Approved.

High Performance bi-amplified design with proprietary JBL transducer technology.
Titanium composite high-frequency transducer.
LSR Linear Spatial Reference technology ensures neutral off-axis response for greater clarity at the mix position.
User-selectable Boundary Compensation restores accurate response when speaker is positioned near a wall or on a work surface.
Front Panel Volume and Power Controls.
Integrated mounting points.
Magnetic shielding minimizes interference when used in close proximity to CRT monitors.
Shielded for use next to Video Monitors.
Die cast aluminum enclosure provides high inertial ground for optimum transducer performance
and low resonance.
THX pm3® approved*.

Specifications

	Dimensione	Caricato
LSR6325P-1 Spec Sheet aggiornato: apr 2019	348 KB	apr 2019

Brochures

	Dimensione	Caricato
LSR 6300 Brochure aggiornato: ott 2020	5,89 MB	ott 2020

Compliances

	Dimensione	Caricato
LSR6300 Series Declaration of Conformity aggiornato: ott 2019	93,2 KB	ott 2019

Tech Notes

	Dimensione	Caricato
Tech Note: The New JBL LSR6300 Series Studio Monitors aggiornato: ott 2019	627 KB	ott 2019

Helpful Links

	Dimensione	Caricato
RMC White Paper aggiornato: ott 2020	189 KB	ott 2020
RMC Graph Paper aggiornato: ott 2020	60 KB	ott 2020

User Guides

	Dimensione	Caricato
RMC User Guide aggiornato: ott 2020	2,58 MB	ott 2020

Install Guides

	Dimensione	Caricato
R&B Mounting Brackets aggiornato: ott 2020	26,2 KB	ott 2020

Images

	Dimensione	Caricato
LSR6325P-1 Left Angle aggiornato: apr 2019	330 KB	apr 2019

Owner's Manuals

	Dimensione	Caricato
LSR6325P Owners Manual aggiornato: apr 2019	4,69 MB	apr 2019

Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.

Frequency Response (±3 dB)	70 Hz - 20 kHz
Low Frequency Extension	-10 dB : 48 Hz
Amplifier Power (LF/HF)	100w/ 50w
Maximum Peak SPL	109 dB SPL
Drivers (LF, MF, HF)	5.25” / 1”
Sensitivity	96 dB / 1 m
Crossover Frequencies	2.3 kHz
Finish	gray powdercoat
Dimensions (WxHxD)	173 x 269 x 241 mm 6.8 x 10.6 x 9.5 in
Net Weight (each)	7.7 kg (17 lb)
THX PM3 Certified
LF Driver	5.25in (134mm)
LF Driver Power Handling	100W Bridged Class A-B Monolithic
Maximum Continuous SPL	106 dB SPL
Input Connectors	Balanced XLR, unbalanced RCA
Enclosure	Diecast Aluminum
