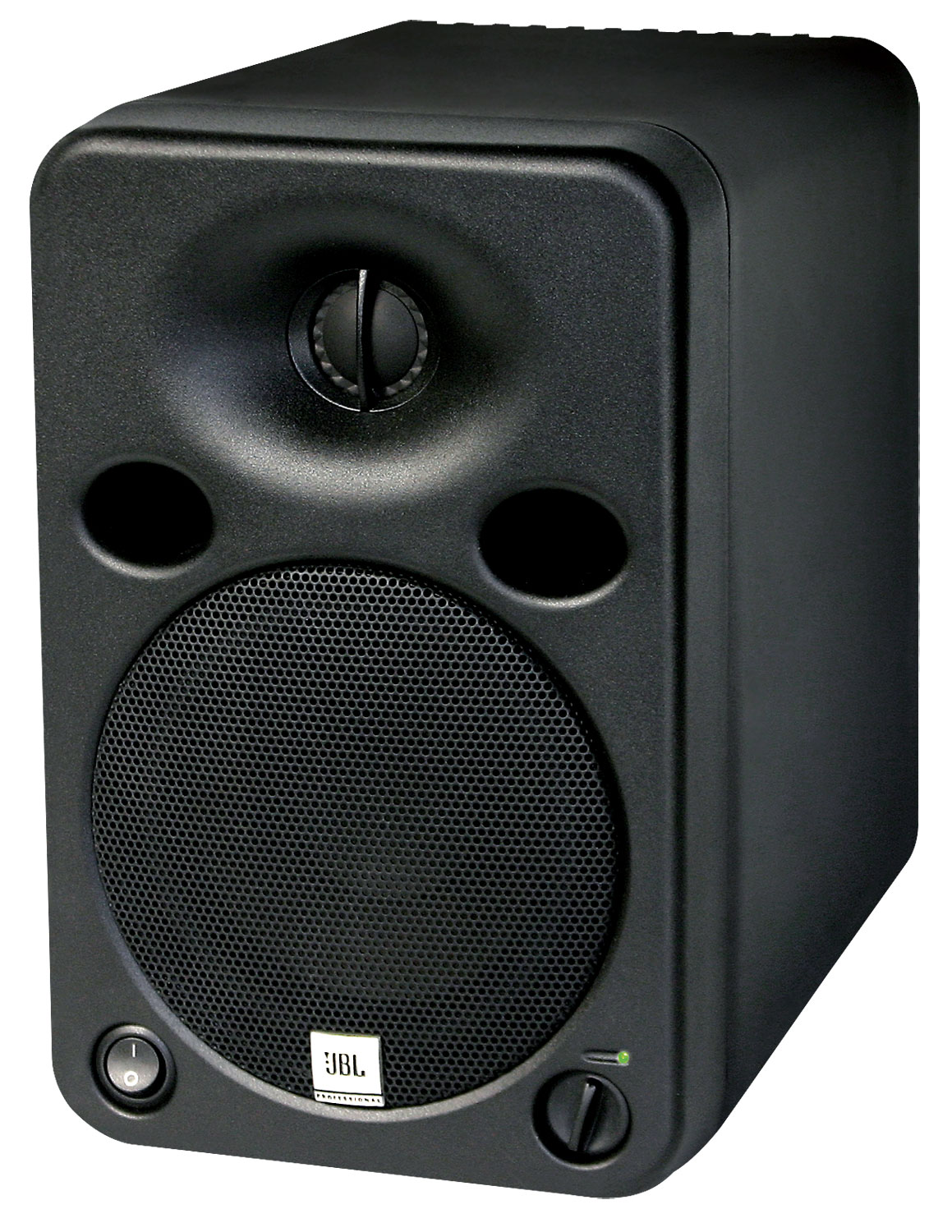

Linear Spatial Reference Bi-Amplified Studio Monitor
The compact LSR6325P-1 provides exceptional performance for use in applications where accuracy is a must, but space is limited. THX® pm3 Approved.
រូបភាពធំជាង
លក្ខណៈពិសេស
- High Performance bi-amplified design with proprietary JBL transducer technology.
- Titanium composite high-frequency transducer.
- LSR Linear Spatial Reference technology ensures neutral off-axis response for greater clarity at the mix position.
- User-selectable Boundary Compensation restores accurate response when speaker is positioned near a wall or on a work surface.
- Front Panel Volume and Power Controls.
- Integrated mounting points.
- Magnetic shielding minimizes interference when used in close proximity to CRT monitors.
- Shielded for use next to Video Monitors.
- Die cast aluminum enclosure provides high inertial ground for optimum transducer performance
and low resonance. - THX pm3® approved*.
ការទាញយក
Specifications
| ទំហំ | |
|
|
348 KB |
Brochures
| ទំហំ | |
|
|
5.89 MB |
Compliances
| ទំហំ | |
|
|
93.2 KB |
Tech Notes
| ទំហំ | |
|
|
627 KB |
Helpful Links
| ទំហំ | |
|
|
189 KB |
|
|
60 KB |
User Guides
| ទំហំ | |
|
|
2.58 MB |
Install Guides
| ទំហំ | |
|
|
26.2 KB |
Images
| ទំហំ | |
|
|
330 KB |
Owner's Manuals
| ទំហំ | |
|
|
4.69 MB |
ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។
ផ្នែក និងសេវាកម្ម
លក្ខណៈពិសេស
| Frequency Response (±3 dB) | 70 Hz - 20 kHz |
| Low Frequency Extension | -10 dB : 48 Hz |
| Amplifier Power (LF/HF) | 100w/ 50w |
| Maximum Peak SPL | 109 dB SPL |
| Drivers (LF, MF, HF) | 5.25” / 1” |
| Sensitivity | 96 dB / 1 m |
| Crossover Frequencies | 2.3 kHz |
| Finish | gray powdercoat |
| Dimensions (WxHxD) | 173 x 269 x 241 mm 6.8 x 10.6 x 9.5 in |
| Net Weight (each) | 7.7 kg (17 lb) |
| THX PM3 Certified |  |
| LF Driver | 5.25in (134mm) |
| LF Driver Power Handling | 100W Bridged Class A-B Monolithic |
| Maximum Continuous SPL | 106 dB SPL |
| Input Connectors | Balanced XLR, unbalanced RCA |
| Enclosure | Diecast Aluminum |
