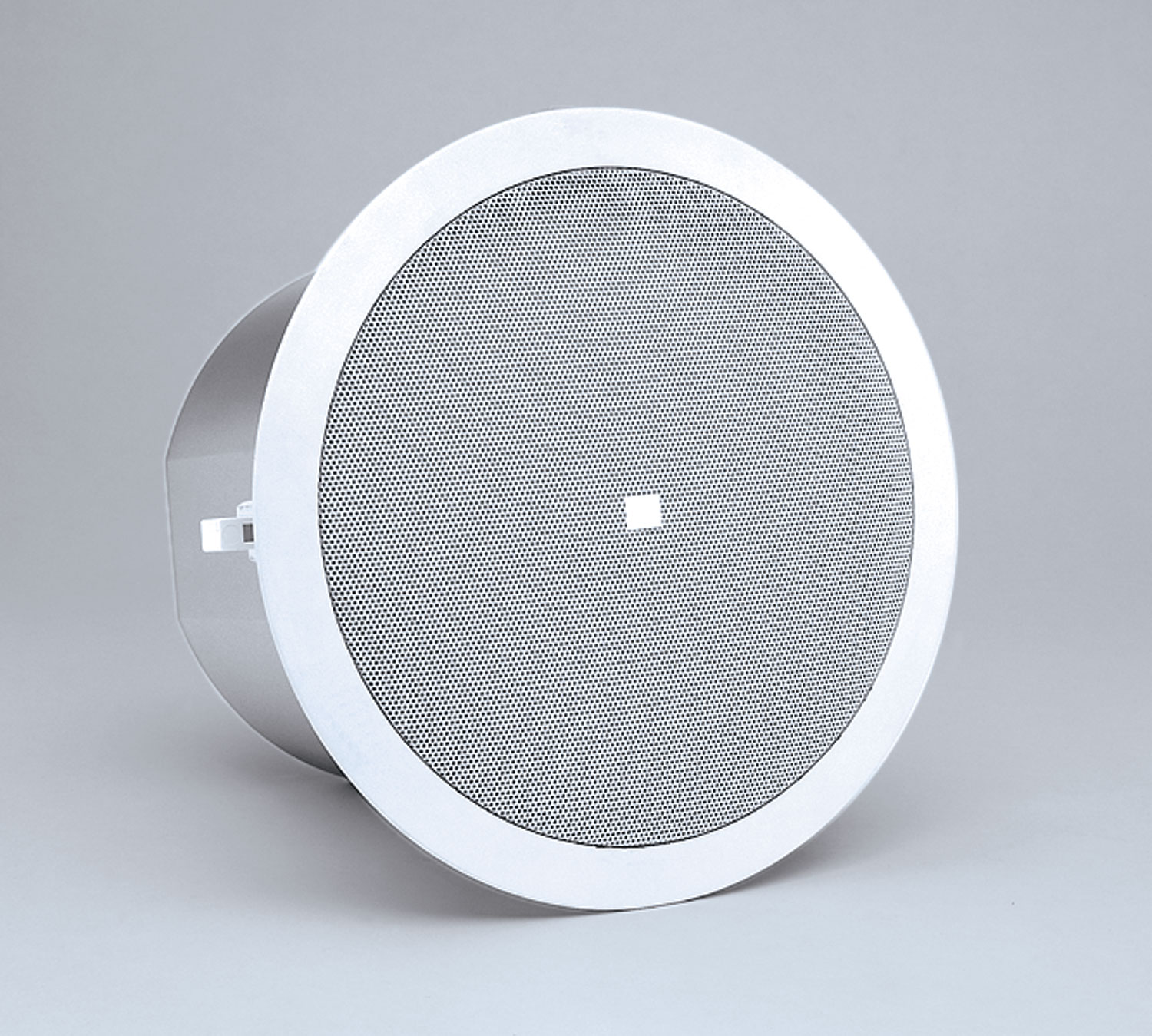

Control 26CT-LS

Ceiling Loudspeaker Assembly for Life Safety Applications

Control 26CT-LS
Larger Images

Ceiling Loudspeaker Assembly for Life Safety Applications

The Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.

Features

  • UL1480 UUMW Listed for use in Fire Alarm and/or Emergency Communication Systems.
  • Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
  • High power, wide frequency response and low distortion for high sound level capability
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking

Downloads

  Version Language Size Uploaded
Data Sheets
file type icon Control 26CT-LS Spec Sheet
version B, updated: Mar 13, 2020
  566 KB Mar 13, 2020
Manuals
file type icon MTC-TCD Thick-Ceiling Dogear
updated: Oct 31, 2019
    41.7 KB Oct 31, 2019
file type icon Ceiling Speaker Accessory Guide
updated: Oct 18, 2019
    127 KB Oct 18, 2019
Brochures
file type icon Control Contractor Brochure
updated: Apr 29, 2019
    1.71 MB Apr 29, 2019
Compliances
file type icon JBL Control Series Passive Speakers DoC
updated: Dec 17, 2019
    179 KB Dec 17, 2019
Clf Files
file type icon JBL Pro ALL CLF Files
version 03-19-20, updated: Mar 19, 2021
03-19-20    23.9 MB Mar 19, 2021
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 181030
updated: Oct 22, 2020
    557 KB Oct 22, 2020
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: Jul 08, 2019
    20.5 MB Jul 08, 2019
Install Guides
file type icon Guide to Business Music
updated: Oct 22, 2020
    52.4 KB Oct 22, 2020
file type icon CC Ceiling Speakers: Myth versus Reality
updated: Oct 22, 2020
    23.9 KB Oct 22, 2020
Accessories
file type icon MTC-14WG/16WG High Humidity Grille
updated: Oct 22, 2020
    762 KB Oct 22, 2020
file type icon MTC-CS-Teth1 Press-In Grille Safety Tether
updated: Sep 02, 2021
    204 KB Sep 02, 2021
Related Products
file type icon LS Surface-Mt Model
updated: Oct 22, 2020
    75 KB Oct 22, 2020
Images
file type icon Control 26C Photo
updated: Oct 22, 2020
    312 KB Oct 22, 2020
Safety Sheets
file type icon C26CT-LS UL Life Safety Certificate
updated: Oct 22, 2020
    189 KB Oct 22, 2020
Owner's Manuals
file type icon Control Contractor Ceiling Owner’s Manual
updated: Oct 22, 2020
    386 KB Oct 22, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Range 80 Hz - 20 kHz
Power Rating IEC System Long-Term Ratings (low-Z direct):
150 Watts Continuous Program Power
75 Watts Continuous Pink Noise (300W peak), 100 hrs
Transformer Taps 60W, 30W, 15W (& 7.5W @ 70V)
Coverage Angle 110° conical
Directivity Index (DI) 4.6 averaged 500 Hz to 4 kHz
Maximum SPL (1m) 107 dB (top 70V/100V tap)
Drivers LF Driver: 165 mm (6.5 in)
HF Driver: 19 mm (¾ in)
Input Connectors Removable locking connector with screw-down terminals.
Outside Dimensions (H x Dia) 210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan
Net Weight (each) 4.2 kg (10 lb)
Shipping Weight (pair) 9.7 kg (21 lb)
Sensitivity 89 dB (100 Hz - 10 kHz)
Color White
Safety Agency UL1480 UUMW listed. Suitable for use in air handling spaces per UL1480, UEAY, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size 220 mm (8.75 in) diamter (cardboard cutout template included)
Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector – Euroblock
Plenum Usage Yes, backcan included
