JBL Professional Control 26CT-LS

Μεγαλύτερες εικόνες

The Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.

UL1480 UUMW Listed for use in Fire Alarm and/or Emergency Communication Systems.
Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
High power, wide frequency response and low distortion for high sound level capability
Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking

Data Sheets

	Έκδοση	Μέγεθος	Ανέβηκε
Control 26CT-LS Spec Sheet έκδοση B, ενημέρωση: Μαρ 2020	B	600 KB	Μαρ 2020

Manuals

	Έκδοση	Μέγεθος	Ανέβηκε
MTC-TCD Thick-Ceiling Dogear ενημέρωση: Οκτ 2019		40 KB	Οκτ 2019
Ceiling Speaker Accessory Guide έκδοση A, ενημέρωση: Μαϊ 2026	A	100 KB	Μαϊ 2026

Brochures

	Έκδοση	Γλώσσα	Μέγεθος	Ανέβηκε
Control Contractor Brochure (2025) έκδοση A, ενημέρωση: Μαρ 2026	A		20 MB	Μαρ 2026
Control Contractor Brochure (2026) ενημέρωση: Μαρ 2026			20 MB	Μαρ 2026

CAD Drawings

	Μέγεθος	Ανέβηκε
Control Contractor Ceiling Speakers 3D Drawing ενημέρωση: Οκτ 2020	3 MB	Οκτ 2020

Compliances

	Μέγεθος	Ανέβηκε
JBL Control Series Passive Speakers DoC ενημέρωση: Δεκ 2019	200 KB	Δεκ 2019

Simulation Data

	Έκδοση	Μέγεθος	Ανέβηκε
JBL Pro ALL CLF Files έκδοση 12-10-21, ενημέρωση: Μαϊ 2023	12-10-21	20 MB	Μαϊ 2023
Ease SPK/DLL Files - Full JBL Pro Line ενημέρωση: Μαϊ 2024		20 MB	Μαϊ 2024

Owner's Manuals

	Μέγεθος	Ανέβηκε
Control Contractor Ceiling Owner’s Manual ενημέρωση: Οκτ 2020	400 KB	Οκτ 2020

Accessories

	Μέγεθος	Ανέβηκε
MTC-CS-Teth1 Press-In Grille Safety Tether ενημέρωση: Σεπ 2021	200 KB	Σεπ 2021
MTC-14WG/16WG High Humidity Grille ενημέρωση: Οκτ 2020	800 KB	Οκτ 2020

Speaker Tunings

	Έκδοση	Μέγεθος	Ανέβηκε
Commercial, CBT, and AWC Tunings 220616 έκδοση A, ενημέρωση: Μαϊ 2023	A	600 KB	Μαϊ 2023

Install Guides

	Μέγεθος	Ανέβηκε
Guide to Business Music ενημέρωση: Οκτ 2020	50 KB	Οκτ 2020
CC Ceiling Speakers: Myth versus Reality ενημέρωση: Οκτ 2020	20 KB	Οκτ 2020

	Μέγεθος	Ανέβηκε
LS Surface-Mt Model ενημέρωση: Οκτ 2020	80 KB	Οκτ 2020

	Μέγεθος	Ανέβηκε

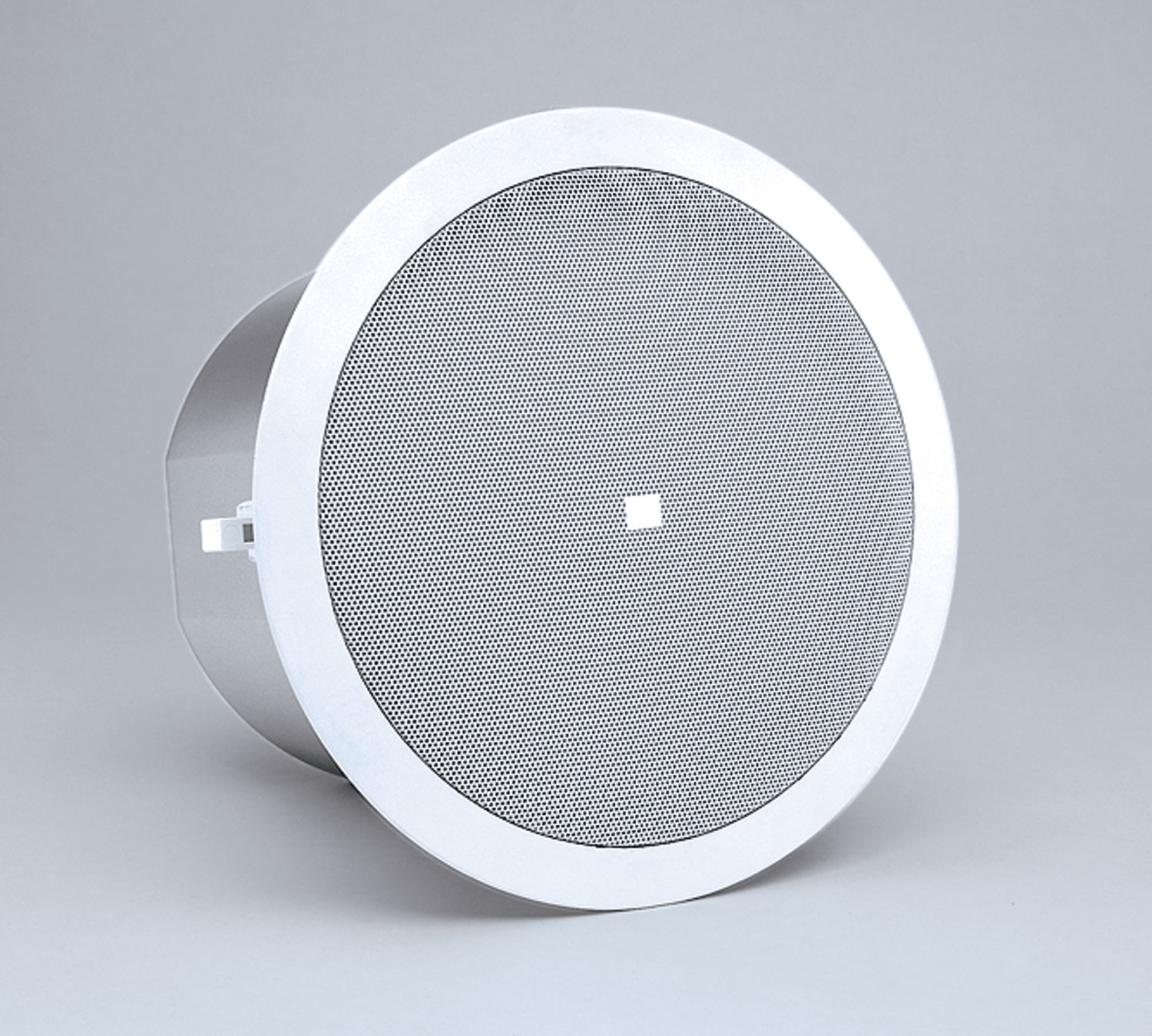

Control 26C Photo ενημέρωση: Οκτ 2020	300 KB	Οκτ 2020

	Μέγεθος	Ανέβηκε
C26CT-LS UL Life Safety Certificate ενημέρωση: Οκτ 2020	200 KB	Οκτ 2020

Frequency Range	80 Hz - 20 kHz
Power Rating	IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (300W peak), 100 hrs
Transformer Taps	60W, 30W, 15W (& 7.5W @ 70V)
Coverage Angle	110° conical
Directivity Index (DI)	4.6 averaged 500 Hz to 4 kHz
Maximum SPL (1m)	107 dB (top 70V/100V tap)
Drivers	LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (¾ in)
Input Connectors	Removable locking connector with screw-down terminals.
Outside Dimensions (H x Dia)	210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan
Net Weight (each)	4.2 kg (10 lb)
Shipping Weight (pair)	9.7 kg (21 lb)
Sensitivity	89 dB (100 Hz - 10 kHz)
Color	White
Safety Agency	UL1480 UUMW listed. Suitable for use in air handling spaces per UL1480, UEAY, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	formed steel (included "blind-mount")
Baffle/Rim	Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size	220 mm (8.75 in) diamter (cardboard cutout template included)
Included Accessories	C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector – Euroblock
Plenum Usage	Yes, backcan included
