JBL Professional Control 26CT-LS

Imagens maiores

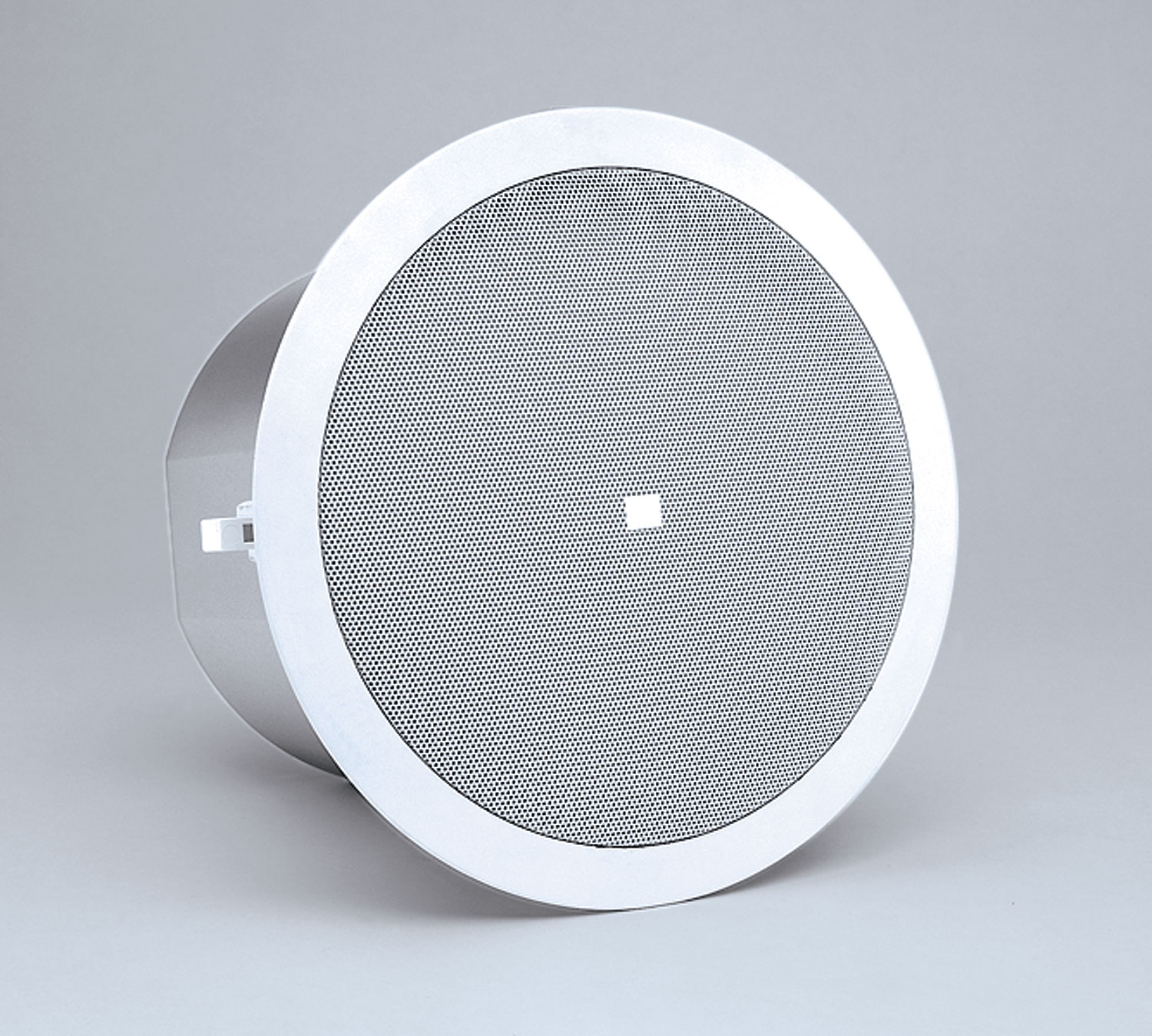

The Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.

UL1480 UUMW Listed for use in Fire Alarm and/or Emergency Communication Systems.
Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
High power, wide frequency response and low distortion for high sound level capability
Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking

Data Sheets

	Versão	Tamanho	Carregado
Control 26CT-LS Spec Sheet versão B, atualizado: mar 2020	B	600 KB	mar 2020

Manuals

	Versão	Tamanho	Carregado
MTC-TCD Thick-Ceiling Dogear atualizado: out 2019		40 KB	out 2019
Ceiling Speaker Accessory Guide versão A, atualizado: mai 2026	A	100 KB	mai 2026

Brochures

	Versão	Idioma	Tamanho	Carregado
Control Contractor Brochure (2025) versão A, atualizado: mar 2026	A		20 MB	mar 2026
Control Contractor Brochure (2026) atualizado: mar 2026			20 MB	mar 2026

CAD Drawings

	Tamanho	Carregado
Control Contractor Ceiling Speakers 3D Drawing atualizado: out 2020	3 MB	out 2020

Compliances

	Tamanho	Carregado
JBL Control Series Passive Speakers DoC atualizado: dez 2019	200 KB	dez 2019

Simulation Data

	Versão	Tamanho	Carregado
JBL Pro ALL CLF Files versão 12-10-21, atualizado: mai 2023	12-10-21	20 MB	mai 2023
Ease SPK/DLL Files - Full JBL Pro Line atualizado: mai 2024		20 MB	mai 2024

Owner's Manuals

	Tamanho	Carregado
Control Contractor Ceiling Owner’s Manual atualizado: out 2020	400 KB	out 2020

Accessories

	Tamanho	Carregado
MTC-CS-Teth1 Press-In Grille Safety Tether atualizado: set 2021	200 KB	set 2021
MTC-14WG/16WG High Humidity Grille atualizado: out 2020	800 KB	out 2020

Speaker Tunings

	Versão	Tamanho	Carregado
Commercial, CBT, and AWC Tunings 220616 versão A, atualizado: mai 2023	A	600 KB	mai 2023

Install Guides

	Tamanho	Carregado
Guide to Business Music atualizado: out 2020	50 KB	out 2020
CC Ceiling Speakers: Myth versus Reality atualizado: out 2020	20 KB	out 2020

	Tamanho	Carregado
LS Surface-Mt Model atualizado: out 2020	80 KB	out 2020

	Tamanho	Carregado
Control 26C Photo atualizado: out 2020	300 KB	out 2020

	Tamanho	Carregado
C26CT-LS UL Life Safety Certificate atualizado: out 2020	200 KB	out 2020

Frequency Range	80 Hz - 20 kHz
Power Rating	IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (300W peak), 100 hrs
Transformer Taps	60W, 30W, 15W (& 7.5W @ 70V)
Coverage Angle	110° conical
Directivity Index (DI)	4.6 averaged 500 Hz to 4 kHz
Maximum SPL (1m)	107 dB (top 70V/100V tap)
Drivers	LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (¾ in)
Input Connectors	Removable locking connector with screw-down terminals.
Outside Dimensions (H x Dia)	210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan
Net Weight (each)	4.2 kg (10 lb)
Shipping Weight (pair)	9.7 kg (21 lb)
Sensitivity	89 dB (100 Hz - 10 kHz)
Color	White
Safety Agency	UL1480 UUMW listed. Suitable for use in air handling spaces per UL1480, UEAY, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	formed steel (included "blind-mount")
Baffle/Rim	Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size	220 mm (8.75 in) diamter (cardboard cutout template included)
Included Accessories	C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector – Euroblock
Plenum Usage	Yes, backcan included
