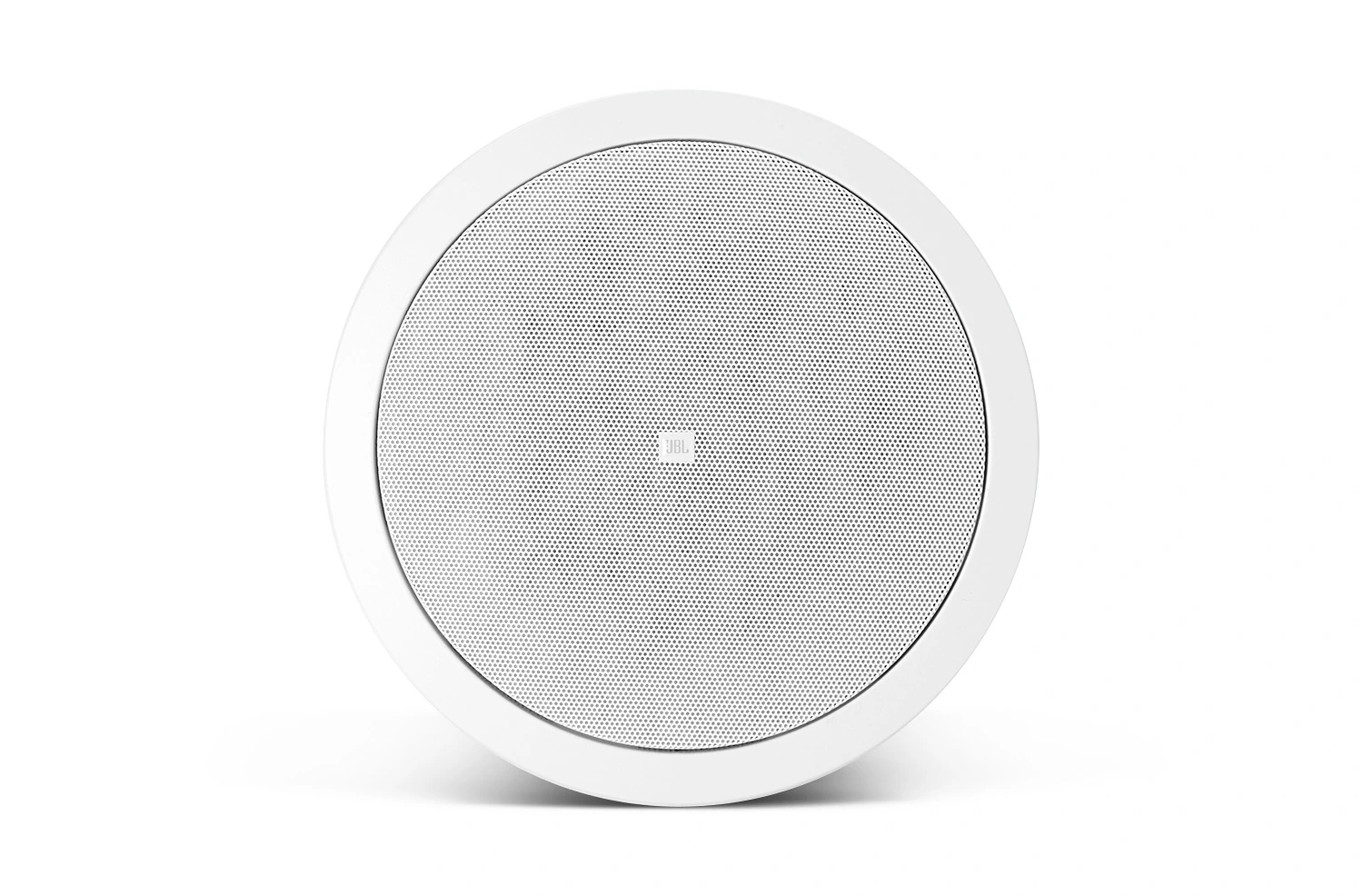

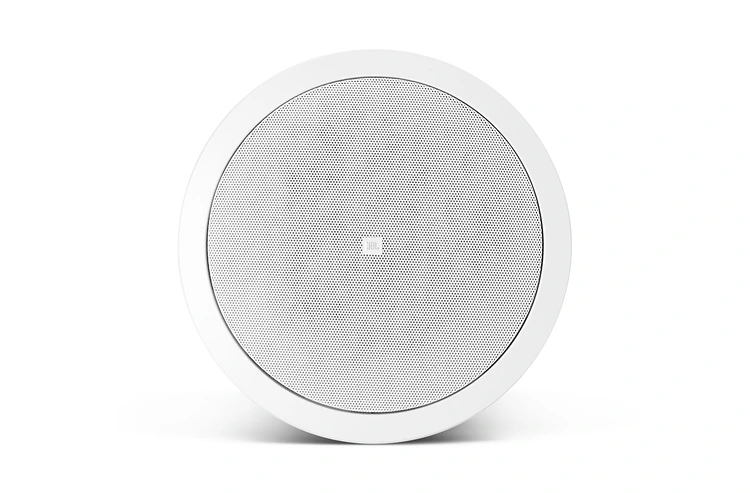

JBL Professional Control 26CT-LS

Gambar Lebih Besar

Control 26CT-LS adalah speaker plafon kompak yang memberikan performa premium dalam sistem suara musik latar atau depan.

UL1480 UUMW Listed untuk digunakan dalam Sistem Alarm Kebakaran dan/atau Komunikasi Darurat.
Woofer 165 mm (6,5 in) yang dipasang koaksial dengan surround karet butil dan tweeter bermuatan difraksi berlapis titanium 19 mm (¾ in)
Daya tinggi, respons frekuensi lebar dan distorsi rendah untuk kemampuan tingkat suara tinggi
Dikemas dengan grille, backcan dan rel ubin untuk instalasi cepat dan stocking dealer yang mudah

Data Sheets

	Versi	Ukuran	Diunggah
Control 26CT-LS Spec Sheet versi B, diperbarui: Mar 2020	B	566 KB	Mar 2020

Manuals

	Versi	Ukuran	Diunggah
MTC-TCD Thick-Ceiling Dogear diperbarui: Okt 2019		41,7 KB	Okt 2019
Ceiling Speaker Accessory Guide versi A, diperbarui: Mei 2026	A	127 KB	Mei 2026

Brochures

	Versi	Bahasa	Ukuran	Diunggah
Control Contractor Brochure (2025) versi A, diperbarui: Mar 2026	A		23 MB	Mar 2026
Control Contractor Brochure (2026) diperbarui: Mar 2026			21 MB	Mar 2026

CAD Drawings

	Ukuran	Diunggah
Control Contractor Ceiling Speakers 3D Drawing diperbarui: Okt 2020	3,42 MB	Okt 2020

Compliances

	Ukuran	Diunggah
JBL Control Series Passive Speakers DoC diperbarui: Des 2019	179 KB	Des 2019

Simulation Data

	Versi	Ukuran	Diunggah
JBL Pro ALL CLF Files versi 12-10-21, diperbarui: Mei 2023	12-10-21	24 MB	Mei 2023
Ease SPK/DLL Files - Full JBL Pro Line diperbarui: Mei 2024		21 MB	Mei 2024

Owner's Manuals

	Ukuran	Diunggah
Control Contractor Ceiling Owner’s Manual diperbarui: Okt 2020	386 KB	Okt 2020

Accessories

	Ukuran	Diunggah
MTC-CS-Teth1 Press-In Grille Safety Tether diperbarui: Sep 2021	204 KB	Sep 2021
MTC-14WG/16WG High Humidity Grille diperbarui: Okt 2020	762 KB	Okt 2020

Speaker Tunings

	Versi	Ukuran	Diunggah
Commercial, CBT, and AWC Tunings 220616 versi A, diperbarui: Mei 2023	A	557 KB	Mei 2023

Install Guides

	Ukuran	Diunggah
Guide to Business Music diperbarui: Okt 2020	52,4 KB	Okt 2020
CC Ceiling Speakers: Myth versus Reality diperbarui: Okt 2020	23,9 KB	Okt 2020

	Ukuran	Diunggah
LS Surface-Mt Model diperbarui: Okt 2020	75 KB	Okt 2020

	Ukuran	Diunggah

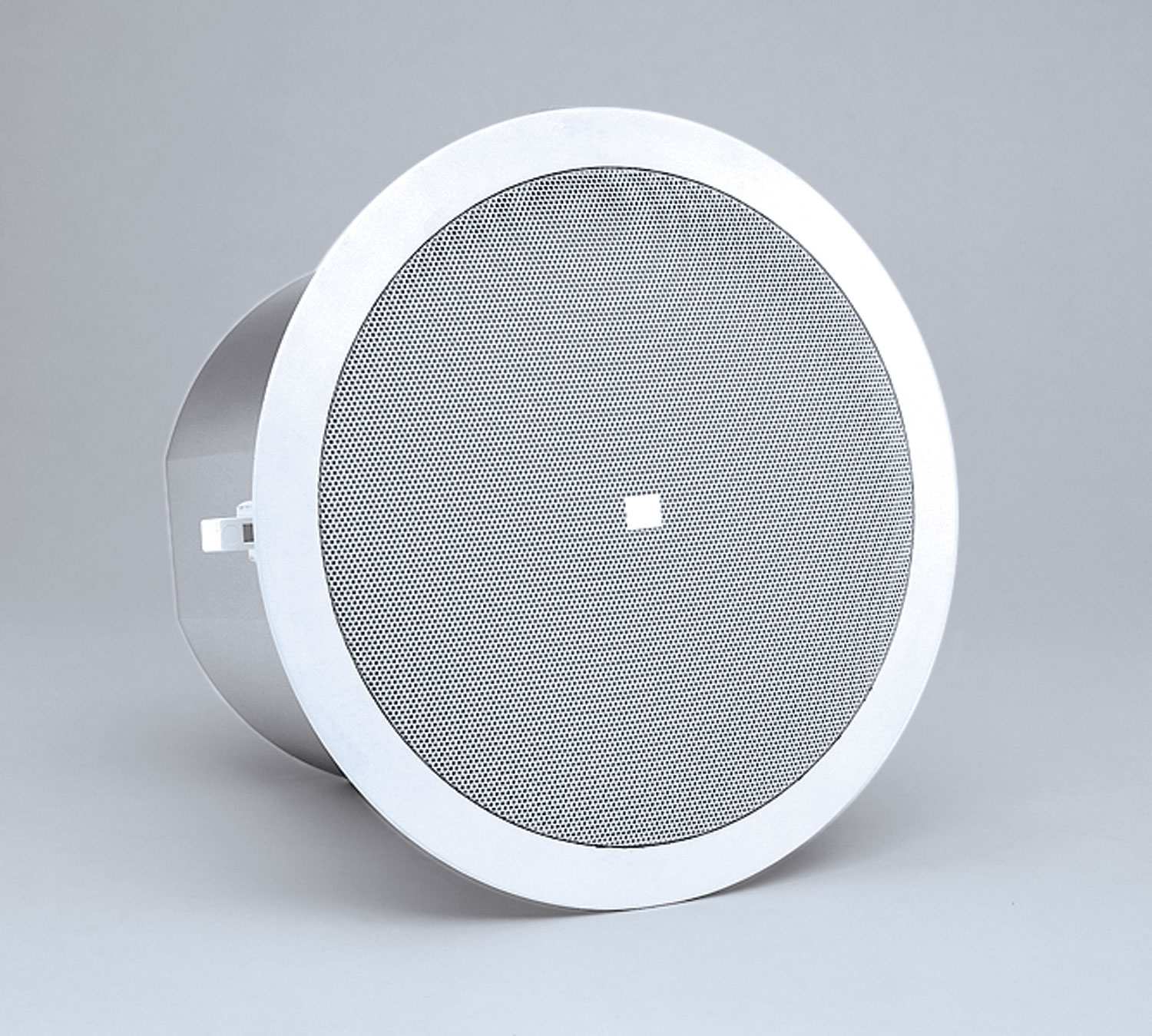

Control 26C Photo diperbarui: Okt 2020	312 KB	Okt 2020

	Ukuran	Diunggah
C26CT-LS UL Life Safety Certificate diperbarui: Okt 2020	189 KB	Okt 2020

Frequency Range	80 Hz - 20 kHz
Power Rating	IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (300W peak), 100 hrs
Transformer Taps	60W, 30W, 15W (& 7.5W @ 70V)
Coverage Angle	110° conical
Directivity Index (DI)	4.6 averaged 500 Hz to 4 kHz
Maximum SPL (1m)	107 dB (top 70V/100V tap)
Drivers	LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (¾ in)
Input Connectors	Removable locking connector with screw-down terminals.
Outside Dimensions (H x Dia)	210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan
Net Weight (each)	4.2 kg (10 lb)
Shipping Weight (pair)	9.7 kg (21 lb)
Sensitivity	89 dB (100 Hz - 10 kHz)
Color	White
Safety Agency	UL1480 UUMW listed. Suitable for use in air handling spaces per UL1480, UEAY, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	formed steel (included "blind-mount")
Baffle/Rim	Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size	220 mm (8.75 in) diamter (cardboard cutout template included)
Included Accessories	C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector – Euroblock
Plenum Usage	Yes, backcan included
