مجموعة السماعة الحائطية للتطبيقات الأمنية والحماية من الحرائق

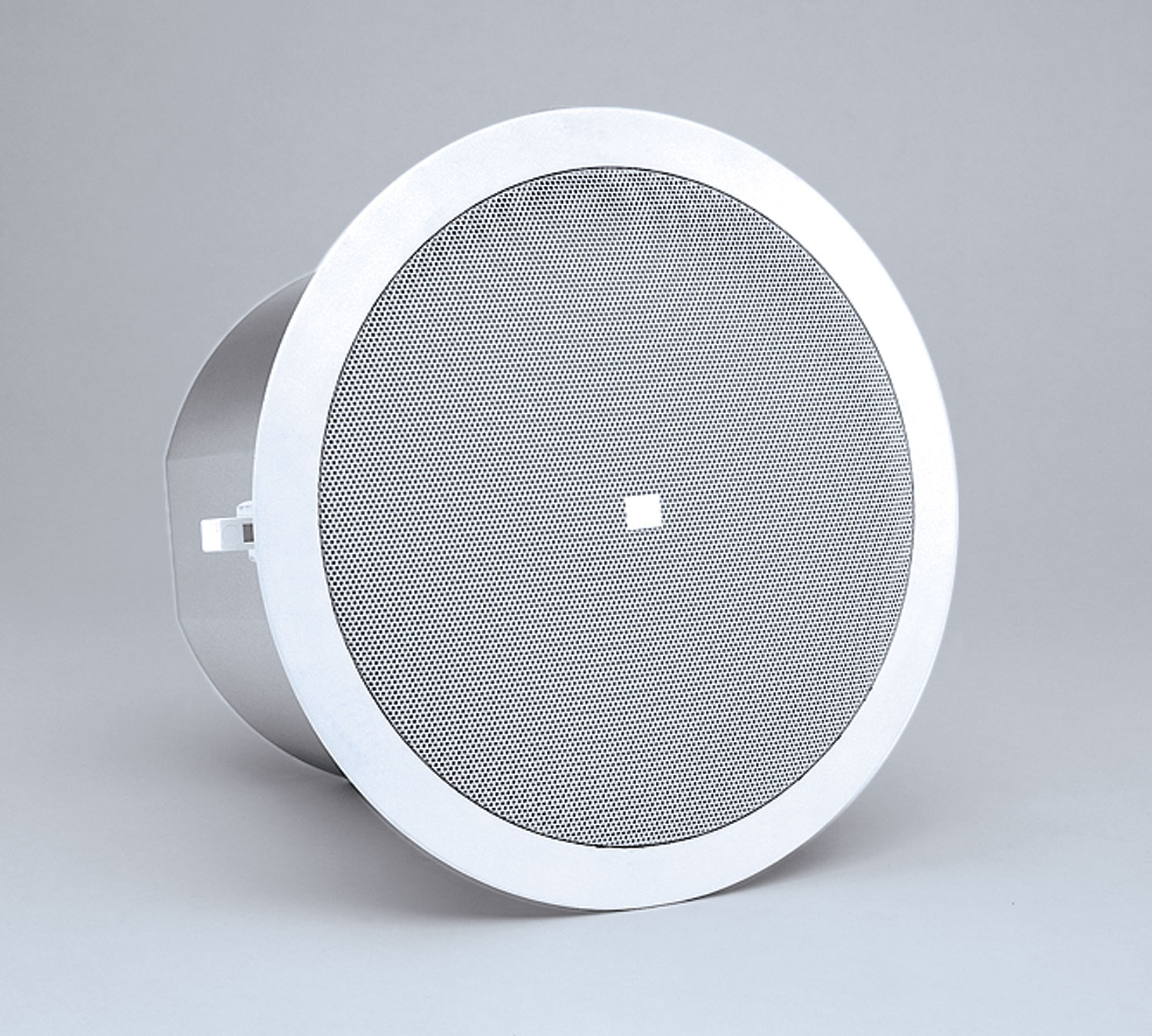

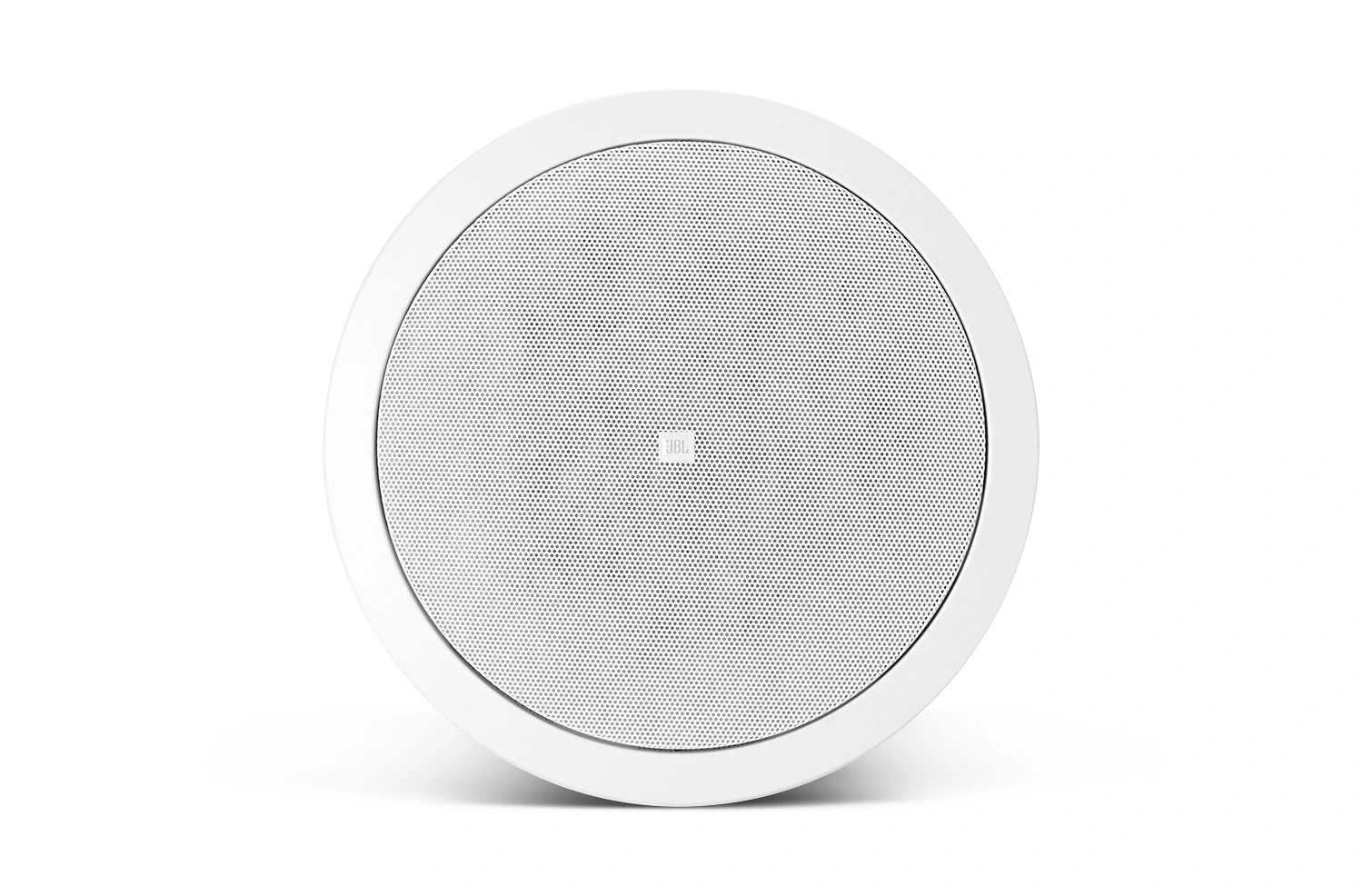

يوفر مكبر الصوت الحائطي Control 26CT-LS أداءً متميزًا في أنظمة الموسيقى الخلفية أو الأمامية.
صور أكبر
الميزات
- UL1480 UUMW Listed for use in Fire Alarm and/or Emergency Communication Systems.
- Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
- High power, wide frequency response and low distortion for high sound level capability
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
التنزيلات
Data Sheets
| الحجم | |
|
|
566 KB |
Manuals
| الحجم | |
|
|
41.7 KB |
|
|
127 KB |
Brochures
| الحجم | |
|
|
23 MB |
|
|
21 MB |
الإصدار A,
تم التحديث: مارس 2026
CAD Drawings
| الحجم | |
|
|
3.42 MB |
Compliances
| الحجم | |
|
|
179 KB |
Simulation Data
| الحجم | |
|
|
24 MB |
|
|
21 MB |
Owner's Manuals
| الحجم | |
|
|
386 KB |
Accessories
| الحجم | |
|
|
204 KB |
|
|
762 KB |
Speaker Tunings
| الحجم | |
|
|
557 KB |
Install Guides
| الحجم | |
|
|
52.4 KB |
|
|
23.9 KB |
Related Products
| الحجم | |
|
|
75 KB |
Images
| الحجم | |
|
|
312 KB |
Safety Sheets
| الحجم | |
|
|
189 KB |
إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.
القطع والخدمة
المواصفات
| Frequency Range | 80 Hz - 20 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (300W peak), 100 hrs |
| Transformer Taps | 60W, 30W, 15W (& 7.5W @ 70V) |
| Coverage Angle | 110° conical |
| Directivity Index (DI) | 4.6 averaged 500 Hz to 4 kHz |
| Maximum SPL (1m) | 107 dB (top 70V/100V tap) |
| Drivers | LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (¾ in) |
| Input Connectors | Removable locking connector with screw-down terminals. |
| Outside Dimensions (H x Dia) | 210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan |
| Net Weight (each) | 4.2 kg (10 lb) |
| Shipping Weight (pair) | 9.7 kg (21 lb) |
| Sensitivity | 89 dB (100 Hz - 10 kHz) |
| Color | White |
| Safety Agency | UL1480 UUMW listed. Suitable for use in air handling spaces per UL1480, UEAY, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | Medium impact polystyrene, fire rated UL94V-0 |
| Ceiling Cutout Size | 220 mm (8.75 in) diamter (cardboard cutout template included) |
| Included Accessories | C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector – Euroblock |
| Plenum Usage | Yes, backcan included |
