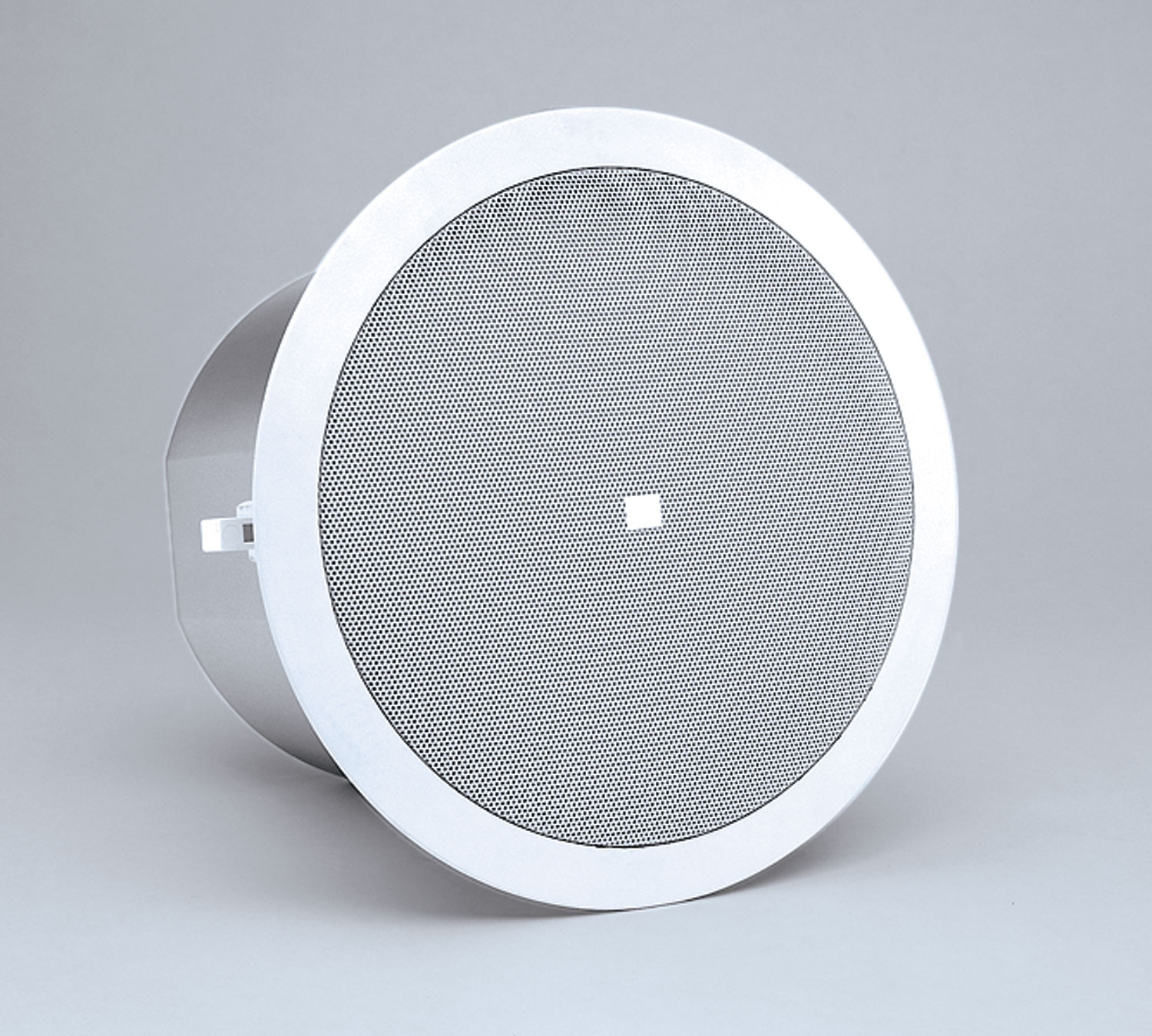

Control 26CT-LS

Ceiling Loudspeaker Assembly for Life Safety Applications

Control 26CT-LS
较大的图像

Ceiling Loudspeaker Assembly for Life Safety Applications

The Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.

特点

  • UL1480 UUMW Listed for use in Fire Alarm and/or Emergency Communication Systems.
  • Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
  • High power, wide frequency response and low distortion for high sound level capability
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking

下载

  Version Language Size Uploaded
Data Sheets
file type icon Control 26CT-LS Spec Sheet
version B, updated: 3月 2020
  566.4 KB 3月 2020
Manuals
file type icon MTC-TCD Thick-Ceiling Dogear
updated: 10月 2019
    41.7 KB 10月 2019
file type icon Ceiling Speaker Accessory Guide
updated: 10月 2019
    126.9 KB 10月 2019
CAD Drawings
file type icon Control Contractor Ceiling Speakers 3D Drawing
updated: 10月 2020
    3.4 MB 10月 2020
Compliances
file type icon JBL Control Series Passive Speakers DoC
updated: 12月 2019
    179.3 KB 12月 2019
Owner's Manuals
file type icon Control Contractor Ceiling Owner’s Manual
updated: 10月 2020
    385.8 KB 10月 2020
Simulation Data
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: 5月 2023
12-10-21    24.0 MB 5月 2023
Accessories
file type icon MTC-CS-Teth1 Press-In Grille Safety Tether
updated: 9月 2021
    203.7 KB 9月 2021
file type icon MTC-14WG/16WG High Humidity Grille
updated: 10月 2020
    761.6 KB 10月 2020
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: 5月 2023
  557.0 KB 5月 2023
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
    21.0 MB 3月 2022
Install Guides
file type icon Guide to Business Music
updated: 10月 2020
    52.4 KB 10月 2020
file type icon CC Ceiling Speakers: Myth versus Reality
updated: 10月 2020
    23.9 KB 10月 2020
Related Products
file type icon LS Surface-Mt Model
updated: 10月 2020
    75.0 KB 10月 2020
Images
file type icon Control 26C Photo
updated: 10月 2020
    312.2 KB 10月 2020
Safety Sheets
file type icon C26CT-LS UL Life Safety Certificate
updated: 10月 2020
    189.3 KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 80 Hz - 20 kHz
额定功率 IEC System Long-Term Ratings (low-Z direct):
150 Watts Continuous Program Power
75 Watts Continuous Pink Noise (300W peak), 100 hrs
变压器抽头 60W, 30W, 15W (& 7.5W @ 70V)
覆盖角度 110° conical
Directivity Index (DI) 4.6 averaged 500 Hz to 4 kHz
Maximum SPL (1m) 107 dB (top 70V/100V tap)
Drivers LF Driver: 165 mm (6.5 in)
HF Driver: 19 mm (¾ in)
输入接口 Removable locking connector with screw-down terminals.
Outside Dimensions (H x Dia) 210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan
Net Weight (each) 4.2 kg (10 lb)
Shipping Weight (pair) 9.7 kg (21 lb)

灵敏度

89 dB (100 Hz - 10 kHz)
颜色 White
Safety Agency UL1480 UUMW listed. Suitable for use in air handling spaces per UL1480, UEAY, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size 220 mm (8.75 in) diamter (cardboard cutout template included)

随附配件

C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector – Euroblock
Plenum Usage Yes, backcan included
