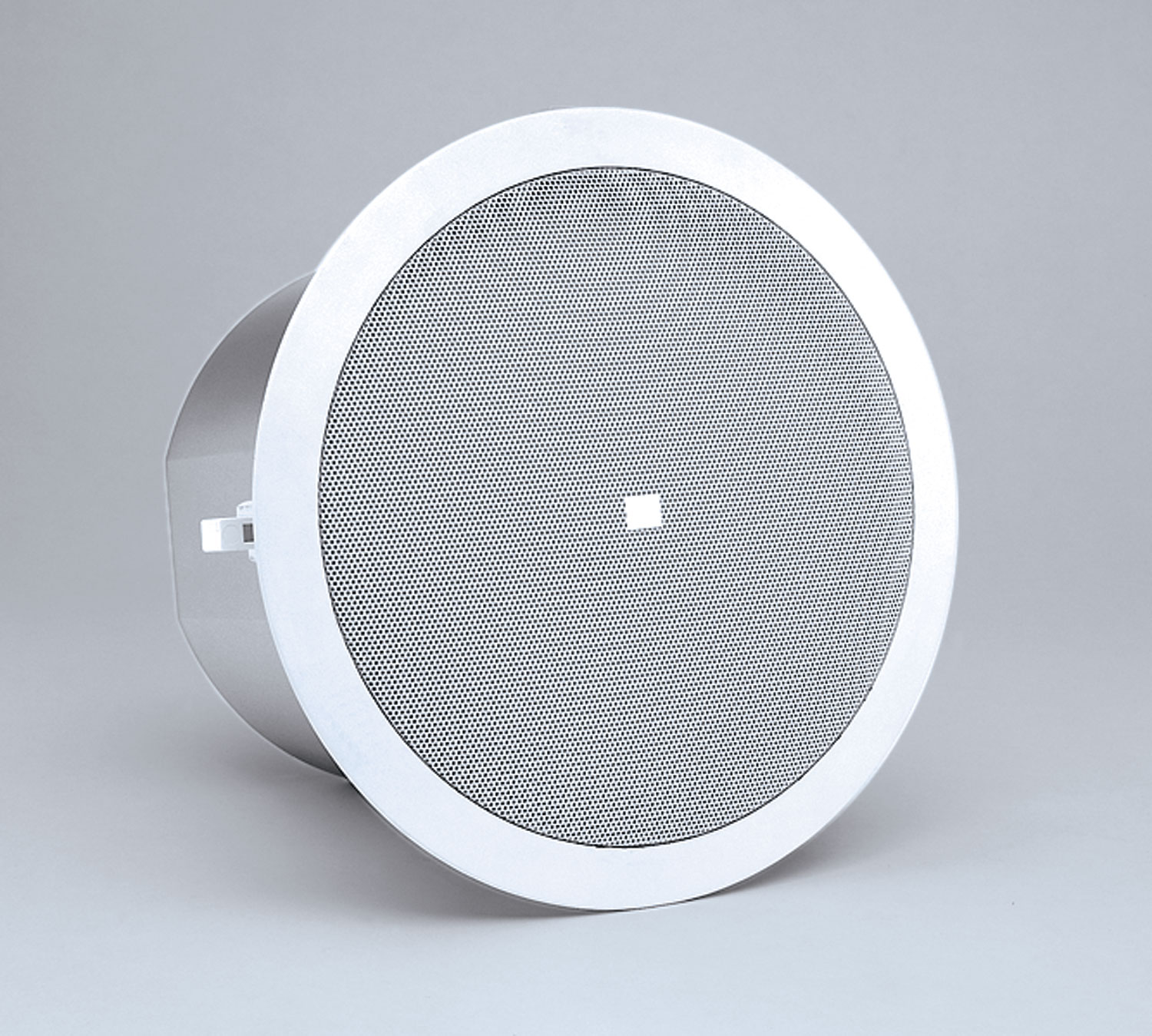

JBL Professional Control 26CT-LS

Større billeder

The Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.

UL1480 UUMW Listed for use in Fire Alarm and/or Emergency Communication Systems.
Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
High power, wide frequency response and low distortion for high sound level capability
Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking

Data Sheets

	Version	Størrelse	Uploadet
Control 26CT-LS Spec Sheet version B, opdateret: mar 2020	B	566 kB	mar 2020

Manuals

	Version	Størrelse	Uploadet
MTC-TCD Thick-Ceiling Dogear opdateret: okt 2019		41,7 kB	okt 2019
Ceiling Speaker Accessory Guide version A, opdateret: maj 2026	A	127 kB	maj 2026

Brochures

	Version	Sprog	Størrelse	Uploadet
Control Contractor Brochure (2025) version A, opdateret: mar 2026	A		23 MB	mar 2026
Control Contractor Brochure (2026) opdateret: mar 2026			21 MB	mar 2026

CAD Drawings

	Størrelse	Uploadet
Control Contractor Ceiling Speakers 3D Drawing opdateret: okt 2020	3,42 MB	okt 2020

Compliances

	Størrelse	Uploadet
JBL Control Series Passive Speakers DoC opdateret: dec 2019	179 kB	dec 2019

Simulation Data

	Version	Størrelse	Uploadet
JBL Pro ALL CLF Files version 12-10-21, opdateret: maj 2023	12-10-21	24 MB	maj 2023
Ease SPK/DLL Files - Full JBL Pro Line opdateret: maj 2024		21 MB	maj 2024

Owner's Manuals

	Størrelse	Uploadet
Control Contractor Ceiling Owner’s Manual opdateret: okt 2020	386 kB	okt 2020

Accessories

	Størrelse	Uploadet
MTC-CS-Teth1 Press-In Grille Safety Tether opdateret: sep 2021	204 kB	sep 2021
MTC-14WG/16WG High Humidity Grille opdateret: okt 2020	762 kB	okt 2020

Speaker Tunings

	Version	Størrelse	Uploadet
Commercial, CBT, and AWC Tunings 220616 version A, opdateret: maj 2023	A	557 kB	maj 2023

Install Guides

	Størrelse	Uploadet
Guide to Business Music opdateret: okt 2020	52,4 kB	okt 2020
CC Ceiling Speakers: Myth versus Reality opdateret: okt 2020	23,9 kB	okt 2020

	Størrelse	Uploadet
LS Surface-Mt Model opdateret: okt 2020	75 kB	okt 2020

	Størrelse	Uploadet
Control 26C Photo opdateret: okt 2020	312 kB	okt 2020

	Størrelse	Uploadet
C26CT-LS UL Life Safety Certificate opdateret: okt 2020	189 kB	okt 2020

Frequency Range	80 Hz - 20 kHz
Power Rating	IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (300W peak), 100 hrs
Transformer Taps	60W, 30W, 15W (& 7.5W @ 70V)
Coverage Angle	110° conical
Directivity Index (DI)	4.6 averaged 500 Hz to 4 kHz
Maximum SPL (1m)	107 dB (top 70V/100V tap)
Drivers	LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (¾ in)
Input Connectors	Removable locking connector with screw-down terminals.
Outside Dimensions (H x Dia)	210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan
Net Weight (each)	4.2 kg (10 lb)
Shipping Weight (pair)	9.7 kg (21 lb)
Sensitivity	89 dB (100 Hz - 10 kHz)
Color	White
Safety Agency	UL1480 UUMW listed. Suitable for use in air handling spaces per UL1480, UEAY, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	formed steel (included "blind-mount")
Baffle/Rim	Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size	220 mm (8.75 in) diamter (cardboard cutout template included)
Included Accessories	C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector – Euroblock
Plenum Usage	Yes, backcan included
